Bosch GCO 14-2
Bosch GCO 14-2 cutoff saw: exploded parts diagram, 3 sheets, 135 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

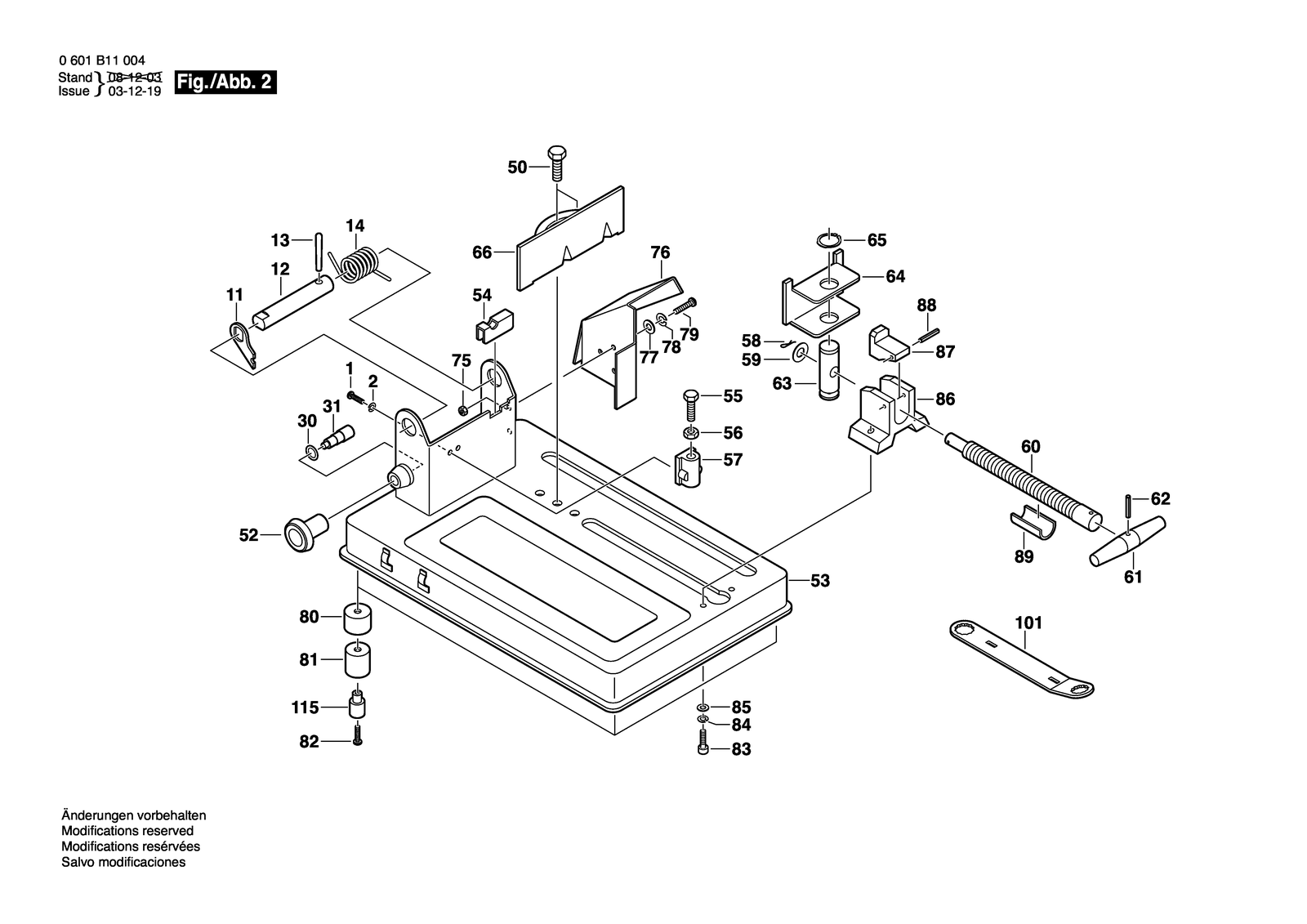

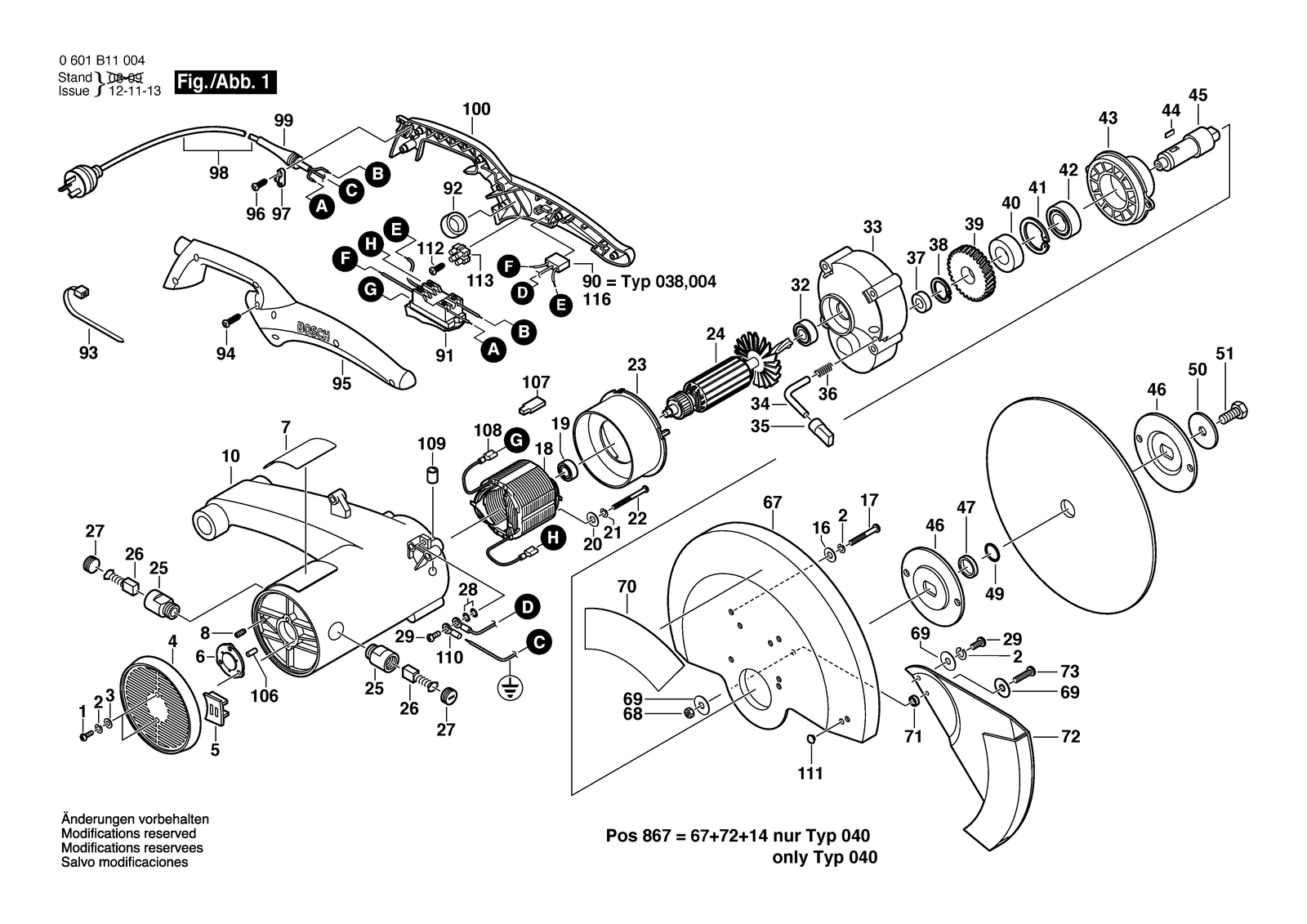

All parts of Bosch GCO 14-2: 135 positions on 3 sheets
Bosch GCO 14-2 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203E42 | Screw |
| 10 | 1609902414 | Motor Housing |
| 100 | 1609203F40 | Handle |
| 101 | 1609203F41 | Handle |
| 106 | 1609203G33 | Rubber Plug |
| 107 | 1609203G34 | Shrinkable Tube |
| 108 | 1609203G35 | Connecting terminal |
| 109 | 1609203G36 | Protection Sleeve |
| 11 | 1609203E52 | Locking Lever |
| 110 | 1609203G37 | Connecting terminal |
| 111 | 1609203G38 | Rubber Plug |
| 112 | 1609203G39 | Screw |
| 113 | 1609203G40 | Terminal-Parts Set |
| 115 | 1609902294 | Spacer |
| 116 | 1609203F30 | Suppression Filter |
| 116 | 1609902326 | Suppression Filter |
| 116 | 1609902327 | Suppression Filter |
| 12 | 1609203E53 | Guiding bolt |
| 13 | 1609203E54 | Taper Pin |
| 14 | 1609203E55 | Torsion Spring |
| 16 | 1609203E57 | Plain Washer |
| 17 | 1609203E58 | Screw |
| 18 | 1609203F47 | Stator 100-115V |
| 18 | 1609902404 | Stator |
| 19 | 1609203E60 | Ball Bearing |
| 2 | 1609203E43 | Spring Washer |
| 20 | 1609203E61 | Plain Washer |
| 21 | 1609203E62 | Spring Washer |
| 22 | 1609203E63 | Screw |
| 23 | 1609203E64 | Air-Deflector Ring |
| 24 | 1609902411 | Rotor |
| 24 | 1609902533 | Rotor |
| 25 | 1609203E66 | Carbon Brush Holder |
| 26 | 1609902320 | Carbon-Brush Set |
| 26 | 1609902321 | Carbon-Brush Set |
| 27 | 1609203E68 | Brush-Cover |
| 28 | 1609203E69 | Toothed lock washer |
| 29 | 1609203E70 | Screw |
| 3 | 1609203E44 | Plain Washer |
| 30 | 1609203E71 | O-Ring 4,8X1,8 MM |
| 31 | 1609203E72 | Locking Bolt |
| 32 | 1609203E73 | Ball Bearing |
| 33 | 1609203E74 | Gear Housing |
| 34 | 1609203E75 | Locking Pin |
| 35 | 1609203E76 | Handle |
| 36 | 1609203E77 | Spring |
| 37 | 1609203E78 | Plain bearing |
| 38 | 1609203E79 | Spring retaining ring |
| 39 | 1609902181 | Toothed Gear |
| 4 | 1609203E45 | Housing Cover |
| 40 | 1609203E81 | Spacer Tube |
| 41 | 1609203E82 | Spring retaining ring |
| 42 | 1609203E83 | Ball Bearing |
| 43 | 1609203E84 | Bearing cover |
| 44 | 1609203E85 | Parallel Key |
| 45 | 1609902183 | Grinding Spindle |
| 46 | 1609203E87 | Clamping Flange |
| 47 | 1609203E88 | Sleeve |
| 49 | 1609902193 | O-Ring |
| 5 | 1609203E46 | Cover |
| 50 | 1609203E91 | Plain Washer |
| 51 | 1609203E92 | Hex Screw |
| 52 | 1609203E93 | Locking Bolt |
| 53 | 1609902419 | Base Plate |
| 54 | 1609203E95 | Spring Holder |
| 55 | 1609203E96 | Hex Screw |
| 56 | 1609203E97 | Hex Nut |
| 57 | 1609203E98 | Holding Fixture |
| 58 | 1609203E99 | Split Pin |
| 59 | 1609203F00 | Plain Washer |
| 6 | 1609203E47 | Bearing cover |
| 60 | 1609203F01 | Clamp Screw |
| 61 | 1609203F02 | Handle |
| 62 | 1609203F03 | Straight Pin |
| 63 | 1609203F04 | Bolt |
| 64 | 1609203F05 | Clamping jaws |
| 65 | 1609203F06 | Spring retaining ring |
| 66 | 1609203F43 | Stop Bracket |
| 67 | 1609203F07 | Protective Cover |
| 68 | 1609203F08 | Hex Nut |
| 69 | 1609203F09 | Plain Washer |
| 7 | 1609203E48 | Nameplate |
| 7 | 1609203F44 | Nameplate |
| 7 | 1609203F46 | Nameplate |
| 7 | 1609203F51 | Nameplate |
| 7 | 1609203F53 | Nameplate |
| 7 | 1609203F55 | Nameplate |
| 7 | 1609203F57 | Nameplate |
| 7 | 1609203F59 | Nameplate |
| 7 | 1609203F61 | Nameplate |
| 7 | 1609203F64 | Nameplate |
| 7 | 1609203F66 | Nameplate |
| 7 | 1609203F68 | Nameplate |
| 70 | 1609203F10 | Reference Plate |
| 71 | 1609203F11 | Cover |
| 72 | 1609203F12 | Flap Guard |
| 73 | 1609203F13 | Screw |
| 75 | 1609203F15 | Hex Nut |
| 76 | 1609203F16 | Bumper |
| 77 | 1609203F17 | Plain Washer |
| 78 | 1609203F18 | Spring Washer |
| 79 | 1609203F19 | Screw |
| 8 | 1609902179 | Screw |
| 80 | 1609203F20 | Spacer Bolt |
| 81 | 1609902187 | Rubber Buffer |
| 82 | 1609902188 | Screw |
| 83 | 1609203F23 | Screw |
| 84 | 1609203F24 | Spring Washer |
| 85 | 1609203F25 | Plain Washer |
| 86 | 1609203F26 | Supporting Block |
| 867 | 1619P03289 | Protective Cover |
| 87 | 1609203F27 | Catch Lever |
| 88 | 1609203F28 | Bolt |
| 89 | 1609203F29 | Swing-Plate |
| 91 | 1609203F31 | On-Off Switch |
| 91 | 1609203F49 | On-Off Switch |
| 91 | 1609203F62 | On-Off Switch |
| 92 | 1609203F32 | Inductor |
| 93 | 1609203F33 | Tape |
| 94 | 1609203F34 | Screw |
| 95 | 1609203F35 | Handle |
| 96 | 1609203F36 | Screw |
| 97 | 1609203F37 | Fastening Clamp |
| 98 | 1609203F38 | Power supply cord |
| 98 | 1609203F50 | Power supply cord |
| 98 | 1609203F52 | Power supply cord |
| 98 | 1609203F58 | Power supply cord |
| 98 | 1609203F63 | Power supply cord |
| 98 | 1609203F67 | Power supply cord |
| 98 | 1609203F69 | Power supply cord |
| 98 | 1609902290 | Power supply cord |
| 98 | 1609902291 | Power supply cord |
| 98 | 1609902292 | Power supply cord |
| 98 | 1609902293 | Power supply cord |
| 99 | 1609203F39 | Cord guard |
