Bosch GCO 14-1

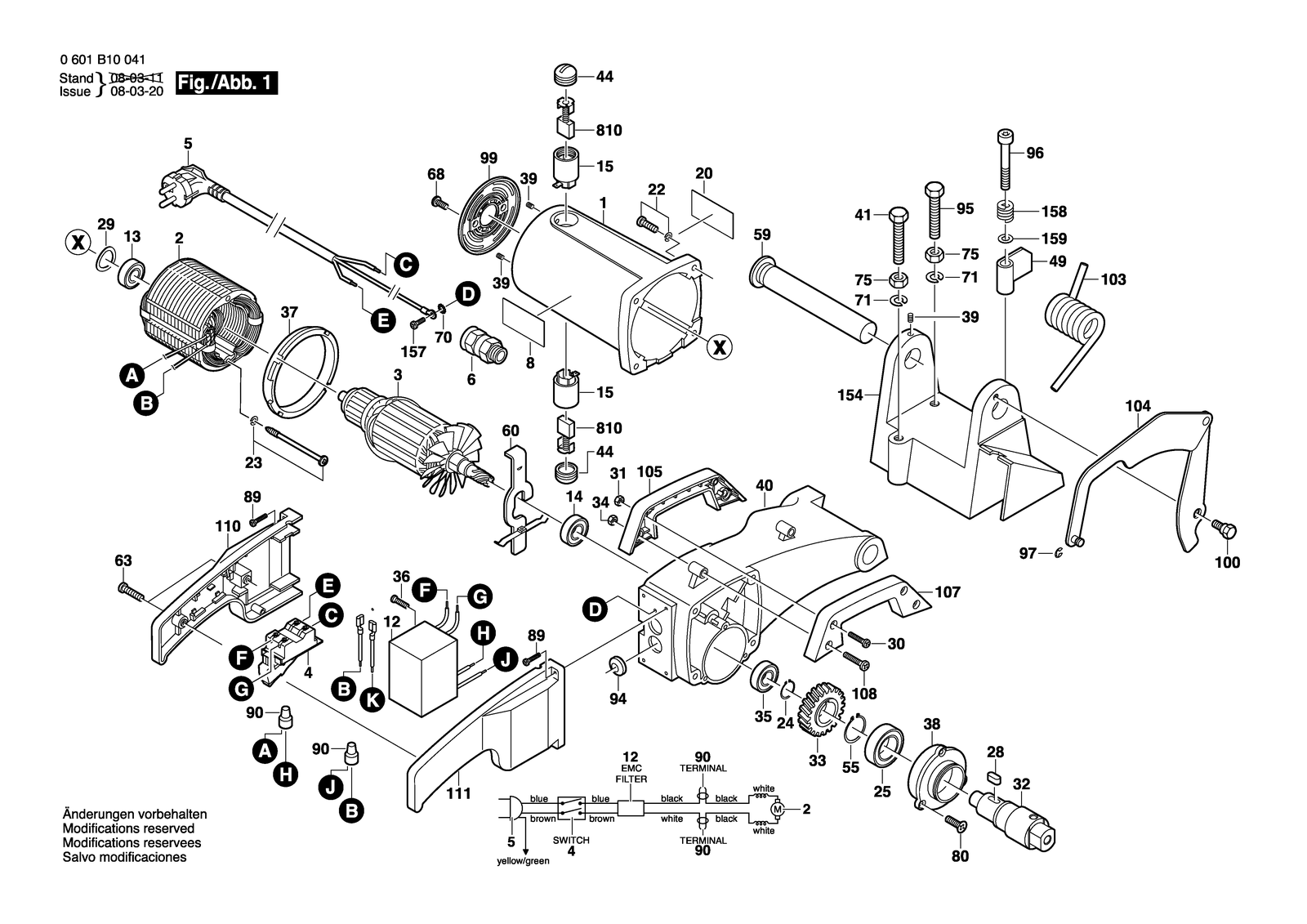

Bosch GCO 14-1 cutoff saw: exploded parts diagram, 2 sheets, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCO 14-1: 94 positions on 2 sheets
Bosch GCO 14-1 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610913038 | Motor Housing |
| 100 | 2610913113 | Hex Screw |
| 101 | 2610913051 | Flange |
| 103 | 2610913111 | Spring |
| 104 | 2610913071 | Lever |
| 105 | 2610913074 | Handle Cover |
| 106 | 2610913103 | Threaded Fitting |
| 107 | 2610913075 | Handle Cover |
| 108 | 2610358928 | Screw |
| 110 | 1619P04447 | Handle Cover |
| 111 | 1619P04448 | Handle Cover |
| 112 | 2610913105 | Threaded Spindle |
| 114 | 2610913067 | Clamping Jaw |
| 12 | 1619P04445 | Inductor |
| 120 | 1619P03792 | Spindle Bearing |
| 123 | 1619P03790 | Clamping Jaw |
| 13 | 2610913087 | Ball Bearing |
| 130 | 2610913072 | Supporting foot |
| 132 | 2610913054 | Protective Cover |
| 14 | 2610968044 | Ball Bearing |
| 15 | 2610913039 | Carbon Brush |
| 154 | 2610913070 | Bearing Block |
| 155 | 1609203H36 | Support clamp |
| 157 | 1609203H37 | Screw |
| 158 | 1609902168 | Spring |
| 159 | 1609902169 | Plain Washer |
| 2 | 1609203G28 | Stator |
| 20 | 1609902653 | Nameplate |
| 22 | 2610913086 | Screw |
| 23 | 2610913088 | Screw |
| 24 | 2610913091 | Spring retaining ring |
| 25 | 2610913093 | Ball Bearing |
| 26 | 2610913049 | Spring |
| 27 | 2610913096 | Plain Washer |
| 28 | 2610355343 | Key |
| 29 | 2615302981 | Plain Washer |
| 3 | 1609203G29 | Rotor |
| 30 | 2610913089 | Screw |
| 31 | 2610913090 | Hex Nut |
| 32 | 2610913048 | Grinding Spindle |
| 33 | 2610913046 | Toothed Gear |
| 34 | 2610355339 | Nut |
| 35 | 2610327848 | Ball Bearing |
| 36 | 1609902698 | Screw |
| 37 | 2610913042 | Air-Deflector Ring |
| 38 | 2610913047 | Bearing cover |
| 39 | 2610911456 | Screw |
| 4 | 1609203G30 | On-Off Switch |
| 40 | 2610913045 | Swivel Arm |
| 41 | 2610913108 | Screw |
| 42 | 2610913063 | Handle |
| 43 | 2610913114 | Screw |
| 44 | 2610913041 | Brush-Cover |
| 47 | 2610913095 | Spring retaining ring |
| 49 | 2610913069 | Bumper |
| 5 | 1609902376 | Power supply cord |
| 50 | 2610913073 | Base Plate |
| 55 | 2610913092 | Spring retaining ring |
| 56 | 1619P03791 | Bolt |
| 57 | 2610913104 | Spring retaining ring |
| 58 | 2610913061 | Slotted Spring Pin |
| 59 | 2610913068 | Bolt |
| 6 | 2610913043 | Fastening Clamp |
| 60 | 2610913044 | Rejection Slide |
| 62 | 1619P03288 | Screw 22 MM |
| 63 | 2610913101 | Screw |
| 64 | 2610355293 | Screw |
| 65 | 2610913115 | Screw |
| 652 | 2610913079 | Key |
| 68 | 2615296774 | Screw |
| 70 | 1609203F78 | Locking washer |
| 71 | 2610355264 | Plain Washer |
| 72 | 2610913097 | Hex Screw |
| 73 | 2610913106 | Plain Washer |
| 74 | 2610913102 | Hex Screw |
| 75 | 2610905937 | Hex Nut |
| 76 | 2610913107 | Plain Washer |
| 8 | 1609902662 | Nameplate |
| 80 | 2610913094 | Screw |
| 810 | 1619P04451 | Carbon-Brush Set |
| 85 | 2610913055 | Protective Cover |
| 86 | 2610913098 | Screw |
| 87 | 2610913099 | Plain Washer |
| 88 | 2610910784 | Screw |
| 89 | 2610327867 | Screw |
| 9 | 2610994083 | Manufacturer's nameplate |
| 90 | 1609203G03 | Connecting terminal |
| 92 | 2610355290 | Retaining snap ring |
| 94 | 1609203G04 | Grommet |
| 95 | 2610913109 | Hex Screw |
| 96 | 2610913110 | Hex Screw |
| 97 | 2610913112 | Spring retaining ring |
| 98 | 2610913050 | Protective Cover |
| 99 | 2610913037 | Cover Plate |
