Bosch GCN 45-15

Bosch GCN 45-15 tool: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCN 45-15: 58 positions on 1 sheet

Bosch GCN 45-15 parts list (1 sheet)

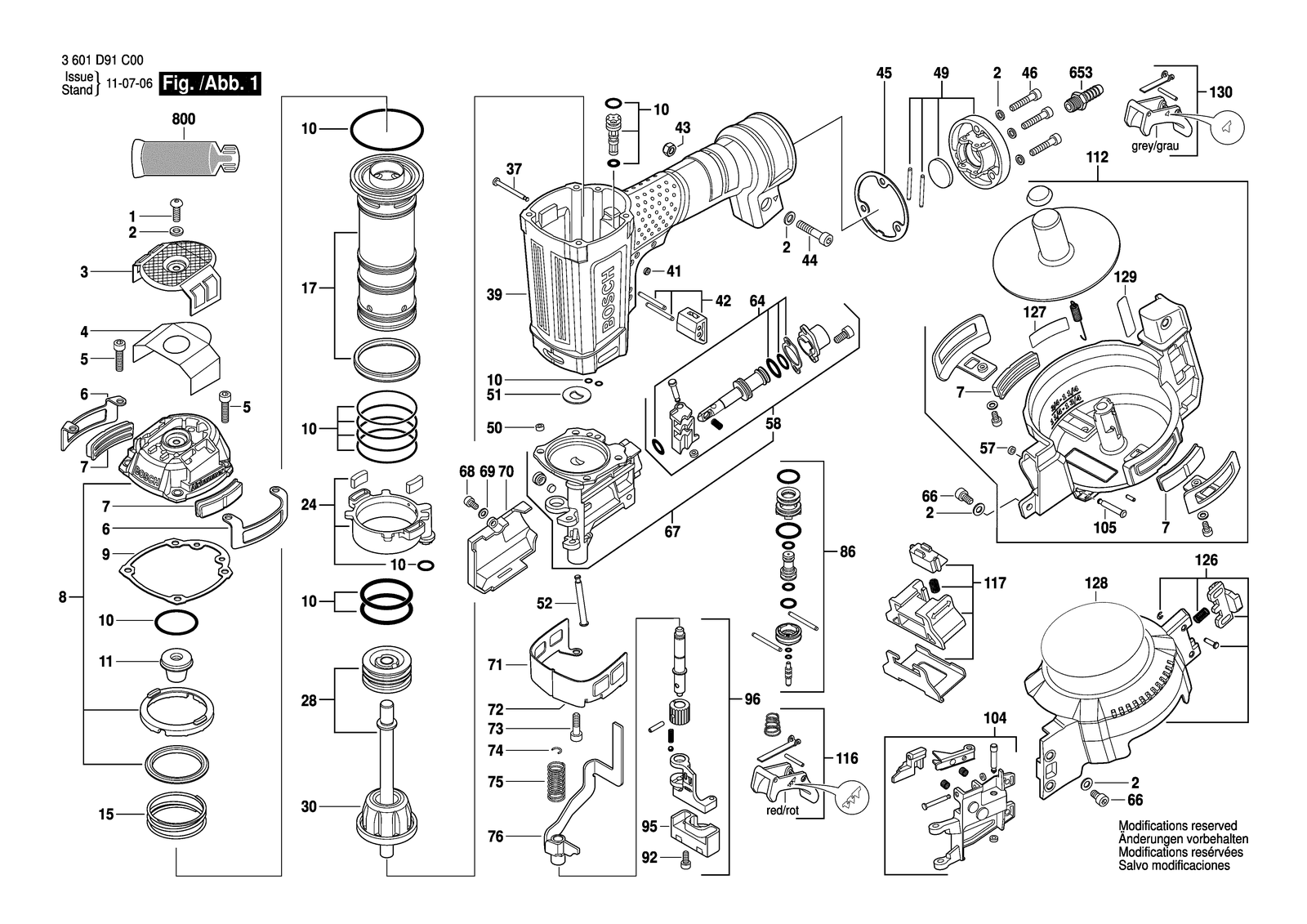

Bosch GCN 45-15 parts diagram, sheet 1
No.Part numberPart name
12610001664Screw
102610006306O-Ring
1042610006332Cover
1052610006333Pin
112610006307Shock Absorber
1122610006334Nail cartridge
1162610006335Triggering Rod
1172610006336Slider
1262610006337Nail cartridge
1272610015521Nameplate
1282610005263Warning Label
1292610005264Shuttle Valve
1302610006338Triggering Rod
152610006308Coil Spring
172610006309Piston Cylinder
22610001665Washer
242610006310Cylinder Support
282610006311Piston
32610006300Cover Plate
302610006312Shock Absorber
372610005337Pin
392610006313Housing
42610006301Mat seal
412610005338O-Ring
422610001687Guide Block
432610005245Lock Nut
442610006314Screw
452610005326Mat seal
462610006315Screw
492610005327End cap
52610005311Screw
502610006316End cap
512610006317Lead-Seal Plate
522610006318Pin
572610006319O-Ring
582610006320Feed
62610006302Protector
642610013695Gasket
6531600A00079Fitting
662610006321Screw
672610006322Nose
682610005335Screw
692610005300Washer
72610006303Pad
702610006323Cover
712610006324Cover
722610006325Cover
732610006326Screw
742610001684Spring Clip
752610006327Coil Spring
762610006328Safety Lever
82610006304Cylinder Cover
8002610005257Grease
862610001706Trigger
92610006305Mat seal
922610006329Screw
952610006330Block
962610006331Safety Lever
