Bosch GCM18V-10SD
Bosch GCM18V-10SD compound mitre saw: exploded parts diagram, 5 sheets, 160 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

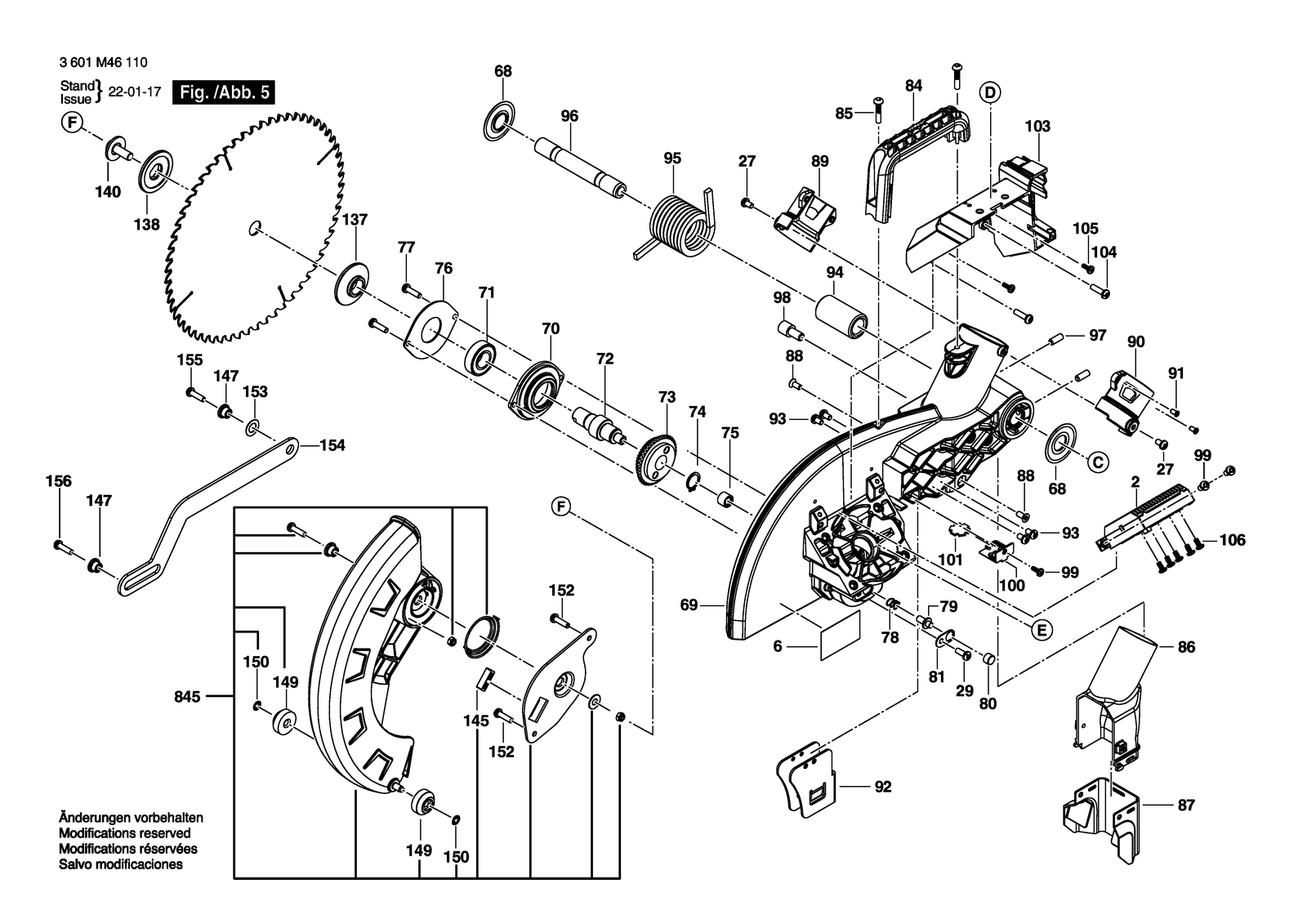

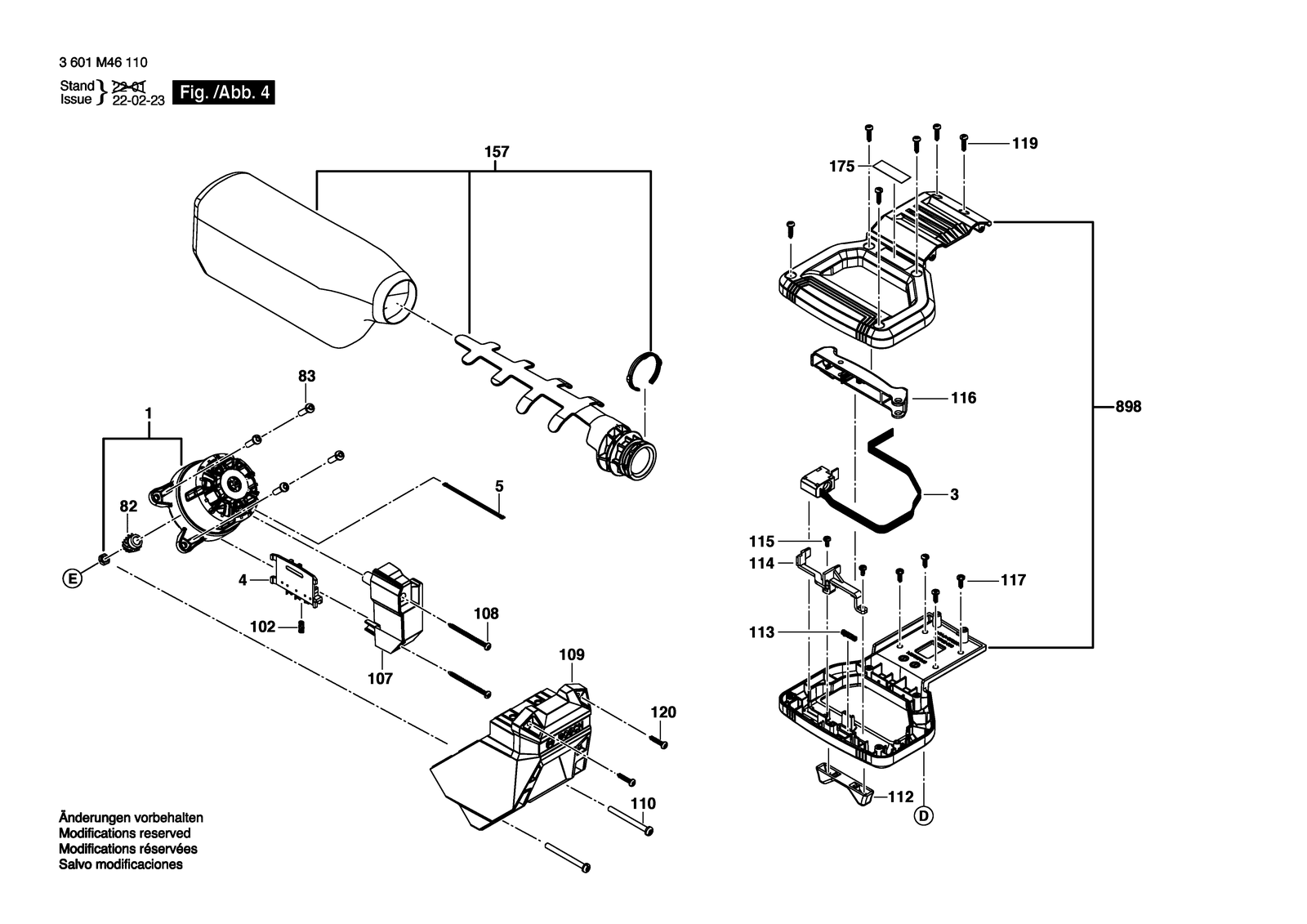

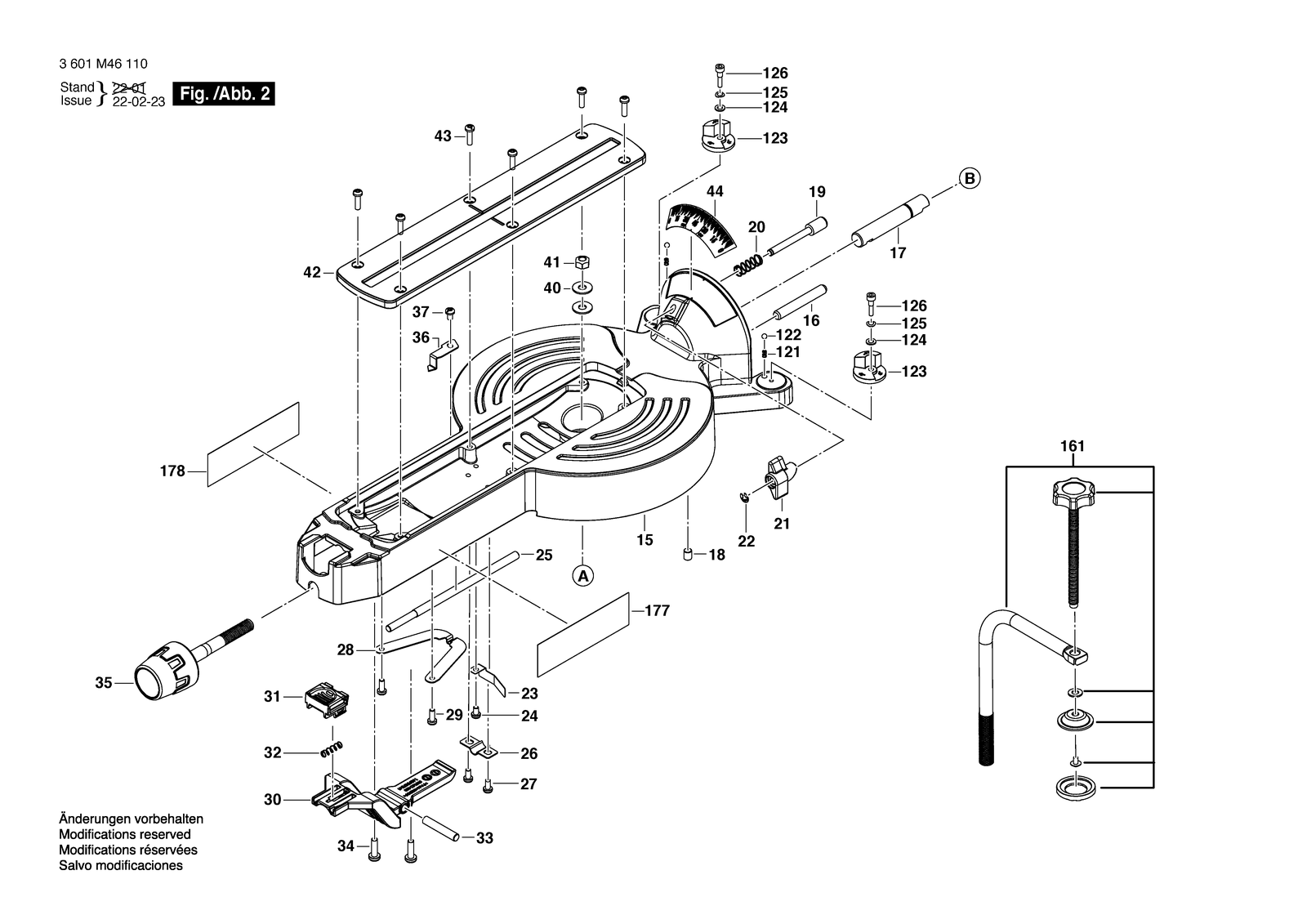

All parts of Bosch GCM18V-10SD: 160 positions on 5 sheets
Bosch GCM18V-10SD parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160702269C | Brushless DC motor |
| 10 | 1609B07142 | Screw |
| 100 | 1609B07357 | Lens |
| 101 | 1609B07358 | LED-Module |
| 102 | 1609B07248 | Spring Clip |
| 103 | 1609B07359 | Housing Cover |
| 104 | 1609B07300 | Screw |
| 105 | 1609B07301 | Screw |
| 106 | 1609B07249 | Screw |
| 107 | 1609B07360 | Battery Holder |
| 108 | 1609B07223 | Tapping Screw |
| 109 | 1609B07361 | Housing Cover |
| 11 | 1609B07145 | Grommet |
| 110 | 1609B07362 | Tapping Screw |
| 112 | 1609B07251 | Button |
| 113 | 1609B07252 | Spring Clip |
| 114 | 1609B07253 | Support bracket |
| 115 | 1609B07254 | Screw |
| 116 | 1609B07255 | Trigger |
| 117 | 1609B07364 | Tapping Screw |
| 119 | 1609B07257 | Tapping Screw |
| 12 | 1609B07146 | Wrench Socket |
| 120 | 1609B07366 | Screw |
| 121 | 1609B07281 | Spring Clip |
| 122 | 1609B07282 | Ball |
| 123 | 1609B07283 | Detent |
| 124 | 1609B07284 | Plain Washer |
| 125 | 1609B07285 | Wave spring |
| 126 | 1609B07286 | Tapping Screw |
| 127 | 1609B07287 | Pointer |
| 128 | 1609B07288 | Pointer |
| 129 | 1609B07370 | Mitre Fence |
| 13 | 1609B07335 | Extension Stand |
| 130 | 1609B07371 | Mitre Fence |
| 131 | 1609B07292 | Plain Washer |
| 132 | 2610013365 | Spring Washer |
| 133 | 1609B07295 | Tapping Screw |
| 134 | 1609B07372 | Mitre Fence |
| 135 | 1609B07373 | Mitre Fence |
| 136 | 1609B07298 | Knob |
| 137 | 1609B07374 | Flange |
| 138 | 1609B07375 | Flange |
| 14 | 1609B07144 | Screw |
| 140 | 1609B07305 | Flange Bolt |
| 145 | 1609B07310 | Rubber Pad |
| 147 | 1609B07312 | Bushing |
| 149 | 1609B07315 | Wheel |
| 15 | 1609B07336 | Saw Table |
| 150 | 1609B07316 | Retaining ring |
| 152 | 1609B07317 | Screw |
| 153 | 1609B07319 | Wave spring |
| 154 | 1609B07378 | Linkage |
| 155 | 1609B07321 | Screw |
| 156 | 1609B07322 | Screw |
| 157 | 1609B07323 | Dust Bag |
| 16 | 1609B07337 | Threaded Rod |
| 161 | 1609B07324 | Clamp |
| 169 | 1609B07325 | Warning Label |
| 17 | 1609B07338 | Shaft |
| 170 | 1609B07326 | Warning Label |
| 171 | 1609B07475 | Warning Label |
| 172 | 1609B07476 | Warning Label |
| 173 | 1609B07477 | Warning Label |
| 174 | 1609B07478 | Warning Label |
| 175 | 1609B07484 | Warning Label |
| 176 | 1609B07479 | Warning Label |
| 177 | 1609B07482 | Warning Label |
| 178 | 1609B07483 | Warning Label |
| 18 | 1609B07149 | Set screw |
| 19 | 1609B07150 | Detent Pin |
| 2 | 16072335NF | Electronics Module |
| 20 | 1609B07151 | Spring Clip |
| 21 | 1609B07152 | Knob |
| 22 | 2610015053 | Spring retaining ring |
| 23 | 1609B07154 | Plate |
| 24 | 1609B07155 | Screw |
| 25 | 1609B07339 | Sliding Rod |
| 26 | 2610916807 | Guide Plate |
| 27 | 1609B07269 | Screw |
| 28 | 1609B07340 | Compression Spring |
| 29 | 1609B07166 | Screw |
| 3 | 2607202554 | Switch |
| 30 | 1609B07341 | Locking Lever |
| 31 | 1609B07164 | Push-Button |
| 32 | 1609B07165 | Spring Clip |
| 33 | 1609B07342 | Pivot Pin |
| 34 | 1609B07175 | Screw |
| 35 | 1609B07343 | Locking Bar |
| 36 | 1609B07344 | Pointer |
| 37 | 1609B07169 | Screw |
| 38 | 1609B07238 | Pad |
| 39 | 1609B07171 | Bolt |
| 4 | 1600A026SD | Battery Holder |
| 40 | 1609B07172 | Plain Washer |
| 41 | 1609B07173 | Nut |
| 42 | 1609B07183 | Support Plate |
| 43 | 1609B07160 | Screw |
| 44 | 1609B07176 | Scale |
| 45 | 1609B07345 | Yoke |
| 46 | 1609B07178 | Rail |
| 47 | 1609B07179 | Rail |
| 48 | 1609B07346 | Post |
| 49 | 1609B07181 | Bearing |
| 5 | 160440001Y | Ribbon cable |
| 50 | 1609B07182 | Mounting Plate |
| 51 | 1609B07184 | Set screw |
| 52 | 1609B07185 | Shoulder Screw |
| 53 | 1609B07186 | Nut |
| 54 | 1609B07198 | Hinge |
| 55 | 2610950110 | Profile Rail |
| 56 | 1609B07200 | Set screw |
| 57 | 2610911584 | Rubber Pad |
| 58 | 1609B07202 | Knob |
| 59 | 2610911582 | Spring |
| 6 | 1609B07379 | Nameplate |
| 60 | 2610912587 | Plain Washer |
| 61 | 1609B07302 | Plain Washer |
| 62 | 1609B07196 | Wave spring |
| 63 | 2610910791 | Nut |
| 64 | 1609B07289 | Handle Bar |
| 65 | 1609B07208 | Detent Pin |
| 66 | 1609B07209 | O-Ring |
| 67 | 1609B07210 | Retaining ring |
| 68 | 1609B07211 | Wear Plate |
| 69 | 1609B07349 | Safety Guard |
| 7 | 1609B07333 | Base |
| 70 | 1609B07350 | Flange |
| 71 | 1609B07220 | Ball Bearing |
| 72 | 1609B07351 | Pinion Shaft |
| 73 | 1609B07352 | Gear |
| 74 | 1609B07353 | Retaining ring |
| 75 | 1609B07233 | Needle bearing |
| 76 | 1609B07354 | Retaining Plate |
| 77 | 1609B07217 | Screw |
| 78 | 1609B07228 | Spring Clip |
| 79 | 1609B07355 | Pin |
| 8 | 1609B07334 | Scale |
| 80 | 1609B07241 | Button |
| 81 | 1609B07229 | Clamp |
| 82 | 1609B07356 | Gear |
| 83 | 1609B07243 | Screw |
| 84 | 1609B07367 | Carrying Handle |
| 845 | 1607000EG5 | Lower guard |
| 85 | 1609B07263 | Screw |
| 86 | 1609B07368 | Dust Extraction |
| 87 | 1609B07265 | Dust Extraction |
| 88 | 1609B07266 | Screw |
| 89 | 1609B07267 | Dust Extraction |
| 898 | 1607000EG8 | Switch Handle |
| 9 | 1609B07141 | Screw |
| 90 | 1609B07268 | Dust Extraction |
| 91 | 1609B07270 | Rivet |
| 92 | 1609B07318 | Dust Extraction |
| 93 | 1609B07369 | Tapping Screw |
| 94 | 1609B07276 | Spacer |
| 95 | 1609B07258 | Torsion Spring |
| 96 | 1609B07278 | Pivot Pin |
| 97 | 2610921466 | Screw |
| 98 | 1609B07280 | Screw |
| 99 | 1609B07158 | Screw |
