Bosch GCM 8 SJL
Bosch GCM 8 SJL slide mitre saw: exploded parts diagram, 6 sheets, 216 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

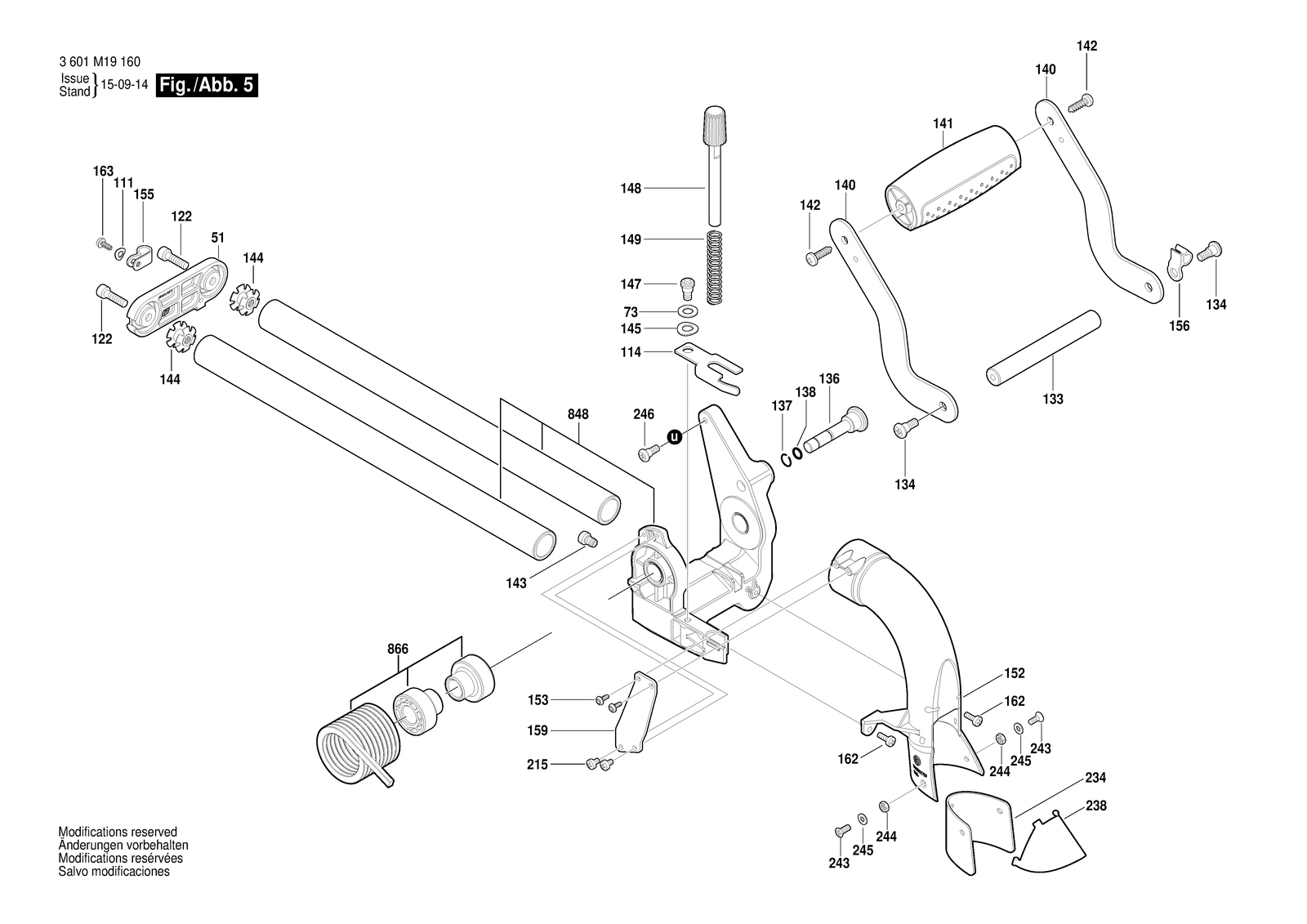

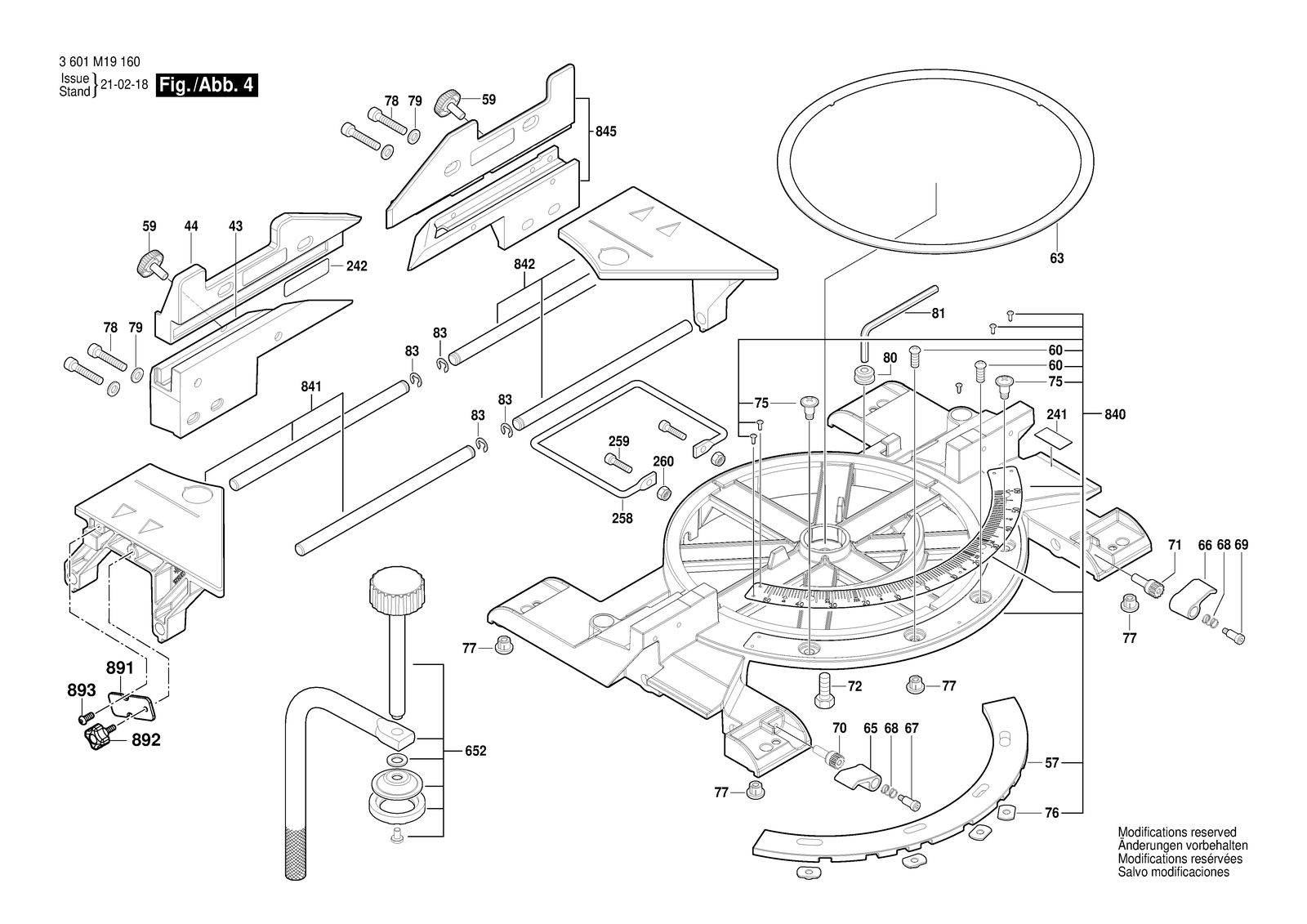

All parts of Bosch GCM 8 SJL: 216 positions on 6 sheets
Bosch GCM 8 SJL parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609B04181 | Motor Housing Blue |
| 100 | 1609B01949 | Nut |
| 101 | 1609B01462 | Shoulder Screw |
| 102 | 1609B01463 | Shoulder Screw |
| 103 | 1609B01464 | Sliding Block |
| 104 | 1609B01479 | Compression Spring |
| 105 | 1609BP7143 | Set screw |
| 106 | 1609B01388 | Screw |
| 107 | 1609B03760 | Detent |
| 108 | 1609B03733 | Control Lever |
| 109 | 1609B03734 | Shaft |
| 110 | 1609B03737 | Detent |
| 111 | 1609B01668 | Washer |
| 112 | 1609B00675 | Washer |
| 113 | 1609B03738 | Locking element |
| 114 | 1609B03739 | Stop Plate |
| 115 | 1609B05370 | Leaf Spring |
| 116 | 1609B03741 | Lock Plate |
| 117 | 1609B03742 | Adjusting bolt |
| 118 | 1609B01457 | Wear Plate |
| 119 | 1609B03758 | Pointer |
| 122 | 1609B03749 | Hex Socket Head Cap Screw |
| 123 | 1609BP7343 | Contact strap |
| 124 | 1609B03755 | Knob |
| 125 | 1609B03772 | Scale Plate |
| 126 | 1609B03763 | Felt Washer |
| 127 | 1609B03770 | Friction Plate |
| 128 | 1609B00370 | Shaft |
| 129 | 1609B00690 | Retaining ring |
| 130 | 1609B03773 | Friction Plate |
| 131 | 1609B01041 | Hex Nut |
| 132 | 1609B03776 | Stop bolt |
| 133 | 1609B03771 | Pivot Pin |
| 134 | 1609B03779 | Shoulder Screw |
| 136 | 1609B03767 | Detent Pin |
| 137 | 1609B03757 | Clip |
| 138 | 1609B00601 | O-Ring |
| 14 | 1619P06374 | Bearing Cover Plate |
| 140 | 1609B03745 | Handle Plate |
| 141 | 1609B03747 | Carrying Handle |
| 142 | 1609B03768 | Tapping Screw |
| 143 | 1609B03753 | Slide Stop |
| 144 | 1609B03752 | Special Nut |
| 145 | 1609B00660 | Spring Washer |
| 147 | 1609B00351 | Shoulder Screw |
| 148 | 1609B00382 | Knob Red |
| 149 | 1609B00417 | Compression Spring |
| 150 | 1609B03765 | Retaining Plate |
| 151 | 1609B03766 | Retaining Plate |
| 152 | 1609B03750 | Dust Extraction |
| 153 | 1609B03777 | Set screw |
| 154 | 1609B03751 | Dust Extraction |
| 155 | 1609B01512 | Cable Clip |
| 156 | 1609B00339 | Cable Clip |
| 158 | 1609B03782 | Vacuum Hose |
| 159 | 1609B03783 | Support bracket |
| 16 | 1619P06212 | Brush Holder |
| 162 | 1609B00623 | Screw |
| 163 | 1609B01168 | Thread-Forming Screw |
| 164 | 1609B01690 | Screw |
| 167 | 1609B01602 | Wear Plate |
| 168 | 1609B04188 | Lower guard |
| 169 | 1609B04001 | Linkage |
| 170 | 1609B04002 | Cover |
| 171 | 1609B04004 | Spring |
| 172 | 1609BP7145 | Screw |
| 174 | 1609B01255 | Ball Bearing |
| 175 | 1609B04010 | Tapping Screw |
| 177 | 1609B05231 | Tapping Screw |
| 178 | 1609B00974 | Lock Nut |
| 179 | 1609BP7134 | Tapping Screw |
| 180 | 1609B04248 | Seal |
| 182 | 1609B04205 | Set screw |
| 184 | 1609B04207 | Nut |
| 185 | 1609BP7068 | Spring retaining ring |
| 186 | 1609BP7050 | Washer |
| 187 | 1609B03774 | Ball Bearing |
| 188 | 1609B03780 | Spacer |
| 189 | 1600200029 | Plain bearing |
| 19 | 1619P03833 | Screw Eco-Syn ST 3,5X16 |
| 190 | 1609B04017 | Deflector |
| 191 | 1609B04028 | Deflector |
| 192 | 1609B04018 | Clamping Flange |
| 192 | 1609B05230 | Clamping Flange |
| 193 | 1609B06289 | Clamping Flange |
| 194 | 1609BP7061 | Flange Bolt |
| 195 | 1609B04020 | Wheel |
| 196 | 1609B00458 | Quick-Lock |
| 197 | 1609B04029 | Trigger |
| 198 | 1609B04021 | Locking Bar |
| 199 | 1609B04022 | Compression Spring |
| 20 | 1609B02127 | Warning Label |
| 200 | 1609B00637 | Tapping Screw |
| 201 | 1609B00973 | Screw |
| 202 | 1609B00627 | Screw |
| 214 | 1609B00583 | Shrinkable Tube |
| 215 | 1609B01561 | Screw |
| 22 | 1609B04117 | Screw |
| 225 | 1609B04077 | Cover |
| 229 | 1609B04115 | Printed Circuit Board |
| 23 | 1619P00291 | Ball Blue |
| 230 | 1609B04219 | Cover Plate |
| 231 | 1609B04210 | Wire |
| 232 | 1609B05392 | Switch |
| 233 | 1609B05214 | Soft Start-Up Module |
| 234 | 1609B03791 | Rubber lip |
| 235 | 1609B03792 | Rubber lip |
| 236 | 1609B04220 | Rubber Strip |
| 238 | 1609B04222 | Rubber Strip |
| 239 | 1609B00813 | Ring |
| 24 | 1609B04008 | End cap |
| 240 | 1609BP7059 | Connection Block |
| 241 | 1609B04111 | Warning Label |
| 242 | 1609B04112 | Warning Label |
| 243 | 1609B00633 | Screw |
| 244 | 1609B00691 | Nut |
| 245 | 1609B04225 | Plain Washer |
| 246 | 1609B05201 | Shoulder Screw |
| 247 | 1609B04228 | O-Ring |
| 248 | 1609B01538 | Cable Tape |
| 25 | 1609B00921 | Special Screw |
| 252 | 1609B05298 | Cover |
| 257 | 1609B05270 | Screw |
| 258 | 1609B05236 | Clamping Bar |
| 259 | 1609B05268 | Screw |
| 260 | 1609B01949 | Nut |
| 261 | 1609B01665 | Screw |
| 262 | 1609B04744 | Shoulder Screw |
| 27 | 1609B05346 | Right Angle Plug |
| 28 | 1619P01642 | Compression Spring |
| 29 | 1609B04070 | Cap |
| 30 | 1609B04071 | Sealing washer |
| 31 | 1609B04072 | Rubber Ring |
| 32 | 1609B04073 | Guide Bracket |
| 34 | 1609B04075 | Baffle |
| 35 | 1609B04200 | Cover |
| 36 | 1609B04202 | Cover |
| 37 | 1609B04208 | Screw |
| 4 | 1609B04211 | On-Off Switch |
| 43 | 1609B04183 | Mitre Fence |
| 44 | 1609B04182 | Mitre Fence |
| 49 | 1609B04015 | Arm |
| 5 | 1609B00379 | Power supply cord GB 3,5 2X1,5MM H05 Rr-F |
| 5 | 1619P03899 | Power supply cord |
| 51 | 1609B03746 | End cap |
| 52 | 1609B04009 | Switch Handle |
| 53 | 1609B04023 | Junction Box |
| 57 | 1609B03704 | Detent plate |
| 59 | 1609B05382 | Knurled Screw |
| 6 | 1609B01533 | Cord guard |
| 60 | 1609B03711 | Screw |
| 61 | 1609B00863 | Plain Washer |
| 62 | 1609B00717 | Pointer |
| 63 | 1609B03714 | Wear Plate |
| 65 | 1609B00232 | Locking Lever |
| 652 | 1609B04224 | Clamp |
| 66 | 1609B00233 | Locking Lever |
| 67 | 1609B00236 | Shoulder Screw |
| 68 | 1609B00237 | Compression Spring |
| 69 | 1609B00238 | Shoulder Screw |
| 7 | 1619P03808 | Cable Clip |
| 70 | 1609B01435 | Lock Screw |
| 71 | 1609B01436 | Lock Screw |
| 72 | 1609B05203 | Bolt |
| 73 | 1609B00670 | Washer |
| 74 | 1609B00704 | Lock Nut |
| 75 | 1609B04067 | Special Screw |
| 76 | 1609B04069 | Special Nut |
| 77 | 1609B00705 | Rubber Bushing |
| 78 | 1609B03722 | Screw |
| 79 | 1609B00669 | Washer |
| 80 | 1609BP7098 | Rubber Ring |
| 802 | 1609B05347 | Field assembly 110-115V |
| 803 | 1609B05207 | Armature assembly 110-115V |
| 808 | 1609B05229 | Nameplate |
| 808 | 1609BN0136 | Nameplate |
| 81 | 1609BP7026 | Hexagon Socket Screw Key |
| 810 | 1609B06661 | Carbon-Brush Set |
| 811 | 1609B04141 | Capacitor |
| 824 | 1609B01726 | Laser |
| 825 | 1609B04127 | Dust-Protection Cover |
| 83 | 1609B01992 | End Clip |
| 84 | 1609B03717 | Support Plate |
| 840 | 1609B03744 | Assembly Base |
| 841 | 1609B04128 | Feed Table |
| 842 | 1609B05388 | Feed Table |
| 845 | 1609B06954 | Mitre Fence |
| 846 | 1609B05339 | Table |
| 847 | 1609B04123 | Pivot |
| 848 | 1609B03788 | Yoke |
| 85 | 1609B03718 | Dust Tray |
| 850 | 1609B05349 | Gear cover |
| 855 | 1609B03789 | Output Shaft |
| 857 | 1609B04125 | Dust Extraction |
| 86 | 1609B04080 | Rod |
| 866 | 1609B04124 | Torsion Spring |
| 87 | 1609B04079 | Knob |
| 882 | 1609B04026 | Connecting Wire |
| 883 | 1609B04027 | Connecting Wire |
| 884 | 1609B04087 | Connecting Wire |
| 885 | 1609B04088 | Connecting Wire |
| 886 | 1609B04089 | Connecting Wire |
| 887 | 1609B04100 | Connecting Wire |
| 888 | 1609B04101 | Connecting Wire |
| 89 | 1609B03721 | Compression Spring |
| 890 | 1609B05340 | Lever |
| 891 | 1609B02365 | Stop Plate |
| 892 | 1609B00263 | Screw |
| 893 | 1609B00678 | Screw |
| 93 | 1609BP7341 | Contact strap |
| 94 | 1609B03727 | Supporting foot |
| 95 | 1609B03729 | Wear Plate |
| 96 | 1609B04108 | Pivot Shaft |
| 97 | 1609B04086 | Screw |
| 98 | 1609B03723 | Screw |
| 99 | 1609B01324 | Plain Washer |
