Bosch GCM 8 S
Bosch GCM 8 S slide mitre saw: exploded parts diagram, 3 sheets, 178 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

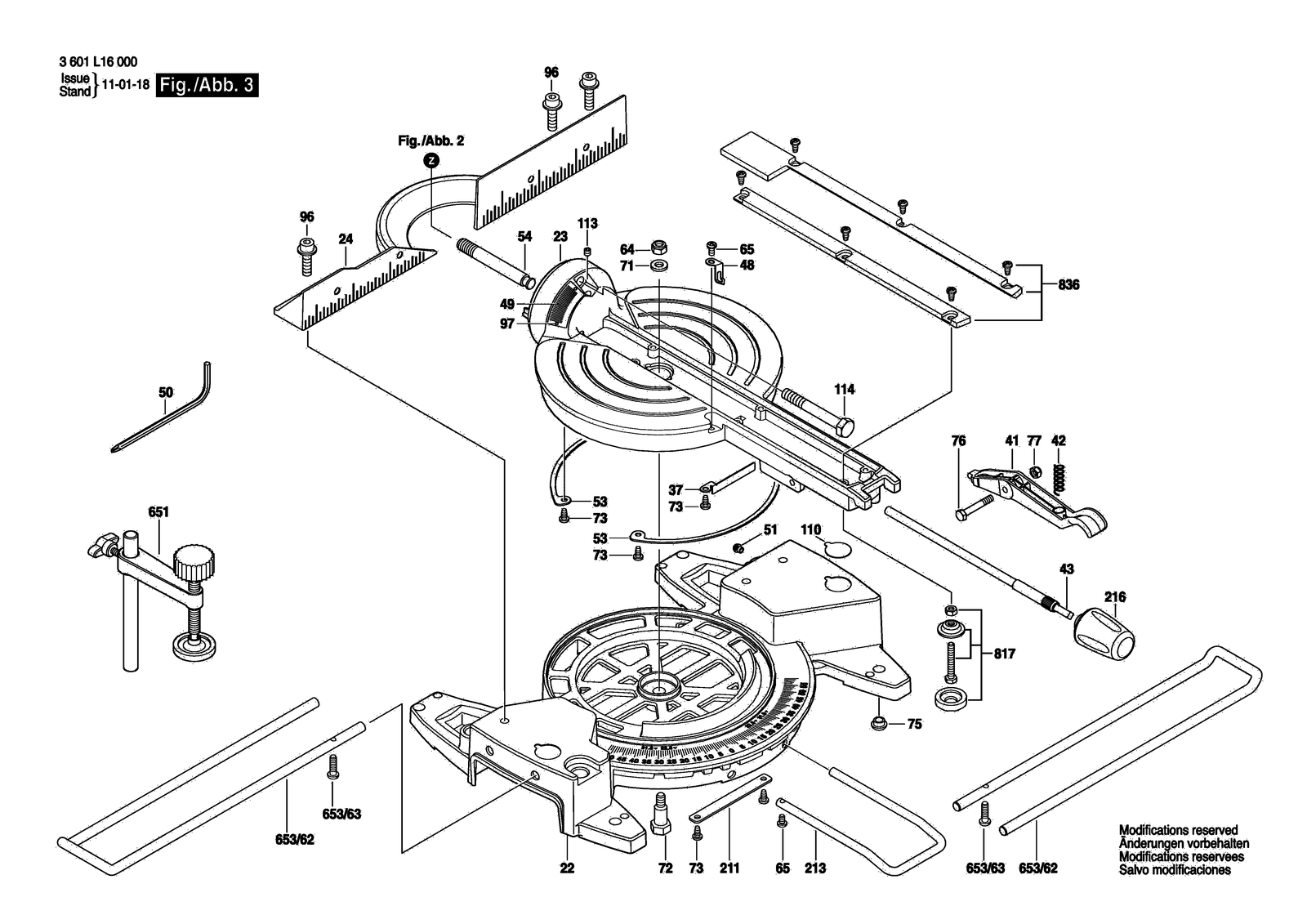

All parts of Bosch GCM 8 S: 178 positions on 3 sheets
Bosch GCM 8 S parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P03493 | Motor Housing |
| 100 | 1619P03625 | Screw |
| 101 | 1619P03626 | Screw |
| 104 | 1619P03629 | Screw |
| 105 | 1619P03630 | Screw |
| 107 | 1619P03631 | Screw |
| 108 | 1619P03632 | Screw |
| 109 | 1619P03633 | Screw |
| 110 | 2610909006 | Warning Label |
| 111 | 1619P03634 | Washer |
| 112 | 1619P03635 | Self-locking nut |
| 113 | 1619P03636 | Screw |
| 114 | 1619P03564 | Bolt |
| 115 | 1619P03637 | Washer |
| 116 | 1619P03565 | Lever |
| 12 | 1619P03501 | Motor Capacitor |
| 120 | 1619P03638 | Washer |
| 121 | 1619P03569 | Toggle |
| 122 | 1619P03570 | Contact strap |
| 123 | 1619P03571 | Ball Bearing |
| 124 | 1619P03639 | Screw |
| 125 | 1619P03640 | Clamping Piece |
| 127 | 1619P03572 | Cover |
| 128 | 1619P03573 | Plate |
| 129 | 1619P03642 | Screw |
| 13 | 1619P03502 | Bearing |
| 130 | 1619P03643 | Self-locking nut |
| 131 | 1619P03574 | Plate |
| 136 | 1619P03577 | Cover |
| 138 | 1619P03578 | Cover |
| 14 | 1619P03503 | Bearing |
| 146 | 1619P03583 | Cover |
| 15 | 1619P03504 | Fan |
| 154 | 1619P03654 | Nut |
| 159 | 1619P03588 | Housing |
| 16 | 1619P03505 | Brush Holder |
| 160 | 1619P03589 | Housing |
| 161 | 1619P03590 | Housing |
| 162 | 1619P03656 | Housing |
| 163 | 1619P03591 | Printed Circuit Board |
| 163 | 1619P04801 | Printed Circuit Board |
| 164 | 1619P03592 | Lens |
| 165 | 1619P03602 | Reflector |
| 166 | 1619P03603 | Reflector |
| 167 | 1619P03657 | Screw |
| 168 | 1619P03658 | Screw |
| 169 | 1619P03659 | Screw |
| 17 | 1619P04814 | Washer |
| 170 | 1619P03660 | Screw |
| 172 | 1619P03661 | Junction Box |
| 173 | 1619P03662 | Screw |
| 175 | 1619P03594 | Housing |
| 176 | 1619P03664 | Screw |
| 177 | 1619P03665 | Screw |
| 178 | 1619P03666 | Screw |
| 179 | 1619P03667 | Screw |
| 180 | 1609B05392 | Switch |
| 182 | 1619P03671 | Nut |
| 183 | 1619P03595 | Air-Deflector Ring |
| 187 | 1619P03597 | On-Off Switch |
| 188 | 1619P03689 | Washer |
| 189 | 1619P03690 | Plain Washer |
| 19 | 1619P03506 | Screw |
| 192 | 1619P03598 | Spring |
| 193 | 1619P03599 | Cable Set |
| 194 | 1619P03693 | Cover |
| 199 | 1619P03715 | Insulating Sleeve |
| 2 | 1619P03494 | Field 230V |
| 2 | 1619P03680 | Field 110V |
| 20 | 1619P03507 | Warning Label |
| 200 | 1619P03716 | Bearing Cover |
| 204 | 1619P03694 | Pivot Shaft |
| 205 | 1619P03695 | Compression Spring |
| 206 | 1619P03696 | Plain Washer |
| 207 | 1619P03697 | Knob |
| 208 | 1619P03698 | Bolt |
| 209 | 1619P03699 | Headless Screw |
| 210 | 1619P03700 | Shaft |
| 211 | 1619P03701 | Plate |
| 213 | 1619P03703 | Rod |
| 214 | 1619P03712 | Arm |
| 216 | 1619P03720 | Knob |
| 217 | 1619P03971 | Wear Plate |
| 22 | 1619P03508 | Base |
| 23 | 1619P03509 | Table |
| 24 | 1619P03510 | Mitre Fence |
| 25 | 1619P03511 | Pivot |
| 26 | 1619P03512 | Handle |
| 27 | 1619P03513 | Handle |
| 28 | 1619P03514 | Handle |
| 29 | 1619P03515 | Support Plate |
| 3 | 1619P03495 | Armature 230V |
| 3 | 1619P03679 | Armature 110V |
| 30 | 1619P03516 | Safety Cover |
| 31 | 1619P03517 | Housing Cover |
| 32 | 1619P03518 | Handle |
| 33 | 1619P03519 | Handle Cover |
| 34 | 1619P03520 | Torsion Spring |
| 35 | 1619P03521 | Plate |
| 37 | 1619P03522 | Pressure Plate |
| 38 | 1619P03523 | Protective Cover |
| 39 | 1619P03524 | Plate |
| 4 | 1619P03496 | Switch |
| 40 | 1619P03525 | Linkage |
| 41 | 1619P03526 | Locking Lever |
| 42 | 1619P03527 | Contact strap |
| 43 | 1619P03528 | Tension Rod |
| 45 | 1619P03530 | Retaining Plate |
| 46 | 1619P05009 | Knob |
| 47 | 1619P03532 | Pointer |
| 48 | 1619P03533 | Pointer |
| 49 | 1619P03534 | Scale |
| 5 | 1619P03497 | Power supply cord |
| 5 | 1619P03677 | Power supply cord |
| 5 | 1619P03681 | Power supply cord |
| 5 | 1619P03683 | Power supply cord |
| 5 | 1619P03711 | Power supply cord |
| 50 | 1619P03535 | Offset Screwdriver |
| 51 | 1619P03536 | Rubber Bushing |
| 52 | 1619P03537 | Bearing Cover Plate |
| 53 | 1619P03538 | Sliding Plate |
| 54 | 1619P03539 | Shaft |
| 55 | 1619P03540 | Ball Bearing |
| 56 | 1619P03541 | Sliding Rail |
| 57 | 1619P03542 | Torsion Spring |
| 58 | 1619P03543 | Sleeve |
| 59 | 1609203J19 | Toothed Gear |
| 6 | 1619P03498 | Grommet |
| 60 | 1619P03544 | Inner Disc |
| 61 | 1619P03545 | Brush-Cover |
| 64 | 1619P03587 | Self-locking nut |
| 65 | 1619P03605 | Screw |
| 651 | 1619P05772 | Clamp |
| 653/62 | 1619P03546 | Lengthening Piece |
| 653/63 | 1619P03563 | Screw |
| 66 | 1619P03606 | Screw |
| 68 | 1619P03481 | Flange |
| 69 | 1619P03482 | Bolt |
| 7 | 1619P03499 | Clamp |
| 70 | 1619P03608 | Screw |
| 71 | 1619P03609 | Washer |
| 72 | 1619P03547 | Hex Screw |
| 73 | 1619P03610 | Screw |
| 75 | 1619P03548 | Rubber Bushing |
| 76 | 1619P03612 | Screw |
| 77 | 1619P03613 | Self-locking nut |
| 78 | 1619P03614 | Screw |
| 79 | 1619P03549 | Seal |
| 8 | 1619P03500 | Nameplate |
| 8 | 1619P03676 | Nameplate |
| 8 | 1619P03678 | Manufacturer's nameplate |
| 8 | 1619P03682 | Manufacturer's nameplate |
| 8 | 1619P03704 | Nameplate |
| 80 | 1619P03550 | Rubber Pad |
| 81 | 1609B03755 | Knob |
| 810 | 1619P04451 | Carbon-Brush Set |
| 814 | 1619P04816 | Laser |
| 815 | 1619P03706 | Lever |
| 817 | 1619P03707 | Adjustable Foot |
| 82 | 1619P03552 | Contact strap |
| 820 | 1619P03708 | Locking Pin |
| 83 | 1619P03553 | Detent Pin |
| 836 | 1619P03709 | Insert |
| 84 | 1619P03554 | Retaining Pin |
| 844 | 1619P03710 | Roller |
| 85 | 1619P03555 | Spring retaining ring |
| 86 | 1619P03615 | Screw |
| 88 | 1619P03617 | Washer |
| 89 | 1619P03618 | Screw |
| 90 | 1619P03619 | Screw |
| 91 | 1619P03556 | Ball Bearing |
| 92 | 1619P03557 | Key |
| 93 | 1619P03620 | Spring retaining ring |
| 94 | 1619P03621 | Spring retaining ring |
| 95 | 1619P03558 | Needle-Roller Bearing |
| 96 | 1619P03622 | Screw |
| 97 | 1619P03623 | Screw |
| 98 | 1619P03559 | Screw |
