Bosch GCM 305-216 D
Bosch GCM 305-216 D compound mitre saw: exploded parts diagram, 6 sheets, 171 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 305-216 D: 171 positions on 6 sheets

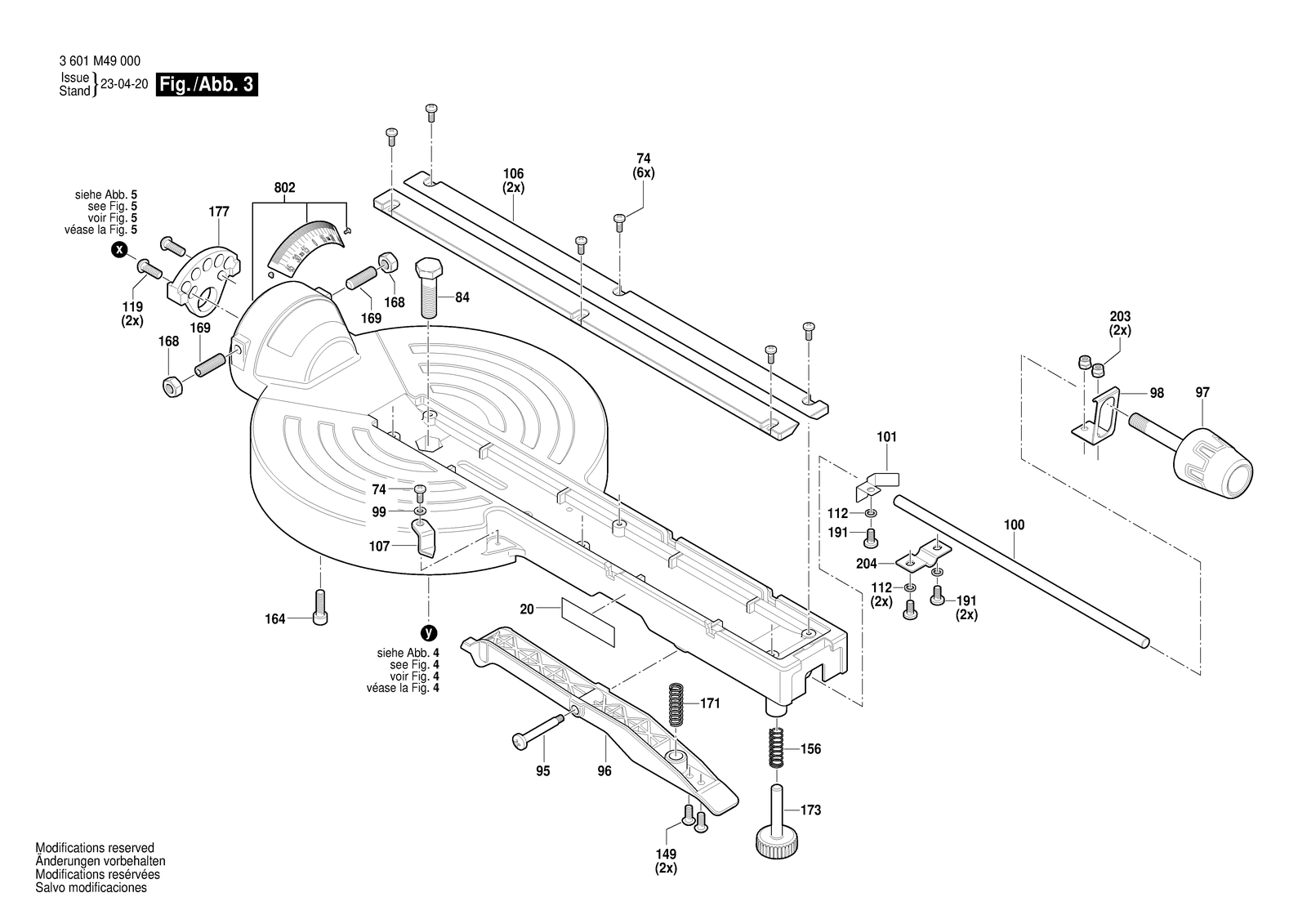

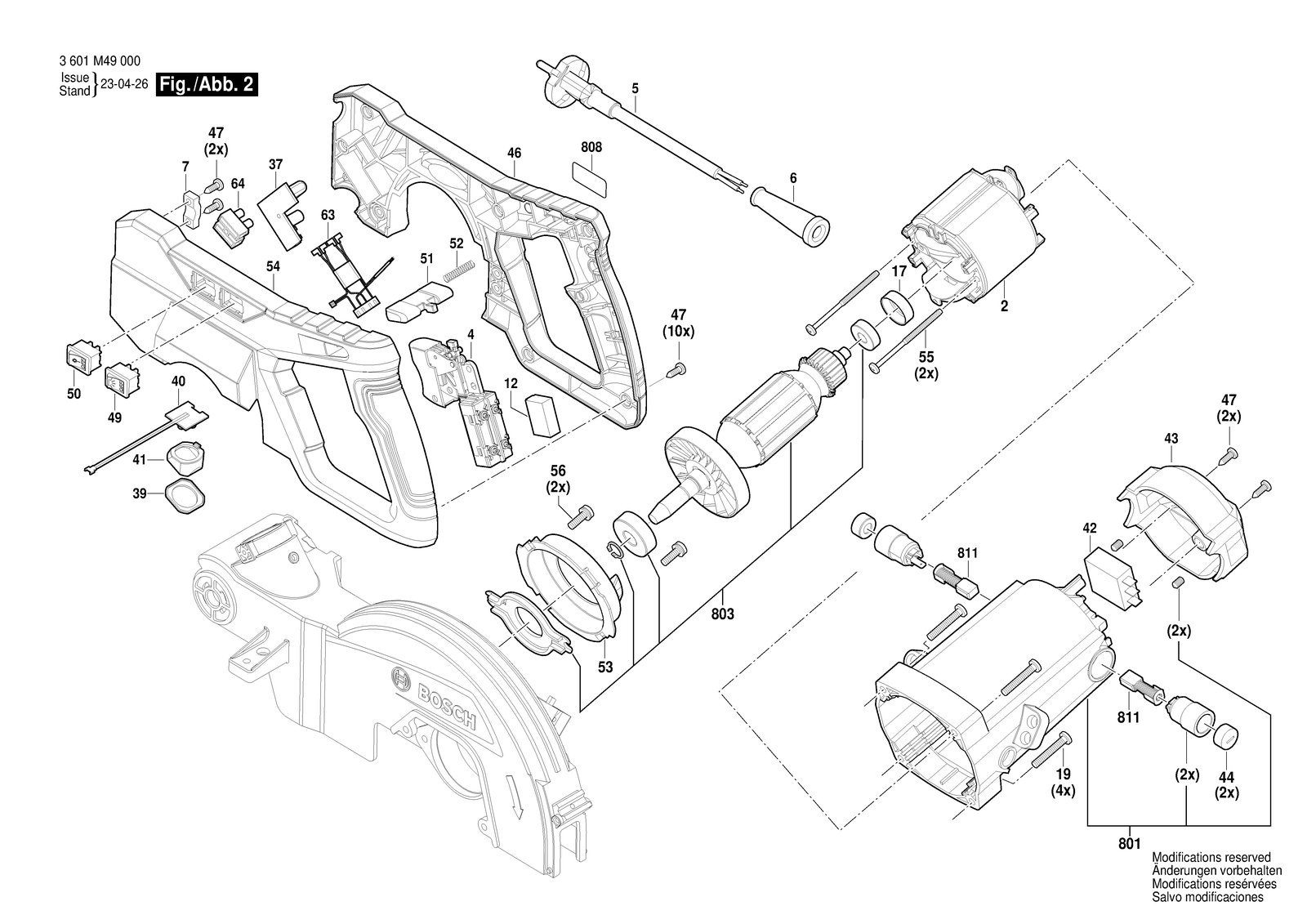

Bosch GCM 305-216 D parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1609B07616 | Rod |
| 101 | 1609B07617 | Fixing plate |
| 103 | 1609B07619 | Pressure Screw M6×20/45H |
| 104 | 1609B07620 | Rubber Retaining Ring |
| 106 | 1609B07622 | Support Plate |
| 107 | 1609B07623 | Pointer |
| 112 | 1609B07628 | Spring Washer |
| 113 | 1609B07629 | Washer |
| 118 | 1609B07634 | Screw M6×10/4.8 |
| 119 | 1609B07635 | Screw M6×16/8.8 |
| 12 | 1609B08122 | Capacitor |
| 125 | 1609B07639 | Knurled Nut |
| 126 | 1609B07640 | Knob |
| 127 | 1609B07641 | Locking Pin |
| 128 | 1609B07642 | Lock Nut |
| 130 | 1609B07644 | Shoulder Screw |
| 131 | 1609B07645 | Connecting Link |
| 132 | 1609B07604 | Flange |
| 132 | 1609B08244 | Flange |
| 134 | 1609B07606 | Flange |
| 135 | 1619PA4354 | Thread-forming tap. Screw |
| 136 | 1609B07649 | Bushing |
| 137 | 1609B07650 | Wear Plate |
| 138 | 1609B07651 | Bushing |
| 139 | 1609B07611 | Torsion Spring |
| 140 | 1609B07653 | Shaft |
| 141 | 1609B07654 | Stop Plate |
| 143 | 1609B07655 | Wave spring |
| 145 | 1609B07657 | Locking Pin |
| 146 | 1609B07658 | Shaft |
| 147 | 1609B07659 | Nut M10/6 |
| 148 | 1609B07660 | Pointer |
| 149 | 1609B07661 | Screw |
| 150 | 1609B07662 | Cover Plate |
| 151 | 1609B07663 | Felt Washer |
| 152 | 1609B07664 | Rubber Pad |
| 153 | 1609B07665 | Bracket |
| 154 | 1609B07666 | Compression Spring |
| 155 | 1609B07667 | Knob |
| 156 | 1609B07668 | Compression Spring |
| 157 | 1609B07669 | Washer |
| 158 | 1609B07670 | Pressure Screw M10×110/45H |
| 160 | 1609B07672 | Handwheel |
| 164 | 1609B07676 | Screw M6×20/10.9 |
| 165 | 1609B07677 | Shoulder Screw |
| 167 | 1609B07679 | Pressure Screw M6×8/45H |
| 168 | 1609B07680 | Nut M8/5 |
| 169 | 1609B07681 | Pressure Screw M8×25/45H |
| 17 | 1609B07556 | Rubber Ring |
| 171 | 1609B07683 | Compression Spring |
| 172 | 1609B07684 | Washer |
| 173 | 1609B07685 | Knob |
| 174 | 1609B07686 | Connection plate |
| 175 | 1609B07687 | Carrying Handle |
| 176 | 1609B07688 | Tapping Screw ST4.8×16-F |
| 177 | 1609B07689 | Detent plate |
| 178 | 1609B07690 | Rubber lip |
| 179 | 1609B07691 | Dust Extraction |
| 180 | 1609B07692 | Tapping Screw ST4.2×25-F |
| 181 | 1609B07693 | Tapping Screw ST4.2×9.5-F |
| 182 | 1609B07694 | Tapping Screw ST3.5×9.5-F |
| 184 | 1609B07696 | Connector |
| 187 | 1609B07699 | Bushing |
| 188 | 1609B07700 | Retaining ring |
| 189 | 1609B07701 | Knob |
| 19 | 1609B07540 | Screw M5×30/4.8 |
| 190 | 1609B07702 | Knob |
| 191 | 1609B07703 | Screw M5×10/4.8 |
| 192 | 1609B07704 | Holder |
| 193 | 1609B07705 | Holder |
| 194 | 1609B07706 | Screw M4×12/8.8 |
| 195 | 1609B07707 | Laser module |
| 197 | 1609B07709 | Cover |
| 2 | 1609B07708 | Stator |
| 20 | 1609B07541 | Warning Label |
| 200 | 1609B07712 | Hexagon Socket Screw Key |
| 201 | 1619PA7028 | Holder |
| 202 | 1609B07714 | Control Lever |
| 203 | 1609B07715 | Lock Nut M5/5 |
| 204 | 1609B07716 | Support Plate |
| 205 | 1609B07717 | O-Ring 6.7×1.8 |
| 207 | 1609B07719 | Screw M4×16/8.8 |
| 208 | 1609B07720 | Terminal lug |
| 211 | 1609B07722 | Label |
| 212 | 1609B07723 | Label |
| 213 | 1609B07724 | Label |
| 214 | 1609B07725 | Label |
| 217 | 1609B08171 | Fastening Clamp |
| 218 | 1609B07578 | Screw M5X16/4.8 |
| 219 | 1609B08170 | Fastening Clamp |
| 22 | 1609B07542 | Mounting Plate |
| 220 | 1609B08173 | Screw M5X12/4.8 |
| 221 | 1609B08162 | Cable Clip |
| 27 | 1609B07547 | Porous Bearing |
| 28 | 1609B08176 | Arm |
| 29 | 1609B08135 | Cable Cover |
| 30 | 1609B07550 | Screw M4×8 |
| 31 | 1609B07551 | Compression Spring |
| 32 | 1609B07552 | Detent Pin |
| 33 | 1609B07553 | Retaining ring |
| 34 | 1609B07554 | Push Button |
| 37 | 1619PA3508 | Printed-Board Assembly |
| 39 | 1609B07558 | Protective Glass |
| 4 | 160720039F | On-Off Switch |
| 40 | 1609B08131 | Led Board |
| 41 | 1609B07559 | Reflector |
| 42 | 1609B06928 | Soft starter |
| 43 | 1609B08178 | Cover |
| 44 | 1609B08152 | Brush-Cover |
| 45 | 1609B07564 | Spring Washer |
| 46 | 1609B08179 | Handle |
| 47 | 1609B07566 | Screw ST4.2×13/1022A |
| 49 | 1609B08138 | Switch |
| 5 | 1609B08116 | Power supply cord EU H05VV-F/2×1.0MM2 |
| 5 | 1609B08297 | Power supply cord Aus H05VV-F |
| 5 | 1609B08299 | Power supply cord Kr H05VV-F |
| 5 | 1609B08303 | Power supply cord Ch H05VV-F |
| 5 | 1609B08305 | Power supply cord GB 230V H05VV-F |
| 50 | 1609B08137 | Switch |
| 51 | 1609B08140 | Trigger |
| 52 | 1609B07570 | Compression Spring |
| 53 | 1609B08181 | Air-Deflector Ring |
| 54 | 1609B08180 | Handle |
| 55 | 1609B08153 | Screw M4X64 |
| 56 | 1609B07574 | Screw and washer assembly M5×16/4.8 |
| 6 | 1609B08117 | Grommet |
| 63 | 1609B08154 | Cable Adapter |
| 64 | 1609B08150 | Plug Connector |
| 65 | 1609B07537 | Screw M6×16/8.8 |
| 66 | 1609B07583 | Lock Nut M6/5 |
| 69 | 1609B07586 | Stop Plate |
| 7 | 1609B08118 | Fastening Clamp |
| 72 | 1609B07633 | Screw M6×16/4.8 |
| 74 | 1609B08161 | Screw M6×16/4.8 |
| 75 | 1609B07592 | Knob |
| 76 | 1609B07593 | Supporting foot |
| 77 | 1609B07594 | Washer |
| 78 | 1609B07595 | Spring Washer |
| 79 | 1609B07596 | Lock Nut |
| 80 | 1609B07597 | Base |
| 801 | 1609B07713 | Housing Assembly |
| 802 | 1609B08268 | Table |
| 803 | 1609B07648 | Armature assembly |
| 808 | 1609B08069 | Nameplate |
| 808 | 1609B08307 | Nameplate |
| 808 | 1609B08308 | Nameplate |
| 808 | 1609B08309 | Nameplate |
| 808 | 1609B08310 | Nameplate |
| 81 | 1609B07598 | Stop Plate |
| 810 | 1609B08166 | Lower guard |
| 811 | 1609B08240 | Carbon-Brush Set |
| 82 | 1609B07599 | Auxiliary Support |
| 823 | 1609B07630 | Output Shaft |
| 829 | 1609B08169 | Bracket |
| 84 | 1609B07600 | Bolt |
| 85 | 1609B07601 | Scale Plate |
| 86 | 1609B07602 | Wear Plate |
| 861 | 1609B08352 | Linear Roller Bearing |
| 87 | 1609B07603 | Mitre Fence |
| 870 | 1609B08167 | Extension Stand |
| 885 | 1609B07930 | Dust Bag |
| 890 | 1609B06930 | Adjustable screw clamp |
| 898 | 1609B07675 | Supporting Block |
| 92 | 1609B07608 | Mitre Fence |
| 93 | 1609B07609 | Mitre Fence |
| 94 | 1609B07610 | Screw M8×20/8.8 |
| 95 | 1609B07652 | Lower guard |
| 96 | 1609B07612 | Locking Lever |
| 97 | 1609B07613 | Knob |
| 98 | 1609B07614 | Spring Plate |
| 99 | 1609B07615 | Washer |
