Bosch GCM 254 D
Bosch GCM 254 D slide mitre saw: exploded parts diagram, 6 sheets, 186 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

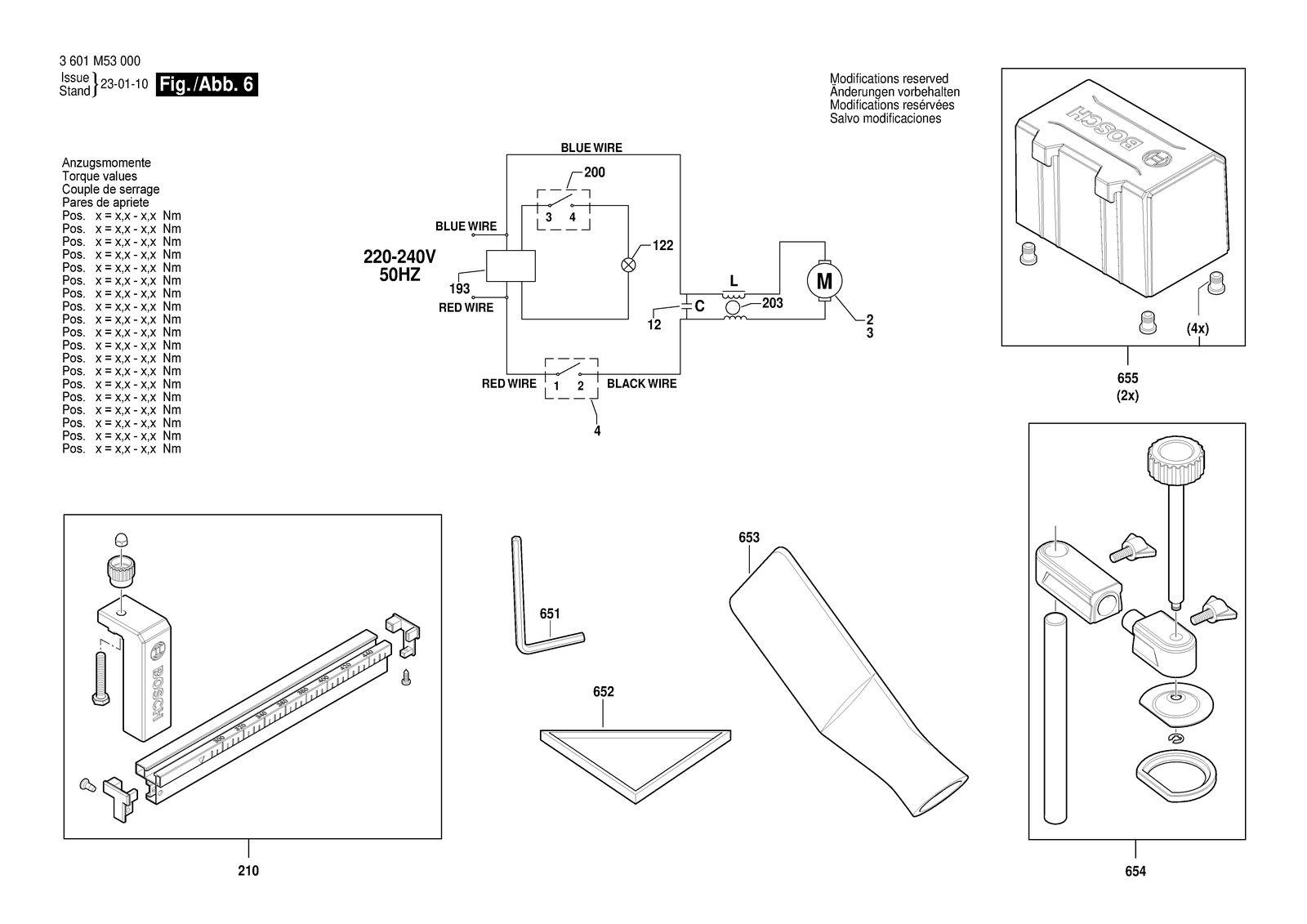

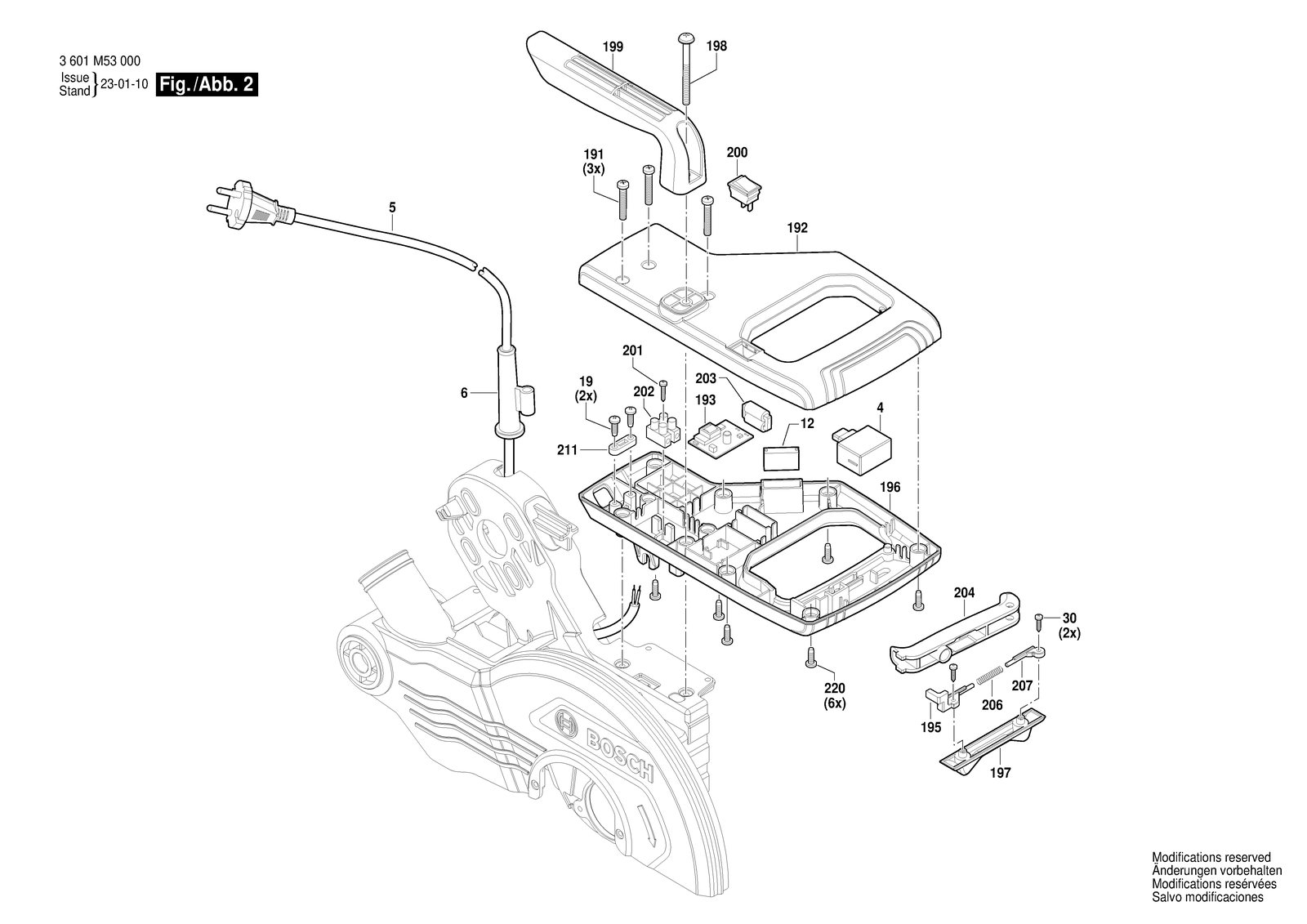

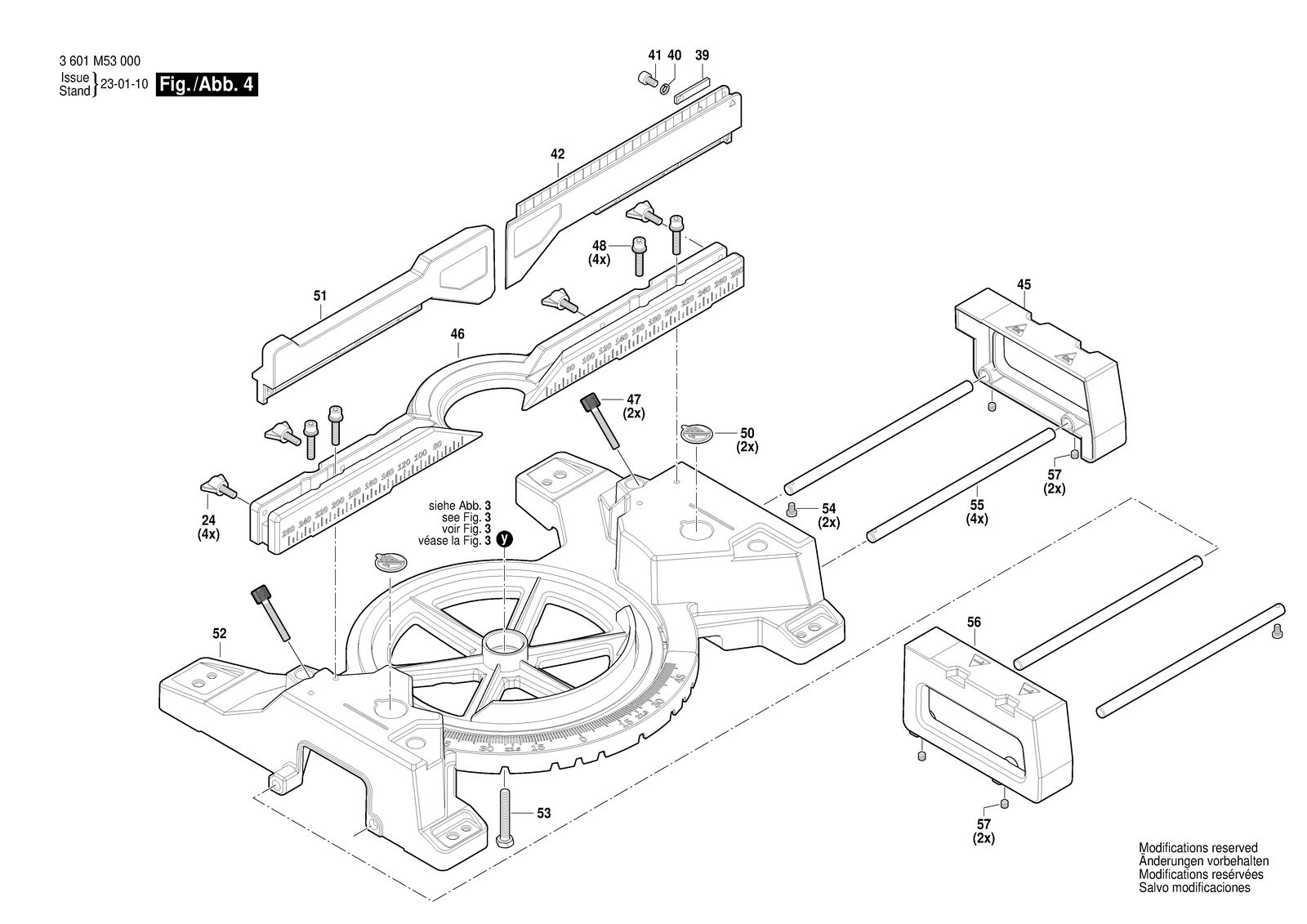

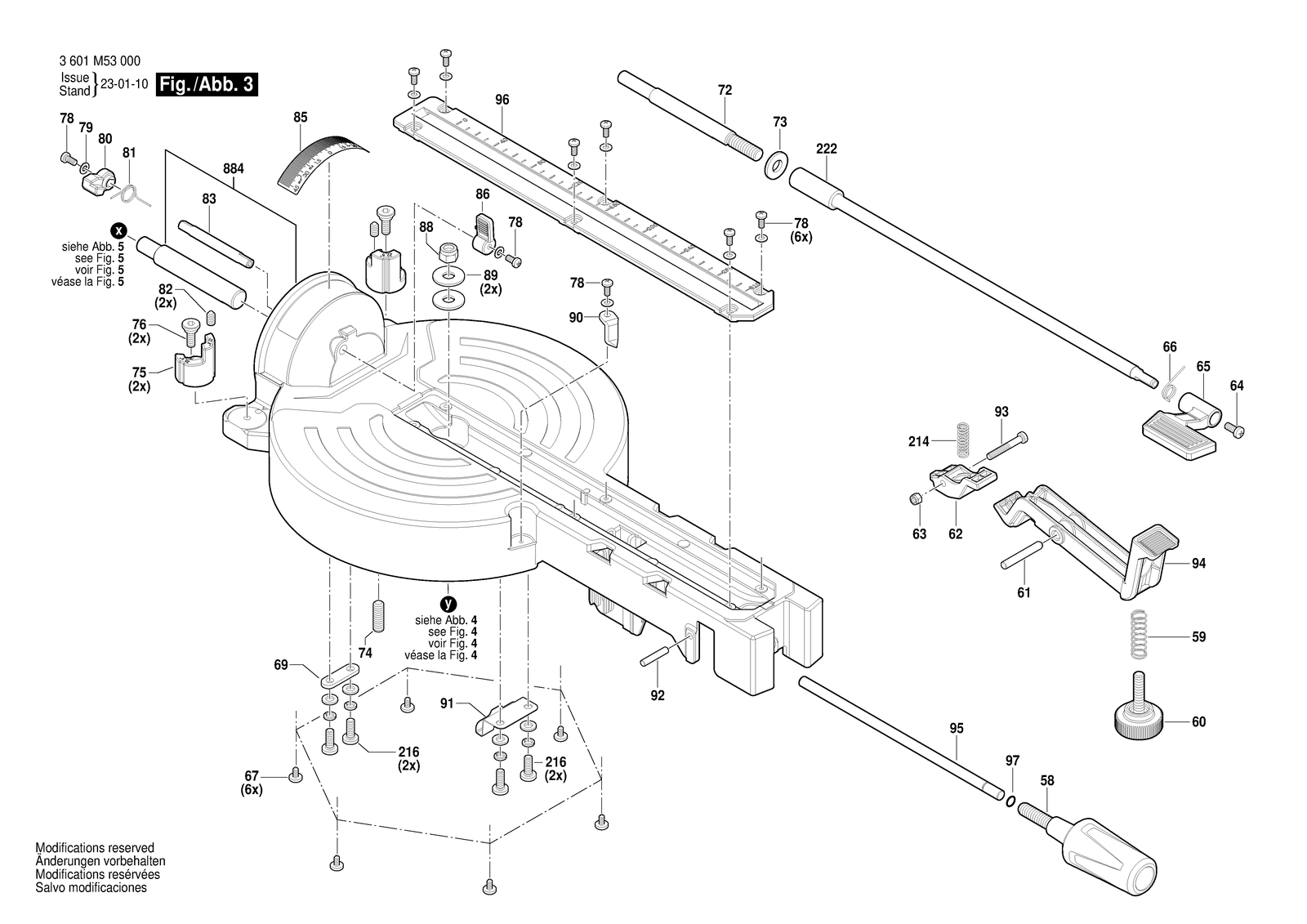

All parts of Bosch GCM 254 D: 186 positions on 6 sheets
Bosch GCM 254 D parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1619PC0756 | Bolt M6×25 |
| 101 | 1619PC0757 | Bolt M6×30 |
| 102 | 1619PB6166 | Plain Washer |
| 103 | 1619PB6167 | Nut |
| 104 | 1619PC0758 | Plate 65MN |
| 105 | 1619PC0759 | Washer FZ1360 |
| 106 | 1619PC0760 | Screw M4×16 |
| 107 | 1619PC0761 | Bolt M4×16 |
| 108 | 1619PC0762 | Cover M10 |
| 109 | 1619PC0763 | Screw Abs |
| 110 | 1619PC0764 | Cover M5×16 |
| 111 | 1619PC0765 | Shaft YL102 |
| 112 | 1619PC0766 | Bar ?6×12,65MN |
| 113 | 1619PC0767 | Screw |
| 114 | 1619PC0768 | Cover M5×10 |
| 115 | 1619PC0769 | Pad Abs |
| 116 | 1619PC0770 | Felt Pad Soft Pvc |
| 117 | 1619PC0771 | Linear Roller Bearing F25×F40×1 |
| 118 | 1619PC0772 | Knob F25×F40×30 |
| 119 | 1619PC0773 | Arm PP-GF25+Q235A |
| 12 | 1619PB9041 | Capacitor |
| 120 | 1619PB6192 | Set screw |
| 121 | 1619PC0774 | Holder YL102 |
| 122 | 1619PB9077 | Laser |
| 123 | 1619PC0775 | Bracket |
| 124 | 1619PB6173 | Detent Pin Q235A |
| 125 | 1619PB6174 | O-Ring Abs |
| 126 | 1619PC0776 | Torsion Spring YL102 |
| 127 | 1619PB6162 | Bushing Q235A |
| 128 | 1619PC0777 | Connection Pin 55CRSI |
| 129 | 1619PC0778 | Screw Q235A |
| 130 | 1619PC0779 | Screw M6×16 |
| 131 | 1619PB6177 | Spring Washer |
| 132 | 1619PC0780 | Washer |
| 133 | 1619PC0781 | Plate F7×F12×0.8 |
| 134 | 1619PB6215 | Bolt |
| 135 | 1619PB9140 | Clamping Flange |
| 136 | 1619PC0677 | Clamping Flange |
| 136 | 1619PC0782 | Clamping Flange |
| 137 | 1619PC0783 | Screw |
| 138 | 1619PB6221 | Ball Bearing |
| 144 | 1619PC0786 | Collector 40CR |
| 146 | 1619PC0787 | Button Spring Abs |
| 147 | 1619PC0788 | Washer 65MN |
| 148 | 1619PC0789 | Push Button F5.5XF15X1 |
| 149 | 1619PC0790 | Screw Q235A |
| 150 | 1619PC0791 | Retaining ring Q235A |
| 151 | 1619PC0792 | Plate F10 |
| 152 | 1619PC0793 | Pulley |
| 153 | 1619PC0794 | Belt |
| 154 | 1619PC0795 | Washer |
| 155 | 1619PC0796 | Screw |
| 156 | 1619PC0797 | Cover M6×20 |
| 157 | 1619PC0798 | Pulley M4×16 |
| 158 | 1619PC0799 | Screw |
| 159 | 1619PC0800 | Screw |
| 160 | 1619PB6175 | Set screw |
| 161 | 1619PC0801 | Knob |
| 162 | 1619PC0802 | Nut PP-GF25+Q235A |
| 163 | 1619PC0803 | Upper guard M6 |
| 164 | 1619PC0804 | Screw YL102 |
| 169 | 1619PB6204 | Shoulder Screw |
| 170 | 1619PC0807 | Connecting Plate YL102 |
| 171 | 1619PC0808 | Screw |
| 172 | 1619PC0809 | Plate M6×14 |
| 177 | 1619PC0811 | Coil Spring |
| 178 | 1619PC0812 | Plate |
| 179 | 1619PC0813 | Washer |
| 180 | 1619PB6202 | Pan head screw |
| 181 | 1619PB9153 | Screw |
| 182 | 1619PC0814 | Housing Cover F6×12×0.8 |
| 183 | 1619PC0815 | Screw |
| 184 | 1619PB9126 | Cover |
| 185 | 1619PC0816 | Rubber Bushing M5×10 |
| 186 | 1619PC0817 | Screw |
| 187 | 1619PC0818 | Deflector ST4.8×55 |
| 188 | 1619PC0819 | Cover PA6-GF30 |
| 19 | 1619PB6120 | Pan head screw |
| 191 | 1619PB6235 | Pan head screw |
| 192 | 1619PC0822 | Tool Handle |
| 193 | 1619PB6229 | Electronic Module |
| 195 | 1619PB6231 | Linkage |
| 196 | 1619PC0823 | Tool Handle PP-GF25 |
| 197 | 1619PB6228 | Interlock |
| 198 | 1619PC0824 | Screw PP-GF25 |
| 199 | 1619PC0825 | Carrying Handle M5×60 |
| 2 | 1619PC0688 | Field 220-240V |
| 20 | 1619PB9047 | Warning Label |
| 200 | 1619PB6239 | Switch |
| 201 | 1619PB6233 | Pan head screw |
| 202 | 1619PB6232 | Terminal Block |
| 203 | 1619PB6230 | Inductor |
| 204 | 1619PC0826 | Switch Button PA6-GF30 |
| 206 | 1619PB6244 | Spring |
| 207 | 1619PB6243 | Linkage |
| 210 | 1619PC0827 | Stopper |
| 211 | 1619PB6113 | Fastening Clamp |
| 214 | 1619PB6151 | Spring |
| 215 | 1619PC0828 | Nut |
| 216 | 1619PC0829 | Screw M6 |
| 217 | 1619PC0830 | Screw M6×16 |
| 218 | 1619PC0831 | Screw M5×10 |
| 219 | 1619PC0832 | Washer M5×8 |
| 220 | 1619PB9035 | Pan head screw |
| 221 | 1619PC0833 | Screw 5×1.6 |
| 222 | 1619PC0834 | Bar M5×12 |
| 24 | 1619PC0710 | Butterfly knob |
| 30 | 1619PC0569 | Screw |
| 39 | 1619PB6136 | Pad |
| 4 | 1619PC0675 | Switch |
| 40 | 1619PB6138 | Spring Washer 65MN |
| 41 | 1619PB6137 | Socket head cap screw PP-GF25+Q235A |
| 42 | 1619PC0714 | Mitre Fence YL102 |
| 45 | 1619PC0715 | Extension Stand YL102 |
| 46 | 1619PC0716 | Mitre Fence YL102 |
| 47 | 1619PB6142 | Knob |
| 48 | 1619PC0717 | Screw M6×30 |
| 49 | 1619PB6171 | Set screw |
| 5 | 1619PC0690 | Power supply cord |
| 5 | 1619PC0691 | Power supply cord |
| 5 | 1619PC0692 | Power supply cord |
| 5 | 1619PC0693 | Power supply cord |
| 50 | 1619PB9053 | Label |
| 51 | 1619PC0718 | Mitre Fence YL102 |
| 52 | 1619PC0719 | Base YL102 |
| 53 | 1619PC0720 | Bolt M8×50 |
| 54 | 1619PB6130 | Pan head screw |
| 55 | 1619PC0721 | Bar Q235A |
| 56 | 1619PC0722 | Extension Stand YL102 |
| 57 | 1619PC0723 | Screw M6×6 |
| 58 | 1619PB9084 | Rotary Handle |
| 59 | 1619PC0724 | Spring 65MN |
| 6 | 1619PB6112 | Grommet |
| 60 | 1619PC0725 | Rotary Handle PP-GF25+Q235A |
| 61 | 1619PC0726 | Connection Pin 6×40 |
| 62 | 1619PC0727 | Adjustment Knob PA6-GF30 |
| 63 | 1619PB6149 | Hex Nut Q235A |
| 64 | 1619PC0728 | Screw Q235A, M5×12 |
| 65 | 1619PC0729 | Knob YL102 |
| 651 | 1619PB9159 | Clamping wrench |
| 652 | 1619PB9141 | Measuring ruler |
| 653 | 1619PB6246 | Dust Bag |
| 654 | 1619PB9102 | Mounting Clamp |
| 655 | 1619PB9050 | Supporting Block |
| 66 | 1619PC0730 | Coil Spring 65MN |
| 67 | 1619PC0731 | Rubber Pad Pom |
| 69 | 1619PC0732 | Clamp Bracket Q235A |
| 7 | 1619PB9038 | Cable Clip |
| 72 | 1619PC0733 | Shaft Q235A |
| 73 | 1619PC0734 | Washer Q235A |
| 74 | 1619PB6155 | Set screw |
| 75 | 1619PC0735 | Stop Block FZ1360 |
| 76 | 1619PC0736 | Screw Q235A |
| 78 | 1619PB6175 | Set screw |
| 79 | 1619PC0738 | Plain Washer F4×12×1 |
| 8 | 1619PC0698 | Nameplate |
| 8 | 1619PC0699 | Nameplate |
| 8 | 1619PC0700 | Nameplate |
| 8 | 1619PC0701 | Nameplate |
| 8 | 1619PC0702 | Nameplate |
| 80 | 1619PC0739 | Knob FZ1360 |
| 801 | 1619PC1024 | Housing Assembly |
| 803 | 1619PC1025 | Armature assembly 220-240V |
| 81 | 1619PC0740 | Coil Spring 65MN |
| 810 | 1619PC1027 | Carbon-Brush Set |
| 811 | 1619PC1030 | Sliding rail set |
| 814 | 1619PC1029 | Bearing Flange |
| 817 | 1619PC1028 | Lower guard |
| 82 | 1619PC0741 | Screw M6×10 |
| 83 | 1619PC0742 | Shaft |
| 85 | 1619PC0744 | Label |
| 86 | 1619PC0745 | Knob YL102 |
| 87 | 1619PB6186 | Countersunk-Head Screw |
| 88 | 1619PB6178 | Hex Nut Q235A |
| 884 | 1619PC1031 | Table Mitre Saw |
| 89 | 1619PC0746 | Washer |
| 90 | 1619PC0747 | Indicator |
| 91 | 1619PC0748 | Washer |
| 92 | 1619PC0749 | Shaft |
| 93 | 1619PC0750 | Screw |
| 94 | 1619PC0751 | Connection plate PA6-GF30 |
| 95 | 1619PC0752 | Bar Q235A |
| 96 | 1619PC0753 | Cover Plate Abs |
| 97 | 1619PC0754 | O-Ring F6.3×1.8 |
| 98 | 1619PC0755 | Indicator |
| 99 | 1619PB6210 | Nut |
