Bosch GCM 254

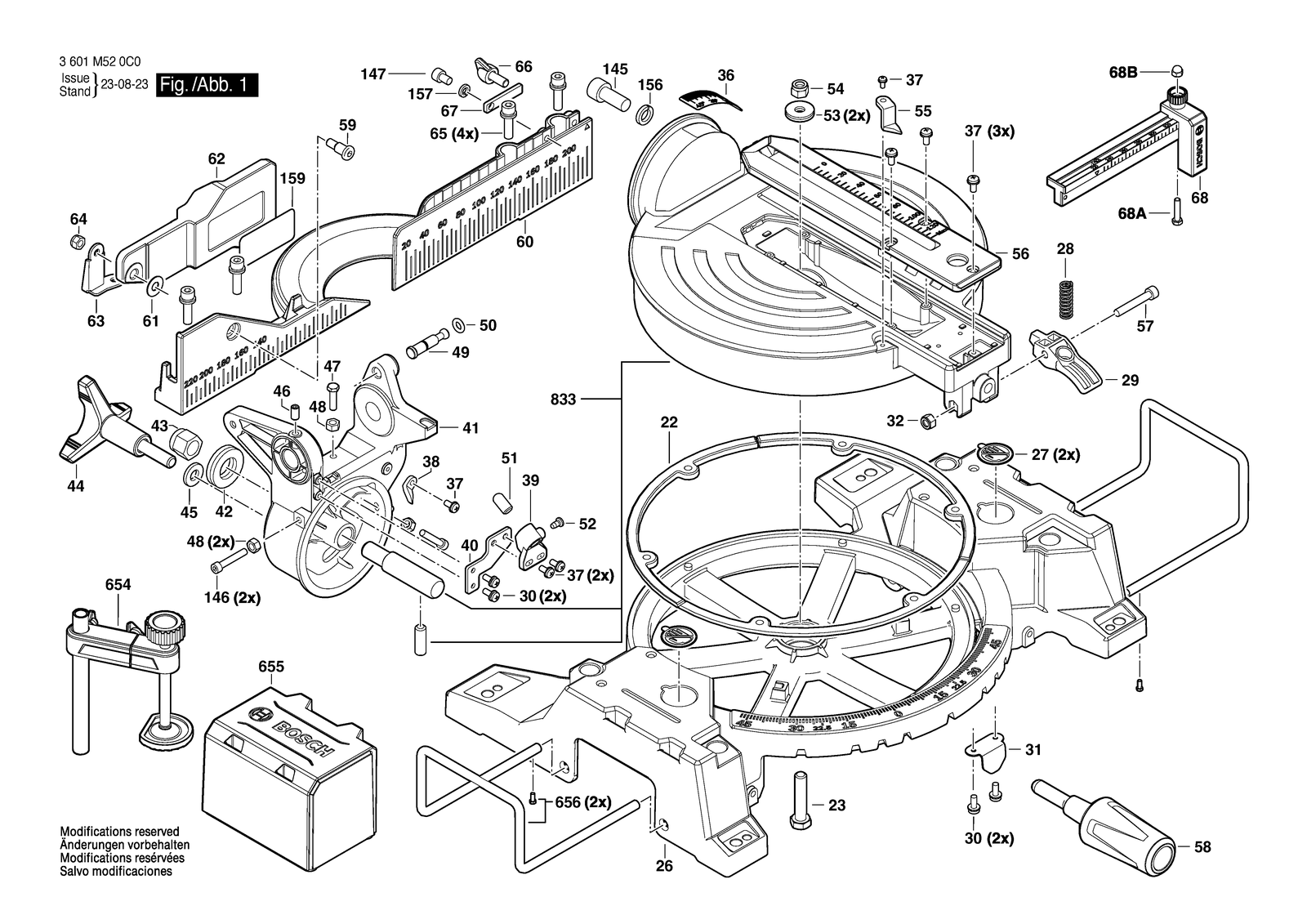

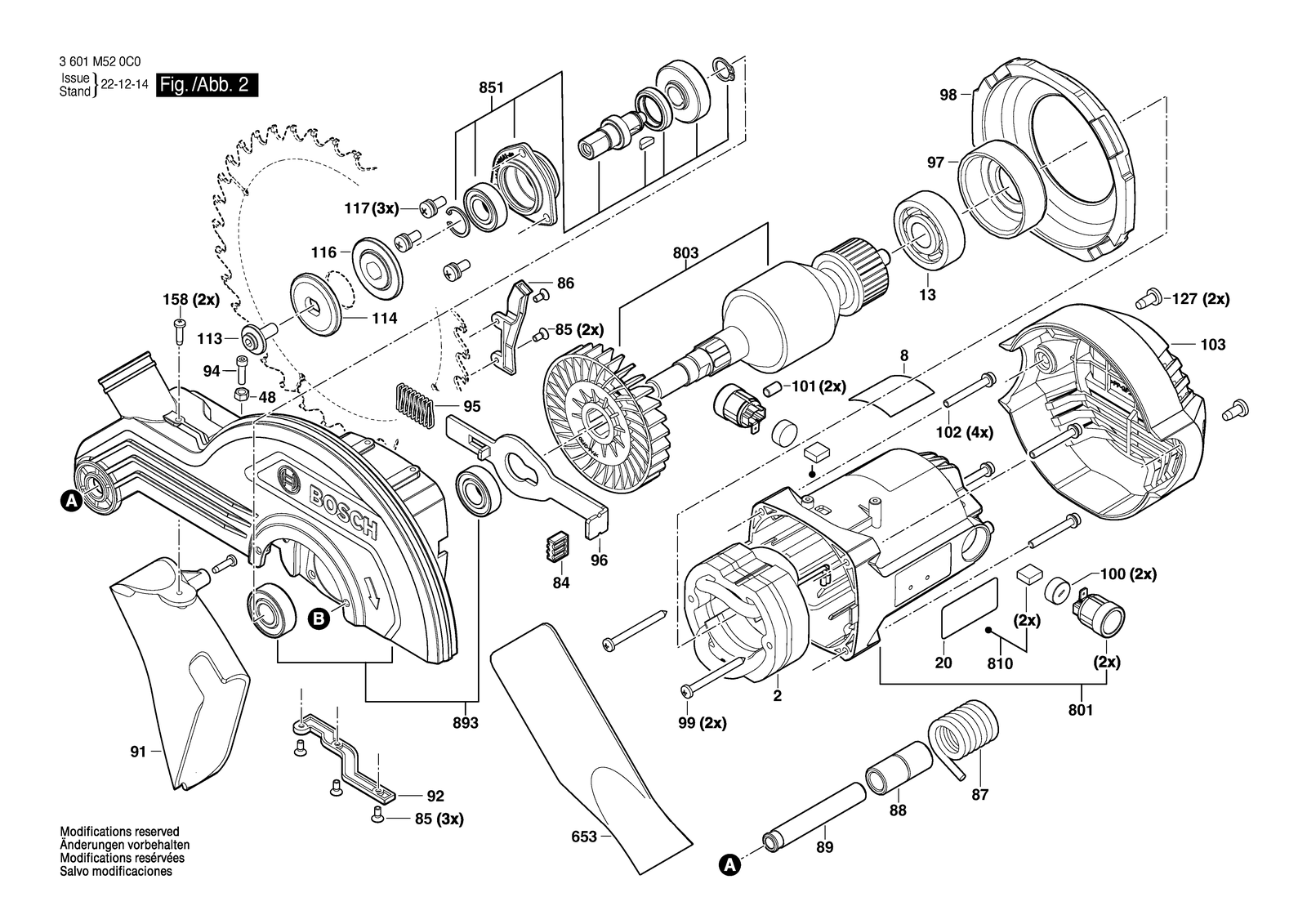

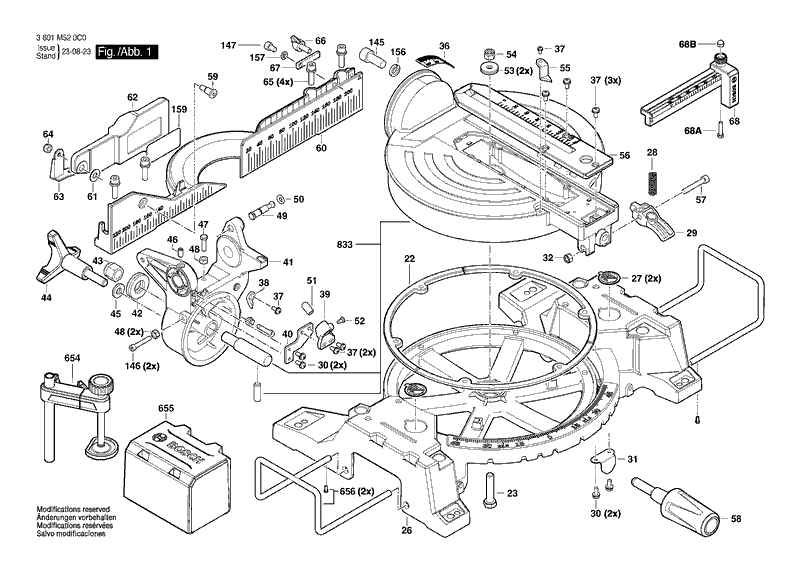

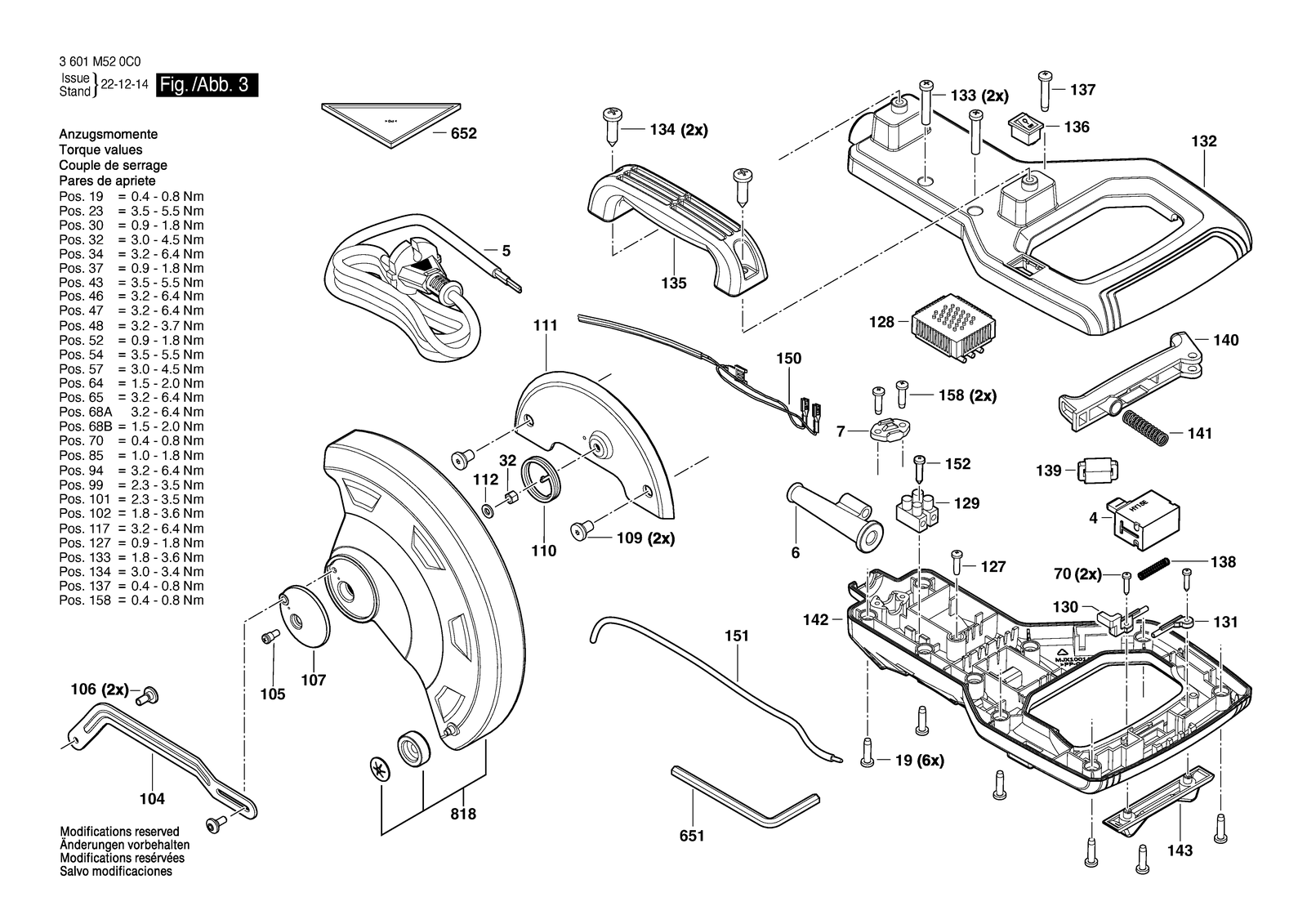

Bosch GCM 254 compound mitre saw: exploded parts diagram, 3 sheets, 122 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 254: 122 positions on 3 sheets
Bosch GCM 254 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1619PB9126 | Cover |
| 101 | 1619PB6201 | Set screw |
| 102 | 1619PB6202 | Pan head screw |
| 103 | 1619PB9129 | Housing Cover |
| 104 | 1619PB9130 | Linkage |
| 105 | 1619PB6206 | Pan head screw |
| 106 | 1619PB6204 | Shoulder Screw |
| 107 | 1619PB9133 | Plate |
| 109 | 1619PB6213 | Torx Flat-Head Screw |
| 110 | 1619PB6212 | Compression Spring |
| 111 | 1619PB6214 | Cover Plate |
| 112 | 1619PB9127 | Washer |
| 113 | 1619PB6215 | Bolt |
| 114 | 1619PB9140 | Clamping Flange |
| 116 | 1619PB9142 | Clamping Flange |
| 117 | 1619PB9143 | Bolt |
| 127 | 1619PB9153 | Screw |
| 128 | 1619PC0571 | Transformer |
| 129 | 1619PB6232 | Terminal Block |
| 13 | 1619PB9042 | Ball Bearing |
| 130 | 1619PB6231 | Linkage |
| 131 | 1619PB6243 | Linkage |
| 132 | 1619PB9158 | Handle |
| 133 | 1619PB6235 | Pan head screw |
| 134 | 1619PB6236 | Pan head screw |
| 135 | 1619PB6237 | Handle |
| 136 | 1619PB6239 | Switch |
| 137 | 1619PB9163 | Screw |
| 138 | 1619PB6244 | Spring |
| 139 | 1619PB9165 | Induction Coil |
| 140 | 1619PB9166 | Switch Button |
| 141 | 1619PB6241 | Spring |
| 142 | 1619PB9168 | Handle |
| 143 | 1619PB6228 | Interlock |
| 145 | 1619PB9171 | Bolt |
| 146 | 1619PB9172 | Bolt |
| 147 | 1619PB6137 | Socket head cap screw PP-GF25+Q235A |
| 150 | 1619PB9176 | Connecting Cable |
| 151 | 1619PB9177 | Connector Cable |
| 152 | 1619PB6233 | Pan head screw |
| 156 | 1619PB9121 | Washer |
| 157 | 1619PB6138 | Spring Washer 65MN |
| 158 | 1619PC0568 | Screw |
| 159 | 1619PC0674 | Label |
| 19 | 1619PB9035 | Pan head screw |
| 2 | 1619PB9136 | Field |
| 20 | 1619PB9047 | Warning Label |
| 22 | 1619PB9048 | Pad |
| 23 | 1619PB9049 | Bolt |
| 26 | 1619PB9052 | Base |
| 27 | 1619PB9053 | Label |
| 28 | 1619PB6151 | Spring |
| 29 | 1619PB9055 | Detent |
| 30 | 1619PB9056 | Screw |
| 31 | 1619PB9057 | Spring Clip |
| 32 | 1619PB6149 | Hex Nut Q235A |
| 36 | 1619PB9062 | Scale |
| 37 | 1619PB8622 | Screw |
| 38 | 1619PB9064 | Pointer |
| 39 | 1619PB9065 | Holder |
| 4 | 1619PC0675 | Switch |
| 40 | 1619PB9066 | Plate |
| 41 | 1619PB9067 | Arm |
| 42 | 1619PB9068 | Washer |
| 43 | 1619PB9069 | Nut |
| 44 | 1619PB9070 | Rotary Handle |
| 45 | 1619PB6164 | Plain Washer Q235A |
| 46 | 1619PB9072 | Screw |
| 47 | 1619PB9073 | Bolt |
| 48 | 1619PB6210 | Nut |
| 49 | 1600A02S76 | Detent Pin |
| 5 | 1619PB9074 | Power supply cord |
| 50 | 1619PB6174 | O-Ring Abs |
| 51 | 1619PB9077 | Laser |
| 52 | 1619PB6135 | Pan head screw YL102 |
| 53 | 1619PC0545 | Washer 8X2 |
| 54 | 1619PB6178 | Hex Nut Q235A |
| 55 | 1619PB9081 | Pointer |
| 56 | 1619PB9082 | Cover Plate |
| 57 | 1619PB6152 | Bolt YL102 |
| 58 | 1619PB9084 | Rotary Handle |
| 59 | 1619PB9085 | Bolt |
| 6 | 1619PB9037 | Grommet |
| 60 | 1619PB9086 | Mitre Fence |
| 61 | 1619PB9087 | Washer |
| 62 | 1619PB9088 | Mitre Fence |
| 63 | 1619PB9089 | Washer |
| 64 | 1619PB9090 | Nut |
| 65 | 1619PB6140 | Socket head cap screw YL102 |
| 651 | 1619PB9159 | Clamping wrench |
| 652 | 1619PB9141 | Measuring ruler |
| 653 | 1619PB6246 | Dust Bag |
| 654 | 1619PB9102 | Mounting Clamp |
| 655 | 1619PB9050 | Supporting Block |
| 656 | 1619PC0491 | Extension Stand |
| 66 | 1619PB6141 | Rotary Knob Q235A |
| 67 | 1619PB6136 | Pad |
| 68 | 1619PB9094 | Stopper |
| 7 | 1619PB9038 | Cable Clip |
| 70 | 1619PC0569 | Screw |
| 8 | 1619PB9078 | Nameplate |
| 801 | 1619PB9154 | Housing Assembly |
| 803 | 1619PB9157 | Armature assembly |
| 810 | 1619PB9144 | Carbon Brush |
| 818 | 1619PB9151 | Plate |
| 833 | 1619PB9145 | Table |
| 84 | 1619PB6194 | Push-Button |
| 85 | 1619PB6186 | Countersunk-Head Screw |
| 851 | 1619PB9156 | Drive shaft set |
| 86 | 1619PB9112 | Plate |
| 87 | 1619PB9113 | Torsion Spring |
| 88 | 1619PB6162 | Bushing Q235A |
| 89 | 1619PB6163 | Shaft PA6-GF30 |
| 893 | 1619PB9148 | Upper guard |
| 91 | 1619PB9117 | Dust Separator |
| 92 | 1619PB9118 | Plate |
| 94 | 1619PB9120 | Bolt |
| 95 | 1619PB6195 | Spring |
| 96 | 1619PB9122 | Shaft lock |
| 97 | 1619PB9123 | Rubber Bushing |
| 98 | 1619PB9124 | Baffle |
| 99 | 1619PB9125 | Screw |
