Bosch GCM 18V-07S
Bosch GCM 18V-07S compound mitre saw: exploded parts diagram, 5 sheets, 147 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

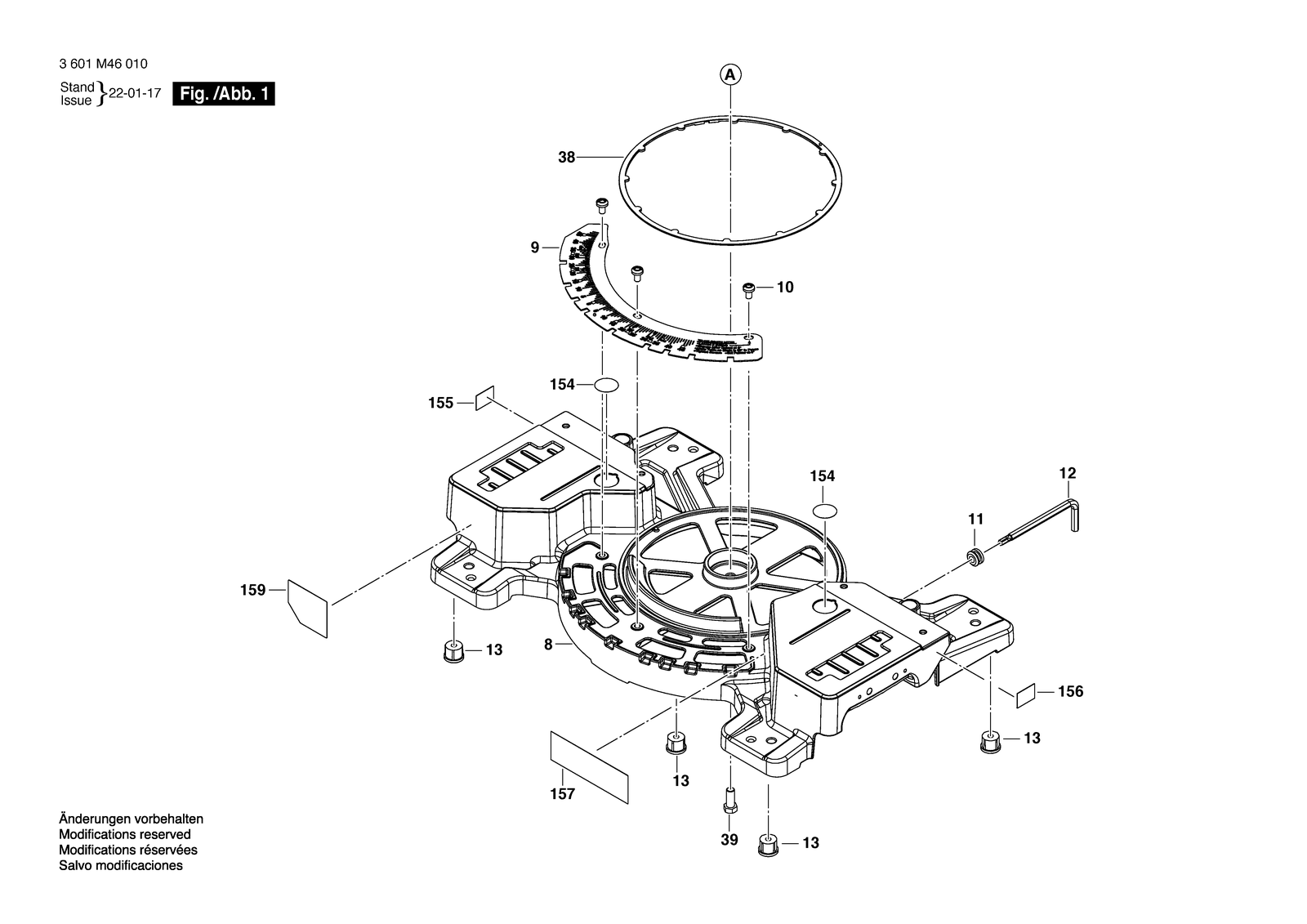

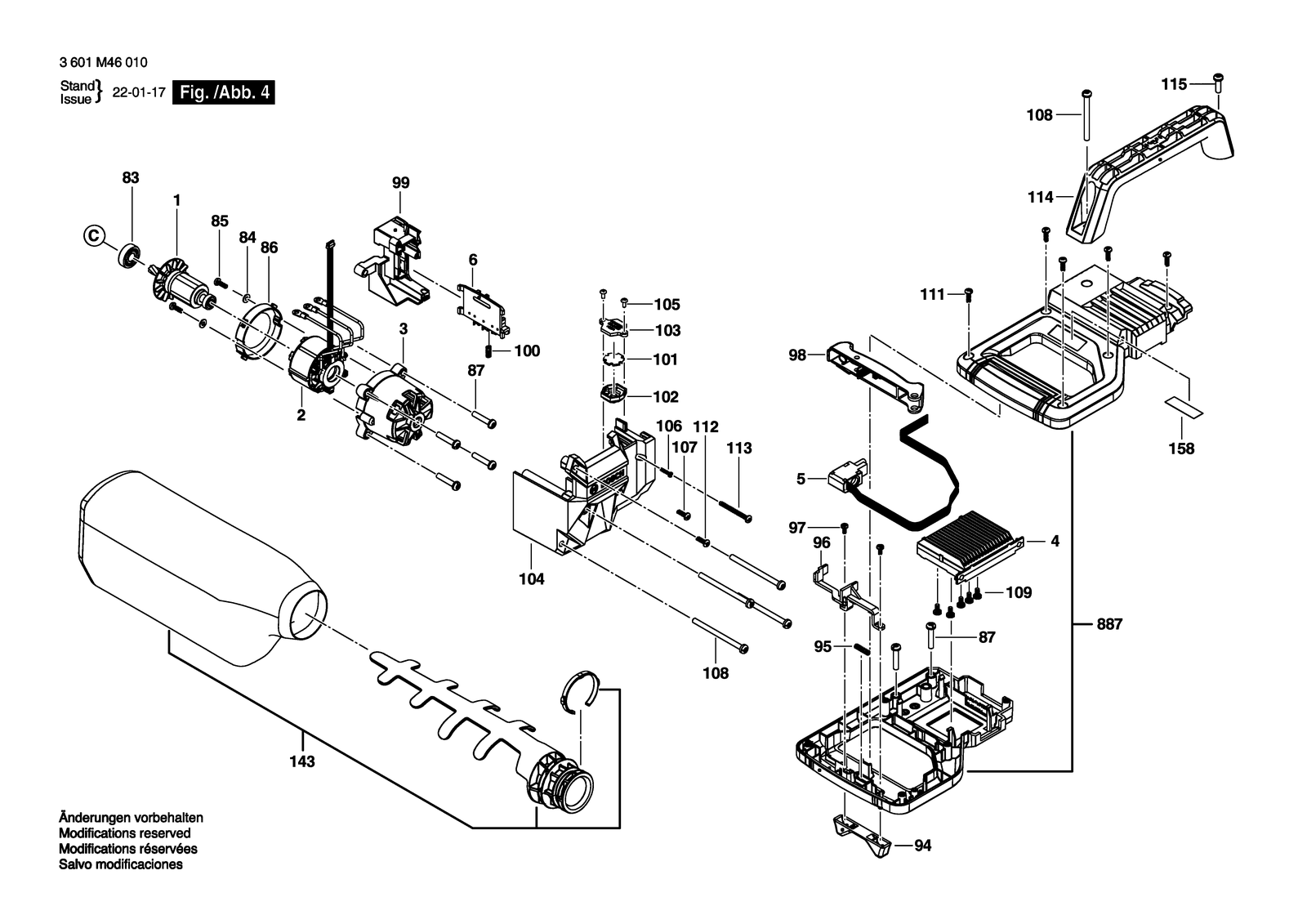

All parts of Bosch GCM 18V-07S: 147 positions on 5 sheets
Bosch GCM 18V-07S parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A023K3 | Rotor |
| 10 | 1609B07385 | Screw |
| 100 | 1609B07248 | Spring Clip |
| 101 | 1609B07358 | LED-Module |
| 102 | 1609B07433 | Lens |
| 103 | 1609B07434 | Housing Cover |
| 104 | 1609B07435 | Housing Cover |
| 105 | 1609B07436 | Tapping Screw |
| 106 | 1609B07437 | Tapping Screw |
| 107 | 1609B07438 | Tapping Screw |
| 108 | 1609B07438 | Tapping Screw |
| 109 | 1609B07249 | Screw |
| 11 | 1609B07145 | Grommet |
| 111 | 1609B07257 | Tapping Screw |
| 112 | 1609B07366 | Screw |
| 113 | 1609B07440 | Tapping Screw |
| 114 | 1609B07441 | Carrying Handle |
| 115 | 1609B07300 | Screw |
| 116 | 1609B07443 | Dust Extraction |
| 117 | 1609B07503 | Screw |
| 118 | 1609B07267 | Dust Extraction |
| 119 | 1609B07268 | Dust Extraction |
| 12 | 1609B07146 | Wrench Socket |
| 120 | 1609B07270 | Rivet |
| 122 | 1609B07448 | Flange |
| 123 | 1609B07449 | Flange Bolt |
| 125 | 2610915724 | Roller |
| 126 | 1609B07316 | Retaining ring |
| 13 | 2610358846 | Rubber Bushing |
| 133 | 1609B07454 | Screw |
| 134 | 1609B07455 | Linkage |
| 135 | 1609B07312 | Bushing |
| 136 | 1609B07319 | Wave spring |
| 137 | 1609B07321 | Screw |
| 138 | 1609B07243 | Screw |
| 139 | 1609B07456 | Mitre Fence |
| 14 | 1609B07387 | Saw Table |
| 140 | 1609B07505 | Plate |
| 141 | 1609B07141 | Screw |
| 142 | 1609B07457 | Screw |
| 143 | 1609B07323 | Dust Bag |
| 147 | 1609B07458 | Clamp |
| 15 | 1609B07388 | Shaft |
| 154 | 1609B07325 | Warning Label |
| 155 | 1609B07476 | Warning Label |
| 156 | 1609B07477 | Warning Label |
| 157 | 1609B07516 | Warning Label |
| 158 | 1609B07484 | Warning Label |
| 159 | 1609B07517 | Warning Label |
| 16 | 1609B07337 | Threaded Rod |
| 160 | 1609B07518 | Warning Label |
| 161 | 1609B07519 | Warning Label |
| 162 | 1609B07522 | Warning Label |
| 163 | 1609B07523 | Warning Label |
| 164 | 1609B07488 | Screw |
| 17 | 1609B07389 | Set screw |
| 18 | 1609B07390 | Sliding Rod |
| 19 | 1609B07391 | Leaf Spring |
| 2 | 1600A026W6 | Stator |
| 20 | 1609B07157 | Guide Bracket |
| 21 | 1609B07392 | Screw |
| 22 | 1609B07393 | Compression Spring |
| 23 | 1609B07166 | Screw |
| 24 | 1609B07394 | Locking Lever |
| 25 | 1609B07395 | Pin |
| 26 | 1609B07155 | Screw |
| 27 | 1609B07396 | Locking Bar |
| 28 | 1609B07185 | Shoulder Screw |
| 29 | 1609B07186 | Nut |
| 3 | 1609B07428 | Motor Housing |
| 30 | 1609B07281 | Spring Clip |
| 31 | 1609B07282 | Ball |
| 32 | 1609B07398 | Turret |
| 33 | 1609B07284 | Plain Washer |
| 34 | 1609B07285 | Wave spring |
| 35 | 1609B07286 | Tapping Screw |
| 36 | 1609B07399 | Pointer |
| 37 | 1609B07197 | Screw |
| 38 | 1609B07400 | Wear Plate |
| 39 | 1609B07171 | Bolt |
| 4 | 16072335NG | Electronics Module |
| 40 | 1609B07172 | Plain Washer |
| 41 | 1609B07173 | Nut |
| 42 | 1609B07401 | Support Plate |
| 43 | 1609B07160 | Screw |
| 44 | 1609B07402 | Yoke |
| 45 | 1609B07403 | Rail |
| 46 | 1609B07404 | Rail |
| 47 | 1609B07405 | Post |
| 48 | 1609B07406 | Bearing |
| 49 | 1609B07407 | Scale |
| 5 | 2607202554 | Switch |
| 50 | 1609B07408 | Plain Washer |
| 51 | 1609B07409 | Felt |
| 52 | 1609B07410 | Mounting Plate |
| 53 | 1609B07269 | Screw |
| 54 | 1609B07411 | Support bracket |
| 55 | 1609B07412 | Hinge |
| 56 | 2610950110 | Profile Rail |
| 57 | 1609B07413 | Set screw |
| 58 | 1609B07202 | Knob |
| 59 | 2610911582 | Spring |
| 6 | 1600A026SD | Battery Holder |
| 60 | 2610911584 | Rubber Pad |
| 61 | 1609B07415 | Plain Washer |
| 62 | 1609B07416 | Plain Washer |
| 63 | 2610911886 | Self-locking nut |
| 64 | 2610912587 | Plain Washer |
| 65 | 1609B07289 | Handle Bar |
| 66 | 1609B07418 | Pointer |
| 67 | 1609B07419 | Screw |
| 68 | 1609B07208 | Detent Pin |
| 69 | 1609B07209 | O-Ring |
| 7 | 1609B07459 | Nameplate |
| 70 | 1609B07210 | Retaining ring |
| 71 | 1609B07211 | Wear Plate |
| 72 | 1609B07420 | Safety Guard |
| 73 | 1609B07233 | Needle bearing |
| 74 | 1609B07421 | Pinion Shaft |
| 75 | 1609B07422 | Ball Bearing |
| 76 | 1609B07353 | Retaining ring |
| 77 | 1609B07423 | Gear |
| 78 | 2610911923 | Screw |
| 79 | 1609B07425 | Spring Clip |
| 8 | 1609B07383 | Base |
| 80 | 1609B07426 | Pin |
| 81 | 1609B07241 | Button |
| 82 | 2610015031 | Spring retaining ring |
| 829 | 1607000EG6 | Lower guard |
| 83 | 1609B07427 | Ball Bearing |
| 84 | 1609B07195 | Plain Washer |
| 85 | 1609B07429 | Screw |
| 86 | 1609B07430 | Baffle |
| 87 | 1609B07263 | Screw |
| 88 | 1609B07444 | Spacer |
| 887 | 1607000EG9 | Switch Handle |
| 89 | 1609B07445 | Torsion Spring |
| 9 | 1609B07384 | Scale |
| 90 | 1609B07446 | Pivot Pin |
| 91 | 1609B07447 | Set screw |
| 92 | 1609B07280 | Screw |
| 94 | 1609B07251 | Button |
| 95 | 1609B07252 | Spring Clip |
| 96 | 1609B07253 | Support bracket |
| 97 | 1609B07254 | Screw |
| 98 | 1609B07255 | Trigger |
| 99 | 1609B07432 | Battery Holder |
