Bosch GCM 12 X

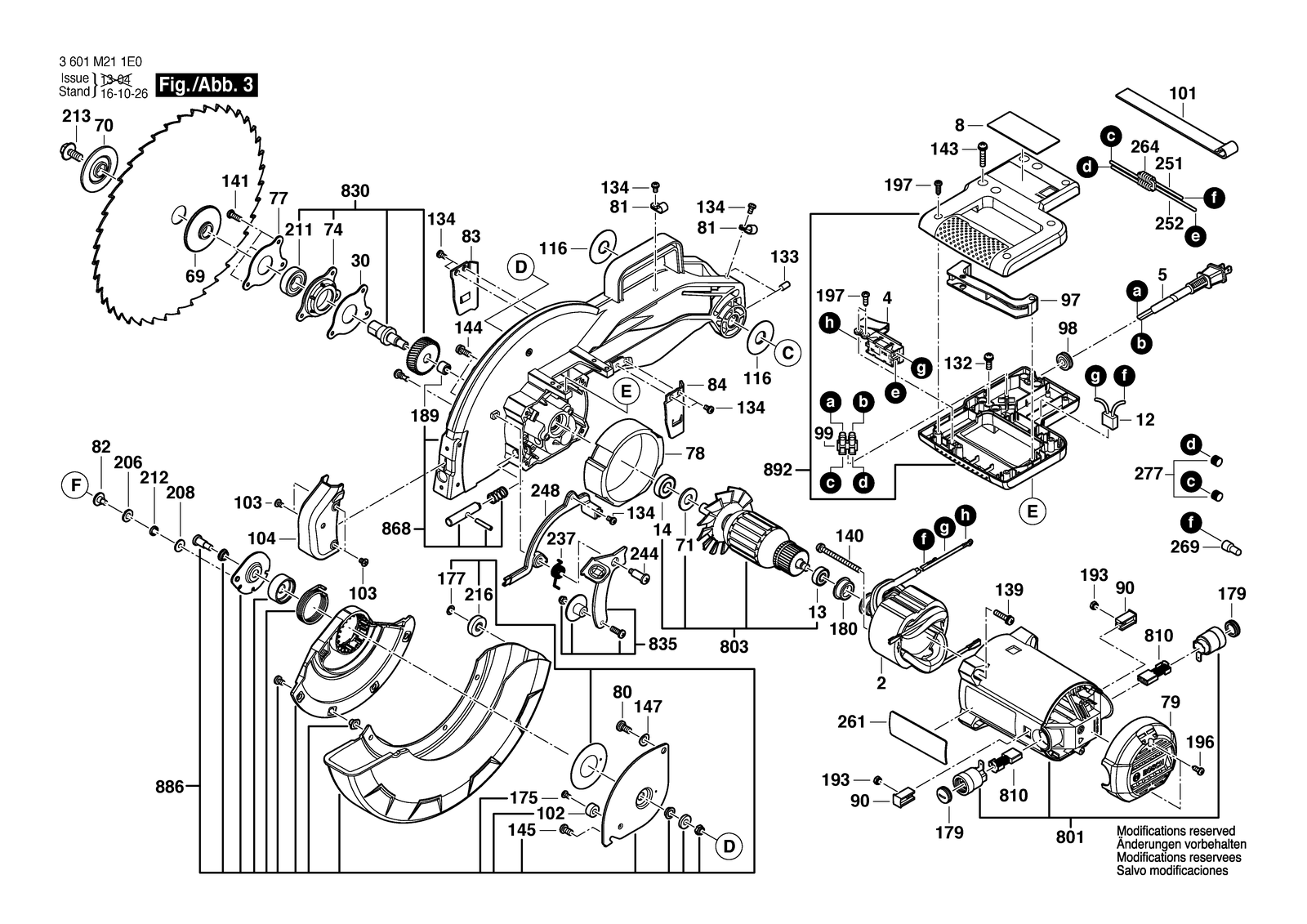

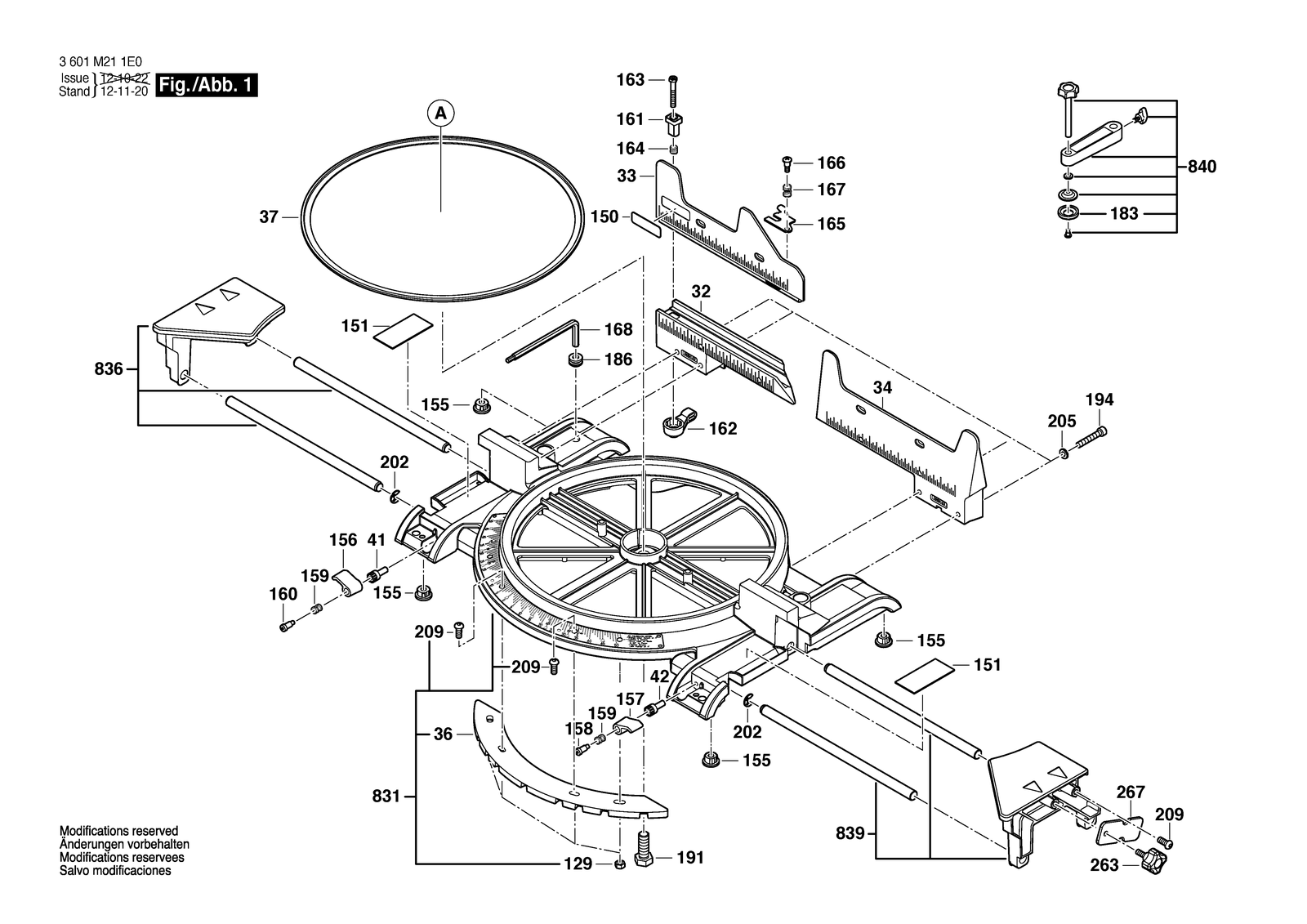

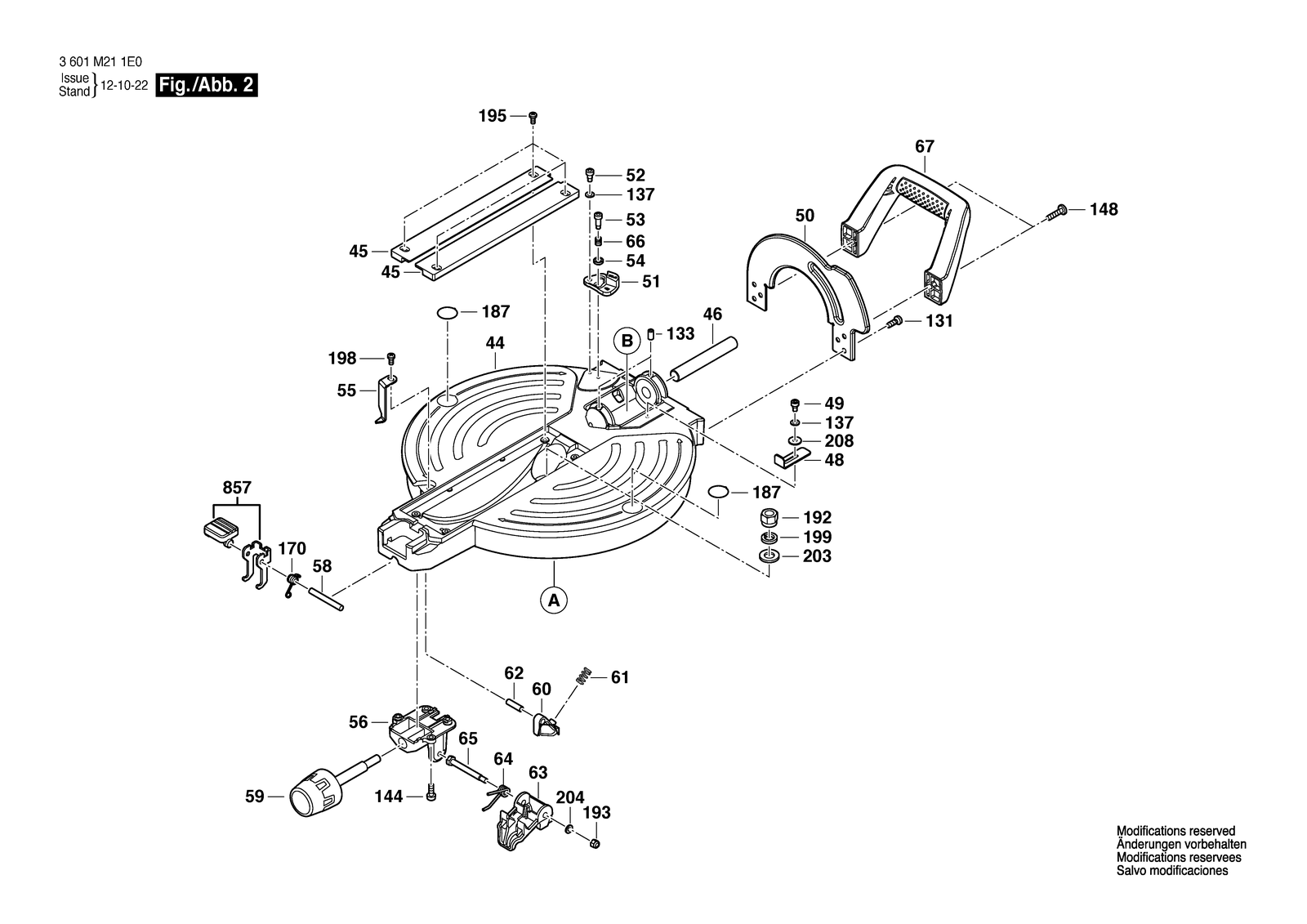

Bosch GCM 12 X compound mitre saw: exploded parts diagram, 4 sheets, 185 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 12 X: 185 positions on 4 sheets
Bosch GCM 12 X parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1609B01538 | Cable Tape |
| 102 | 1609B01539 | Pad |
| 103 | 1609B01561 | Screw |
| 104 | 1609B01570 | Cover |
| 106 | 1609B01592 | Pointer |
| 107 | 1609B01593 | Control Lever |
| 108 | 1609B01594 | Clamp Pin |
| 109 | 1609B01595 | Clamp |
| 110 | 1609B01596 | Pad |
| 111 | 1609B01597 | Pad |
| 112 | 1609B01598 | Backing Plate |
| 113 | 1609B01599 | Control Screw |
| 114 | 1609B01600 | Locking Pin |
| 115 | 1609B01601 | Shoulder Screw |
| 116 | 1609B01602 | Wear Plate |
| 117 | 1609B01603 | Shaft |
| 118 | 1609B01604 | Spring |
| 119 | 1609B01605 | Bushing |
| 12 | 1609B01587 | Suppression Capacitor |
| 120 | 1609B01606 | Linkage |
| 121 | 1609B01611 | Dust container |
| 122 | 1609B01612 | Rubber Plate |
| 123 | 1609B01613 | Adapter |
| 127 | 1609B01651 | Collar bolt |
| 128 | 1609B01652 | Collar bolt |
| 129 | 1609B01654 | Nut |
| 13 | 1609B00597 | Bearing |
| 130 | 1609B01655 | Nut |
| 131 | 1609B01656 | Screw |
| 132 | 1609B01356 | Cyl Head tapping screw |
| 133 | 1609B01660 | Screw |
| 134 | 1609B01664 | Screw |
| 135 | 1609B01665 | Screw |
| 137 | 1609B01668 | Washer |
| 139 | 1609B00654 | Screw |
| 14 | 1609B01672 | Bearing |
| 140 | 1609B01680 | Screw |
| 141 | 1609B01689 | Screw |
| 142 | 1609B01690 | Screw |
| 143 | 1609B00655 | Screw |
| 144 | 1609B01692 | Screw |
| 145 | 1609B01576 | Screw |
| 146 | 1609B00370 | Shaft |
| 147 | 1609B01696 | Washer |
| 148 | 1609B01701 | Screw |
| 150 | 1609B01728 | Warning Label |
| 151 | 1609B01730 | Label |
| 155 | 1609B01431 | Supporting foot |
| 156 | 1609B00232 | Locking Lever |
| 157 | 1609B00233 | Locking Lever |
| 158 | 1609B00236 | Shoulder Screw |
| 159 | 1609B00237 | Compression Spring |
| 160 | 1609B00238 | Shoulder Screw |
| 161 | 1609B00244 | Clamping Sleeve |
| 162 | 1609B00245 | Locking Lever |
| 163 | 1609B00247 | Bolt |
| 164 | 1609B00249 | Compression Spring |
| 165 | 1609B00250 | Plate |
| 166 | 1609B00252 | Shoulder Screw |
| 167 | 1609B00253 | Compression Spring |
| 168 | 1609B00256 | Wrench Socket |
| 170 | 1609B00309 | Torsion Spring |
| 172 | 1609B00690 | Retaining ring |
| 175 | 1609B00454 | Screw |
| 177 | 1609B00458 | Quick-Lock |
| 179 | 1609B00478 | Brush-Cover |
| 180 | 1609B01670 | Rubber Bushing |
| 183 | 1609B00523 | Rubber Pad |
| 186 | 1609B00533 | Rubber Bushing |
| 187 | 1609B00543 | Warning Plate |
| 189 | 1609B00600 | Bearing |
| 190 | 1609B00601 | O-Ring |
| 191 | 1609B00602 | Bolt |
| 192 | 1609B00603 | Lock Nut |
| 193 | 1609B00605 | Lock Nut |
| 194 | 1609B00610 | Screw |
| 195 | 1609B00627 | Screw |
| 196 | 1609B00636 | Tapping Screw |
| 197 | 1609B00637 | Tapping Screw |
| 198 | 1609B00647 | Screw |
| 199 | 1609B00658 | Spring Washer |
| 2 | 1609B01510 | Field 127V |
| 2 | 1609B01621 | Field 220V |
| 200 | 1609B00662 | Washer |
| 202 | 1609B00644 | Retaining ring |
| 203 | 1609B00665 | Washer |
| 204 | 1609B00667 | Washer |
| 205 | 1609B00669 | Washer |
| 206 | 1609B00670 | Washer |
| 207 | 1609B00673 | Lock Nut |
| 208 | 1609B00675 | Washer |
| 209 | 1609B00678 | Screw |
| 211 | 1609B00779 | Groove ball bearing |
| 212 | 1609B00811 | Roller |
| 213 | 1609B00960 | Flange Bolt |
| 216 | 1609BP7124 | Roller |
| 218 | 1609B01607 | Bushing |
| 237 | 1609B01560 | Torsion Spring |
| 244 | 1609B01575 | Shoulder Screw |
| 248 | 1609B01584 | Channel |
| 251 | 1609B01588 | Connecting Cable |
| 251 | 1609B01622 | Wire |
| 252 | 1609B01589 | Connecting Cable |
| 252 | 1609B01623 | Wire |
| 261 | 1609B01765 | Manufacturer's nameplate GCM 12 X |
| 263 | 1609B00263 | Screw |
| 264 | 1609B00813 | Ring |
| 267 | 1609B02365 | Stop Plate |
| 269 | 1609B02406 | Connector |
| 277 | 1609B01397 | Connecting terminal |
| 30 | 1609B01499 | Washer |
| 32 | 1609B01442 | Mitre Fence |
| 33 | 1609B01631 | Mitre Fence |
| 34 | 1609B01632 | Mitre Fence |
| 36 | 1609B01427 | Detent plate |
| 37 | 1609B01428 | Sliding Plate |
| 4 | 2610950336 | Switch |
| 41 | 1609B01435 | Lock Screw |
| 42 | 1609B01436 | Lock Screw |
| 44 | 1609B01452 | Table |
| 45 | 1609B01453 | Support Plate |
| 46 | 1609B01454 | Shaft |
| 47 | 1609B01457 | Wear Plate |
| 48 | 1609B01458 | Slider |
| 49 | 1609B01459 | Shoulder Screw |
| 5 | 1609B00866 | Power supply cord |
| 5 | 1609B00934 | Power supply cord |
| 5 | 1609B00935 | Power supply cord |
| 5 | 1609B00936 | Power supply cord |
| 50 | 1609B01460 | Scale Plate |
| 51 | 1609B01461 | Detent |
| 52 | 1609B01462 | Shoulder Screw |
| 53 | 1609B01463 | Shoulder Screw |
| 54 | 1609B01464 | Sliding Block |
| 55 | 1609B01465 | Pointer |
| 56 | 1609B01466 | Bracket |
| 58 | 1609B01469 | Pin |
| 59 | 1609B01470 | Knob |
| 60 | 1609B01472 | Clamp |
| 61 | 1609B01473 | Compression Spring |
| 62 | 1609B01474 | Pin |
| 63 | 1609B01475 | Trigger |
| 64 | 1609B01476 | Spring |
| 65 | 1609B01477 | Collar bolt |
| 66 | 1609B01479 | Compression Spring |
| 67 | 1609B01482 | Handle |
| 69 | 1609B01574 | Flange |
| 70 | 1609B01586 | Flange |
| 71 | 1609B01674 | O-Ring Seal |
| 74 | 1609B01501 | Bearing box |
| 77 | 1609B01504 | Bearing Cover |
| 78 | 1609B01507 | Baffle |
| 79 | 1609B01508 | End cap |
| 8 | 1609BN0054 | Nameplate |
| 8 | 1609BN0055 | Nameplate |
| 8 | 1609BN0056 | Nameplate |
| 8 | 1609BN0057 | Nameplate |
| 8 | 1609BN0060 | Nameplate |
| 80 | 1609B01509 | Shoulder Screw |
| 801 | 1609B01713 | Motor Housing |
| 803 | 1609B01723 | Armature 230V |
| 803 | 1609B01734 | Armature assembly 127V |
| 805 | 1609B01717 | Yoke |
| 81 | 1609B01512 | Cable Clip |
| 810 | 1609B02314 | Carbon-Brush Set |
| 810 | 2610021311 | Carbon-Brush Set |
| 82 | 1609B01513 | Shoulder Screw |
| 825 | 1609B01716 | Dust Bag |
| 83 | 1609B01514 | Chip Deflector |
| 830 | 1609B01710 | Gear |
| 831 | 1609B01715 | Base |
| 835 | 1609B01708 | Handle |
| 836 | 1609B01720 | Feed Table |
| 839 | 1609B01721 | Feed Table |
| 84 | 1609B01515 | Chip Deflector |
| 840 | 1609B06203 | Adjustable screw clamp |
| 857 | 1609B01722 | Button |
| 868 | 1609B01727 | Arm |
| 886 | 1609B01719 | Protection |
| 892 | 1609B01644 | Handle |
| 892 | 1609B01645 | Handle |
| 90 | 1609B01522 | Nut Holder |
| 97 | 1609B01531 | Trigger |
| 98 | 1609B01533 | Cord guard |
| 99 | 1609BP7059 | Connection Block |
