Bosch GCM 12 SDE slide mitre saw: exploded parts diagram, 5 sheets, 234 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 12 SDE: 234 positions on 5 sheets

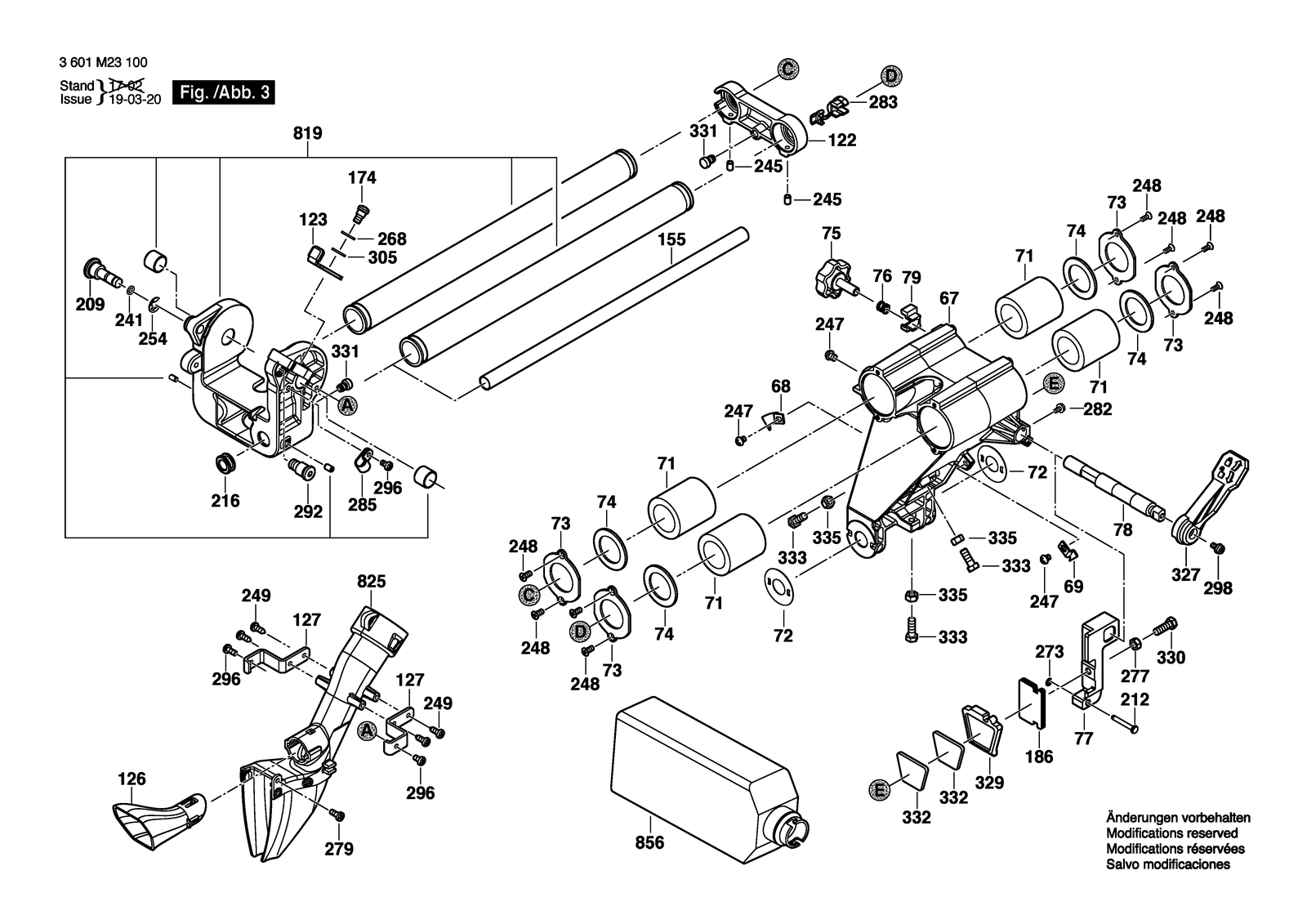

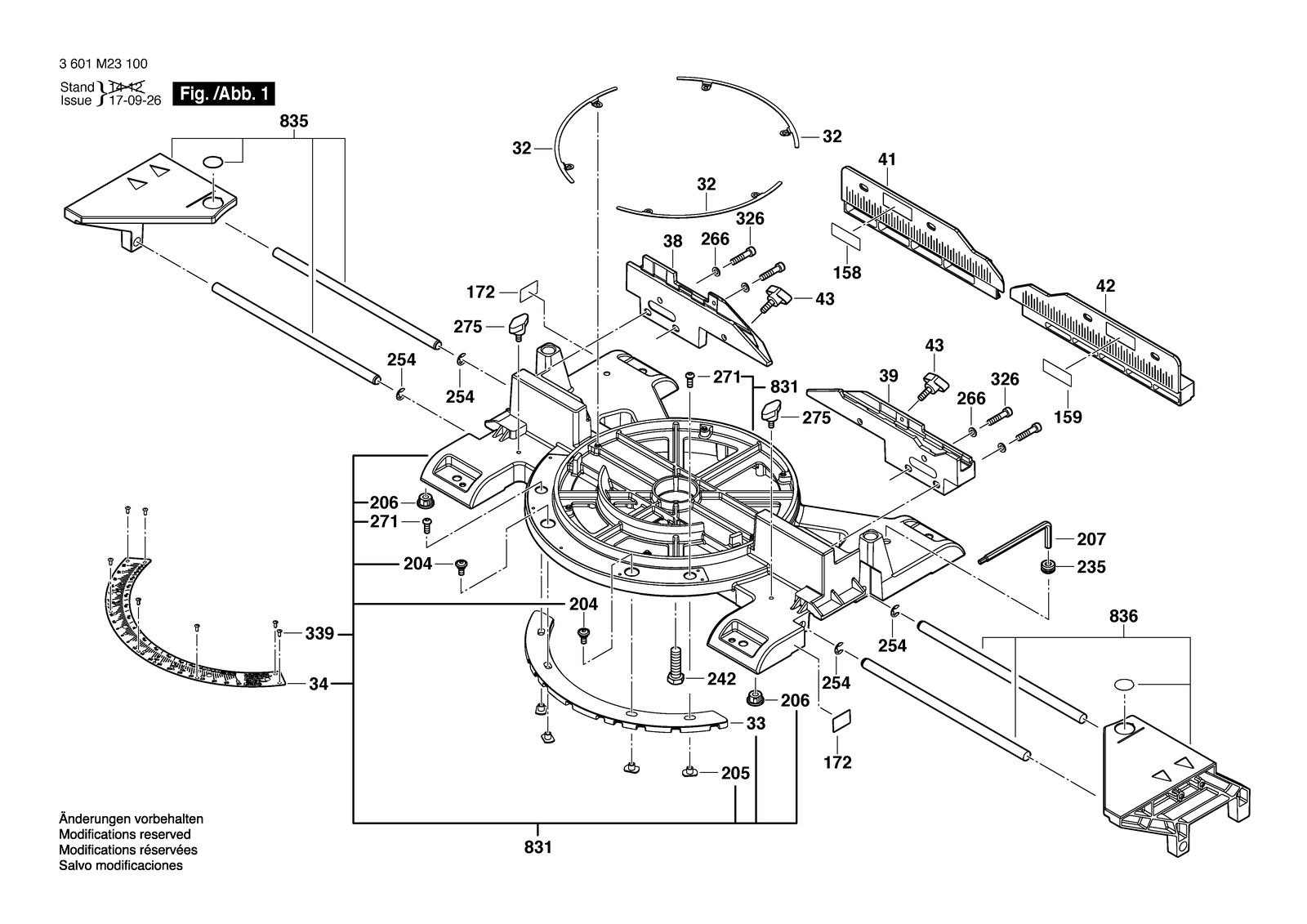

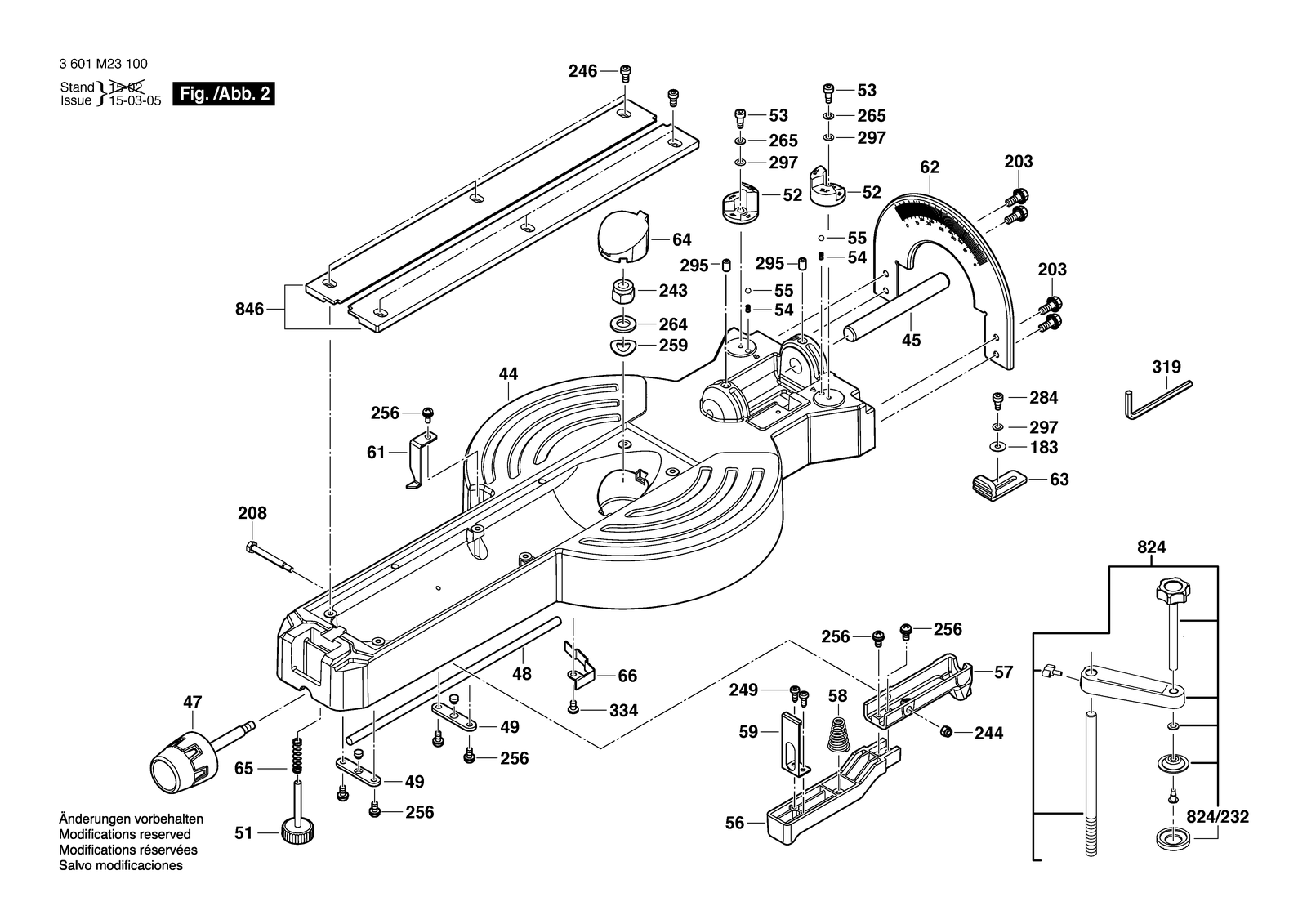

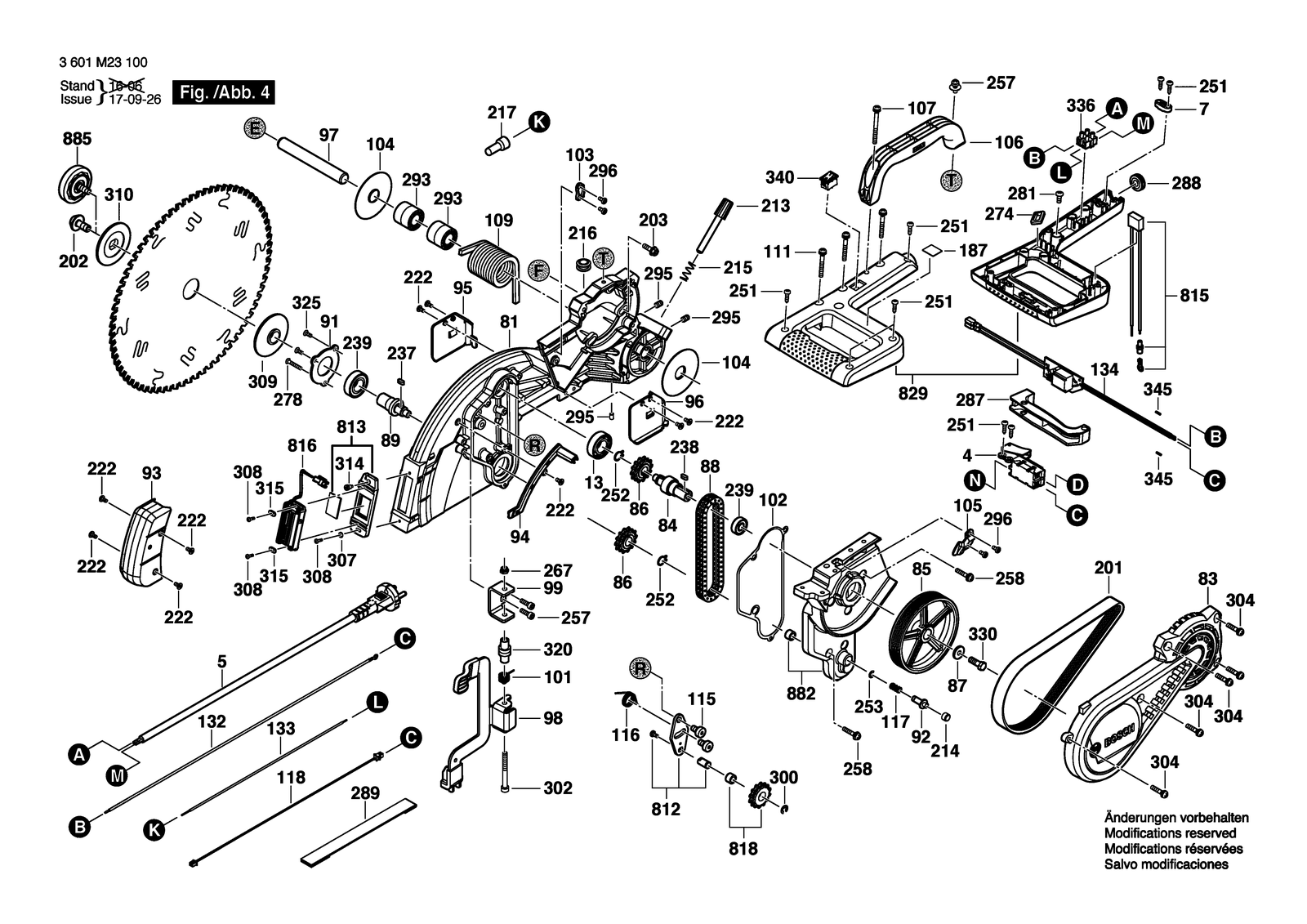

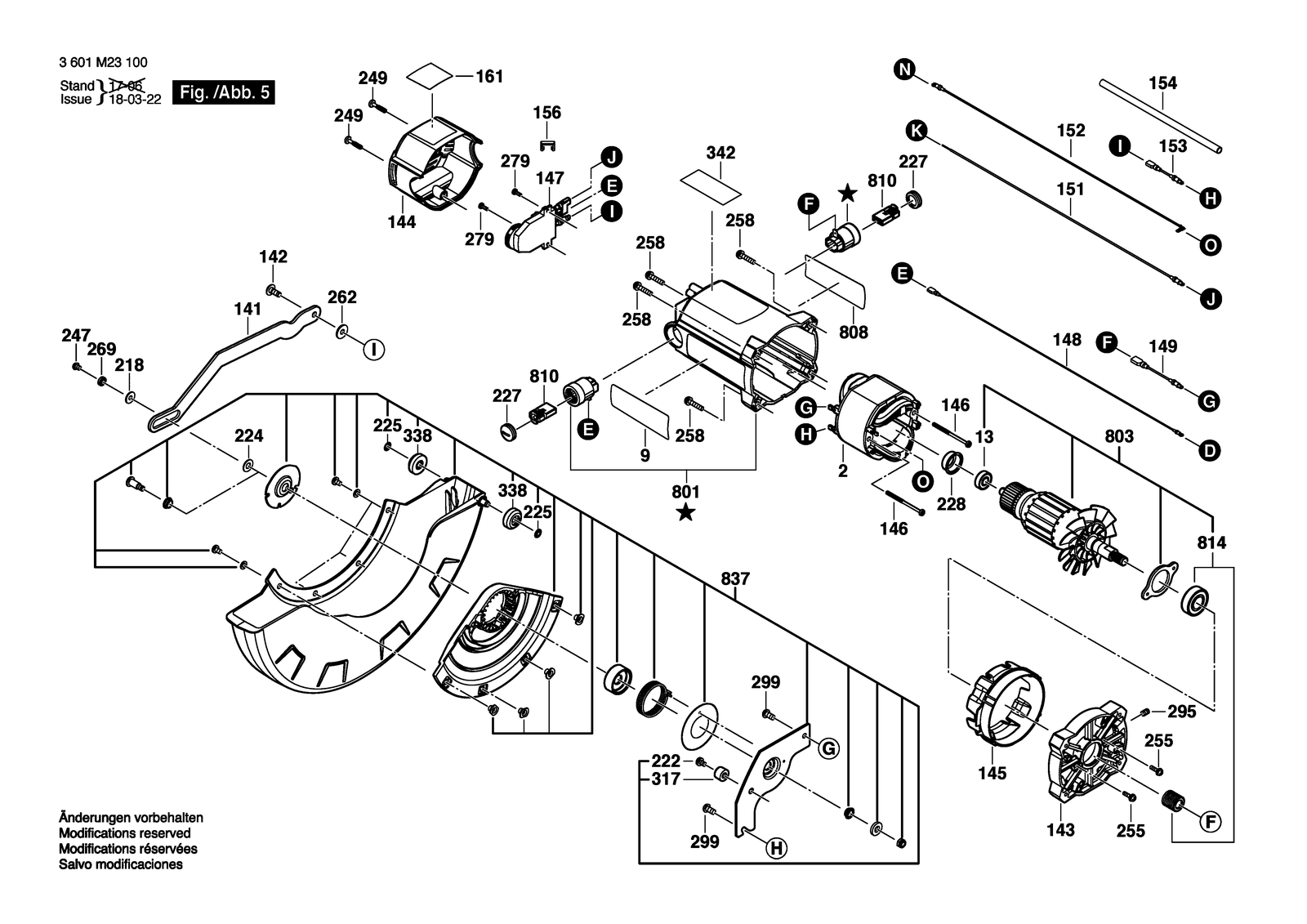

Bosch GCM 12 SDE parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1609B04819 | Torsion Spring |
| 102 | 1609B04822 | Gasket |
| 103 | 1609B04825 | Cable Clip |
| 104 | 1609B04826 | Wear Plate |
| 105 | 1609B04827 | Cable Clip |
| 106 | 1609B04828 | Carrying Handle |
| 107 | 1609B04829 | Screw |
| 109 | 1609B04831 | Torsion Spring |
| 111 | 1609B04832 | Screw |
| 115 | 1609B04836 | Screw |
| 116 | 1609B04837 | Torsion Spring |
| 117 | 1609B04838 | Compression Spring |
| 118 | 1609B04839 | Wire |
| 122 | 1609B04843 | End cap |
| 123 | 1609B05131 | Trap door |
| 126 | 1609B04847 | Dust Extraction |
| 127 | 1609B04848 | Support bracket |
| 13 | 1609B00597 | Bearing |
| 132 | 1609B04855 | Wire |
| 133 | 1609B04856 | Wire |
| 134 | 1609B04858 | Power Supply Board |
| 141 | 1609B04875 | Linkage |
| 142 | 1609B04876 | Shoulder Screw |
| 143 | 1609B04892 | Intermediate Flange |
| 144 | 1609B04902 | End cap |
| 145 | 1609B04904 | Baffle |
| 146 | 1609B04911 | Screw |
| 147 | 1609B04914 | Speed governor |
| 148 | 1609B04915 | Wire |
| 149 | 1609B04916 | Wire |
| 151 | 1609B04917 | Wire |
| 152 | 1609B04918 | Wire |
| 153 | 1609B04919 | Wire |
| 154 | 1609B04921 | Sleeve |
| 155 | 1609B04922 | Sleeve |
| 156 | 1609B04923 | Clip |
| 158 | 1609B04949 | Label |
| 159 | 1609B04950 | Label |
| 161 | 1609B04951 | Label |
| 172 | 1609B04960 | Label |
| 174 | 1609B04783 | Shoulder Screw |
| 183 | 1609B04757 | Washer |
| 186 | 1609B04762 | Leaf Spring |
| 187 | 1609B04959 | Label |
| 2 | 1609B04898 | Field 230V |
| 201 | 1609B00207 | Belt |
| 202 | 1609B00211 | Flange Bolt |
| 203 | 1609B00213 | Flange Bolt |
| 204 | 1609B00223 | Screw |
| 205 | 1609B00225 | Nut |
| 206 | 1609B01431 | Supporting foot |
| 207 | 1609B00256 | Wrench Socket |
| 208 | 1609B00305 | Bolt |
| 209 | 1609B00350 | Knob |
| 212 | 1609B00370 | Shaft |
| 213 | 1609B00382 | Knob Red |
| 214 | 1609B00390 | Button |
| 215 | 1609B00417 | Compression Spring |
| 216 | 1609B00418 | Sleeve |
| 217 | 1609B00430 | Connector |
| 218 | 1609B00449 | Bushing |
| 222 | 1609B00454 | Screw |
| 224 | 1609B00457 | Washer |
| 225 | 1609B00458 | Quick-Lock |
| 227 | 1609B00478 | Brush-Cover |
| 228 | 1609B00480 | Rubber Bushing |
| 235 | 1609B00533 | Rubber Bushing |
| 237 | 1609B00592 | Key |
| 238 | 1609B00593 | Key |
| 239 | 1609B00596 | Bearing |
| 241 | 1609B00601 | O-Ring |
| 242 | 1609B00602 | Bolt |
| 243 | 1609B00603 | Lock Nut |
| 244 | 1609B00605 | Lock Nut |
| 245 | 1609B00617 | Set screw |
| 246 | 1609B00627 | Screw |
| 247 | 1609B00630 | Screw |
| 248 | 1609B00633 | Screw |
| 249 | 1609B00636 | Tapping Screw |
| 251 | 1609B00637 | Tapping Screw |
| 252 | 1609B00641 | Retaining ring |
| 253 | 1609B00643 | Retaining ring |
| 254 | 1609B00644 | Retaining ring |
| 255 | 1609B00649 | Screw |
| 256 | 1609B00650 | Screw |
| 257 | 1609B00652 | Screw |
| 258 | 1609B00654 | Screw |
| 259 | 1609B00658 | Spring Washer |
| 262 | 1609B00662 | Washer |
| 264 | 1609B00665 | Washer |
| 265 | 1609B00667 | Washer |
| 266 | 1609B00669 | Washer |
| 267 | 1609B00673 | Lock Nut |
| 268 | 1609B00674 | Washer |
| 269 | 1609B00675 | Washer |
| 271 | 1609B00678 | Screw |
| 273 | 1609B00690 | Retaining ring |
| 274 | 1609B00813 | Ring |
| 275 | 1609B02991 | Knob |
| 277 | 1609B01041 | Hex Nut |
| 278 | 1609B04799 | Screw |
| 279 | 1609B01194 | Tapping Screw |
| 281 | 1609B01356 | Cyl Head tapping screw |
| 282 | 1609B01388 | Screw |
| 283 | 1609B01396 | Cable Holder |
| 283 | 1609B04869 | Strain-Relief Clamp |
| 284 | 1609B01462 | Shoulder Screw |
| 285 | 1609B01512 | Cable Clip |
| 287 | 1609B01531 | Trigger |
| 288 | 1609BP7095 | Cord guard |
| 289 | 1609B01538 | Cable Tape |
| 292 | 1609B01599 | Control Screw |
| 293 | 1609B01605 | Bushing |
| 295 | 1609B01660 | Screw |
| 296 | 1609B01664 | Screw |
| 297 | 1609B01668 | Washer |
| 298 | 1609B01665 | Screw |
| 299 | 1609B01693 | Screw |
| 300 | 1609B01992 | End Clip |
| 302 | 1609B02177 | Screw |
| 304 | 1609B00653 | Screw |
| 305 | 1609B01696 | Washer |
| 307 | 1609B02191 | Washer |
| 308 | 1609B02192 | Screw |
| 309 | 1609B02350 | Flange |
| 310 | 1609B02352 | Flange |
| 314 | 1609B02437 | Screw |
| 315 | 1609B02438 | Grooved Washer |
| 317 | 1609B02467 | Bumper |
| 319 | 1609B02490 | Wrench Socket |
| 32 | 1609B04702 | Sliding Plate |
| 320 | 1609B02502 | Bushing |
| 325 | 1609B03179 | Screw |
| 326 | 1609B03722 | Screw |
| 327 | 1609B03733 | Control Lever |
| 329 | 1609B03741 | Lock Plate |
| 33 | 1609B04703 | Detent plate |
| 330 | 1609B03742 | Adjusting bolt |
| 331 | 1609B03753 | Slide Stop |
| 332 | 1609B03770 | Friction Plate |
| 333 | 1609B03776 | Stop bolt |
| 334 | 1609B04086 | Screw |
| 335 | 1609B04227 | Adjusting Nut |
| 336 | 1609BP7059 | Connection Block |
| 338 | 1609BP7124 | Roller |
| 339 | 1609B00622 | Rivet |
| 34 | 1609B04704 | Scale |
| 340 | 1609B05392 | Switch |
| 342 | 1609B02125 | Warning Plate |
| 345 | 1609B01397 | Connecting terminal |
| 38 | 1609B04991 | Mitre Fence |
| 39 | 1609B04992 | Mitre Fence |
| 4 | 2610950336 | Switch |
| 41 | 1609B04993 | Mitre Fence |
| 42 | 1609B04994 | Mitre Fence |
| 43 | 1609B04715 | Knob |
| 44 | 1609B04721 | Table |
| 45 | 1609B04722 | Shaft |
| 47 | 1609B04725 | Knob |
| 48 | 1609B04726 | Rod |
| 49 | 1609B04727 | Cover |
| 5 | 1609B00372 | Power supply cord EU 3,5M 2X1MM H07 Rn-F |
| 5 | 1609B00374 | Power supply cord CH 3,5M 2X1MM H05 Rn-F |
| 5 | 1609B00376 | Power supply cord GB 3,5M 2X1MM H07 Rn-F |
| 51 | 1609B04728 | Supporting foot |
| 52 | 1609B04743 | Detent |
| 53 | 1609B04744 | Shoulder Screw |
| 54 | 1609B04745 | Contact strap |
| 55 | 1609B04746 | Ball |
| 56 | 1609B04747 | Detent |
| 57 | 1609B04748 | Detent |
| 58 | 1609B04749 | Contact strap |
| 59 | 1609B04750 | Leaf Spring |
| 61 | 1609B04751 | Pointer |
| 62 | 1609B04752 | Scale |
| 63 | 1609B04754 | Sliding Plate |
| 64 | 1609B04755 | Cover |
| 65 | 1609B04756 | Contact strap |
| 66 | 1609B04758 | Leaf Spring |
| 67 | 1609B04761 | Post |
| 68 | 1609B04773 | Pointer |
| 69 | 1609B04774 | Pointer |
| 7 | 1619P03808 | Cable Clip |
| 71 | 1609B04775 | Bearing |
| 72 | 1609B04776 | Wear Plate |
| 73 | 1609B04778 | Plate |
| 74 | 1609B04780 | Felt |
| 75 | 1609B04781 | Knob |
| 76 | 1609BP7343 | Contact strap |
| 77 | 1609B04794 | Locking Lever |
| 78 | 1609B04795 | Lever Shaft |
| 79 | 1609B04798 | Cover |
| 801 | 1609B05013 | Housing Assembly |
| 803 | 1609B05014 | Armature assembly 230V |
| 808 | 1609BN0171 | Nameplate |
| 808 | 1609BN0172 | Nameplate |
| 808 | 1609BN0174 | Nameplate |
| 81 | 1609B04801 | Arm |
| 810 | 1609B05015 | Carbon-Brush Set |
| 812 | 1609B05016 | Tensioning Bracket |
| 813 | 1609B02434 | Support Plate |
| 814 | 1609B02316 | Bearing |
| 815 | 1609B05030 | Condenser |
| 816 | 1609B05019 | Laser module |
| 818 | 1609B05020 | Sprocket |
| 819 | 1609B05021 | Carrier |
| 824 | 1609B06203 | Adjustable screw clamp |
| 824/232 | 1609B00523 | Rubber Pad |
| 825 | 1609B05018 | Dust Extraction |
| 829 | 1609B05012 | Switch Handle |
| 83 | 1609B04803 | Belt Cover |
| 831 | 1609B05022 | Base Unit |
| 835 | 1609B05023 | Extension Stand |
| 836 | 1609B05024 | Extension Stand |
| 837 | 1609B05025 | Lower guard |
| 84 | 1609B04804 | Transmission Shaft |
| 846 | 1609B05028 | Plate |
| 85 | 1609B04805 | Pulley |
| 86 | 1609B04806 | Sprocket |
| 87 | 1609B04807 | Washer |
| 88 | 1609B04808 | Chain |
| 882 | 1609B05026 | Chain Cover |
| 885 | 1609B05017 | Bolt |
| 89 | 1609B04809 | Output Shaft |
| 9 | 1609B00695 | Label |
| 91 | 1609B04810 | Plate |
| 92 | 1609B04811 | Spindle |
| 93 | 1609B04812 | Cover |
| 94 | 1609B04813 | Channel |
| 95 | 1609B04815 | Chip Deflector |
| 96 | 1609B04814 | Chip Deflector |
| 97 | 1609B04816 | Pivot Pin |
| 98 | 1609B04817 | Locking Lever |
| 99 | 1609B04818 | Bracket |
