Bosch GCM 12 SD

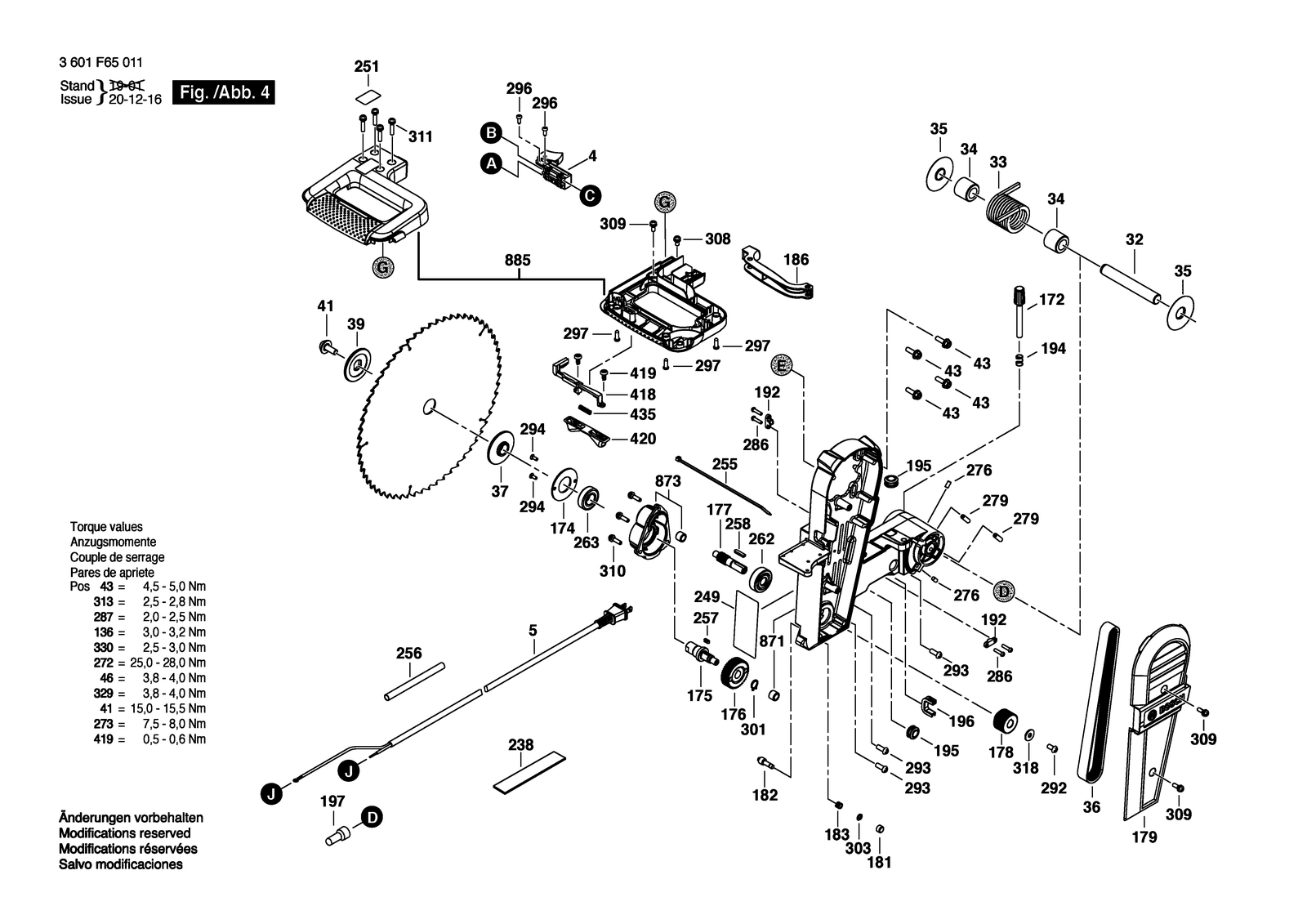

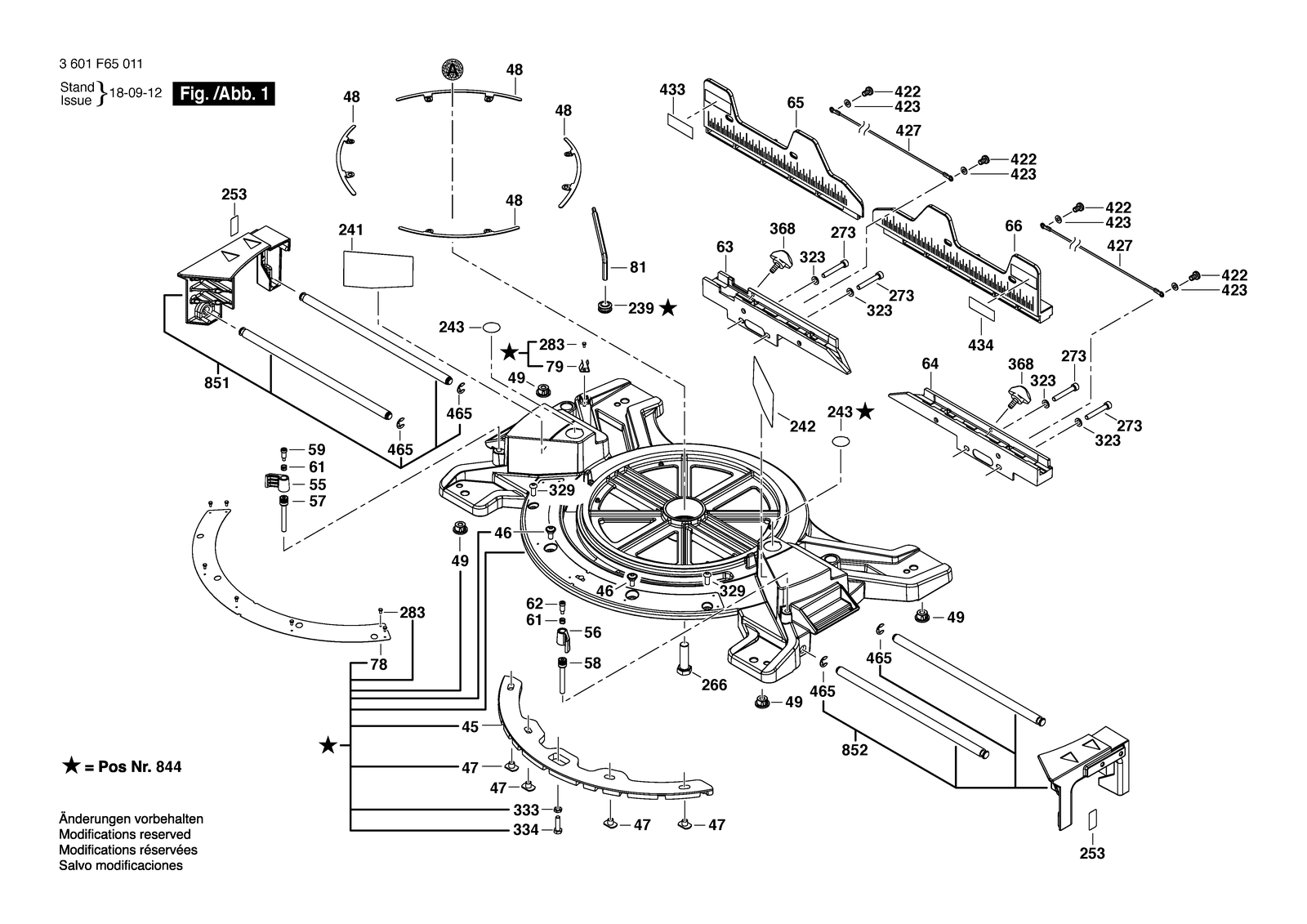

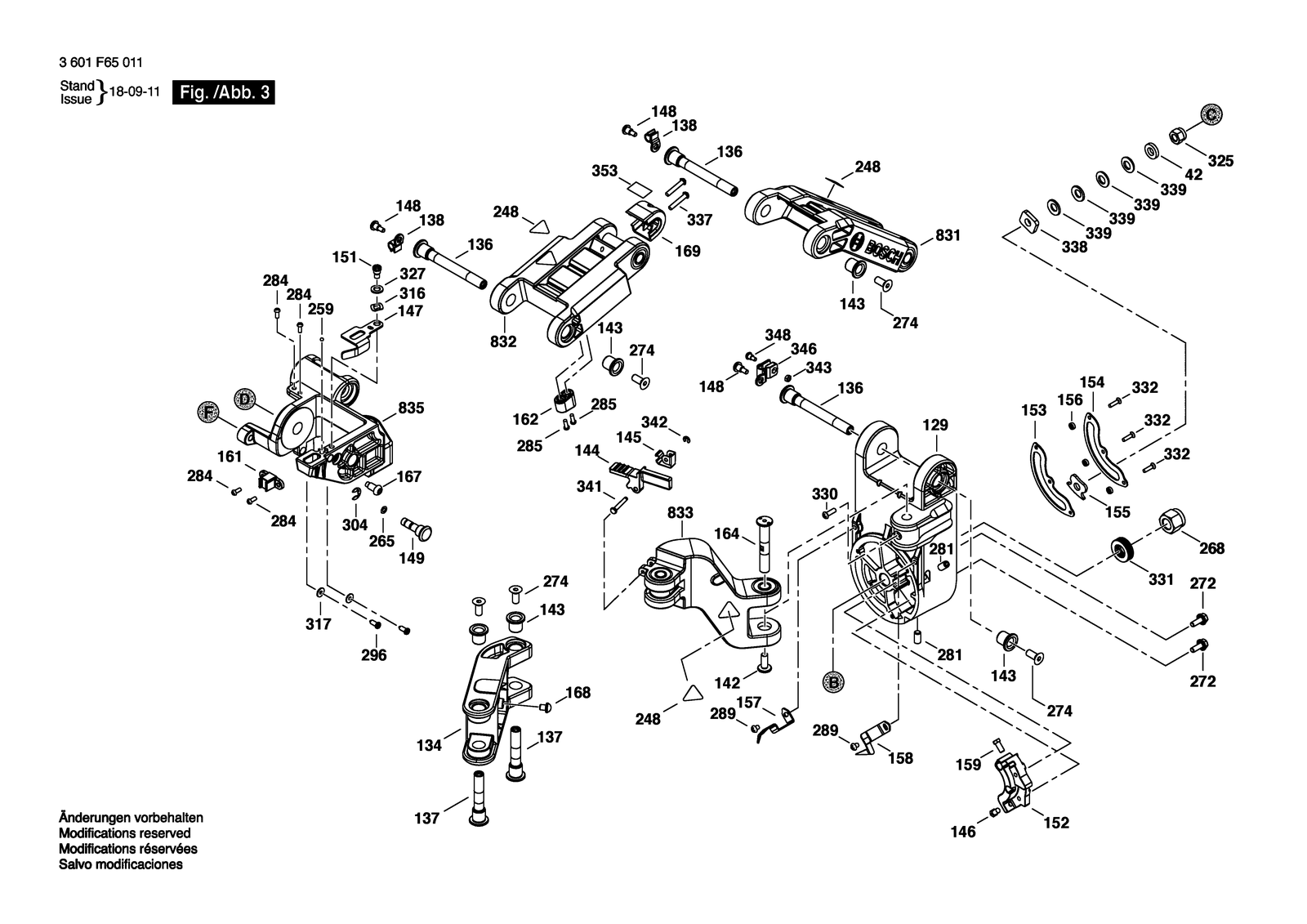

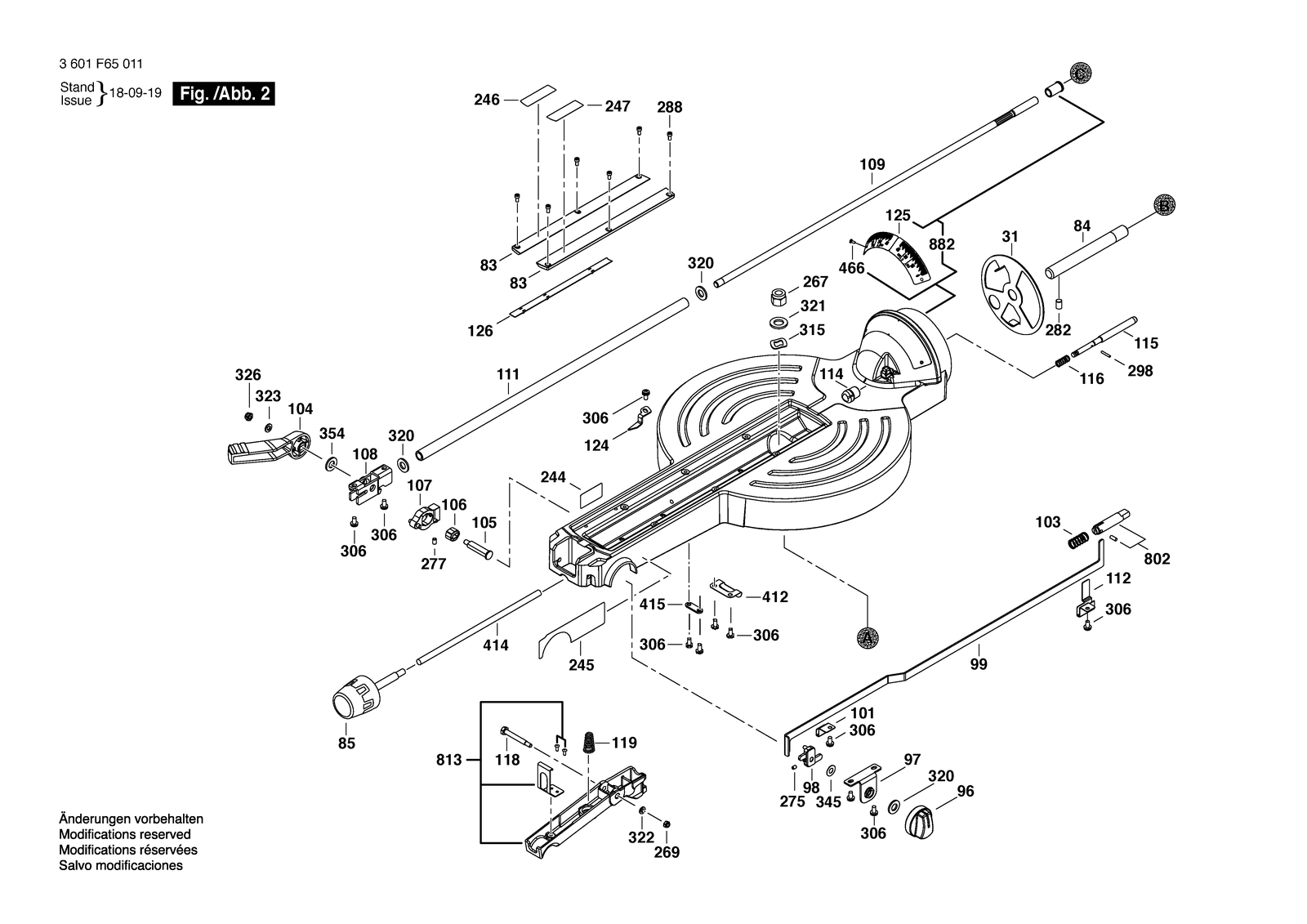

Bosch GCM 12 SD slide mitre saw: exploded parts diagram, 5 sheets, 252 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 12 SD: 252 positions on 5 sheets
Bosch GCM 12 SD parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1609B00289 | Guide Bracket |
| 103 | 1609B00291 | Compression Spring |
| 104 | 1609B00292 | Locking Lever |
| 105 | 1609B00293 | Lever Shaft |
| 106 | 1609B00294 | Cam |
| 107 | 1609B00295 | Support bracket |
| 108 | 1609B00296 | Support bracket |
| 109 | 1609B00297 | Tension Rod |
| 111 | 1609B00298 | Tube |
| 112 | 1609B00299 | Guide Bracket |
| 114 | 1609B04380 | Cover |
| 115 | 1609B00302 | Detent Pin |
| 116 | 1609B00303 | Compression Spring |
| 118 | 1609B00305 | Bolt |
| 119 | 1609B00306 | Compression Spring |
| 124 | 1609B04480 | Pointer |
| 125 | 1609B02988 | Scale |
| 126 | 1609B00312 | Plate |
| 129 | 1609B00331 | Hinge |
| 13 | 1609B06206 | Bearing |
| 134 | 1609B00335 | Hinge |
| 136 | 1609B00337 | Shaft |
| 137 | 1609B00338 | Shaft |
| 138 | 1609B00339 | Cable Clip |
| 142 | 1609B00342 | Bolt |
| 143 | 1609B00343 | Bushing |
| 144 | 1609B00345 | Locking Lever |
| 145 | 1609B00346 | Clamp Spring |
| 146 | 1609B00347 | Adjusting bolt |
| 147 | 1609B00348 | Plate |
| 148 | 1609B00349 | Shoulder Screw |
| 149 | 1609B00350 | Knob |
| 151 | 1609B00351 | Shoulder Screw |
| 152 | 1609B00352 | Detent |
| 153 | 1609B00353 | Retaining Plate |
| 154 | 1609B00354 | Retaining Plate |
| 155 | 1609B00355 | Brake Plate |
| 156 | 1609B00356 | Spacer |
| 157 | 1609B00357 | Pointer |
| 158 | 1609B00358 | Pointer |
| 159 | 1609B00359 | Adjusting bolt |
| 161 | 1609B00361 | Support bracket |
| 162 | 1609B00362 | Bumper |
| 164 | 1609B00364 | Shaft |
| 167 | 1609B00367 | Screw |
| 168 | 1609B00368 | Rubber Plug |
| 169 | 1609B00369 | Rubber Plug |
| 172 | 1609B00382 | Knob Red |
| 174 | 1609B00384 | Gear Cover |
| 175 | 1609B00385 | Output Shaft |
| 176 | 1609B00386 | Gear |
| 177 | 1609B00387 | Pinion |
| 178 | 1609B00388 | Pulley |
| 179 | 1609B00504 | Belt Cover |
| 181 | 1609B00390 | Button |
| 182 | 1609B00391 | Locking Pin |
| 183 | 1609B00392 | Compression Spring |
| 186 | 1609B04485 | Trigger |
| 192 | 1609B00401 | Clamp |
| 194 | 1609B00417 | Compression Spring |
| 195 | 1609B00418 | Sleeve |
| 196 | 1609B00419 | Rubber Pad |
| 197 | 1609B00430 | Connector |
| 198 | 1609B04468 | Safety Cover |
| 2 | 1609B06248 | Field 115V |
| 203 | 1609B00445 | Safety Cover |
| 204 | 1609B04492 | Linkage |
| 205 | 1609B00448 | Shoulder Screw |
| 206 | 1609B00449 | Bushing |
| 211 | 1609B00453 | Screw |
| 212 | 1609B00454 | Screw |
| 213 | 1609B00455 | Bushing |
| 214 | 1609B02467 | Bumper |
| 215 | 1609B00457 | Washer |
| 216 | 1609B00458 | Quick-Lock |
| 218 | 1609B00460 | Bushing |
| 219 | 1609B02583 | Intermediate Flange |
| 221 | 1609B02994 | Housing Cover |
| 222 | 1609B00476 | Baffle |
| 223 | 1609B00478 | Brush-Cover |
| 224 | 1609B00479 | Insert |
| 225 | 1609B00480 | Rubber Bushing |
| 229 | 1609B00502 | Rubber Plate |
| 232 | 1609B05010 | Dust Bag |
| 235 | 1609B00523 | Rubber Pad |
| 238 | 1609B01538 | Cable Tape |
| 239 | 1609B00533 | Rubber Bushing |
| 241 | 1609B06207 | Warning Label |
| 242 | 1609B06208 | Warning Label |
| 243 | 1609B00543 | Warning Plate |
| 244 | 1609B00544 | Label |
| 245 | 1609B00546 | Label |
| 246 | 1609B00547 | Sticker |
| 247 | 1609B00548 | Sticker |
| 248 | 1609B00549 | Warning Plate |
| 249 | 1609B00550 | Sticker |
| 251 | 1609B00551 | Label |
| 252 | 1609B00553 | Sticker |
| 253 | 1609B02122 | Sticker |
| 255 | 1609B00582 | Clip |
| 256 | 1609B00583 | Shrinkable Tube |
| 257 | 1609B00592 | Key |
| 258 | 1609B00593 | Key |
| 259 | 1609B00594 | Ball |
| 262 | 1609B00599 | Bearing |
| 263 | 1609B02987 | Bearing |
| 265 | 1609B00601 | O-Ring |
| 266 | 1609B00602 | Bolt |
| 267 | 1609B00603 | Lock Nut |
| 268 | 1609B00604 | Lock Nut |
| 269 | 1609B00605 | Lock Nut |
| 272 | 1609B00609 | Bolt |
| 273 | 1609B00610 | Screw |
| 274 | 1609B00612 | Screw |
| 275 | 1609B00614 | Set screw |
| 276 | 1609B00615 | Set screw |
| 277 | 1609B00616 | Set screw |
| 279 | 1609B00618 | Set screw |
| 281 | 1609B00620 | Set screw |
| 282 | 1609B00621 | Set screw |
| 283 | 1609B00622 | Rivet |
| 284 | 1609B00623 | Screw |
| 285 | 1609B00624 | Screw |
| 286 | 1609B00625 | Screw |
| 287 | 1609B00628 | Screw |
| 288 | 1609B00627 | Screw |
| 289 | 1609B00630 | Screw |
| 292 | 1609B00631 | Screw |
| 293 | 1609B00632 | Screw |
| 294 | 1609B00633 | Screw |
| 296 | 1609B00636 | Tapping Screw |
| 297 | 1609B00637 | Tapping Screw |
| 298 | 1609B00638 | Spring Pin |
| 301 | 1609B00641 | Retaining ring |
| 303 | 1609B00643 | Retaining ring |
| 304 | 1609B00644 | Retaining ring |
| 306 | 1609B00647 | Screw |
| 308 | 1609B00650 | Screw |
| 309 | 1609B00652 | Screw |
| 31 | 1609B00201 | Wear Plate |
| 310 | 1609B00653 | Screw |
| 311 | 1609B00654 | Screw |
| 312 | 1609B00655 | Screw |
| 313 | 1609B00656 | Screw |
| 315 | 1609B00658 | Spring Washer |
| 316 | 1609BP7042 | Washer |
| 317 | 1609B00661 | Washer |
| 318 | 1609B00662 | Washer |
| 32 | 1609B00203 | Pivot |
| 320 | 1609B00664 | Washer |
| 321 | 1609B00665 | Washer |
| 322 | 1609B00667 | Washer |
| 323 | 1609B00669 | Washer |
| 325 | 1609B00672 | Lock Nut |
| 326 | 1609B00673 | Lock Nut |
| 327 | 1609B00674 | Washer |
| 328 | 1609B02105 | Washer |
| 329 | 1609B00678 | Screw |
| 33 | 1609B00204 | Torsion Spring |
| 330 | 1609B00680 | Screw |
| 331 | 1609B00681 | Thrust Bearing |
| 332 | 1609B00682 | Screw |
| 333 | 1609B04227 | Adjusting Nut |
| 334 | 1609B02145 | Hexagon Bolt |
| 335 | 1609B00687 | Retaining ring |
| 336 | 1609B00688 | Washer |
| 337 | 1609B00689 | Screw |
| 338 | 2610919073 | Brake Plate |
| 339 | 2610919281 | Washer |
| 34 | 1609B02581 | Bushing |
| 340 | 1609BP7124 | Roller |
| 341 | 1609B00370 | Shaft |
| 342 | 1609B00690 | Retaining ring |
| 343 | 1609B00691 | Nut |
| 345 | 1609B00288 | Washer |
| 346 | 1609B00344 | Clamping Band |
| 348 | 1609B00371 | Shoulder Screw |
| 35 | 1609B00206 | Wear Plate |
| 351 | 1609B00446 | Cord guard |
| 353 | 1609B00406 | Sticker |
| 354 | 1609B00676 | Washer |
| 36 | 1609B00207 | Belt |
| 368 | 1609B02991 | Knob |
| 37 | 1609B00208 | Flange |
| 39 | 1609B00210 | Flange |
| 4 | 1609B06720 | Switch |
| 41 | 1609B00211 | Flange Bolt |
| 412 | 1609B04477 | Leaf Spring |
| 414 | 1609B04479 | Rod |
| 415 | 1609B04481 | Plate |
| 418 | 1609B04486 | Linkage |
| 419 | 1609B03777 | Set screw |
| 42 | 1609B00212 | Washer |
| 420 | 1609B04865 | Button |
| 422 | 1609B00780 | Screw |
| 423 | 1609B04225 | Plain Washer |
| 427 | 1609B05115 | Cable |
| 43 | 1609B00213 | Flange Bolt |
| 433 | 1609B04954 | Label |
| 434 | 1609B04955 | Label |
| 435 | 1609B01530 | Compression Spring |
| 45 | 1609B04487 | Detent plate |
| 46 | 1609B00223 | Screw |
| 465 | 1609B01992 | End Clip |
| 466 | 1609B02986 | Rivet |
| 47 | 1609B00225 | Nut |
| 48 | 1609B04471 | Sliding Plate |
| 49 | 1609B01431 | Supporting foot |
| 5 | 1609B06249 | Power supply cord |
| 55 | 1609B00232 | Locking Lever |
| 56 | 1609B00233 | Locking Lever |
| 57 | 1609B00234 | Screw |
| 58 | 1609B00235 | Screw |
| 59 | 1609B00236 | Shoulder Screw |
| 61 | 1609B00237 | Compression Spring |
| 62 | 1609B00238 | Shoulder Screw |
| 63 | 1609B04462 | Mitre Fence |
| 64 | 1609B04463 | Mitre Fence |
| 65 | 1609B04464 | Mitre Fence |
| 66 | 1609B04465 | Mitre Fence |
| 78 | 1609B00254 | Scale |
| 79 | 1609B00255 | Clamp Spring |
| 8 | 1609BN0314 | Nameplate |
| 801 | 1609B02302 | Motor Housing |
| 802 | 1609B02310 | Detent Pin |
| 803 | 1609B02959 | Armature 110V |
| 81 | 1609B00256 | Wrench Socket |
| 810 | 1609B02314 | Carbon-Brush Set |
| 813 | 1609B02966 | Detent |
| 817 | 1609B02598 | Plate |
| 827 | 1609B02316 | Bearing |
| 828 | 1609B02970 | Chute |
| 83 | 1609B04470 | Support Plate |
| 831 | 1609B02303 | Hinge |
| 832 | 1609B02304 | Hinge |
| 833 | 1609B02305 | Hinge |
| 834 | 1609B02315 | Adjustable screw clamp |
| 835 | 1609B02958 | Hinge |
| 84 | 1609B00273 | Shaft |
| 844 | 1609B02968 | Base |
| 85 | 1609B04725 | Knob |
| 851 | 1609B02964 | Extension Stand |
| 852 | 1609B02965 | Extension Stand |
| 858 | 1609B02953 | Protective Cover |
| 871 | 1609B02997 | Arm |
| 873 | 1609B02307 | Gear Box |
| 882 | 1609B02967 | Table |
| 885 | 1609B06237 | Handle |
| 96 | 1609B00284 | Knob |
| 97 | 1609B00285 | Support bracket |
| 98 | 1609B00286 | Cam |
| 99 | 1609B04488 | Linkage |
