Bosch GCM 12

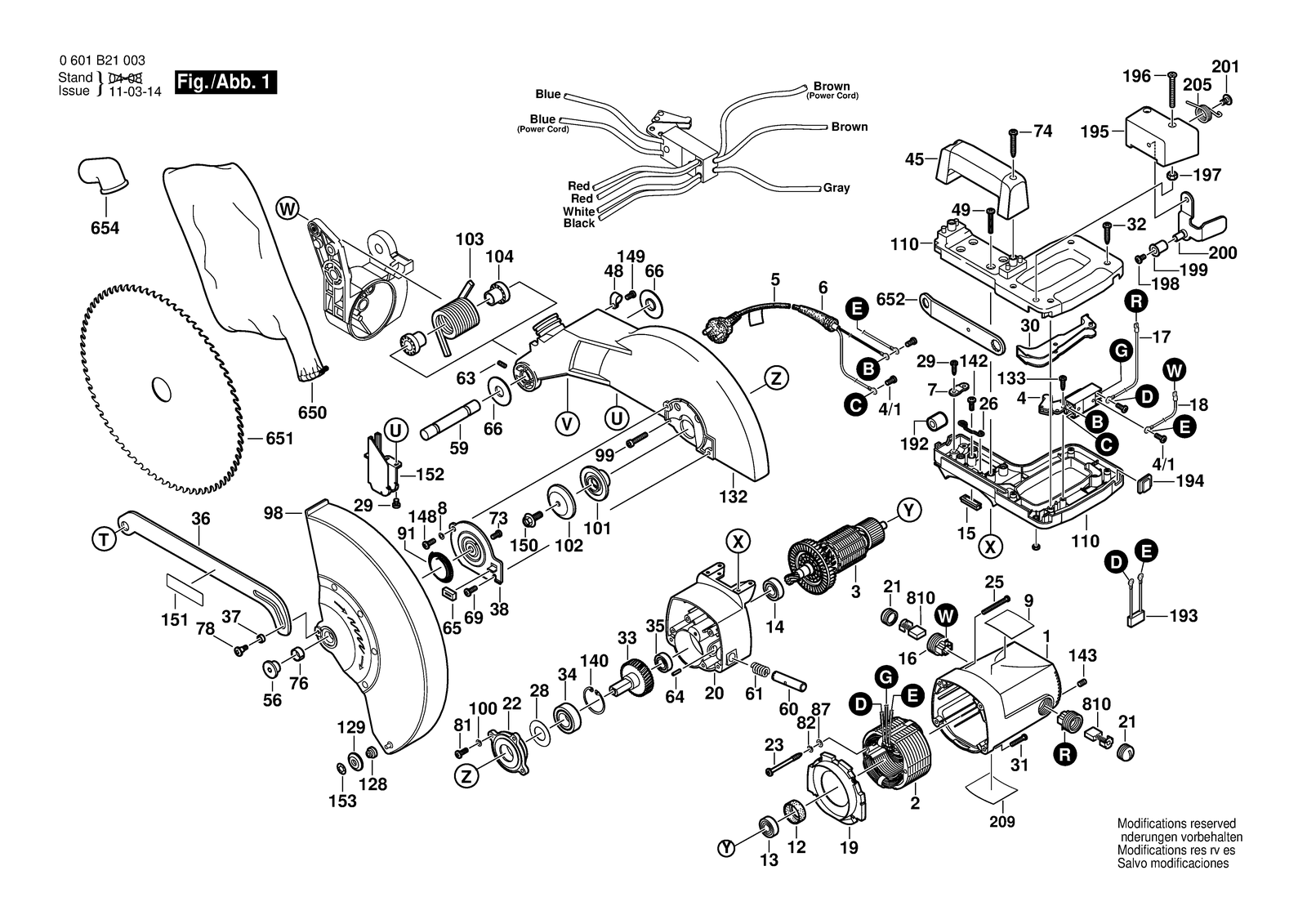

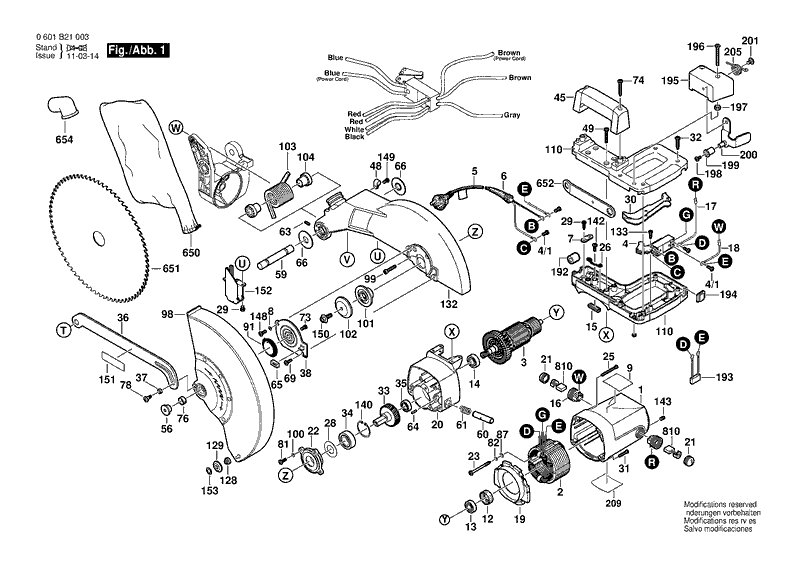

Bosch GCM 12 slide mitre saw: exploded parts diagram, 3 sheets, 181 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 12: 181 positions on 3 sheets
Bosch GCM 12 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610967440 | Motor Housing |
| 100 | 2610990503 | Spring Washer |
| 101 | 1609203G77 | Flange |
| 101 | 1609902368 | Flange |
| 102 | 1609203G78 | Flange |
| 102 | 1609902369 | Flange |
| 103 | 2610910755 | Torsion Spring |
| 104 | 2610910753 | Sleeve |
| 105 | 1619P03783 | Inset Plate |
| 106 | 2610910833 | End Plate |
| 107 | 2610910835 | Gusset plate |
| 109 | 2610910839 | Pivot |
| 110 | 1609203G79 | Handle |
| 111 | 2610967449 | Saw Table |
| 112 | 2610910822 | Clamping Lever |
| 113 | 2610910831 | Indicator Rail |
| 114 | 1609902607 | Stop Rail |
| 115 | 2610916122 | Plate |
| 116 | 1609902608 | Stop Rail |
| 118 | 2610358055 | Socket head cap screw |
| 119 | 2610309996 | Washer |
| 12 | 2610911485 | Bearing Sleeve |
| 120 | 2610910775 | Lever |
| 121 | 2610910830 | Sliding Plate |
| 122 | 2610911658 | Warning Plate |
| 123 | 1609902609 | Mounting Bracket |
| 124 | 2610911470 | Set Of Keys |
| 125 | 2610355577 | Hexagon Socket Wrench |
| 126 | 2610910844 | Threaded Plate |
| 128 | 2610990522 | Bearing |
| 129 | 2610990518 | Roller |
| 13 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 130 | 1619P03548 | Rubber Bushing |
| 132 | 2610907783 | Protecting Cover |
| 133 | 2610911459 | Screw |
| 136 | 2610910777 | Screw |
| 137 | 1609902588 | Screw |
| 138 | 1609203G80 | Screw |
| 139 | 2610911469 | Screw |
| 14 | 1609902600 | Groove ball bearing |
| 140 | 2610355320 | Retaining snap ring |
| 141 | 2610910794 | Hex Nut |
| 142 | 2610320345 | Screw |
| 143 | 2610911456 | Screw |
| 144 | 2610910782 | Screw |
| 145 | 2610910774 | Nut |
| 146 | 2610910776 | Screw |
| 148 | 2610910799 | Screw |
| 149 | 2610355293 | Screw |
| 15 | 2610911486 | Protractor |
| 150 | 2610911467 | Stud bolt |
| 152 | 1609203G95 | Protective Cover |
| 153 | 2610990521 | Spring retaining ring |
| 154 | 2610967433 | Clamping Plate |
| 156 | 2610967438 | Spring retaining ring |
| 157 | 2610967439 | Nut |
| 158 | 2610992372 | Stud bolt |
| 159 | 2615303020 | Seal |
| 16 | 2610911488 | Brush Holder |
| 160 | 2610992366 | Ring |
| 17 | 1609203H39 | Cable |
| 18 | 1609203H16 | Cable |
| 18 | 1609902622 | Cable |
| 18 | 1609902623 | Cable |
| 18 | 2610910780 | Cable |
| 19 | 2610911477 | Air-Deflector Ring |
| 191 | 2610967432 | Clamp |
| 192 | 1609203G81 | Ferrite Core |
| 192 | 1609902592 | Ferrite Core |
| 193 | 1609902610 | Condenser |
| 194 | 1609203G83 | Insert |
| 195 | 1609203G84 | Cover |
| 196 | 1609203G86 | Screw |
| 197 | 1609902594 | Hex Nut |
| 198 | 1609902474 | Screw |
| 199 | 1609902475 | Roller |
| 2 | 1609203H08 | Stator 110V |
| 2 | 2610020976 | Stator |
| 20 | 2610911474 | Gear Housing |
| 200 | 1609902476 | Locking Lever |
| 201 | 1609203G91 | Bearing bolt |
| 202 | 1609203G92 | Cover Plate |
| 203 | 1609203G94 | Screw |
| 204 | 1609203H34 | Screw |
| 205 | 1609203G93 | Coiled Spring |
| 209 | 1609902624 | Nameplate |
| 209 | 1609902646 | Nameplate |
| 209 | 1609902647 | Nameplate |
| 209 | 1609902648 | Nameplate |
| 209 | 1609902649 | Nameplate |
| 209 | 1609902650 | Nameplate |
| 21 | 2610911487 | Cover |
| 22 | 2610911479 | Bearing Flange |
| 23 | 2610911452 | Screw |
| 25 | 2610910785 | Screw |
| 26 | 2610910754 | Spring Wire |
| 28 | 2610910046 | Spring Washer |
| 29 | 2615296765 | Screw |
| 3 | 1609203H09 | Rotor 110V |
| 3 | 2610020934 | Rotor |
| 30 | 2610910827 | Switch Button |
| 31 | 2610355337 | Screw |
| 32 | 2610911458 | Screw |
| 33 | 1609203G68 | Toothed Gear |
| 34 | 2610910789 | Ball Bearing |
| 35 | 2610910787 | Ball Bearing |
| 36 | 2610990525 | Lever |
| 37 | 2610910849 | Collar |
| 38 | 2610910821 | Tab Washer |
| 4 | 1609902612 | On-Off Switch |
| 4/1 | 2610358901 | Screw |
| 40 | 2610908270 | Washer |
| 44 | 1609902604 | Angle Joint |
| 45 | 2610967445 | Handle |
| 46 | 2610910761 | Cover Pin |
| 47 | 1609203G71 | Self-locking nut |
| 48 | 2610990504 | Cable Clip |
| 49 | 2610355338 | Screw |
| 5 | 1609203G66 | Power supply cord |
| 5 | 1609203H10 | Power supply cord |
| 5 | 1609203H11 | Power supply cord |
| 5 | 1609203H15 | Power supply cord |
| 5 | 1609902619 | Power supply cord |
| 5 | 1619P03472 | Power supply cord |
| 50 | 1609902605 | Base Plate |
| 51 | 2610910757 | Bar |
| 52 | 2610910768 | Retaining Pin |
| 53 | 2610910765 | Compression Spring |
| 54 | 2610910838 | Tensioning Lever |
| 55 | 1609203G72 | Toothed lock washer |
| 56 | 2610910848 | Pivot |
| 57 | 2610910837 | Intermediate Plate |
| 58 | 2610910769 | Bolt |
| 59 | 2610910842 | Pivot |
| 6 | 2610911464 | Grommet |
| 60 | 2610911484 | Locking Pin |
| 61 | 2610910770 | Spring |
| 62 | 2610910781 | Screw |
| 63 | 1609203G73 | Screw |
| 64 | 2610910796 | Bolt |
| 65 | 2610910750 | End stop |
| 650 | 1609902596 | Dust Bag |
| 652 | 2610910828 | Key |
| 654 | 2610910845 | Suction Tube |
| 66 | 2610911465 | Washer |
| 67 | 2610910788 | O-Ring |
| 68 | 2610910783 | Nut |
| 69 | 2615297323 | Screw |
| 7 | 2610910756 | Cable Clip |
| 71 | 2610910790 | Screw |
| 72 | 2610910791 | Nut |
| 73 | 2610911451 | Screw |
| 74 | 2610911460 | Screw |
| 75 | 2610910786 | Set screw |
| 76 | 2610910751 | Sleeve |
| 77 | 2610910760 | Nut |
| 78 | 2610910797 | Screw |
| 79 | 1609203G74 | Nut |
| 8 | 2610911450 | Washer |
| 80 | 1609203G75 | Screw |
| 81 | 2610910784 | Screw |
| 810 | 1619P04451 | Carbon-Brush Set |
| 810 | 1619P04452 | Carbon-Brush Set |
| 82 | 2610911455 | Spring Washer |
| 83 | 2610910779 | Washer |
| 84 | 1609902582 | Washer |
| 86 | 2610911466 | Screw M 8X0.8-10 |
| 87 | 2610355304 | Plain Washer |
| 88 | 2610910762 | Screw |
| 89 | 2610910766 | Sleeve |
| 9 | 1609902621 | Manufacturer's nameplate |
| 9 | 1609902639 | Manufacturer's nameplate |
| 90 | 2610355264 | Plain Washer |
| 91 | 2610910752 | Spring Lock Washer |
| 93 | 1609902584 | Stud bolt |
| 94 | 1609902585 | Stud bolt |
| 95 | 1609902586 | Stud bolt |
| 96 | 2610910758 | Spring |
| 97 | 1609203G76 | Hex Nut |
| 98 | 1609902606 | Safety Cover |
| 99 | 2610911461 | Screw |
