Bosch GCM 12
Bosch GCM 12 slide mitre saw: exploded parts diagram, 2 sheets, 162 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

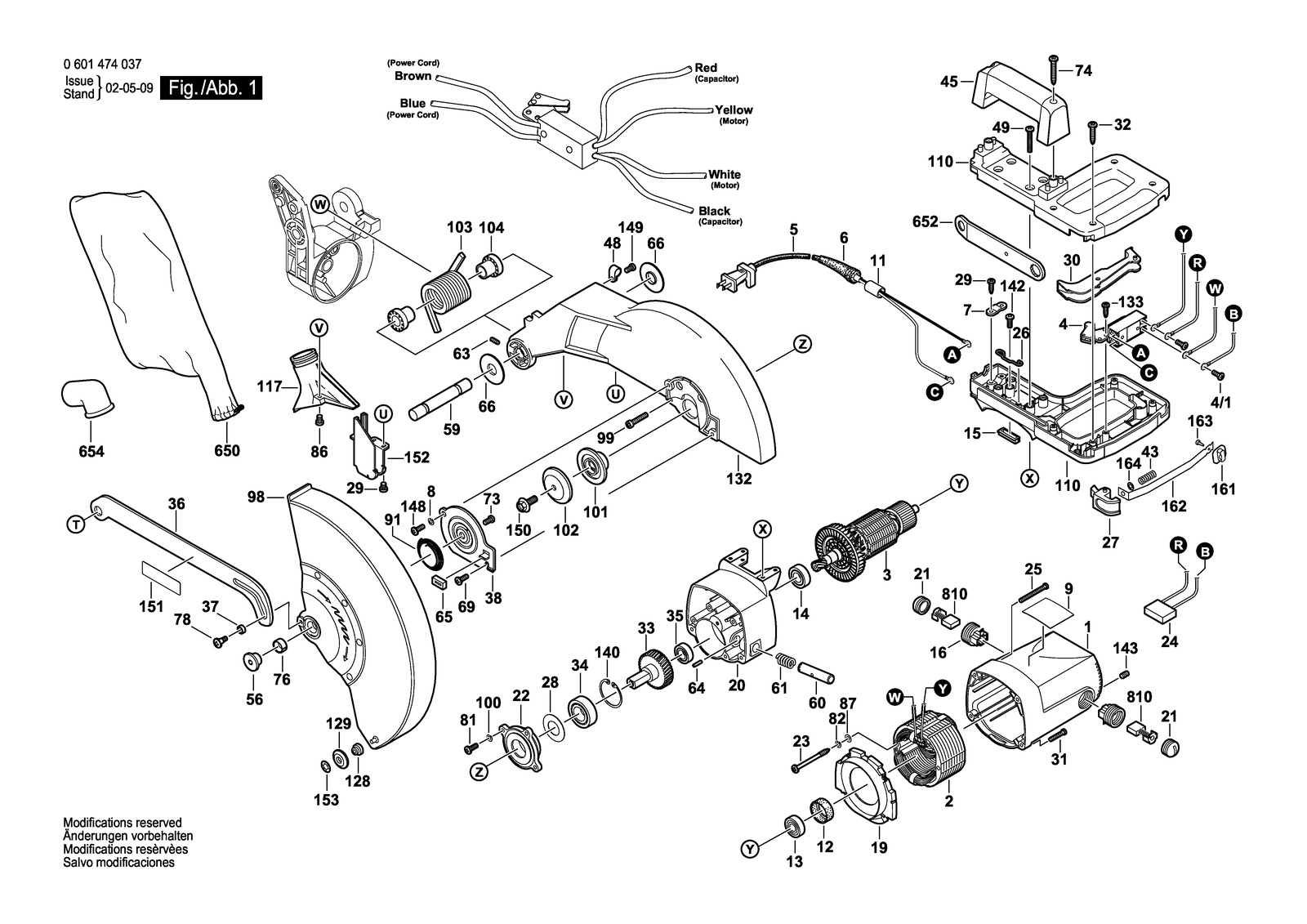

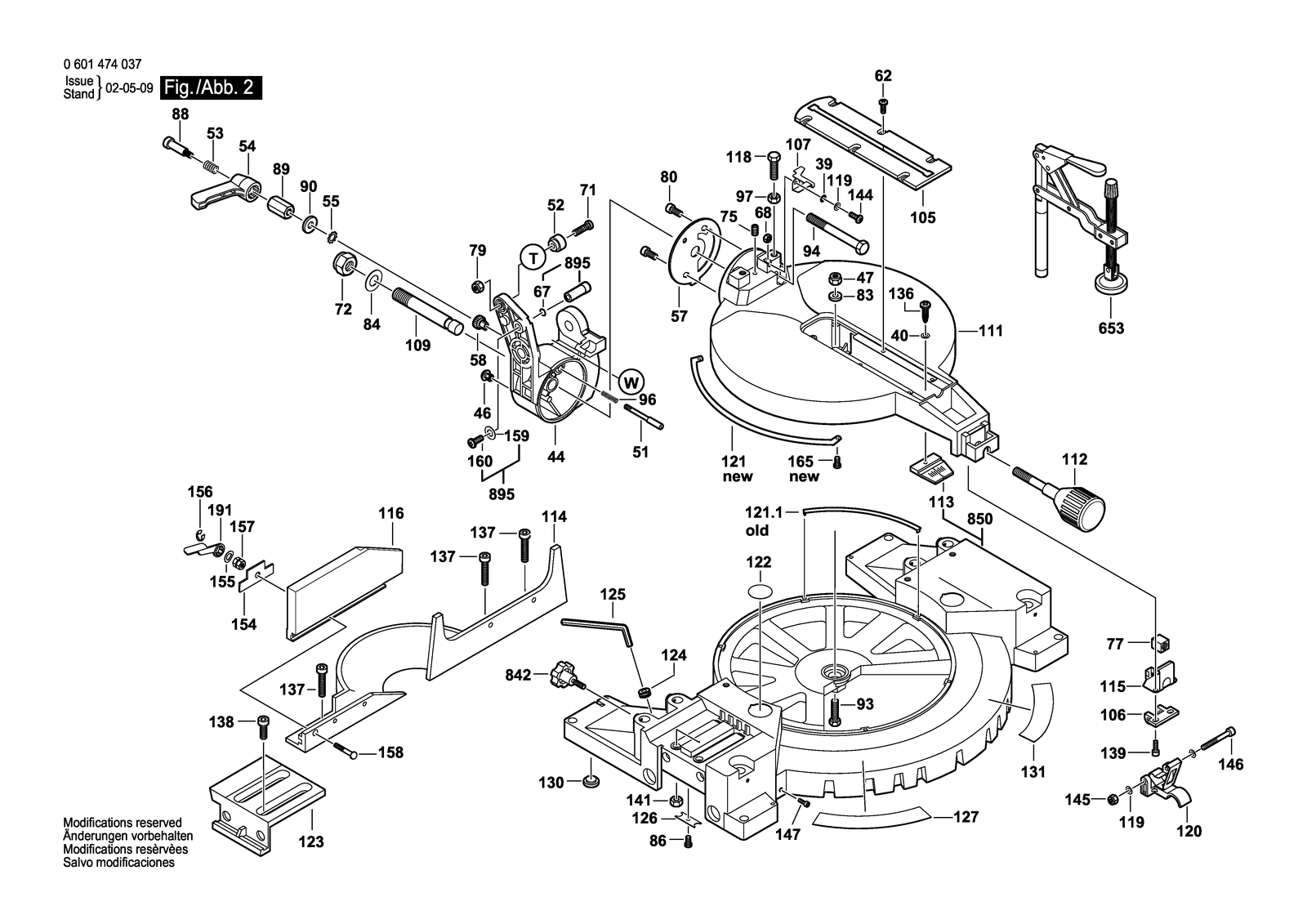

All parts of Bosch GCM 12: 162 positions on 2 sheets
Bosch GCM 12 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610967440 | Motor Housing |
| 100 | 2610990503 | Spring Washer |
| 101 | 2610910846 | Flange |
| 102 | 1609902369 | Flange |
| 103 | 2610910755 | Torsion Spring |
| 104 | 2610910753 | Sleeve |
| 105 | 1619P03783 | Inset Plate |
| 106 | 2610910833 | End Plate |
| 107 | 2610910835 | Gusset plate |
| 109 | 2610910839 | Pivot |
| 11 | 1609902592 | Ferrite Core |
| 110 | 2610992384 | Handle |
| 111 | 2610967449 | Saw Table |
| 112 | 2610910822 | Clamping Lever |
| 113 | 2610916121 | Pointer |
| 114 | 2610967427 | Stop Rail |
| 115 | 2610916122 | Plate |
| 116 | 2610967429 | Stop Rail |
| 117 | 2610992388 | Dust Bag |
| 118 | 2610358055 | Socket head cap screw |
| 119 | 2610309996 | Washer |
| 12 | 2610911485 | Bearing Sleeve |
| 120 | 2610910775 | Lever |
| 121 | 2610910830 | Sliding Plate |
| 122 | 2610911658 | Warning Plate |
| 123 | 2610967431 | Mounting Bracket |
| 124 | 2610911470 | Set Of Keys |
| 125 | 2610355777 | Hexagon Socket Wrench |
| 126 | 2610910844 | Threaded Plate |
| 127 | 2610994139 | Warning Plate |
| 128 | 2610990522 | Bearing |
| 129 | 2610990518 | Roller |
| 13 | 2610042699 | Groove ball bearing |
| 130 | 1619P03548 | Rubber Bushing |
| 131 | 2610994138 | Warning Plate |
| 132 | 2610907783 | Protecting Cover |
| 133 | 2610911459 | Screw |
| 136 | 2610910777 | Screw |
| 137 | 2610911893 | Screw |
| 138 | 2610356733 | Screw |
| 139 | 2610911469 | Screw |
| 14 | 2610017349 | Groove ball bearing |
| 140 | 2610355320 | Retaining snap ring |
| 141 | 2610910794 | Hex Nut |
| 142 | 2610320345 | Screw |
| 143 | 2610911456 | Screw |
| 144 | 2610910782 | Screw |
| 145 | 2610910774 | Nut |
| 146 | 2610910776 | Screw |
| 147 | 2610910795 | Screw |
| 148 | 2610910799 | Screw |
| 149 | 2610355293 | Screw |
| 15 | 2610911486 | Protractor |
| 150 | 2610911467 | Stud bolt |
| 151 | 2610994140 | Warning Plate |
| 152 | 2610910826 | Depth-Gauge |
| 153 | 2610990521 | Spring retaining ring |
| 154 | 2610967433 | Clamping Plate |
| 155 | 2610358439 | Plain Washer |
| 156 | 2610967438 | Spring retaining ring |
| 157 | 2610967439 | Nut |
| 158 | 2610992372 | Stud bolt |
| 159 | 2610027372 | Plain Washer |
| 16 | 2610911488 | Brush Holder |
| 160 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 161 | 2610992365 | Fuse |
| 162 | 2610992364 | Tape |
| 163 | 2610355300 | Screw |
| 164 | 2610992369 | Spring retaining ring |
| 165 | 2610916120 | Screw |
| 19 | 2610911477 | Air-Deflector Ring |
| 191 | 2610967432 | Clamp |
| 2 | 2610020976 | Stator |
| 20 | 2610911474 | Gear Housing |
| 21 | 2610911487 | Cover |
| 22 | 2610911479 | Bearing Flange |
| 23 | 2610911452 | Screw |
| 24 | 1609902593 | Condenser |
| 25 | 2610910785 | Screw |
| 26 | 2610910754 | Spring Wire |
| 27 | 2610967448 | Push-Button |
| 28 | 2610910046 | Spring Washer |
| 29 | 2615296765 | Screw |
| 3 | 2610020934 | Rotor |
| 30 | 2610910827 | Switch Button |
| 31 | 2610355337 | Screw |
| 32 | 2610911458 | Screw |
| 33 | 2610911482 | Toothed Gear |
| 34 | 2610910789 | Ball Bearing |
| 35 | 2610910787 | Ball Bearing |
| 36 | 2610990525 | Lever |
| 37 | 2610910849 | Collar |
| 38 | 2610910821 | Tab Washer |
| 39 | 2610355269 | Plain Washer |
| 4 | 2610910020 | On-Off Switch |
| 4/1 | 2610358901 | Screw |
| 40 | 2610908270 | Washer |
| 43 | 2610992376 | Spring |
| 44 | 2610967444 | Angle Joint |
| 45 | 2610967445 | Handle |
| 46 | 2610910761 | Cover Pin |
| 47 | 2610358172 | Nut |
| 48 | 2610990504 | Cable Clip |
| 49 | 2610355338 | Screw |
| 5 | 1609902389 | Power supply cord |
| 51 | 2610910757 | Bar |
| 52 | 2610910768 | Retaining Pin |
| 53 | 2610910765 | Compression Spring |
| 54 | 2610910838 | Tensioning Lever |
| 55 | 2615297329 | Washer |
| 56 | 2610910848 | Pivot |
| 57 | 2610910837 | Intermediate Plate |
| 58 | 2610910769 | Bolt |
| 59 | 2610910842 | Pivot |
| 6 | 2610911464 | Grommet |
| 60 | 2610911484 | Locking Pin |
| 61 | 2610910770 | Spring |
| 62 | 2610910781 | Screw |
| 63 | 2610328605 | Screw |
| 64 | 2610910796 | Bolt |
| 65 | 2610910750 | End stop |
| 650 | 1609902596 | Dust Bag |
| 652 | 2610910828 | Key |
| 653 | 2610992368 | Quick-Clamping Device |
| 654 | 2610910845 | Suction Tube |
| 66 | 2610911465 | Washer |
| 67 | 2610910788 | O-Ring |
| 68 | 2610910783 | Nut |
| 69 | 2615297323 | Screw |
| 7 | 2610910756 | Cable Clip |
| 71 | 2610910790 | Screw |
| 72 | 2610910791 | Nut |
| 73 | 2610911451 | Screw |
| 74 | 2610911460 | Screw |
| 75 | 2610910786 | Set screw |
| 76 | 2610910751 | Sleeve |
| 77 | 2610910760 | Nut |
| 78 | 2610910797 | Screw |
| 79 | 2610905940 | Nut |
| 8 | 2610911450 | Washer |
| 80 | 2610356707 | Screw and washer assembly |
| 81 | 2610910784 | Screw |
| 810 | 2610993231 | Carbon-Brush Set |
| 82 | 2610911455 | Spring Washer |
| 83 | 2610910779 | Washer |
| 84 | 2610910792 | Washer |
| 842 | 2610910767 | Knob |
| 850 | 2610916123 | Base Plate |
| 86 | 2610911466 | Screw M 8X0.8-10 |
| 87 | 2610355304 | Plain Washer |
| 88 | 2610910762 | Screw |
| 89 | 2610910766 | Sleeve |
| 895 | 2610914374 | Pin |
| 9 | 2610911711 | Nameplate |
| 90 | 2610355264 | Plain Washer |
| 91 | 2610910752 | Spring Lock Washer |
| 93 | 2610992377 | Stud bolt M8X1,25-30 |
| 94 | 2610910778 | Stud bolt |
| 96 | 2610910758 | Spring |
| 97 | 2610328600 | Nut |
| 98 | 2610990523 | Safety Cover |
| 99 | 2610911461 | Screw |
