Bosch GCM 10 S

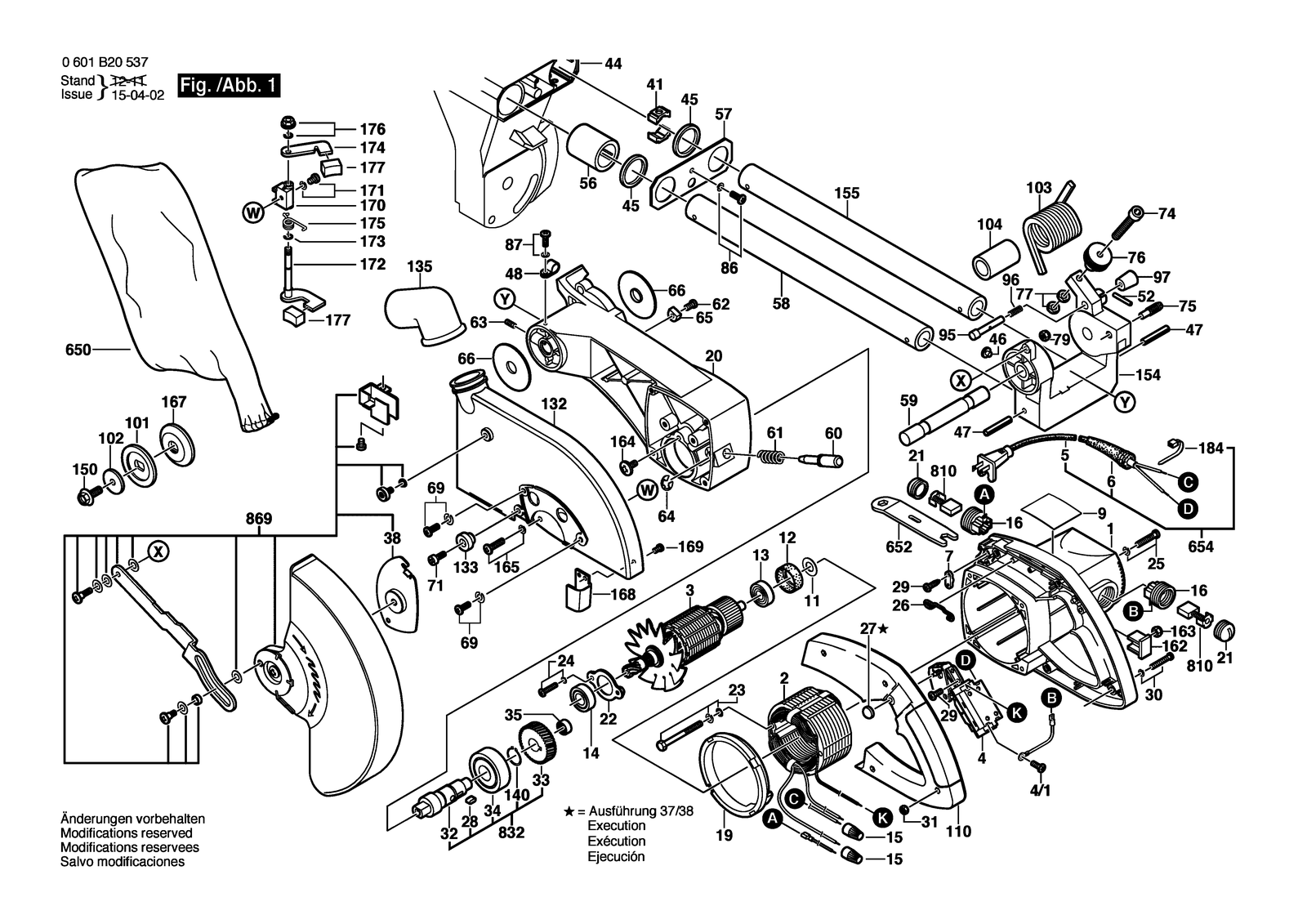

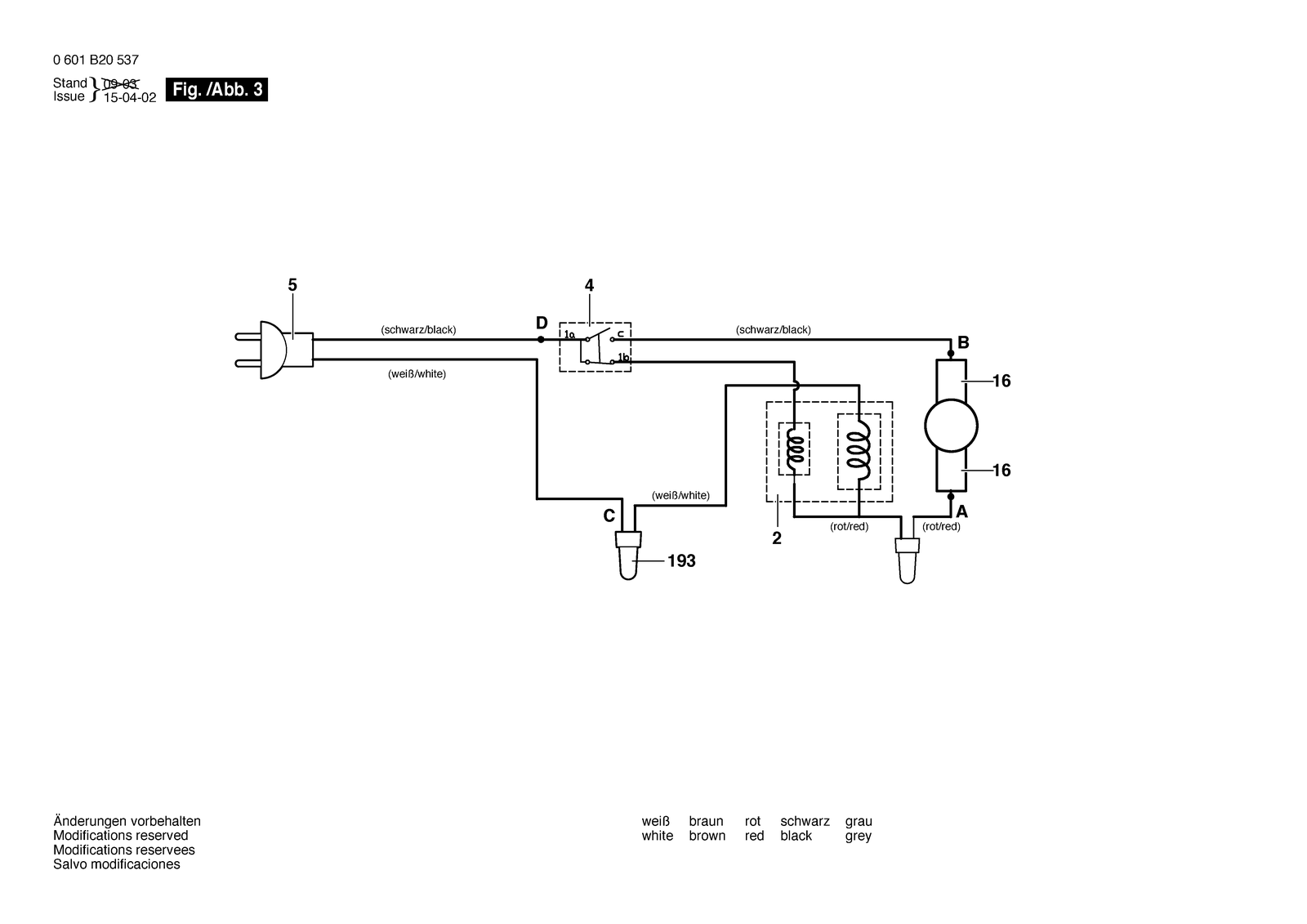

Bosch GCM 10 S compound mitre saw: exploded parts diagram, 3 sheets, 148 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 10 S: 148 positions on 3 sheets
Bosch GCM 10 S parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609902531 | Motor Housing |
| 101 | 1609203J71 | Flange |
| 101 | 2610911909 | Flange |
| 102 | 2610911870 | Plain Washer |
| 103 | 2610911860 | Torsion Spring |
| 104 | 2610911874 | Sleeve |
| 105 | 2610911862 | Support Plate |
| 106 | 2610911867 | Holding Fixture |
| 107 | 2610911877 | Pointer |
| 108 | 2610911597 | Bolt |
| 109 | 2610911910 | Pivot |
| 11 | 2610911924 | Spring Washer |
| 110 | 2610911568 | Handle |
| 111 | 2610911552 | Saw Table |
| 112 | 2610911866 | Knob |
| 113 | 2610911876 | Pointer |
| 115 | 2610911913 | Leaf Spring |
| 116 | 2610911912 | Support |
| 117 | 2610911864 | Bolt |
| 118 | 2610911917 | Compression Spring |
| 119 | 2610320126 | Washer |
| 12 | 2610996948 | Rubber Ring |
| 120 | 1609902690 | Locking Lever |
| 121 | 2610911863 | Sliding Plate |
| 122 | 2610911658 | Warning Plate |
| 124 | 2610911920 | Rubber Bushing |
| 125 | 1609203J88 | Hexagon Socket Wrench |
| 125 | 2610911935 | Hexagon Socket Wrench 6 MM |
| 126 | 2610911919 | Threaded Plate |
| 13 | 2610911928 | Ball Bearing |
| 130 | 2610358846 | Rubber Bushing |
| 132 | 1619P03778 | Protective Cover |
| 132 | 2610911555 | Safety Cover |
| 133 | 2610911921 | Round Rubber |
| 135 | 2610911934 | Suction Socket |
| 137 | 2610911893 | Screw |
| 138 | 2610356733 | Screw |
| 139 | 2610911900 | Screw |
| 14 | 2610911927 | Ball Bearing |
| 140 | 2610993108 | Spring retaining ring |
| 145 | 2610911901 | Self-locking nut |
| 146 | 2610911918 | Screw |
| 15 | 1609203K06 | Cable Clip |
| 15 | 2610911933 | Connector |
| 150 | 1619P03324 | Threaded Bolt |
| 154 | 2610024627 | Bearing Pedestal |
| 155 | 2610911591 | Pipe |
| 16 | 2610911858 | Brush Holder Alt |
| 162 | 2610911569 | Insert |
| 163 | 1609902688 | Spring Washer |
| 164 | 2610911923 | Screw |
| 165 | 2610993104 | Screw |
| 166 | 2610993221 | Plain Washer |
| 167 | 1609902199 | Flange |
| 167 | 2610911909 | Flange |
| 184 | 1609902074 | Sleeve |
| 19 | 2610911931 | Air-Deflector Ring |
| 2 | 1609203K19 | Stator 240V |
| 2 | 2610911856 | Stator 120V |
| 20 | 2610911572 | Gear Housing |
| 21 | 2610911859 | Brush-Cover Ø 20MM |
| 22 | 2610911566 | Bearing cover |
| 23 | 2610911929 | Screw |
| 24 | 2610911926 | Screw |
| 25 | 2610911865 | Screw |
| 26 | 2610911567 | Spring Wire |
| 27 | 2610304698 | Screw |
| 28 | 2610993102 | Woodruff Key |
| 29 | 2610911903 | Screw |
| 3 | 1619P03776 | Rotor 220V |
| 3 | 1619P03777 | Rotor 127V |
| 30 | 2610911904 | Screw |
| 31 | 1609902684 | Hex Nut |
| 32 | 1619P03323 | Grinding Spindle |
| 33 | 2610911943 | Toothed Gear |
| 34 | 2610943105 | Ball Bearing |
| 35 | 2610993106 | Needle bearing |
| 38 | 2610024626 | Plate Nut |
| 4 | 1609902366 | On-Off Switch |
| 4/1 | 2610315146 | Screw |
| 4/1 | 2610993109 | Screw |
| 41 | 1609902392 | Clamping Block |
| 42 | 2610911583 | Knob |
| 43 | 2610911582 | Spring |
| 44 | 2610911592 | Bearing Pedestal |
| 45 | 1609203K12 | Safety Cover |
| 45 | 2610911589 | Felt Washer |
| 46 | 1609203K13 | Screw |
| 46 | 2610911584 | Rubber Pad |
| 47 | 2610911593 | Slotted Spring Pin |
| 48 | 2610911872 | Cable Clip |
| 49 | 2610911586 | Support |
| 5 | 1609902395 | Power supply cord |
| 5 | 2610911879 | Power supply cord |
| 50 | 2610911551 | Base Plate |
| 51 | 2610911869 | Bar |
| 52 | 2610911577 | Retaining Pin |
| 53 | 2610911561 | Contact strap |
| 54 | 2610911559 | Tensioning Lever |
| 55 | 2610351415 | Plain Washer |
| 56 | 2610915760 | Sliding Bearing |
| 57 | 2610911587 | Intermediate Plate |
| 58 | 2610911590 | Pipe |
| 59 | 2610911875 | Shaft |
| 6 | 2610911932 | Cord guard |
| 60 | 2610911594 | Locking Pin |
| 61 | 2610911564 | Spring |
| 62 | 2610911899 | Screw |
| 63 | 2610911908 | Set screw |
| 64 | 2610911902 | Clip |
| 65 | 2610911563 | End stop |
| 650 | 1609902393 | Dust Bag |
| 652 | 1609203J74 | Wrench Socket |
| 652 | 2610911565 | Key |
| 653 | 2610009615 | Quick-Clamping Device |
| 654 | 1609902174 | Cable Set |
| 66 | 2610911937 | Shim |
| 69 | 2610004925 | Screw |
| 7 | 1609902108 | Fastening Clamp |
| 71 | 2610911911 | Shoulder Screw |
| 72 | 2610911886 | Self-locking nut |
| 74 | 1609902686 | Screw |
| 75 | 2610911873 | Stop Screw |
| 76 | 2610911579 | Nut |
| 77 | 2610934688 | Nut |
| 79 | 1609902689 | Nut |
| 805 | 2610021152 | Service Kit |
| 805 | 2610022571 | Service Kit |
| 81 | 2610911914 | Set screw |
| 810 | 1609203L02 | Carbon-Brush Set |
| 810 | 2610997207 | Carbon-Brush Set |
| 82 | 2610328618 | Nut |
| 83 | 2610911887 | Plain Washer |
| 832 | 2610992363 | Grinding Spindle |
| 84 | 2610911868 | Spring Washer |
| 86 | 2610911897 | Screw |
| 869 | 2610026667 | Service kit |
| 87 | 2610911907 | Screw and washer assembly |
| 88 | 2610911562 | Shoulder Screw |
| 89 | 2610911560 | Screw |
| 9 | 1609902101 | Nameplate |
| 9 | 1609902550 | Manufacturer's nameplate |
| 90 | 2610911891 | Spring Washer |
| 93 | 2610911861 | Hex Screw |
| 94 | 2610911884 | Threaded Bolt |
| 95 | 1609902685 | Detent Pin |
| 96 | 2610911576 | Compression Spring |
| 97 | 2610911578 | Knob |
