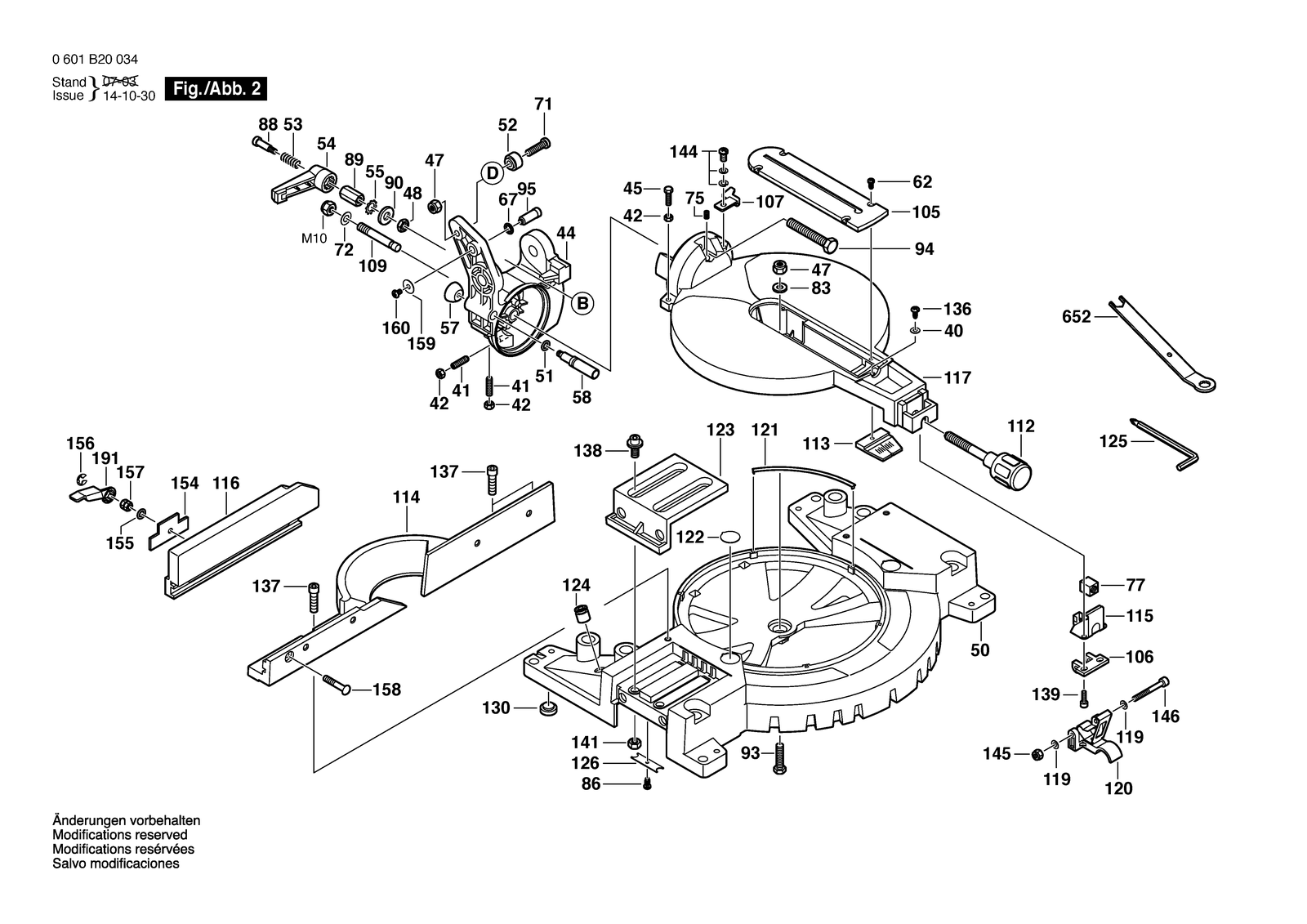

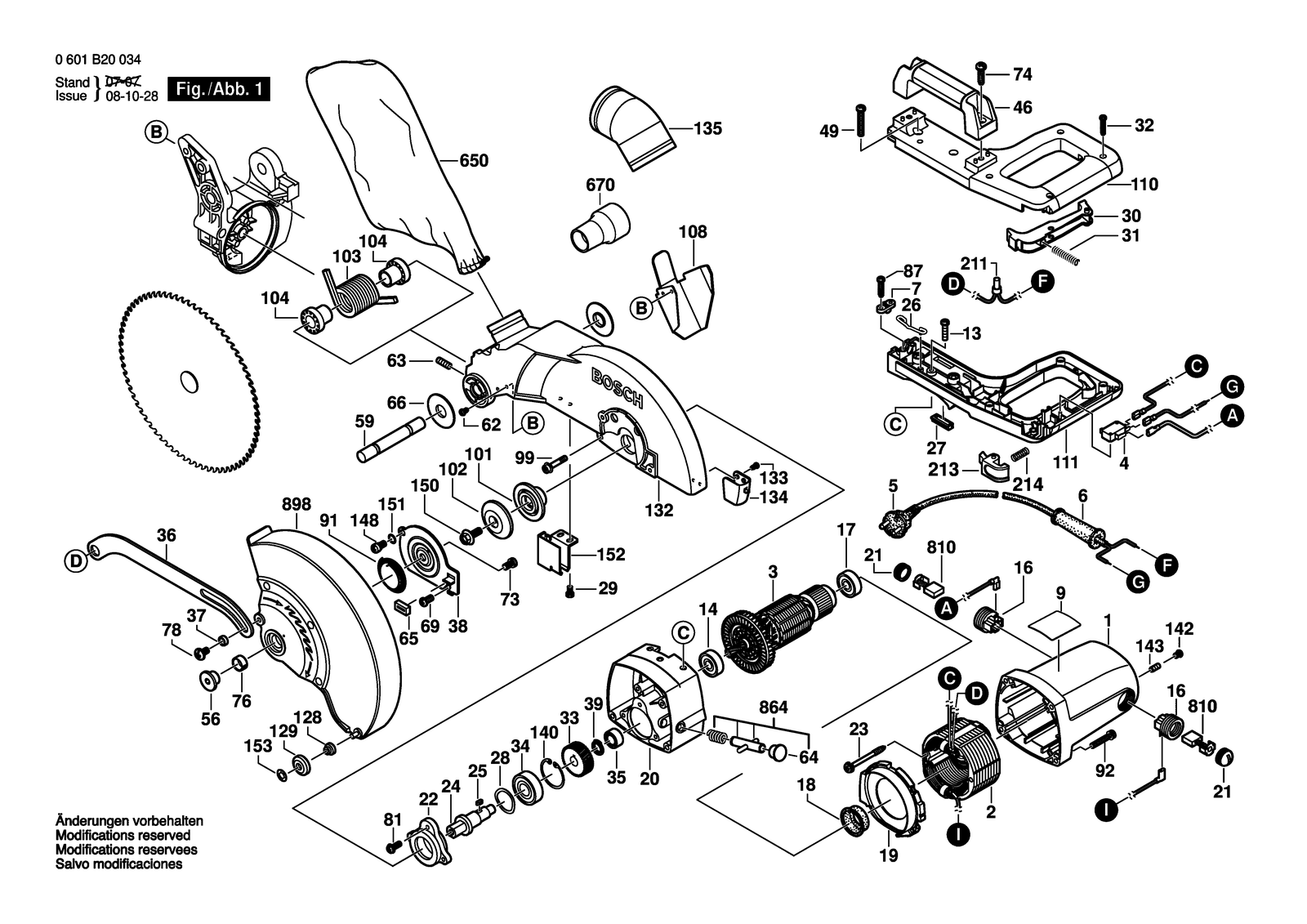

Bosch GCM 10 slide mitre saw: exploded parts diagram, 2 sheets, 144 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCM 10: 144 positions on 2 sheets
Bosch GCM 10 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203J10 | Motor Housing |
| 101 | 1609902098 | Flange |
| 102 | 1609902107 | Flange |
| 103 | 2610912560 | Torsion Spring |
| 104 | 2610910753 | Sleeve |
| 105 | 1619P03782 | Inset Plate |
| 106 | 2610910833 | End Plate |
| 107 | 2610907852 | Pointer |
| 108 | 2610912561 | Reflector |
| 109 | 2610908288 | Shaft |
| 110 | 1609203H83 | Handle |
| 111 | 1609203H85 | Handle |
| 112 | 2610907850 | Knob |
| 113 | 2610907846 | Scale Plate |
| 114 | 1609203H90 | Stop Rail |
| 115 | 2610910834 | Cover Plate |
| 116 | 2610907824 | Mitre Fence |
| 117 | 2610907813 | Saw Table |
| 119 | 2610309996 | Washer |
| 120 | 2610910775 | Lever |
| 121 | 2610907854 | Wear Plate |
| 122 | 2610909006 | Warning Label |
| 123 | 2610907826 | Extension Stand |
| 124 | 2610911470 | Set Of Keys |
| 125 | 2610355777 | Hexagon Socket Wrench |
| 126 | 2610910844 | Threaded Plate |
| 128 | 2610990522 | Bearing |
| 129 | 2610990518 | Roller |
| 13 | 1609902006 | Screw |
| 130 | 1619P03548 | Rubber Bushing |
| 132 | 1609203H91 | Safety Cover |
| 135 | 2608601171 | Suction Socket |
| 136 | 2610910777 | Screw |
| 137 | 2610910793 | Screw |
| 138 | 2610356733 | Screw |
| 139 | 2615303029 | Screw |
| 14 | 1609902079 | Ball Bearing |
| 140 | 2610912562 | Retaining snap ring |
| 141 | 2610910794 | Hex Nut |
| 142 | 1609902005 | Screw |
| 143 | 1609902004 | Set screw |
| 144 | 2610910782 | Screw |
| 145 | 2610910774 | Nut |
| 146 | 2610910776 | Screw |
| 148 | 2610910799 | Screw |
| 150 | 2610911467 | Stud bolt |
| 151 | 2610911450 | Washer |
| 152 | 1609203H95 | Protective Cover |
| 153 | 2610990521 | Spring retaining ring |
| 154 | 2610967433 | Clamping Plate |
| 155 | 2610358439 | Plain Washer |
| 156 | 2610967438 | Spring retaining ring |
| 157 | 2610967439 | Nut |
| 158 | 2610992372 | Stud bolt |
| 159 | 2610027372 | Plain Washer |
| 16 | 1609203J12 | Brush Holder |
| 160 | 2610951118 | Screw |
| 17 | 1609902080 | Ball Bearing |
| 18 | 1609902002 | Bearing Cap |
| 19 | 1609203J06 | Air-Deflector Ring |
| 191 | 2610967432 | Clamp |
| 2 | 1609902088 | Stator |
| 20 | 1609203J11 | Gear Housing |
| 21 | 1609203J14 | Cover |
| 211 | 1609902082 | Cable Connector |
| 213 | 1609902111 | Button |
| 214 | 1609902112 | Compression Spring |
| 22 | 1609203J22 | Bearing Flange |
| 23 | 1609203J09 | Screw and washer assembly |
| 24 | 1609203J25 | Grinding Spindle |
| 25 | 1609203J24 | Parallel Key |
| 26 | 2610910754 | Spring Wire |
| 27 | 1609203J26 | Cover |
| 28 | 1609203J21 | Spring Washer |
| 29 | 2615296765 | Screw |
| 3 | 1609203J30 | Rotor |
| 30 | 1609902177 | Switch Button |
| 31 | 1609203H98 | Spring |
| 32 | 2610911458 | Screw |
| 33 | 1609203J19 | Toothed Gear |
| 34 | 1609203J20 | Ball Bearing |
| 35 | 1609203J18 | Bearing |
| 36 | 1609203H79 | Lever |
| 37 | 2610910849 | Collar |
| 38 | 1619P05836 | Cover |
| 39 | 1609902000 | Retaining snap ring |
| 4 | 1619P03788 | On-Off Switch |
| 40 | 2610908270 | Washer |
| 41 | 2610912548 | Screw |
| 42 | 2610912549 | Hex Nut |
| 44 | 1609203H94 | Angle Joint |
| 45 | 2610355267 | Screw |
| 46 | 1609203H96 | Handle |
| 47 | 2610358172 | Nut |
| 48 | 2610912551 | Nut |
| 49 | 2610355338 | Screw |
| 5 | 1609902097 | Power supply cord |
| 50 | 2610907816 | Base Plate |
| 51 | 2610912553 | O-Ring |
| 52 | 1619P05835 | Retaining Pin |
| 53 | 2610910765 | Compression Spring |
| 54 | 2610910838 | Tensioning Lever |
| 55 | 2615297329 | Washer |
| 56 | 2610910848 | Pivot |
| 57 | 2610912554 | Knob |
| 58 | 2610907847 | Locking Bolt |
| 59 | 2610910842 | Pivot |
| 6 | 1609203J00 | Cord guard |
| 62 | 2610910781 | Screw |
| 63 | 2610328605 | Screw |
| 64 | 1619P04100 | Knob |
| 65 | 1619P05837 | Bumper |
| 650 | 2610911939 | Dust Bag |
| 652 | 1609203J02 | Key |
| 66 | 2610911465 | Washer |
| 67 | 2610910788 | O-Ring |
| 670 | 2610919255 | Fitting |
| 69 | 2615297323 | Screw |
| 7 | 1609203J01 | Fastening Clamp |
| 71 | 2610910790 | Screw |
| 72 | 2610910792 | Washer |
| 73 | 2610911451 | Screw |
| 74 | 2610911460 | Screw |
| 75 | 2610910786 | Set screw |
| 76 | 2610910751 | Sleeve |
| 77 | 2610910760 | Nut |
| 78 | 2610910797 | Screw |
| 81 | 1609203J23 | Cross Recessed-Head Screw |
| 810 | 1619P04452 | Carbon-Brush Set |
| 83 | 2610910779 | Washer |
| 86 | 2610911466 | Screw M 8X0.8-10 |
| 864 | 1619P04162 | Locking Pin |
| 87 | 1609203L64 | Screw |
| 88 | 2610910762 | Screw |
| 89 | 2610910766 | Sleeve |
| 898 | 1619P03786 | Protective Cover |
| 9 | 1609902641 | Nameplate |
| 90 | 2610355264 | Plain Washer |
| 91 | 2610910752 | Spring Lock Washer |
| 92 | 1609902003 | Screw and washer assembly |
| 93 | 2610992377 | Stud bolt M8X1,25-30 |
| 94 | 2610910778 | Stud bolt |
| 95 | 2610967437 | Stud bolt |
| 99 | 2610911461 | Screw |
