Bosch GCD 12 JL
Bosch GCD 12 JL dry cutter: exploded parts diagram, 3 sheets, 123 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

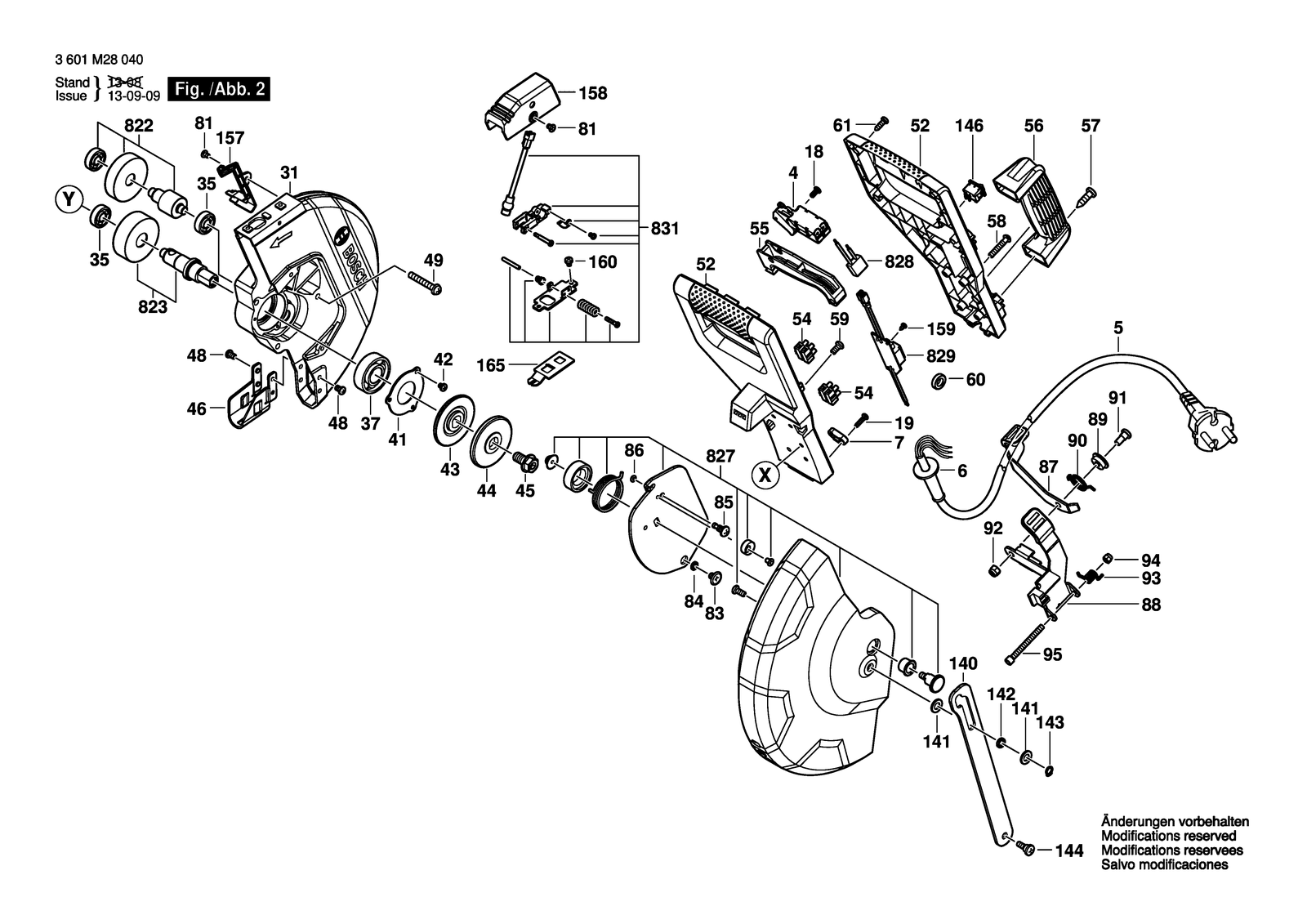

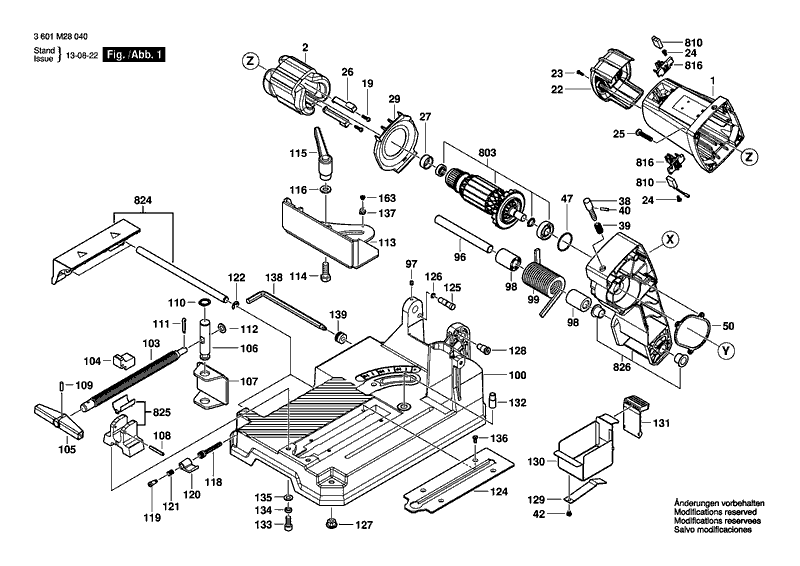

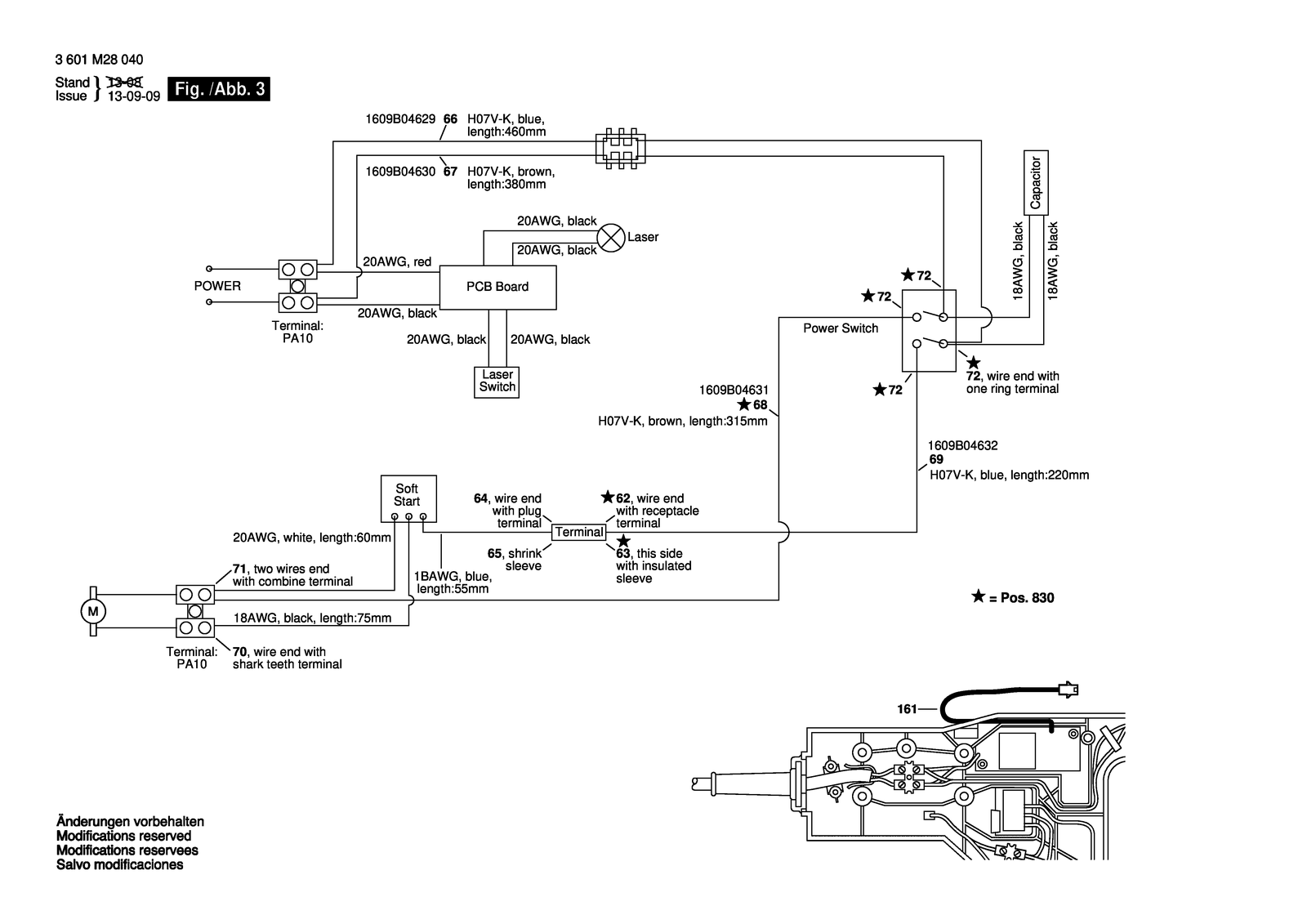

All parts of Bosch GCD 12 JL: 123 positions on 3 sheets
Bosch GCD 12 JL parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609B00054 | Motor Housing |
| 100 | 1609B04602 | Base |
| 103 | 1609B04637 | Clamp Screw |
| 104 | 1619P03760 | Clamping Block |
| 105 | 1609B03523 | Clamp Handle |
| 106 | 1609B04638 | Connecting Rod |
| 107 | 1609B04639 | Clamp Bracket |
| 108 | 1619P03762 | Spring Pin ISO 13337-4X35 |
| 109 | 1619P03752 | Spring Pin ISO 1337 4X18 |
| 110 | 1619P03755 | Spring retaining ring DIN 471-18 |
| 111 | 1619P03756 | Rivet Pin DIN 94-4X22 |
| 112 | 1619P03757 | Plain Washer DIN 433-10 |
| 113 | 1609B05442 | Mitre Fence |
| 114 | 1609B04661 | Hexagon Bolt |
| 115 | 1609B00753 | Lever |
| 116 | 1609B00757 | Plain Washer |
| 118 | 1609B00234 | Screw |
| 119 | 1609B00236 | Shoulder Screw |
| 120 | 1609B00232 | Locking Lever |
| 121 | 1609B00237 | Compression Spring |
| 122 | 1609B00644 | Retaining ring |
| 124 | 1609B04641 | Guide Plate |
| 125 | 1609B01600 | Locking Pin |
| 126 | 1609B00601 | O-Ring |
| 127 | 1609B00227 | Rubber Bushing |
| 128 | 1609B01599 | Control Screw |
| 129 | 1609B04633 | Leaf Spring |
| 130 | 1609B04634 | Chip box |
| 131 | 1609B04635 | Protective Cover |
| 132 | 1609B04663 | Pivot Pin |
| 133 | 1619P03827 | Socket head cap screw ISO 4762-M 8X20-8.8 |
| 134 | 1619P03829 | Spring Washer DIN 127 B8 |
| 135 | 1619P03828 | Plain Washer DIN 125 A8 |
| 136 | 1609B00634 | Screw |
| 137 | 1609B04642 | Pointer |
| 138 | 1609B05416 | Offset Screwdriver |
| 139 | 1609B05419 | Rubber Bushing |
| 140 | 1609B04636 | Linkage |
| 141 | 1609B00703 | Plain Washer |
| 142 | 1609B04667 | Bushing |
| 143 | 1609B01956 | Retaining clip |
| 144 | 1609B00971 | Screw |
| 146 | 1609B05392 | Switch |
| 157 | 1609B04644 | Cover |
| 158 | 1609B04643 | Protecting Cover |
| 159 | 1609B01667 | Screw |
| 160 | 1609B01663 | Screw |
| 161 | 1609B01549 | Connecting Cable |
| 163 | 1609B05401 | Screw |
| 165 | 1609B05421 | Mounting Plate |
| 18 | 1619P03837 | Raised ctsunk head tap sc |
| 19 | 1619P03833 | Screw Eco-Syn ST 3,5X16 |
| 2 | 1609B00115 | Field 230V |
| 22 | 1609B04610 | End cap |
| 23 | 1619P03832 | Screw Eco-Syn ST3X12 |
| 24 | 1619P03834 | Screw Eco-Syn ST3,5X10 |
| 25 | 1619P03835 | Thread-forming tap. Screw DIN 7500 C-M6X35 |
| 26 | 1609B00055 | Pickup Clip |
| 27 | 1600206030 | Rubber Ring |
| 29 | 1619P03822 | Air-Deflector Ring |
| 31 | 1609B04603 | Upper guard |
| 35 | 1609B01267 | Ball Bearing |
| 37 | 1609B04619 | Bearing |
| 38 | 1609B04620 | Locking Pin |
| 39 | 1609B04621 | Compression Spring |
| 4 | 1609B05400 | On-Off Switch |
| 40 | 1609B04678 | Spring Pin |
| 41 | 1609B04622 | Bearing cover |
| 42 | 1609B00780 | Screw |
| 43 | 1609B04623 | Flange |
| 44 | 1609B04624 | Flange |
| 45 | 1609B04625 | Flange Bolt |
| 46 | 1609B04664 | Chip Deflector |
| 47 | 1609B00068 | O-Ring |
| 48 | 1609B00978 | Screw |
| 49 | 1609B04649 | Screw |
| 5 | 1609B04627 | Power supply cord |
| 5 | 1609B04686 | Power supply cord |
| 5 | 1609B04687 | Power supply cord |
| 5 | 1609B04688 | Power supply cord |
| 50 | 1609B04650 | Mat seal |
| 52 | 1609B04605 | Switch Handle |
| 54 | 1609BP7059 | Connection Block |
| 55 | 1609B04668 | Switch-Pawl |
| 56 | 1609B04608 | Carrying Handle |
| 57 | 1609B04652 | Screw |
| 58 | 1609B00655 | Screw |
| 59 | 1609B01356 | Cyl Head tapping screw |
| 6 | 1609B04628 | Grommet |
| 60 | 1619P03931 | Ring |
| 61 | 1609B00637 | Tapping Screw |
| 7 | 1619P03808 | Cable Clip |
| 803 | 1609B04679 | Armature assembly 230V |
| 81 | 1609B01561 | Screw |
| 810 | 1607014171 | Carbon-Brush Set |
| 816 | 1604336048 | Brush Holder |
| 822 | 1609B04681 | Spindle With Gear |
| 823 | 1609B04682 | Spindle With Gear |
| 824 | 1609B04683 | Extension Stand |
| 825 | 1609B03533 | Bearing Block |
| 826 | 1609B04692 | Arm |
| 827 | 1609B04693 | Lower guard |
| 828 | 1609B04694 | Soft Start-Up Module |
| 829 | 1609B04695 | Electronic Module |
| 83 | 1619P03802 | Shoulder Screw |
| 830 | 1609B04696 | Wire |
| 831 | 1609B01726 | Laser |
| 84 | 1619P03841 | Spring Washer DIN 127 B6 |
| 85 | 1609B05417 | Special Screw |
| 86 | 1609B00931 | O-Ring |
| 87 | 1609B04611 | Locking Lever |
| 88 | 1609B04612 | Locking Lever |
| 89 | 1609B04647 | Bushing |
| 90 | 1609B04657 | Torsion Spring |
| 91 | 1609B03779 | Shoulder Screw |
| 92 | 1609B00730 | Lock Nut |
| 93 | 1609B04658 | Torsion Spring |
| 94 | 1609B03570 | Self-locking nut |
| 95 | 1609B04659 | Screw |
| 96 | 1609B04660 | Pivot Shaft |
| 97 | 1619P03839 | Stop Screw ISO 4027-M 5X8-45H |
| 98 | 1609B04648 | Bushing |
| 99 | 1609B00024 | Torsion Spring |
