Bosch GCB 18 V-LI

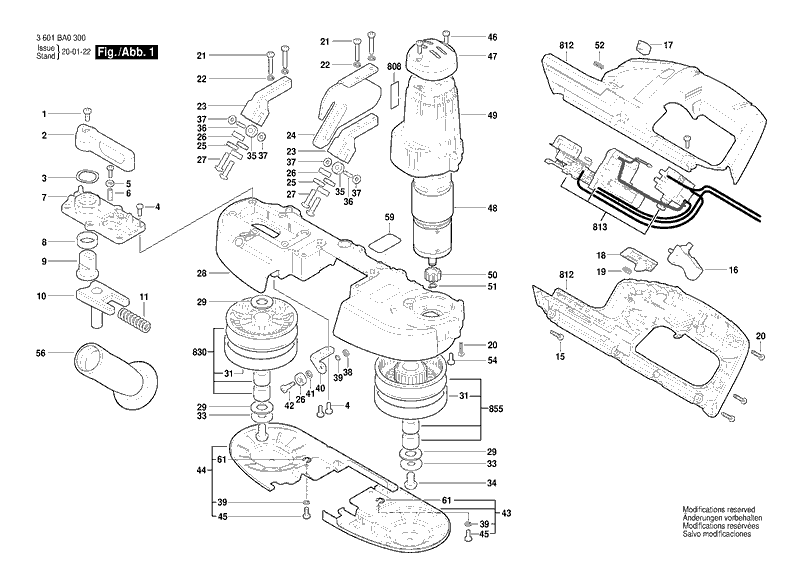

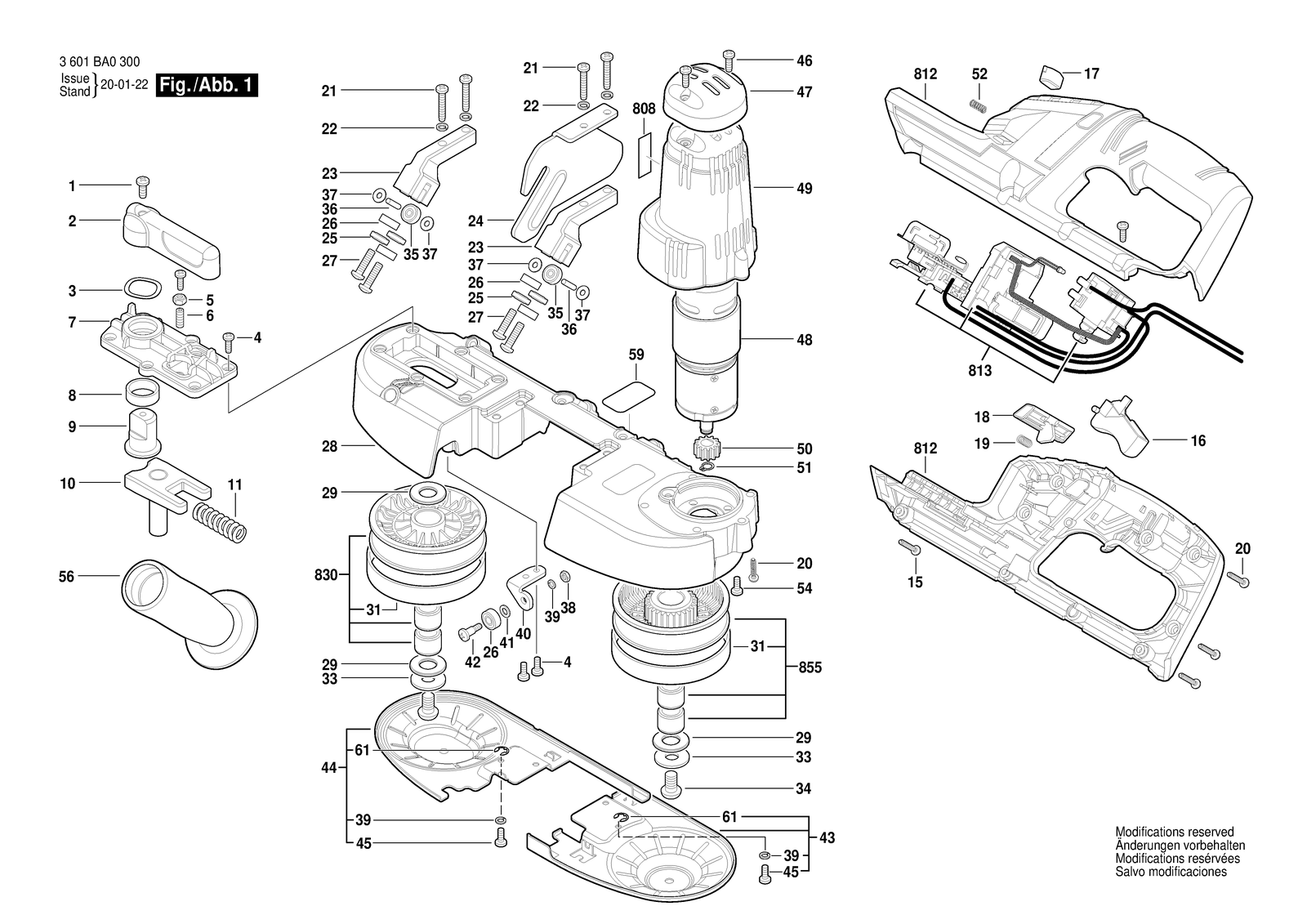

Bosch GCB 18 V-LI band saw: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCB 18 V-LI: 58 positions on 1 sheet
Bosch GCB 18 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610013522 | Screw |
| 10 | 2610013530 | Aligning block |
| 11 | 2610013531 | Spring |
| 15 | 2610013532 | Tapping Screw |
| 16 | 2610942930 | Trigger |
| 17 | 2610012367 | Lens |
| 18 | 2610013533 | Switch Button |
| 19 | 2610013534 | Compression Spring |
| 2 | 2610012368 | Tensioning Lever |
| 20 | 2610013535 | Tapping Screw |
| 21 | 2610013536 | Thread-forming tap. Screw |
| 22 | 2610013537 | Spring Washer |
| 23 | 2610013538 | Guide |
| 24 | 2610013539 | Guide Angle |
| 25 | 2610013540 | Roller Bearing |
| 26 | 2610013541 | Ball Bearing |
| 27 | 2610013542 | Thread-forming tap. Screw |
| 28 | 2610012363 | Housing |
| 29 | 2610013543 | Washer |
| 3 | 2610013523 | Corrugated Washer |
| 31 | 2610013545 | Rubber Ring |
| 33 | 2610013547 | Plain Washer |
| 34 | 2610013548 | Hexagon Socket Screw Key |
| 35 | 2610013549 | Ball Bearing |
| 36 | 2610013550 | Pin |
| 37 | 2610013551 | Washer |
| 38 | 2610013552 | Hex Nut |
| 39 | 2610013553 | Spring Washer |
| 4 | 2610013524 | Screw |
| 40 | 2610013554 | Support bracket |
| 41 | 2610013555 | Plain Washer |
| 42 | 2610013556 | Screw |
| 43 | 2610013557 | Upper guard |
| 44 | 2610012369 | Lower guard |
| 45 | 2610013558 | Thread-Forming Screw |
| 46 | 2610013559 | Tapping Screw |
| 47 | 2610013560 | End cap |
| 48 | 2610013561 | DC motor |
| 49 | 2610012366 | Motor Housing |
| 5 | 2610013525 | Hex Nut |
| 50 | 2610013562 | Pinion |
| 51 | 2610013563 | Retaining ring |
| 52 | 2604690055 | Compression Spring |
| 54 | 2610013565 | Tapping Screw |
| 56 | 160202509T | Auxiliary Handle |
| 59 | 2610014422 | Nameplate GCB 18V-LI |
| 6 | 2610013526 | Screw |
| 61 | 2610015930 | Clasp locking ring |
| 7 | 2610013527 | Cover Plate |
| 8 | 2610013528 | Bushing |
| 808 | 2610013569 | Nameplate |
| 808 | 2610015166 | Nameplate |
| 808 | 2610015207 | Nameplate |
| 812 | 2610013568 | Set Of Handles |
| 813 | 2610021159 | Electronics Module |
| 830 | 2610024574 | Pulley Wheel |
| 855 | 2610024575 | Drive Wheel |
| 9 | 2610013529 | Eccentric |
