Bosch GCB 120 band saw: exploded parts diagram, 4 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move

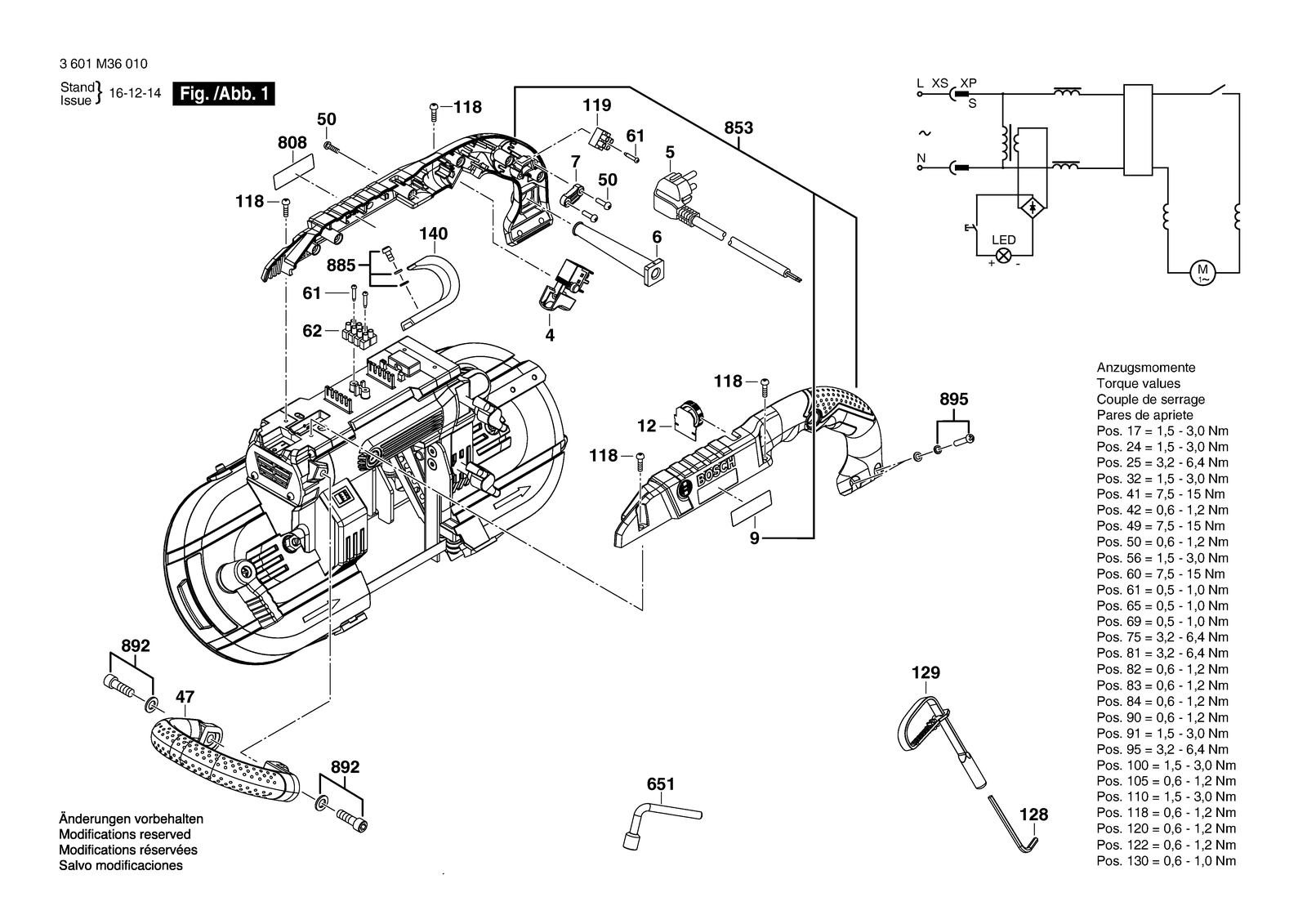

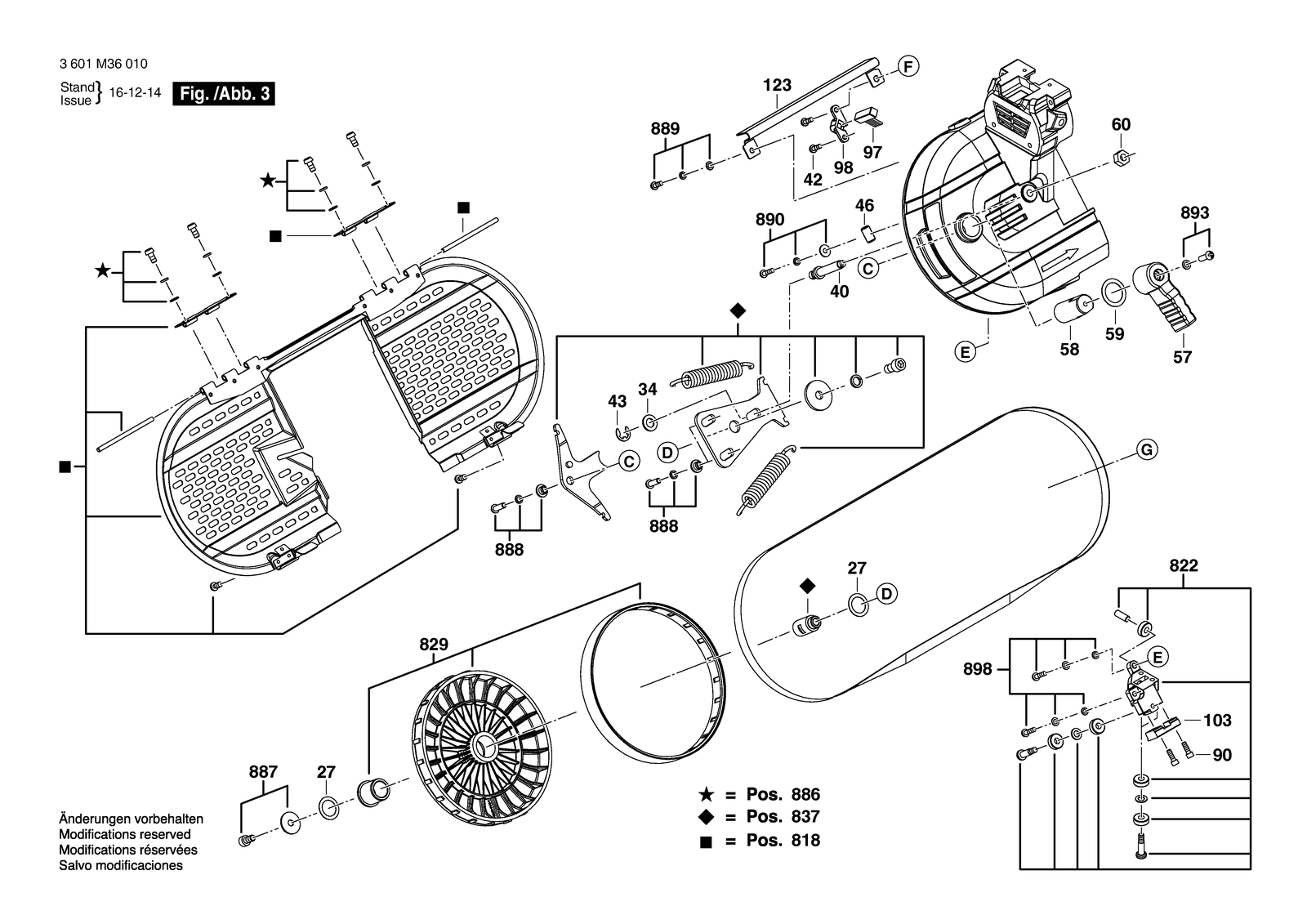

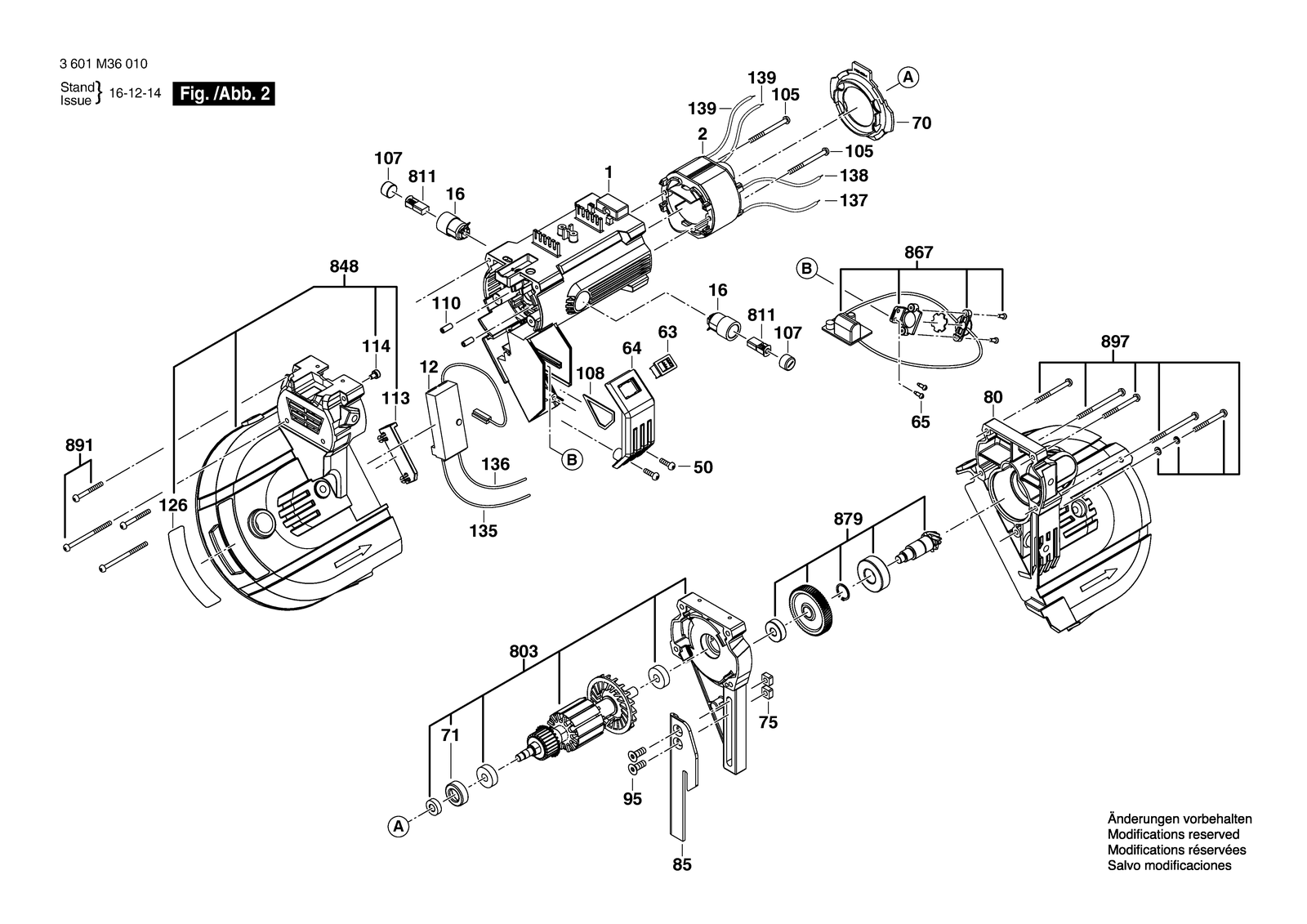

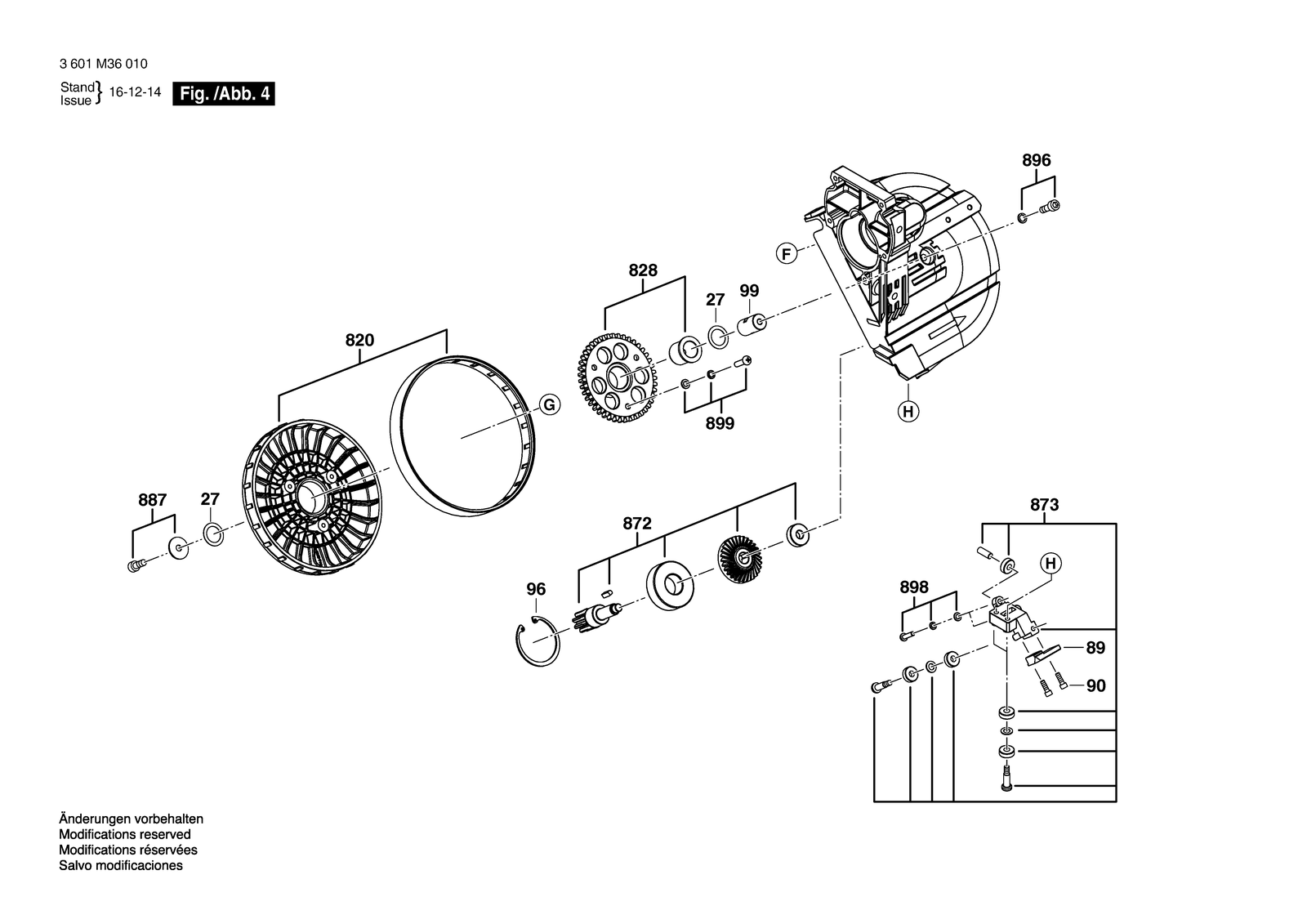

All parts on this sheet0
All parts of Bosch GCB 120: 87 positions on 4 sheets
Bosch GCB 120 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA8724 | Motor Housing |
| 103 | 1619PA9974 | Support Plate |
| 105 | 1619PA8837 | Pan head screw |
| 107 | 1619PA8838 | Brush-Cover |
| 108 | 1619PA8839 | Protective Glass |
| 110 | 1619PA9975 | Lock Screw |
| 113 | 1619PA8843 | Safety Plate |
| 114 | 1619PA9989 | Insert |
| 118 | 1619PA8848 | Pan head screw |
| 119 | 1619PA8849 | Socket-Terminal Strip |
| 12 | 1619PA9012 | Speed governor |
| 123 | 1619PA8853 | Protection Plate |
| 126 | 1619PA8856 | Adhesive Label |
| 128 | 1619PA8857 | Socket Wrench |
| 129 | 1619PA8858 | Wrench Attachment |
| 135 | 1619PA9978 | Connecting Cable |
| 136 | 1619PA9979 | Connecting Cable |
| 137 | 1619PA8866 | Connecting Cable |
| 138 | 1619PA8867 | Connecting Cable |
| 139 | 1619PA8868 | Connecting Cable |
| 140 | 1619PA9980 | Hook |
| 16 | 1619PA8751 | Brush Holder |
| 2 | 1619PA6856 | Field 100V |
| 27 | 1619PA8763 | Friction Washer |
| 34 | 1619PA8769 | Plain Washer |
| 4 | 1619PA8745 | Switch |
| 40 | 1619PA8775 | Adjusting bolt |
| 42 | 1619PA8777 | Pan head screw |
| 43 | 1619PA8778 | Retaining ring |
| 46 | 1619PA8781 | Guide Rod |
| 47 | 1619PA8782 | Auxiliary Handle |
| 5 | 1619PA8730 | Power supply cord |
| 50 | 1619PA8785 | Pan head screw |
| 57 | 1619PA8792 | Lever |
| 58 | 1619PA8793 | Pivot Pin |
| 59 | 1619PA8794 | Plain Washer |
| 6 | 1619PA8731 | Grommet |
| 60 | 1619PA8795 | Hex Nut |
| 61 | 1619PA8796 | Pan head screw |
| 62 | 1619PA8797 | Socket-Terminal Strip |
| 63 | 1619PA6427 | Switch |
| 64 | 1619PA8798 | Cover |
| 65 | 1619PA8799 | Pan head screw |
| 651 | 1619PA8904 | Hexagon Socket Wrench |
| 7 | 1619PA8733 | Cable Clip |
| 70 | 1619PA8803 | Air-Deflector Ring |
| 71 | 1619PA8804 | Rubber Ring |
| 75 | 1619PA8808 | Square Nut |
| 80 | 1619PA9970 | Protective Cover |
| 803 | 1619PA8871 | Armature set |
| 808 | 1619PA8741 | Nameplate |
| 811 | 1619PA8872 | Carbon-Brush Set |
| 818 | 1619PA8874 | Protective Cover |
| 820 | 1619PA8875 | Drive Wheel |
| 822 | 1619PA9982 | Bearing Bracket |
| 828 | 1619PA8877 | Spur Gear Drive |
| 829 | 1619PA8878 | Guide Wheel |
| 837 | 1619PA8879 | Clamping Device |
| 848 | 1619PA9983 | Protective Cover |
| 85 | 1619PA8818 | Workpiece support |
| 853 | 1619PA9984 | Handle |
| 867 | 1619PA9013 | LED lamp |
| 872 | 1619PA9985 | Set Of Gears |
| 873 | 1619PA9986 | Bearing Bracket |
| 879 | 1619PA8888 | Set Of Gears |
| 885 | 1619PA9987 | Set of screws |
| 886 | 1619PA8889 | Set of screws |
| 887 | 1619PA8890 | Set of screws |
| 888 | 1619PA8891 | Set of screws |
| 889 | 1619PA8892 | Set of screws |
| 89 | 1619PA9971 | Support Plate |
| 890 | 1619PA8893 | Set of screws |
| 891 | 1619PA8894 | Set of screws |
| 892 | 1619PA8895 | Set of screws |
| 893 | 1619PA8896 | Set of screws |
| 895 | 1619PA8898 | Set of screws |
| 896 | 1619PA8899 | Set of screws |
| 897 | 1619PA8900 | Set of screws |
| 898 | 1619PA8901 | Set of screws |
| 899 | 1619PA8902 | Set of screws |
| 9 | 1619PA8743 | Manufacturer's nameplate |
| 90 | 1619PA9972 | Cross Recessed-Head Screw |
| 95 | 1619PA8828 | Recessed-Head Screw |
| 96 | 1619PA8829 | Retaining ring |
| 97 | 1619PA8830 | Wheel Brush |
| 98 | 1619PA8831 | Brush Holder |
| 99 | 1619PA8832 | Wheel Shaft |
