Bosch GCB 120

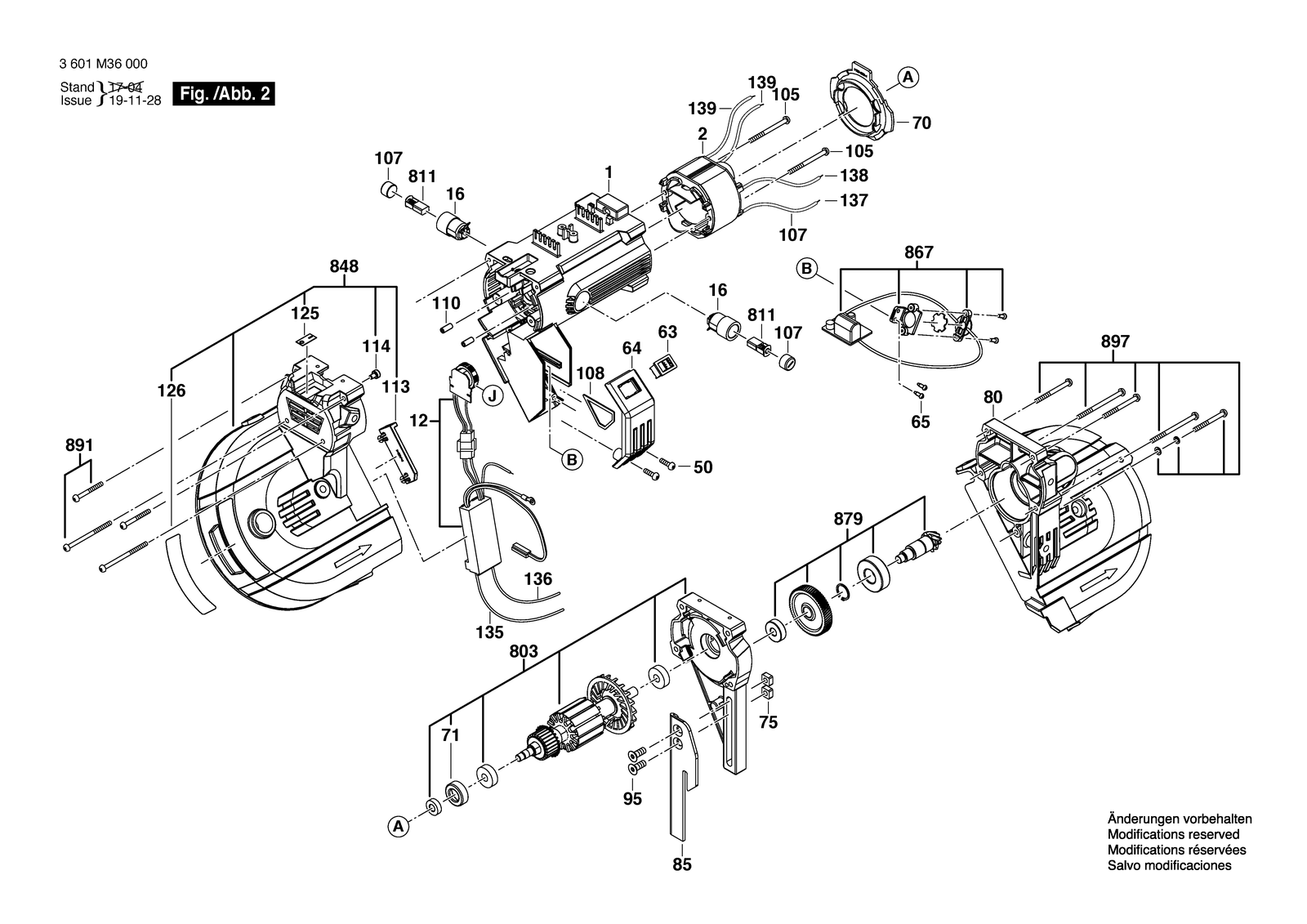

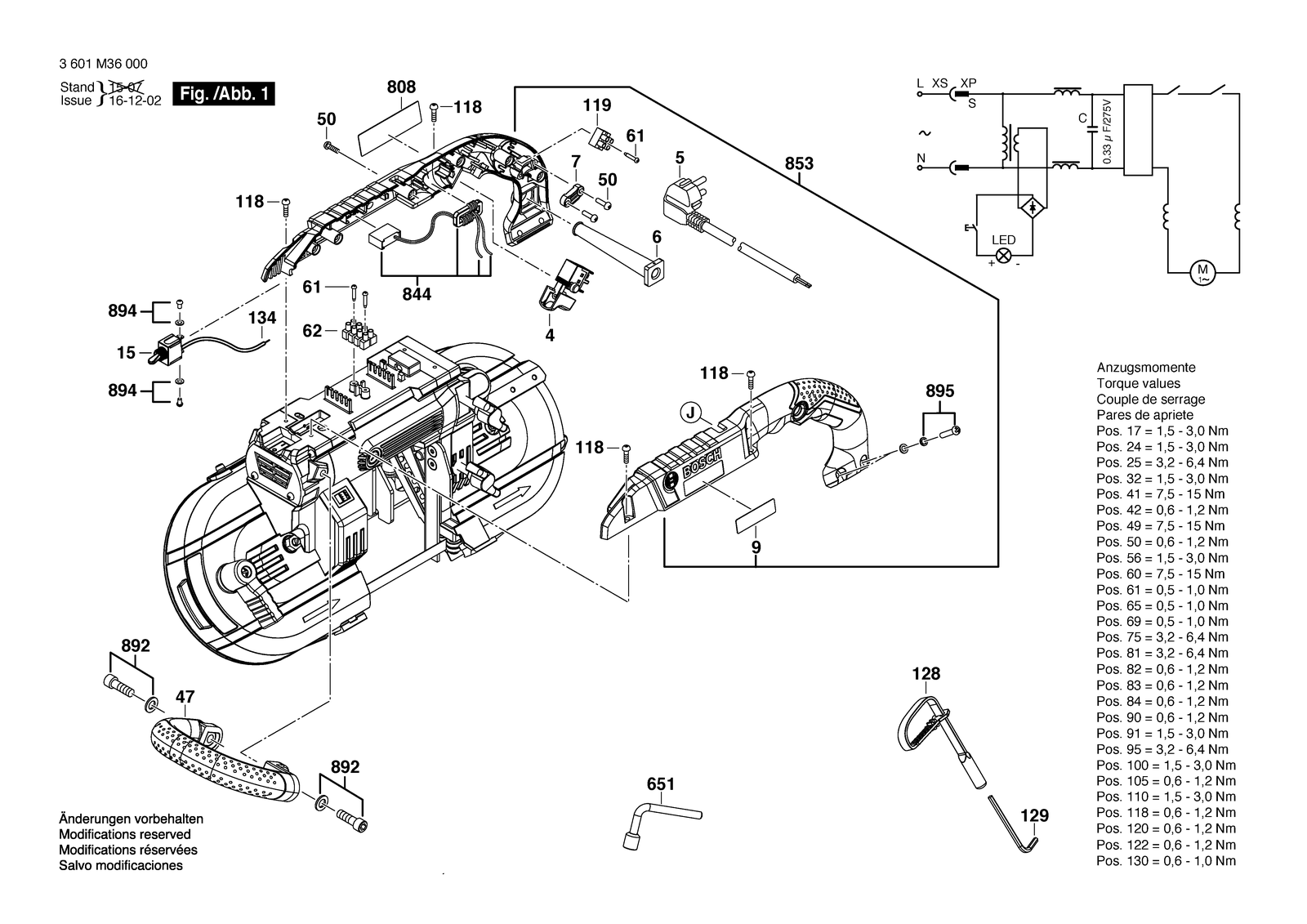

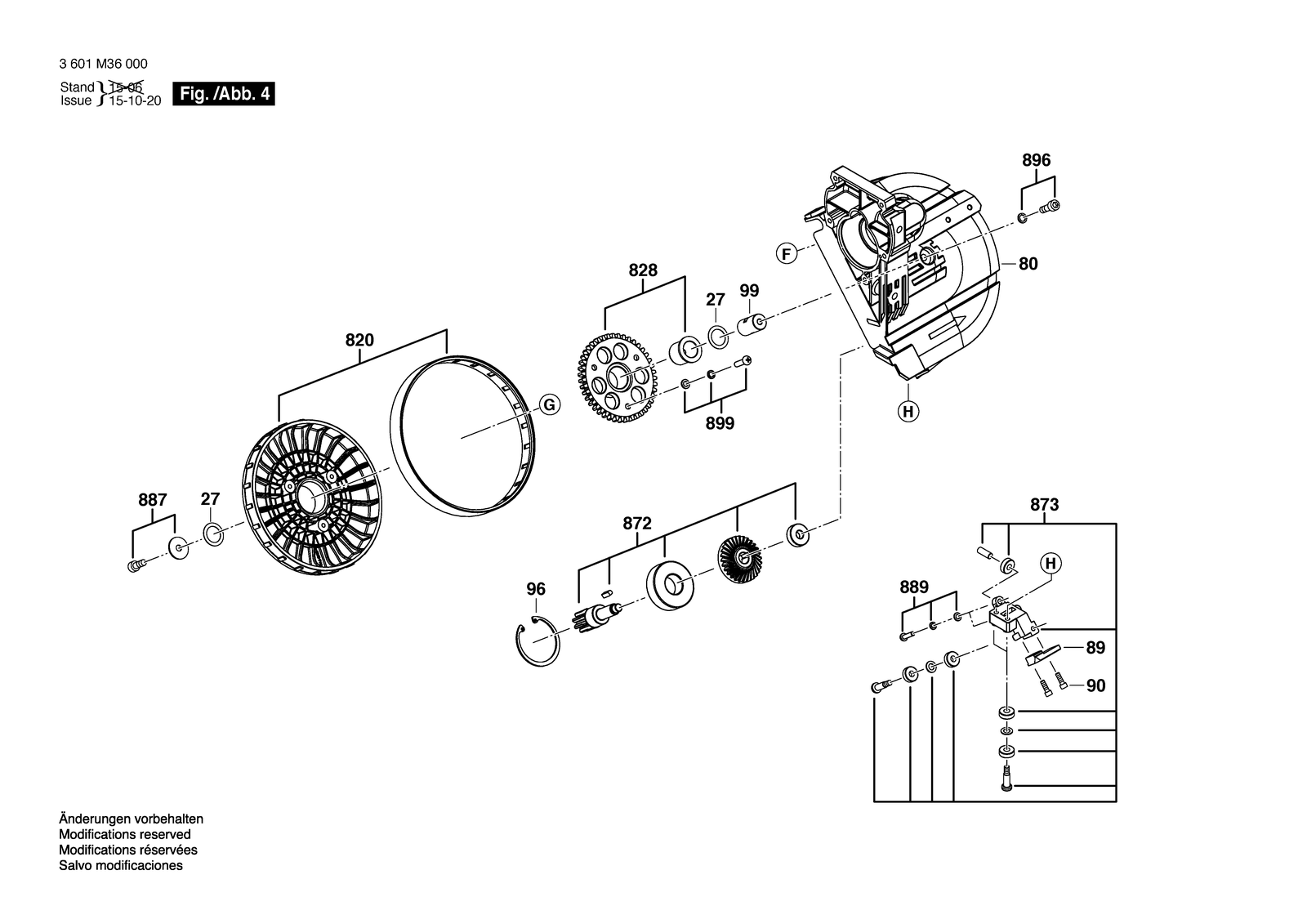

Bosch GCB 120 band saw: exploded parts diagram, 4 sheets, 92 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCB 120: 92 positions on 4 sheets
Bosch GCB 120 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA8724 | Motor Housing |
| 103 | 1619PA8835 | Support Plate |
| 105 | 1619PA8837 | Pan head screw |
| 107 | 1619PA8838 | Brush-Cover |
| 108 | 1619PA8839 | Protective Glass |
| 110 | 1619PA8841 | Lock Screw |
| 113 | 1619PA8843 | Safety Plate |
| 114 | 1619PA8844 | Insert |
| 118 | 1619PA8848 | Pan head screw |
| 119 | 1619PA8849 | Socket-Terminal Strip |
| 12 | 1619PA9011 | Speed governor |
| 123 | 1619PA8853 | Protection Plate |
| 125 | 1619PA8855 | Adhesive Label |
| 126 | 1619PA8856 | Adhesive Label |
| 128 | 1619PA8857 | Socket Wrench |
| 129 | 1619PA8858 | Wrench Attachment |
| 134 | 1619PA8863 | Connecting Cable |
| 135 | 1619PA8864 | Connecting Cable |
| 136 | 1619PA8865 | Connecting Cable |
| 137 | 1619PA8866 | Connecting Cable |
| 138 | 1619PA8867 | Connecting Cable |
| 139 | 1619PA8868 | Connecting Cable |
| 15 | 1619PA6426 | On-Off Switch |
| 16 | 1619PA8751 | Brush Holder |
| 17 | 1619PA8752 | Screw |
| 2 | 1619PA6855 | Field 220V |
| 27 | 1619PA8763 | Friction Washer |
| 34 | 1619PA8769 | Plain Washer |
| 4 | 1619PA6425 | Switch |
| 40 | 1619PA8775 | Adjusting bolt |
| 42 | 1619PA8777 | Pan head screw |
| 43 | 1619PA8778 | Retaining ring |
| 46 | 1619PA8781 | Guide Rod |
| 47 | 1619PA8782 | Auxiliary Handle |
| 5 | 1619PA8727 | Power supply cord |
| 5 | 1619PA8728 | Power supply cord |
| 50 | 1619PA8785 | Pan head screw |
| 57 | 1619PA8792 | Lever |
| 58 | 1619PA8793 | Pivot Pin |
| 59 | 1619PA8794 | Plain Washer |
| 6 | 1619PA8731 | Grommet |
| 60 | 1619PA8795 | Hex Nut |
| 61 | 1619PA8796 | Pan head screw |
| 62 | 1619PA8797 | Socket-Terminal Strip |
| 63 | 1619PA6427 | Switch |
| 64 | 1619PA8798 | Cover |
| 65 | 1619PA8799 | Pan head screw |
| 651 | 1619PA8904 | Hexagon Socket Wrench |
| 7 | 1619PA8733 | Cable Clip |
| 70 | 1619PA8803 | Air-Deflector Ring |
| 71 | 1619PA8804 | Rubber Ring |
| 75 | 1619PA8808 | Square Nut |
| 80 | 1619PA8813 | Protective Cover |
| 803 | 1619PA8870 | Armature set 220V |
| 808 | 1619PA8739 | Nameplate |
| 811 | 1619PA8872 | Carbon-Brush Set |
| 818 | 1619PA8873 | Protective Cover |
| 820 | 1619PA8875 | Drive Wheel |
| 822 | 1619PA8876 | Bearing Bracket |
| 828 | 1619PA8877 | Spur Gear Drive |
| 829 | 1619PA8878 | Guide Wheel |
| 837 | 1619PA8879 | Clamping Device |
| 844 | 1619PA8880 | Suppression Kit |
| 848 | 1619PA8881 | Protective Cover |
| 85 | 1619PA8818 | Workpiece support |
| 853 | 1619PA8883 | Handle |
| 867 | 1619PA8884 | LED lamp |
| 872 | 1619PA8885 | Set Of Gears |
| 873 | 1619PA8886 | Bearing Bracket |
| 879 | 1619PA8888 | Set Of Gears |
| 886 | 1619PA8889 | Set of screws |
| 887 | 1619PA8890 | Set of screws |
| 888 | 1619PA8891 | Set of screws |
| 889 | 1619PA8892 | Set of screws |
| 89 | 1619PA8822 | Support Plate |
| 890 | 1619PA8893 | Set of screws |
| 891 | 1619PA8894 | Set of screws |
| 892 | 1619PA8895 | Set of screws |
| 893 | 1619PA8896 | Set of screws |
| 894 | 1619PA8897 | Set of screws |
| 895 | 1619PA8898 | Set of screws |
| 896 | 1619PA8899 | Set of screws |
| 897 | 1619PA8900 | Set of screws |
| 898 | 1619PA8901 | Set of screws |
| 899 | 1619PA8902 | Set of screws |
| 9 | 1619PA8746 | Manufacturer's nameplate |
| 90 | 1619PA8823 | Hex Screw |
| 95 | 1619PA8828 | Recessed-Head Screw |
| 96 | 1619PA8829 | Retaining ring |
| 97 | 1619PA8830 | Wheel Brush |
| 98 | 1619PA8831 | Brush Holder |
| 99 | 1619PA8832 | Wheel Shaft |
