Bosch GBS 100 A

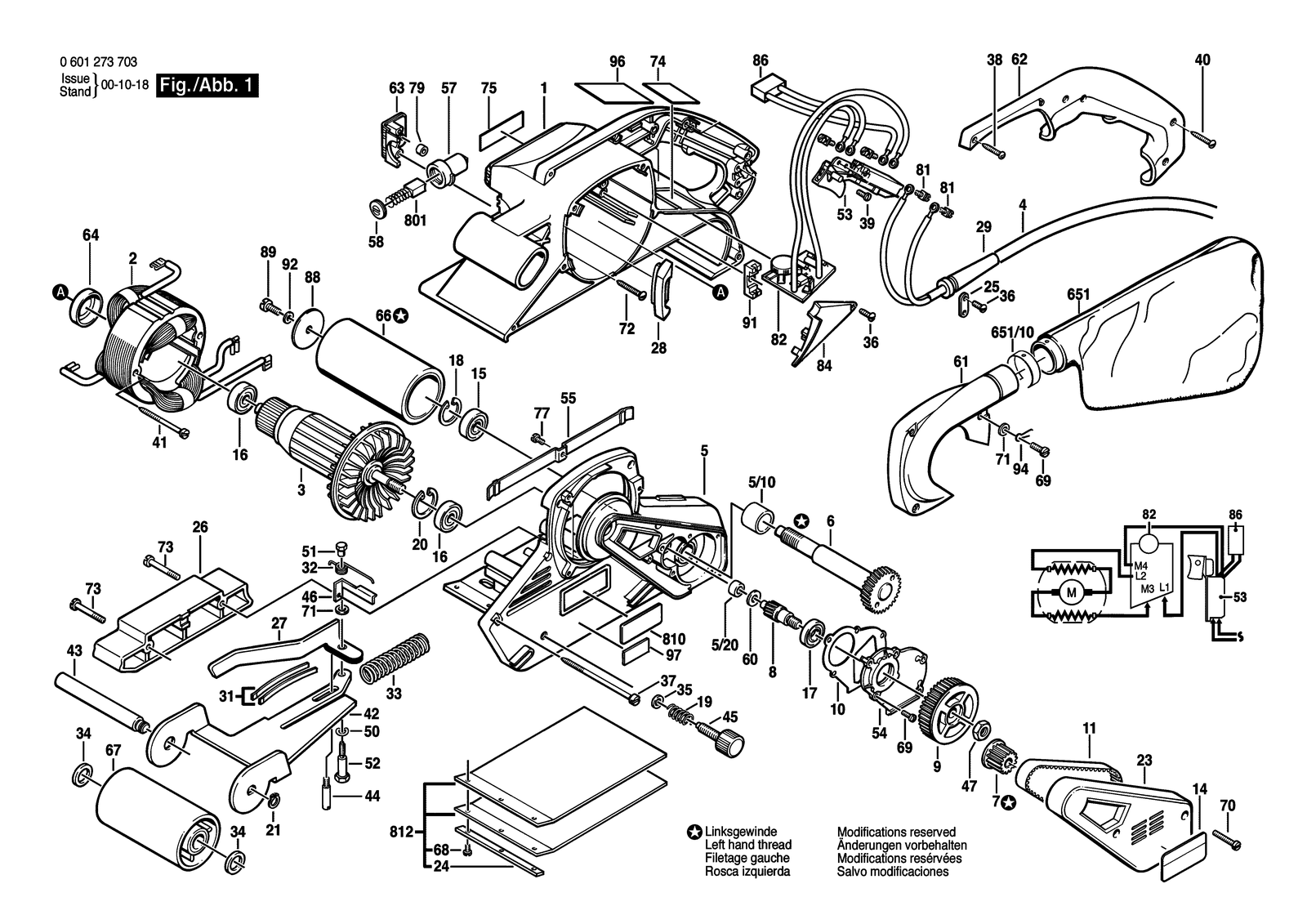

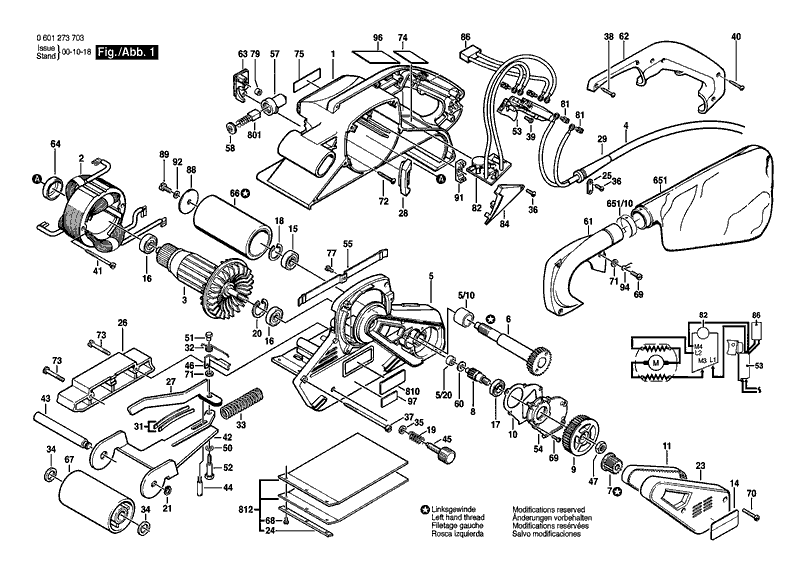

Bosch GBS 100 A belt sander: exploded parts diagram, 1 sheet, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBS 100 A: 94 positions on 1 sheet
Bosch GBS 100 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108561 | Motor Housing |
| 10 | 3601015503 | Insert 0,8 MM |
| 11 | 3604736505 | Toothed Belt 14,3 Mm, Z=60 |
| 14 | 2610908674 | Screw |
| 15 | 1600905007 | Groove ball bearing 12X32X10 |
| 16 | 2610904891 | Ball Bearing |
| 17 | 1900905161 | Groove ball bearing 12X28X8 |
| 18 | 3600119509 | Spring retaining ring |
| 19 | 3604625500 | Compression Spring |
| 2 | 3604220512 | Field 220V |
| 2 | 3604220513 | Field 240V |
| 2 | 3604220542 | Field 110-115V |
| 20 | 3600119503 | Spring retaining ring |
| 21 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 23 | 2610990025 | Gear Cover Blue |
| 24 | 3601036500 | Strap |
| 25 | 3601032500 | Fastening Clamp |
| 26 | 3605510525 | Guard Plate |
| 27 | 3601923502 | Lever |
| 28 | 3605108566 | Cover Plate |
| 29 | 3600707503 | Grommet Ø 9,4 MM |
| 3 | 3604011523 | Armature 220V |
| 3 | 3604011525 | Armature 240V |
| 3 | 3604011526 | Armature 110-115V |
| 31 | 3601254500 | Leaf Spring |
| 32 | 3604651500 | Coiled Spring |
| 33 | 3604619500 | Spring |
| 34 | 3600101501 | Shim |
| 35 | 2610992475 | Shim |
| 36 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 37 | 2610991306 | Tapping Screw |
| 38 | 2910611013 | Tapping Screw DIN 7981-ST3,5X19-C-H |
| 39 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 4 | 2610919861 | Power supply cord |
| 4 | 3604460521 | Pvc-Insulated Cable CH 4,25M 2 X 1,0MM H07RN-F |
| 4 | 3604460526 | Cord Eu, 4,25M, 2 X 1,0MM,H07RN-F |
| 4 | 3604460606 | Power supply cord 4,25M 2 X 1,5MM H05RN-F |
| 40 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 41 | 3603415560 | Screw B 4,8X45 MM |
| 42 | 3601321524 | Retaining Bracket |
| 43 | 3603004501 | Pivot Shaft |
| 44 | 3603405509 | Swivelling Axis |
| 45 | 3603481507 | Adjusting Screw |
| 46 | 3601230500 | Mounting Bracket |
| 47 | 2915051108 | Hex Nut DIN 439-BM10-04 |
| 5 | 3605806508 | Gear Housing |
| 5/10 | 3600301501 | Bushing Ø 15,9 MM |
| 5/20 | 3600301502 | Bushing Ø 7,8 MM |
| 50 | 3600150505 | Spring Washer |
| 51 | 3603315500 | Spring Retainer M 5X0,8 MM |
| 52 | 3603453500 | Hex Screw 5X0,8 MM |
| 53 | 3607200507 | Switch |
| 54 | 2610993630 | Gear Cover |
| 55 | 3601321527 | Housing |
| 57 | 3600492504 | Brush Holder |
| 58 | 2610994437 | Screw Cap |
| 6 | 3606100511 | Spindle With Gear Lefthand Threads Z=41 |
| 60 | 3600100504 | Shim |
| 61 | 3605500579 | Fan Cover Blue |
| 62 | 2610994470 | Handle Cover Blue |
| 63 | 3605500578 | Housing Cover |
| 64 | 3600206502 | Bushing |
| 651 | 2610997000 | Dust Bag |
| 651/10 | 3601253503 | Holding Spring |
| 66 | 3606625540 | Roller Lefthand Threads |
| 67 | 3606625533 | Roller |
| 68 | 2910641082 | Oval-Head Screw |
| 69 | 3603415540 | Screw 4X13 MM |
| 7 | 3606625531 | Pinion Z=12 |
| 70 | 3603429514 | Screw 4X25 MM |
| 71 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 72 | 3603435507 | Tapping Screw |
| 73 | 3603429513 | Screw 4X35 MM |
| 74 | 3601119576 | Reference Plate |
| 75 | 3601119679 | Manufacturer's nameplate |
| 77 | 3603429512 | Socket head cap screw |
| 79 | 3600305500 | Rubber Buffer |
| 8 | 3606302500 | Toothed Shaft Z=15 |
| 801 | 3607014507 | Carbon-Brush Set |
| 81 | 3603433506 | Screw |
| 810 | 160111A3H3 | Nameplate |
| 812 | 3601010516 | Service kit |
| 82 | 3607230500 | Control device 220-240V |
| 82 | 3607230506 | Control device 110-115V |
| 84 | 3605510512 | Switch Cover |
| 86 | 3607328501 | Suppression Filter |
| 88 | 3600100516 | Shim |
| 89 | 3603410502 | Socket head cap screw |
| 9 | 3606625529 | Toothed Belt Wheel Z=34 |
| 91 | 3600685500 | Cable Cleat |
| 92 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 94 | 3604680500 | Wire Guide |
| 96 | 3601119591 | Sticker |
| 97 | 1601110265 | Reference Plate |
