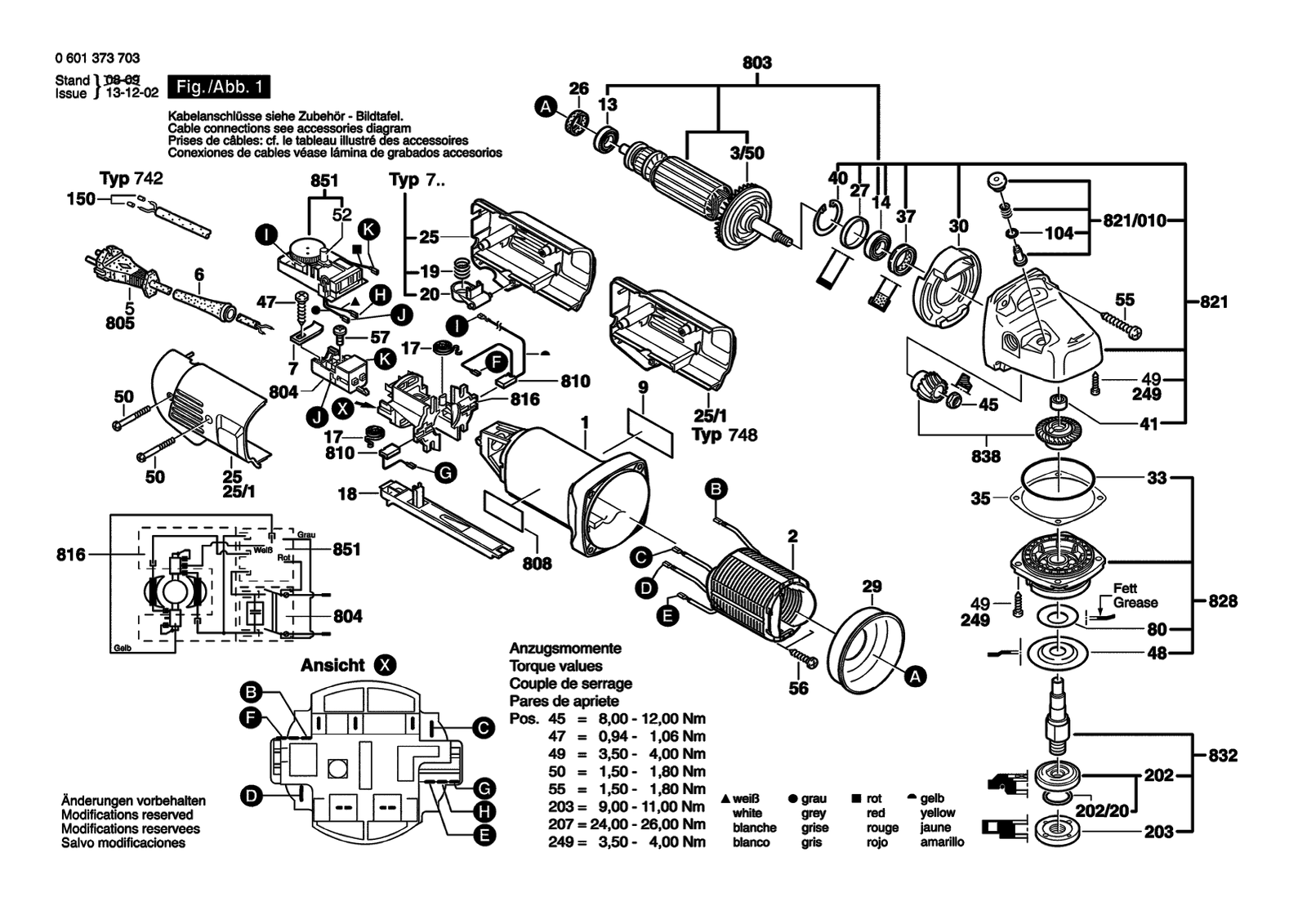

Bosch GBR 14 C concrete grinder: exploded parts diagram, 2 sheets, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBR 14 C: 69 positions on 2 sheets
Bosch GBR 14 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108162 | Motor Housing Blue |
| 104 | 1600210034 | O-Ring 4,0X1,0 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1602319013 | Switch-Pawl Black |
| 19 | 1604611024 | Compression Spring |
| 2 | 1607000F0S | Field |
| 20 | 1602319007 | Shift-Lever Knob Black |
| 202 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 202/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 203 | 1603345043 | Round Nut M14 |
| 204 | 3605510040 | Suction Hood |
| 207 | 2911061285 | Hex Screw DIN 933 M10X16-8.8 |
| 208 | 2916011017 | Plain Washer DIN 125-A10,5-ST |
| 209 | 3600290054 | Strip brush |
| 249 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 25 | 1605500174 | Housing Cover Blue |
| 25/1 | 3605500160 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591013 | Air-Deflector Ring |
| 3/50 | 1606610132 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 48 | 3600150022 | Cover Disc |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460171 | Power supply cord It/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 1603435037 | Plastic-Cutting Screw |
| 52 | 1609270562 | Light Conductor 15,7 MM |
| 55 | 1603415005 | Oval-Head Screw |
| 56 | 1603435044 | Plastic-Cutting Screw |
| 57 | 1603429002 | Socket head cap screw M3,5X7 MM |
| 6 | 1600703030 | Grommet Ø6,4-Ø7,2X67 MM |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 6 | 1600703032 | Grommet Ø8,7-Ø9,5X67 MM |
| 7 | 1601302017 | Fastening Clamp |
| 706 | 3601303017 | Strap-Shaped Handle |
| 750 | 3607950017 | Pin-Type Face-Wrench |
| 751 | 2608600258 | Diamond Cup Wheel Ø 125 MM |
| 751 | 2608600259 | Diamond Cup Wheel Ø 125 MM |
| 751 | 2608600260 | Diamond Cup Wheel Ø 125 MM |
| 751 | 2608600261 | Diamond Cup Wheel Ø 125 MM |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010445 | Armature With Fan 220-230V |
| 804 | 1607200115 | Switch |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000500 | Carbon-Brush Set 10 X 3 607 014 010 |
| 810 | 1607014148 | Carbon Brush |
| 816 | 1604336031 | Brush Holder |
| 821 | 16058065B1 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 828 | 3607031628 | Bearing Flange |
| 832 | 3607031629 | Grinding Spindle |
| 838 | 1607000D4Y | Gear Unit |
| 851 | 1607000295 | Speed governor 230-240V |
| 9 | 1601118305 | Manufacturer's nameplate |
