Bosch GBM 9,6 VRL

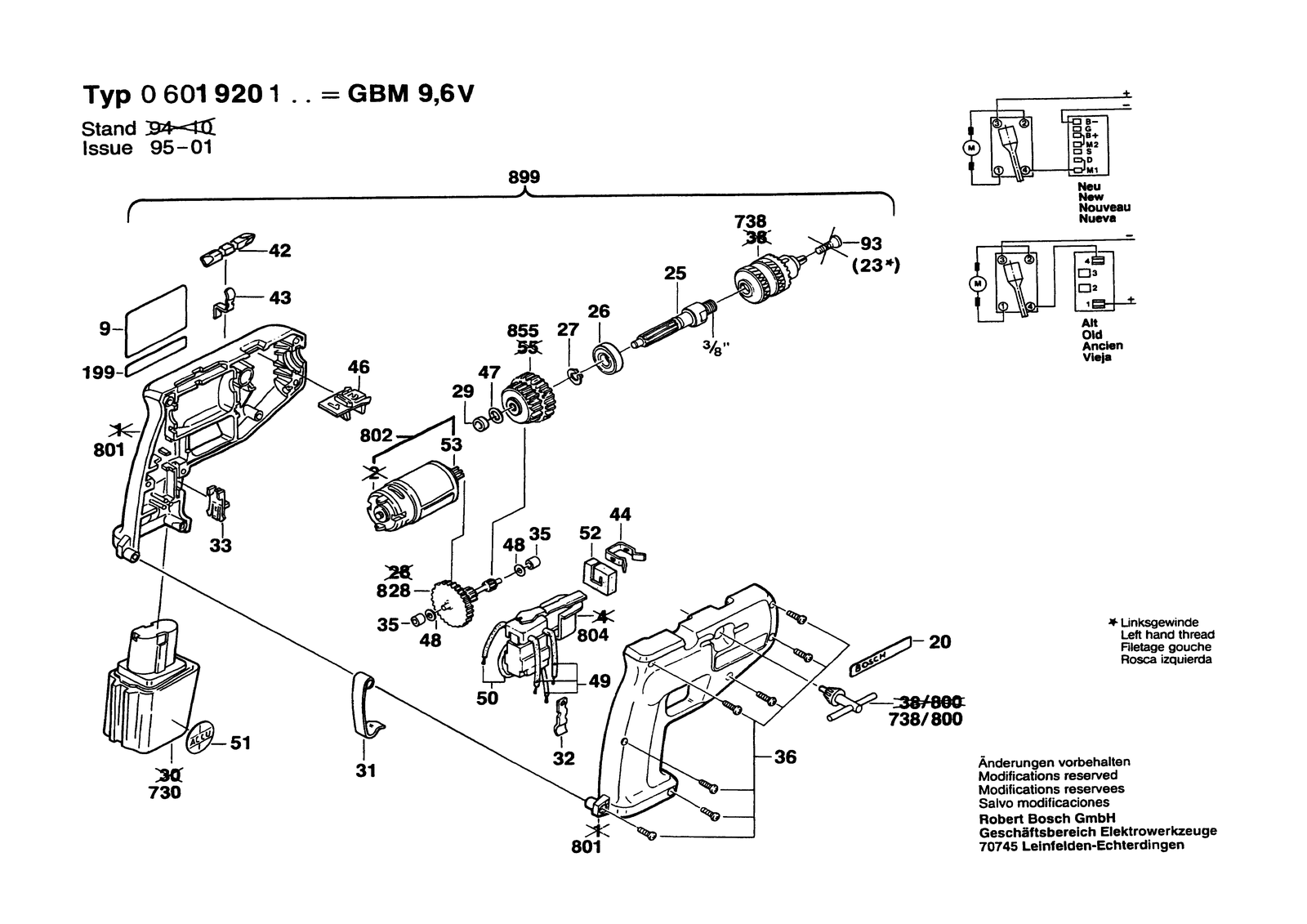

Bosch GBM 9,6 VRL cordless drill: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 9,6 VRL: 32 positions on 1 sheet
Bosch GBM 9,6 VRL parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 199 | 1601110265 | Reference Plate |
| 20 | 2601110606 | Sticker Shadow Side |
| 25 | 2606135018 | Drilling Spindle 3/8" |
| 26 | 1900905120 | Groove ball bearing 10X26X8 |
| 27 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 29 | 2600301011 | Sintered-Metal Bushing |
| 31 | 2601251003 | Holding Spring Ø8,7 MM |
| 32 | 2601324012 | Contact Spring |
| 33 | 2601099026 | Locking Lever 36,5 MM |
| 35 | 2600302002 | Sintered-Metal Bushing |
| 36 | 2603490022 | Screw 4X16 |
| 43 | 2601250002 | Holding Spring |
| 44 | 2601250003 | Clamp Spring |
| 46 | 2601099027 | Adjusting Slide Black |
| 47 | 2600100607 | Shim 0,3 MM |
| 48 | 2600100636 | Shim Thick 0,3 MM |
| 49 | 2604413005 | Connecting Cable White L=52 MM |
| 50 | 2604413004 | Connecting Cable White L=79 MM |
| 51 | 2601118298 | Sticker Rechargable Batery |
| 52 | 2601010038 | Dust Protection |
| 53 | 2606316112 | Pinion Z=11 |
| 730 | 2607335203 | Slide-In Accu Package 9,6V,1,4AH, Nicd |
| 738 | 1608571066 | Key Chuck Ø1-10 Mm, 3/8" |
| 738/800 | 1607950042 | Chuck Wrench SG 1, Ø4X60 MM |
| 801 | 2605104873 | Housing Section Blue |
| 802 | 2607022902 | DC motor 9,6V |
| 804 | 2607200294 | On-Off Switch |
| 828 | 1609340005 | Toothed Shaft Z=10/19/81 |
| 855 | 1609340007 | Cylindrical Gear Z=58/67 |
| 899 | 0601920127 | Cordless Drill Battery Without Charger |
| 9 | 2601110821 | Sticker Sunny Side |
| 93 | 2609110721 | Countersunk-Head Screw M5X20 |
