Bosch GBM 9-16

Bosch GBM 9-16 drill: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 9-16: 40 positions on 1 sheet

Bosch GBM 9-16 parts list (1 sheet)

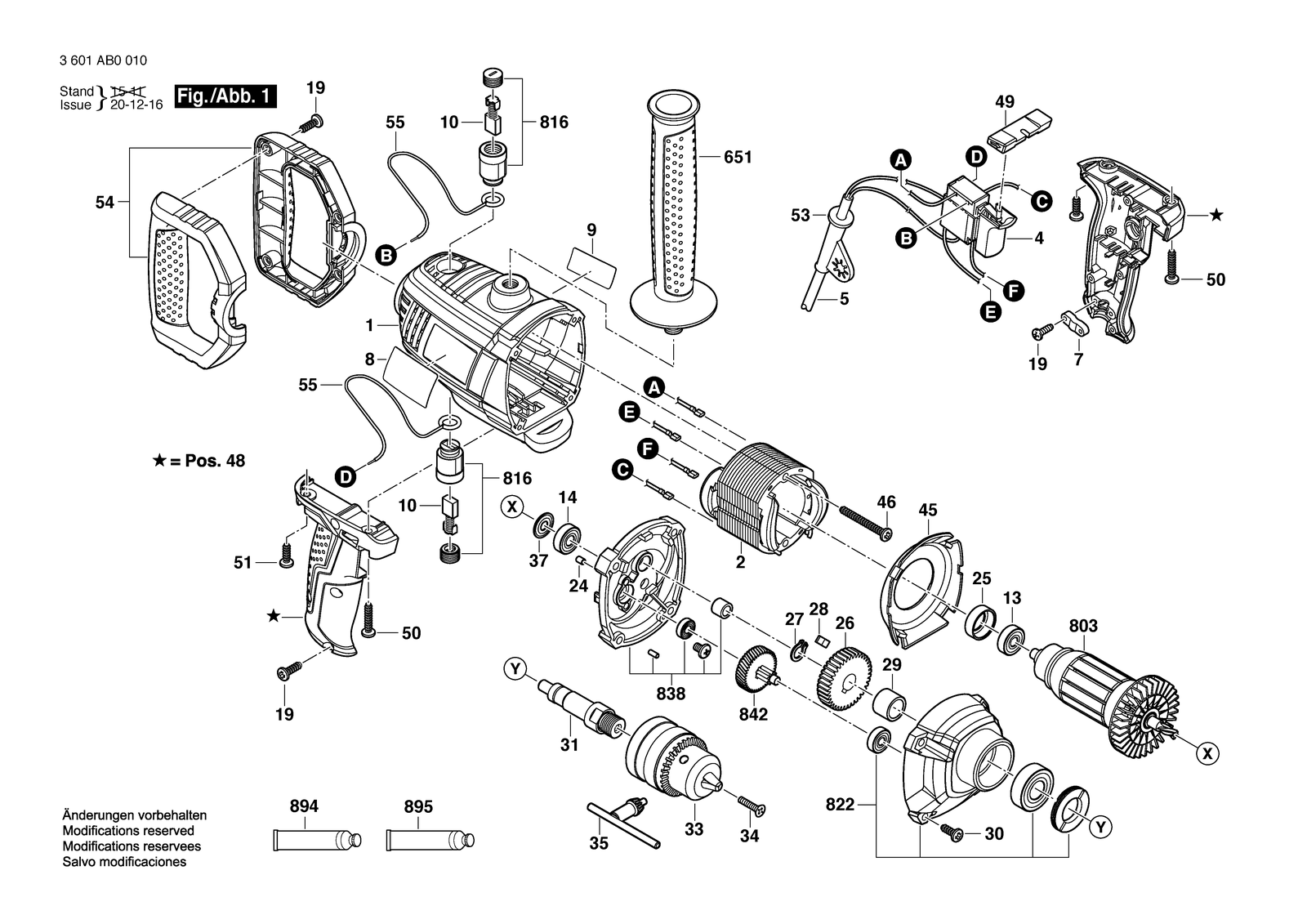

Bosch GBM 9-16 parts diagram, sheet 1
No.Part numberPart name
11619PA7814Motor Housing
101619PA8315Carbon-Brush Set
131619PA7829Ball Bearing 627ZZ
141619PA7830Ball Bearing 608RS
191619PA7831Tapping Screw
21619PA9706Field
241619PA7832Rubber Strip
251619PA7833Bearing Sleeve
261619PA7834Cylindrical Gear
271619PA7835Retaining ring
281619PA7836Flat Key
291619PA7837Spacer bushing
301619PA7838Screw
311619PA7839Drilling Spindle
331619PA3304Chuck
341619PA3305Countersunk-Head Screw
351619PA8054Chuck Wrench
371619PA7840Seal Ring
41619PA9708On-Off Switch
451619PA7841Air-Deflector Ring
461619PA7842Screw
481619PA9711Handle
491619PA7844Lever
51619PA9709Power supply cord
501619PA7845Tapping Screw
511619PA7846Tapping Screw
531619PA9798Grommet
541619PA7849Rotary Handle
551619PA9710Wire
6511619PA7850Auxiliary Handle
71619PA7821Fastening Clamp
81619PA9704Nameplate
8031619PA9707Armature
8161619PA8319Brush Holder
8221619PA7853Gear Housing
8381619PA7855Bearing Flange
8421619PA7856Pinion Shaft
8941615430020Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
91619PA9705Manufacturer's nameplate
