Bosch GBM 6 X drill: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 6 X: 50 positions on 1 sheet

Bosch GBM 6 X parts list (1 sheet)

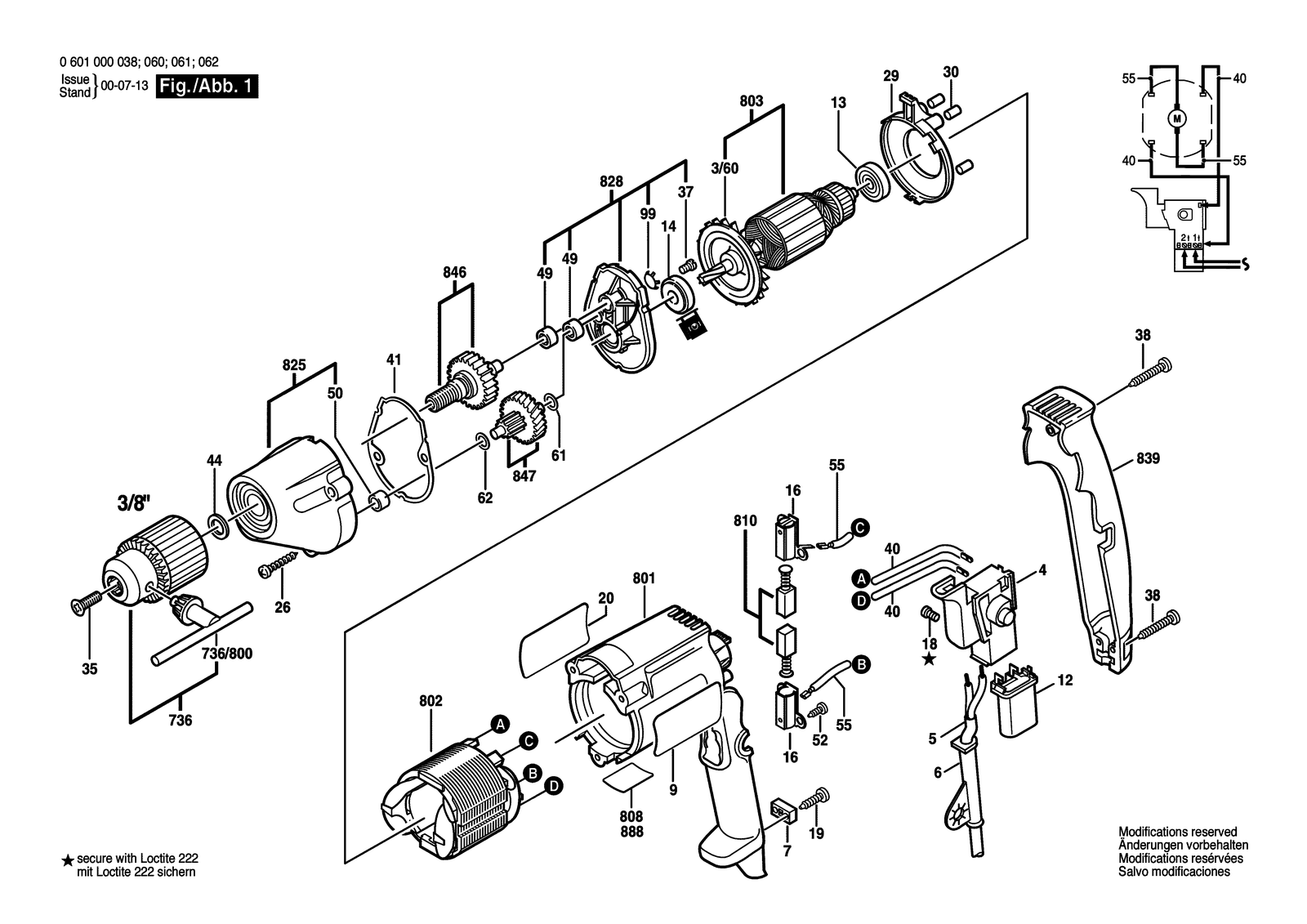

Bosch GBM 6 X parts diagram, sheet 1
No.Part numberPart name
122607329138Suppression Capacitor
131900905018Ball Bearing 7X22X7
141610905013Groove ball bearing
162604337003Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
203601119678Reference Plate
262912405082Tapping Screw DIN 7981-ST3,9X32C-H
293600590505Cover Disc
3/602606610027Fan
303602391503Rubber Buffer
353603430506Pan head screw
372914411045Thread-forming tap. Screw DIN 7500-CM 4X8-ST
382910615022Tapping Screw DIN 7981-ST3,9X25C-H
42607200260Switch
402604448005Cable White L=130 MM
413601016502Flat Seal Ring
443600102505Shim washer
493600900531Bearing
493600910505Nozzle Socket
51604460431Power supply cord
53604460580Power supply cord USA 2,5M 2 X 1,25MM Pvc
53604460602Power supply cord 2,65M 2 X 1,0MM Pvc
53604460621Power supply cord USA 2,15M 2 X 0,82MM SJT 18/2
501610910057Needle bearing Ø8XØ12X10 MM
522603490017Torx Oval-Head Screw 3X10
552604448100Connecting Cable White L=68 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
612600100607Shim 0,3 MM
622600101654Shim 0,3 MM
72601035001Cable Clip
7363608571535Key Chuck 3/8"
736/8003608571511Chuck Wrench SG 2
8013605108557Motor Housing Dark Blue
8022604220392Field 230V
8022604220423Field 220-240V
8022604220446Field 100V
8032604010795Armature 100V
8032604010796Armature 115V
8032604010797Armature 230V
8032604010798Armature 230V
8083601119764Nameplate
8102604321905Carbon-Brush Set
8253605190513Gear Housing
8283605806537Bearing Bracket
8393605133521Housing Cover Dark Blue
8463606120553Nameplate
8473606319520Conversion Gear
93601119674Manufacturer's nameplate
993600171504Spring retaining ring
