Bosch GBM 6 REX

Bosch GBM 6 REX drill: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 6 REX: 52 positions on 1 sheet

Bosch GBM 6 REX parts list (1 sheet)

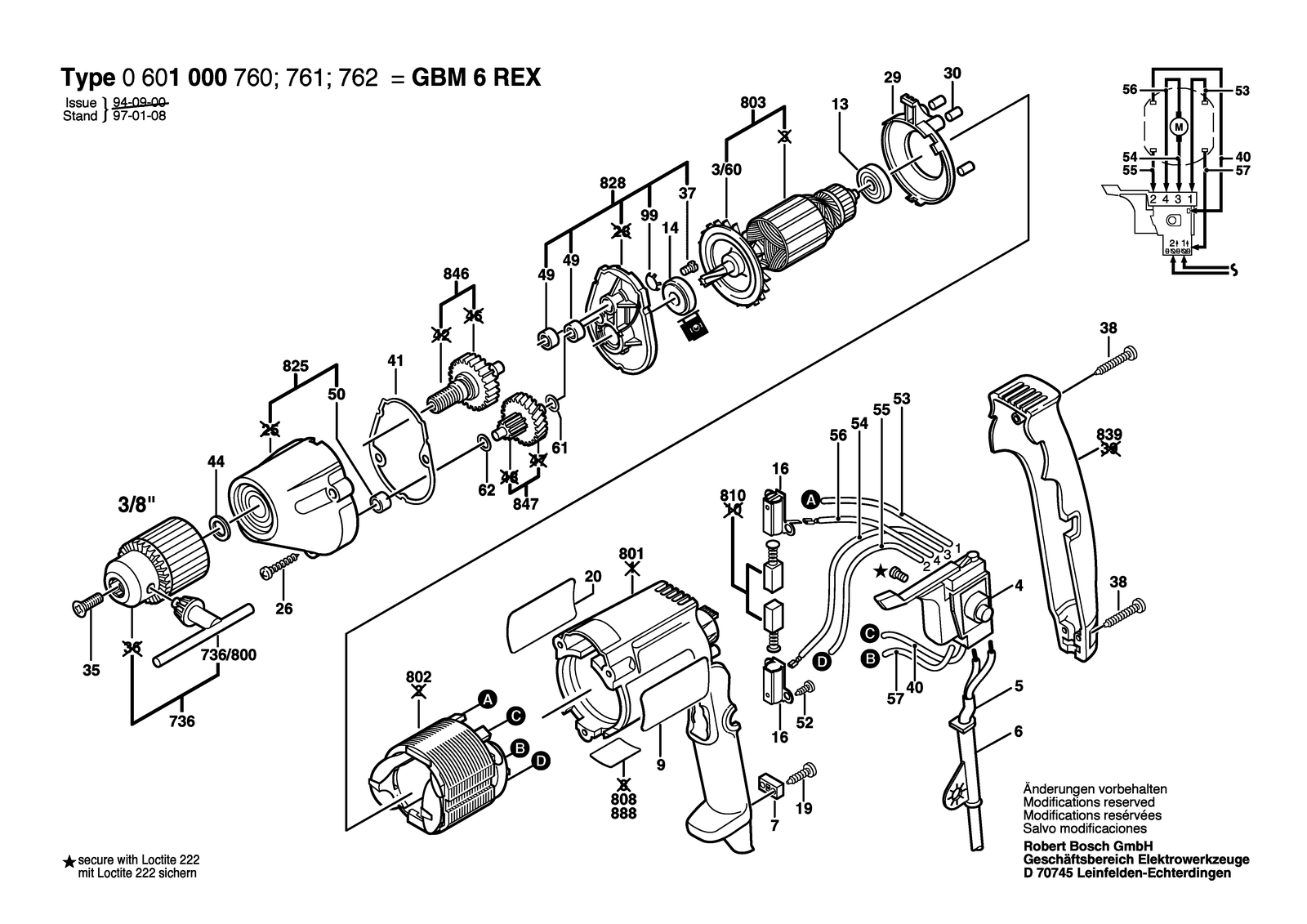

Bosch GBM 6 REX parts diagram, sheet 1
No.Part numberPart name
131900905018Ball Bearing 7X22X7
141610905013Groove ball bearing
162604337003Brush Holder
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
202610906850Reference Plate
262912405082Tapping Screw DIN 7981-ST3,9X32C-H
293600590505Cover Disc
3/602606610027Fan
303602391503Rubber Buffer
353603430506Pan head screw
372603410048Thread-forming tap. Screw M4X8
382910615022Tapping Screw DIN 7981-ST3,9X25C-H
42610994891On-Off Switch
43607200526Switch
403604448500Connecting Cable
413601016502Flat Seal Ring
443600102505Shim washer
493600900531Bearing
493600910505Nozzle Socket
51604460431Power supply cord
53604460582Power supply cord USA 2,15M 2 X 0,82MM SJT 18/2
53604460602Power supply cord 2,65M 2 X 1,0MM Pvc
53604460622Power supply cord CH 2,65M 2 X 1,0MM H05 Vu-F
501610910057Needle bearing Ø8XØ12X10 MM
522603490017Torx Oval-Head Screw 3X10
533604448501Connecting Cable
543604448502Connecting Cable
553604448503Connecting Cable
563604448504Connecting Cable
573604448505Connecting Cable
62600707060Grommet Ø11,6-Ø12,5X84 MM
612600100607Shim 0,3 MM
622600101654Shim 0,3 MM
72601035001Cable Clip
7363608571535Key Chuck 3/8"
736/8003608571511Chuck Wrench SG 2
8013605108557Motor Housing Dark Blue
8022604220423Field 220-240V
8022604220446Field 100V
8022604220526Field 230-240V
8032604010801Armature 115V
8032604010803Armature 230V
8083601119764Nameplate
8102604321905Carbon-Brush Set
8253605190513Gear Housing
8283605806537Bearing Bracket
8393605133521Housing Cover Dark Blue
8463606120553Nameplate
8473606319520Conversion Gear
888160111A3H3Nameplate
93601119669Manufacturer's nameplate
993600171504Spring retaining ring
