Bosch GBM 6 RE

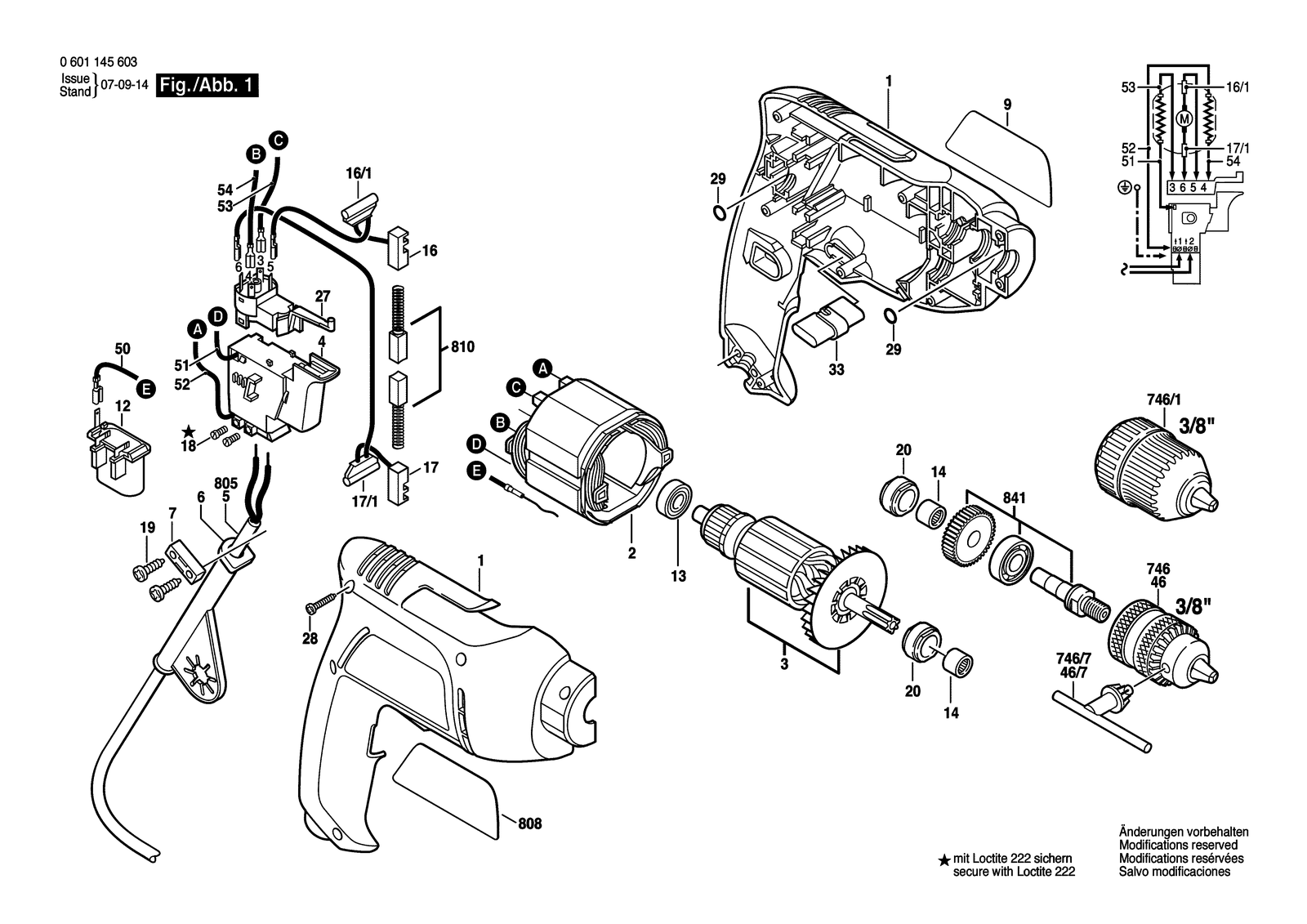

Bosch GBM 6 RE drill: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 6 RE: 59 positions on 1 sheet
Bosch GBM 6 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104638 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2604449050 | Brush Holder |
| 16/1 | 2604465108 | Suppressor Box |
| 17 | 2604449051 | Brush Holder |
| 17/1 | 2604465107 | Suppressor Box |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220640 | Field 230-240V |
| 2 | 2604220641 | Field 115V |
| 2 | 2604220642 | Field 100-110V |
| 2 | 2604220659 | Field 220-230V |
| 20 | 2609110018 | Bearing Piece |
| 27 | 2607200416 | Change-Over Switch |
| 28 | 2603435065 | Tapping Screw |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 3 | 1604010695 | Armature 220-240V |
| 3 | 1604010696 | Armature 115V |
| 3 | 1604010697 | Armature 100-110V |
| 33 | 2609100002 | Protection cover |
| 4 | 2607200398 | Switch |
| 4 | 2607200406 | Switch |
| 46 | 1608571079 | Chuck Ø1,0-10 Mm, 3/8" |
| 46 | 2608571009 | Chuck Ø1-6,5 Mm, 3/8" |
| 46/7 | 2607950006 | Dummy DIN 6349 - S1 |
| 5 | 1604460262 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460072 | Power supply cord |
| 5 | 2604420032 | Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2609120374 | Power supply cord |
| 50 | 2609120006 | Earth Conductor |
| 51 | 2604448212 | Connecting Cable |
| 52 | 2604448060 | Cable White L=173 MM |
| 53 | 2609120004 | Connecting Cable |
| 54 | 2609120005 | Connecting Cable |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 6 | 2600707062 | Grommet Ø7X8,4 MM |
| 6 | 2600707064 | Grommet |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 746/1 | 2608572200 | Keyless Chuck |
| 746/7 | 1607950028 | Chuck Wrench DIN 6349-S1 |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 160111A3H3 | Nameplate |
| 810 | 2604321904 | Carbon-Brush Set |
| 841 | 2609110159 | Drilling Spindle |
| 9 | 2609130111 | Manufacturer's nameplate |
| 9 | 2609130113 | Manufacturer's nameplate |
| 9 | 2609130115 | Manufacturer's nameplate |
| 9 | 2609130699 | Manufacturer's nameplate |
