Bosch GBM 550 universal one-speed drill: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 550: 33 positions on 1 sheet

Bosch GBM 550 parts list (1 sheet)

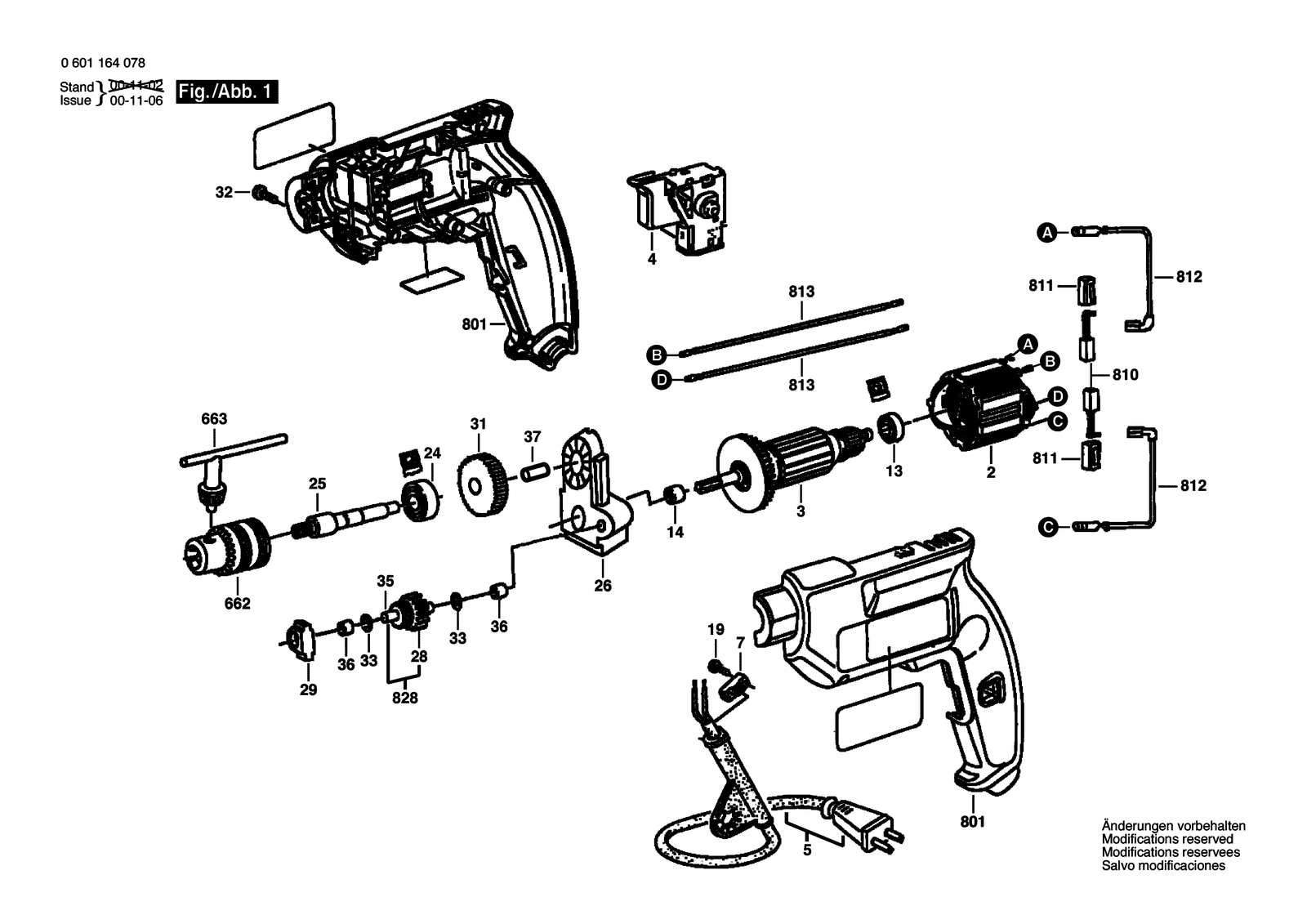

Bosch GBM 550 parts diagram, sheet 1
No.Part numberPart name
133130900020Groove ball bearing 8X22X7 608-2Z/C3
142600917003Needle-Roller Bearing Ø8X8 MM
199618087099Screw 4X16 MM
29618089562Pole Shoe 127V
29618089563Field 220V
241900905121Groove ball bearing 12X28X8
25F000600129Drilling Spindle
26F000600135Porous Bearing
289618088924Cylindrical Gear
289618089086Cylindrical Gear
299618089453Main Bearing
3F000600141Armature 220V
3F000600142Armature With Fan 127V
319618089890Toothed Gear
329618087099Screw 4X16 MM
332600100607Shim 0,3 MM
359618089023Toothed Shaft
361600910012Needle bearing
372600917003Needle-Roller Bearing Ø8X8 MM
42607200260Switch
49618086703Switch
59618087135Power supply cord
59618087136Power supply cord
5F000600301Power supply cord
6621608571055Key Chuck Ø1,5-13 Mm, 1/2"
663F000632059Chuck Wrench
72601035001Cable Clip
801F000600143Motor Housing
8109618089982Carbon Brush
8119618086695Brush Holder
8122604448018Connecting Cable White L=124 MM
8132604448001Connecting Cable White L=184 MM
8289618089568Toothed Gear
