Bosch GBM 500 RE drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 500 RE: 38 positions on 1 sheet

Bosch GBM 500 RE parts list (1 sheet)

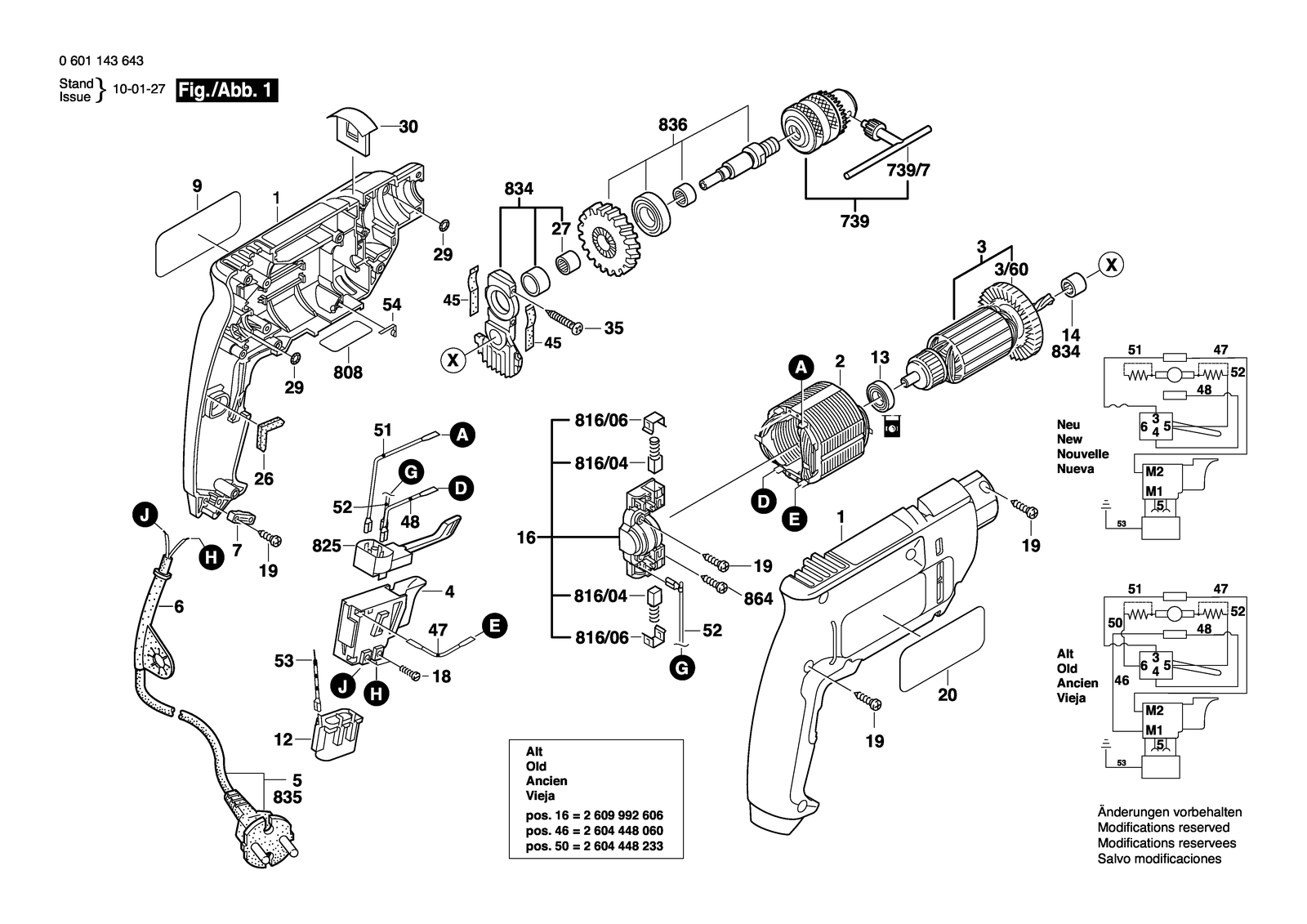

Bosch GBM 500 RE parts diagram, sheet 1
No.Part numberPart name
12605104553Housing Section Blue
121619P06976Suppression Filter
131619P11239Groove ball bearing
141619P00433Needle-Roller Bearing
161619P07651Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
191619P00029Screw
22604220515Field 220-240V
201619P00025Reference Plate
261619P00026Damping Plate
272600917003Needle-Roller Bearing Ø8X8 MM
291900210000O-Ring 5,0X1,5 MM
32604011238Armature With Fan 220-230V
3/601619P11262Fan
302605510157Locking Piece
352910951132Oval-Head Screw DIN 7985-M4X25-8.8
42607200202Switch
452600005012Felt
472604448045Cable Black L=98 MM
482604448034Connecting Cable White L=88 MM
51619P00057Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F
512604448132Connecting Cable Blue L=103 MM
522604468115Connecting Cable
532604448103Earth Conductor
542601329043Contact Strap
61619P14639Grommet Ø 7MM
62600707059Grommet Ø6,9 MM
72601035001Cable Clip
7391608571048Key Chuck Ø 1,5-13 MM,1/2"
739/72607950007Chuck Wrench SG2
8081619P00506Nameplate
816/042604321905Carbon-Brush Set
816/062601322017Ratchet Cap
8252607200216Change-Over Switch
8342605807919Bearing Bracket
8362606135928Drilling Spindle 1/2"
8641619P00222Cross Recessed-Head Screw
92601117111Manufacturer's nameplate
