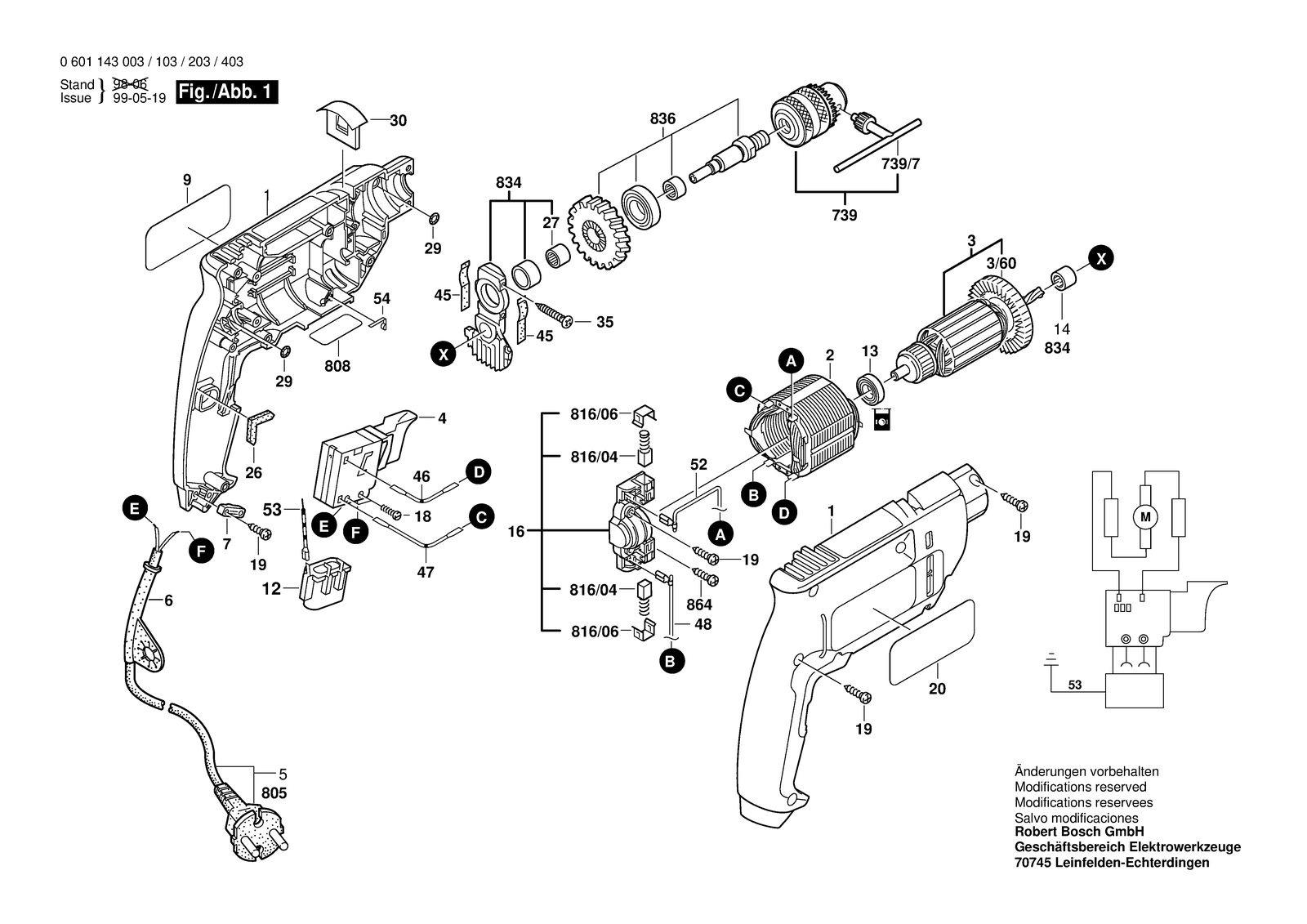

Bosch GBM 500-2 drill: exploded parts diagram, 1 sheet, 105 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 500-2: 105 positions on 1 sheet
Bosch GBM 500-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104553 | Housing Section Blue |
| 1 | 2605104553 | Housing Section Blue |
| 1 | 2605104553 | Housing Section Blue |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 1619P11239 | Groove ball bearing |
| 13 | 1619P11239 | Groove ball bearing |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1619P00433 | Needle-Roller Bearing |
| 14 | 1619P00433 | Needle-Roller Bearing |
| 14 | 1619P00433 | Needle-Roller Bearing |
| 16 | 2609992607 | Brush Plate |
| 16 | 2609992607 | Brush Plate |
| 16 | 2609992607 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 1619P00029 | Screw |
| 19 | 1619P00029 | Screw |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220623 | Field 230V |
| 2 | 2604220515 | Field 220-240V |
| 2 | 2604220515 | Field 220-240V |
| 20 | 2601118973 | Reference Plate Shadow Side |
| 20 | 1619P00025 | Reference Plate |
| 20 | 2601118973 | Reference Plate Shadow Side |
| 26 | 1619P00026 | Damping Plate |
| 26 | 1619P00026 | Damping Plate |
| 26 | 2601022000 | Damping Plate |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 3 | 2604011163 | Armature With Fan 230V |
| 3 | 2604011225 | Armature With Fan 220-230V |
| 3 | 2604011225 | Armature With Fan 220-230V |
| 3/60 | 1619P11262 | Fan |
| 3/60 | 1619P11262 | Fan |
| 3/60 | 1619P11262 | Fan |
| 30 | 2605510157 | Locking Piece |
| 30 | 2605510157 | Locking Piece |
| 30 | 2605510157 | Locking Piece |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 4 | 2607200365 | On-Off Switch |
| 4 | 2607200365 | On-Off Switch |
| 4 | 2607200373 | Switch |
| 45 | 2600005012 | Felt |
| 45 | 2600005012 | Felt |
| 45 | 2600005012 | Felt |
| 46 | 2604448122 | Connecting Cable White L=162MM |
| 46 | 2604448122 | Connecting Cable White L=162MM |
| 46 | 2604448122 | Connecting Cable White L=162MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 48 | 2604448130 | Connecting Cable White L=88 MM |
| 48 | 2604448130 | Connecting Cable White L=88 MM |
| 48 | 2604448130 | Connecting Cable White L=88 MM |
| 5 | 1619P00057 | Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 1619P00057 | Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F |
| 52 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2604448123 | Connecting Cable White L=73 MM |
| 53 | 2604448170 | Earth Conductor |
| 54 | 2601329043 | Contact Strap |
| 54 | 2601329043 | Contact Strap |
| 54 | 2601329043 | Contact Strap |
| 6 | 1619P14639 | Grommet Ø 7MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 1619P14639 | Grommet Ø 7MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 739 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 739 | 1608571048 | Key Chuck Ø 1,5-13 MM,1/2" |
| 739/7 | 2607950007 | Chuck Wrench SG2 |
| 739/7 | 2607950007 | Chuck Wrench SG2 |
| 739/7 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 1619P00503 | Nameplate |
| 808 | 1619P00505 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/06 | 2601322017 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 834 | 2605807919 | Bearing Bracket |
| 834 | 2605807919 | Bearing Bracket |
| 834 | 2605807919 | Bearing Bracket |
| 836 | 2606135928 | Drilling Spindle 1/2" |
| 836 | 2606135928 | Drilling Spindle 1/2" |
| 836 | 2606135928 | Drilling Spindle 1/2" |
| 864 | 1619P00222 | Cross Recessed-Head Screw |
| 864 | 1619P00222 | Cross Recessed-Head Screw |
| 864 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 9 | 2601118972 | Manufacturer's nameplate Sunny Side |
| 9 | 2601117109 | Manufacturer's nameplate |
| 9 | 2601117110 | Manufacturer's nameplate |
