Bosch GBM 50-2
Bosch GBM 50-2 drill: exploded parts diagram, 3 sheets, 142 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

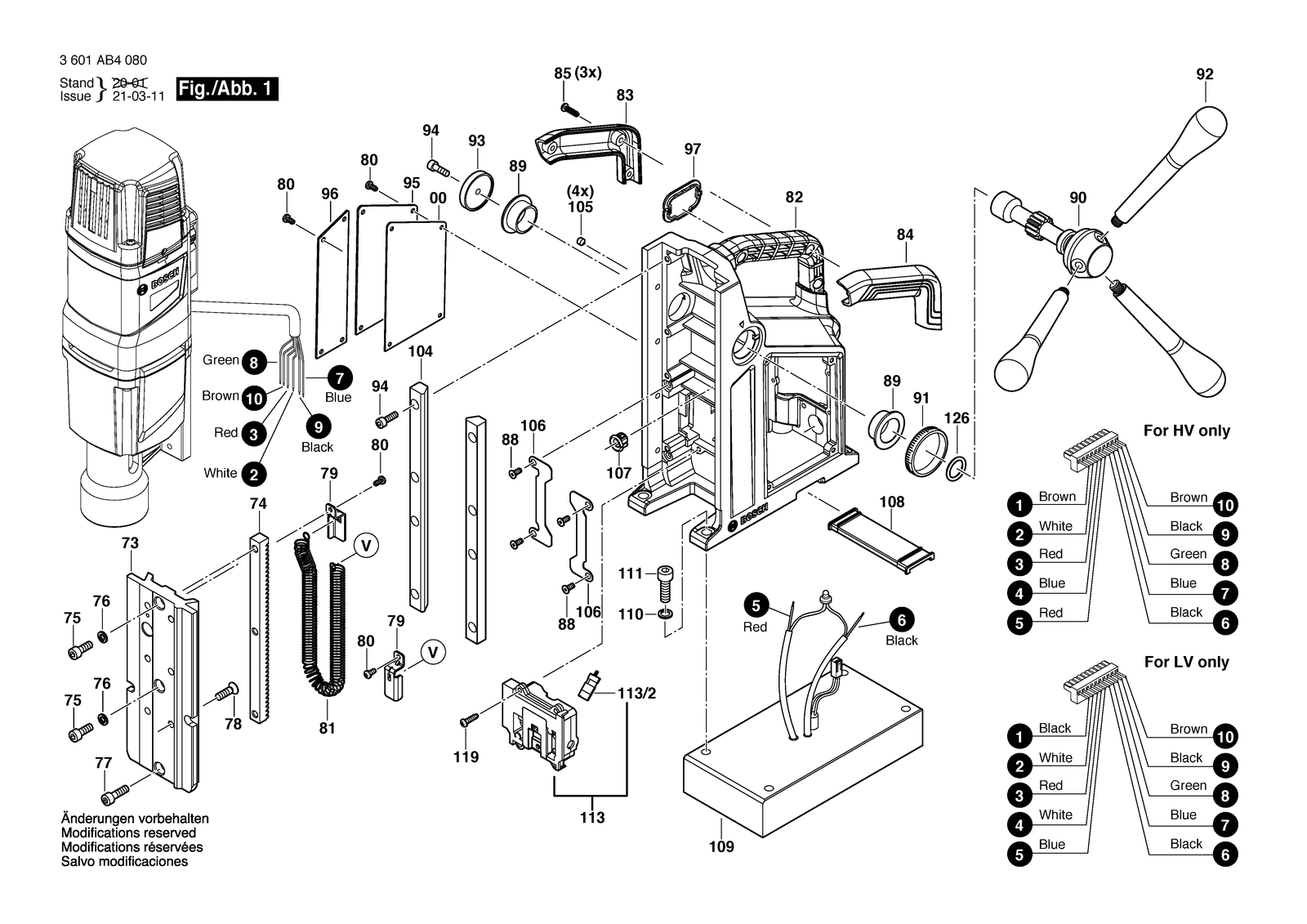

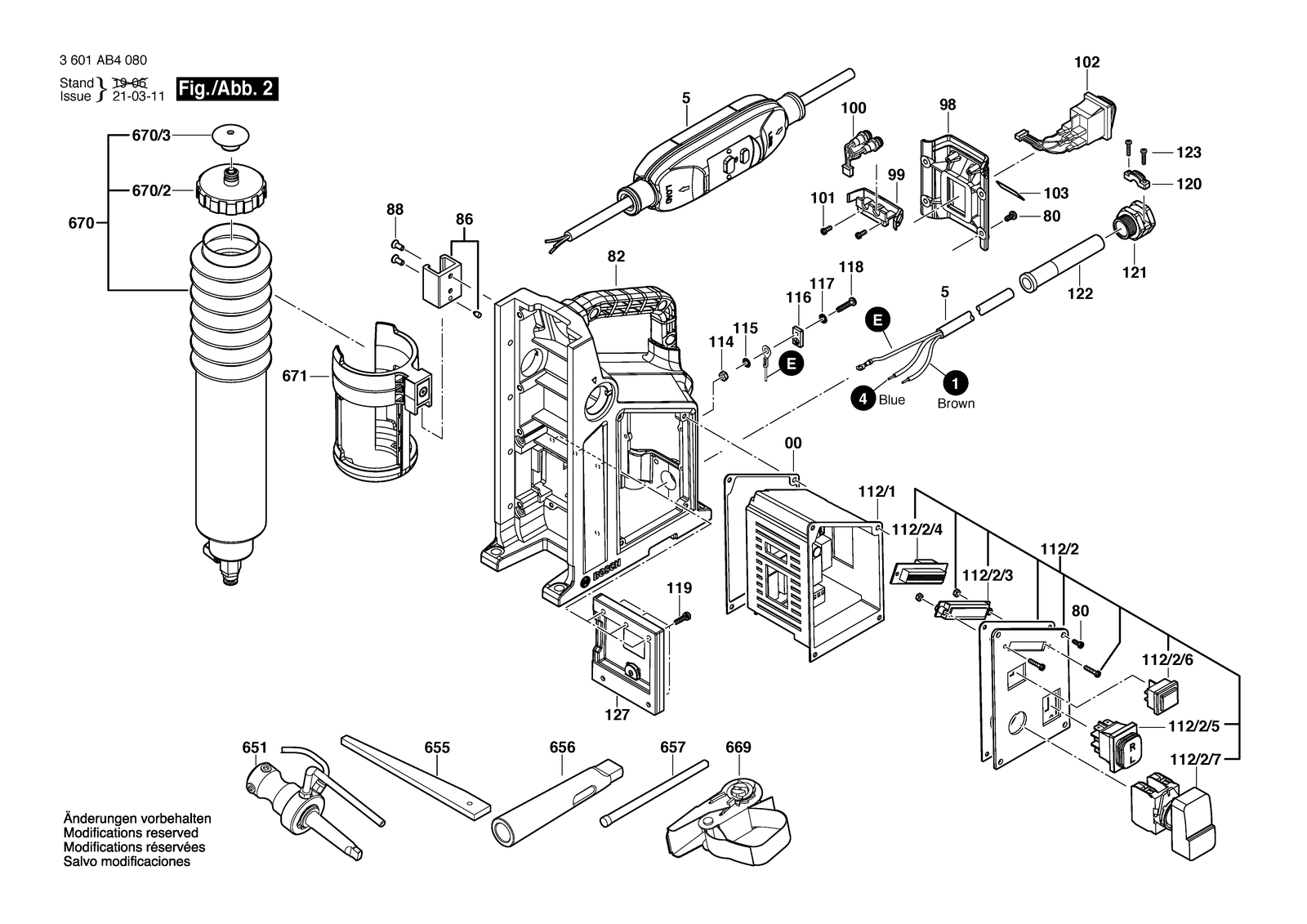

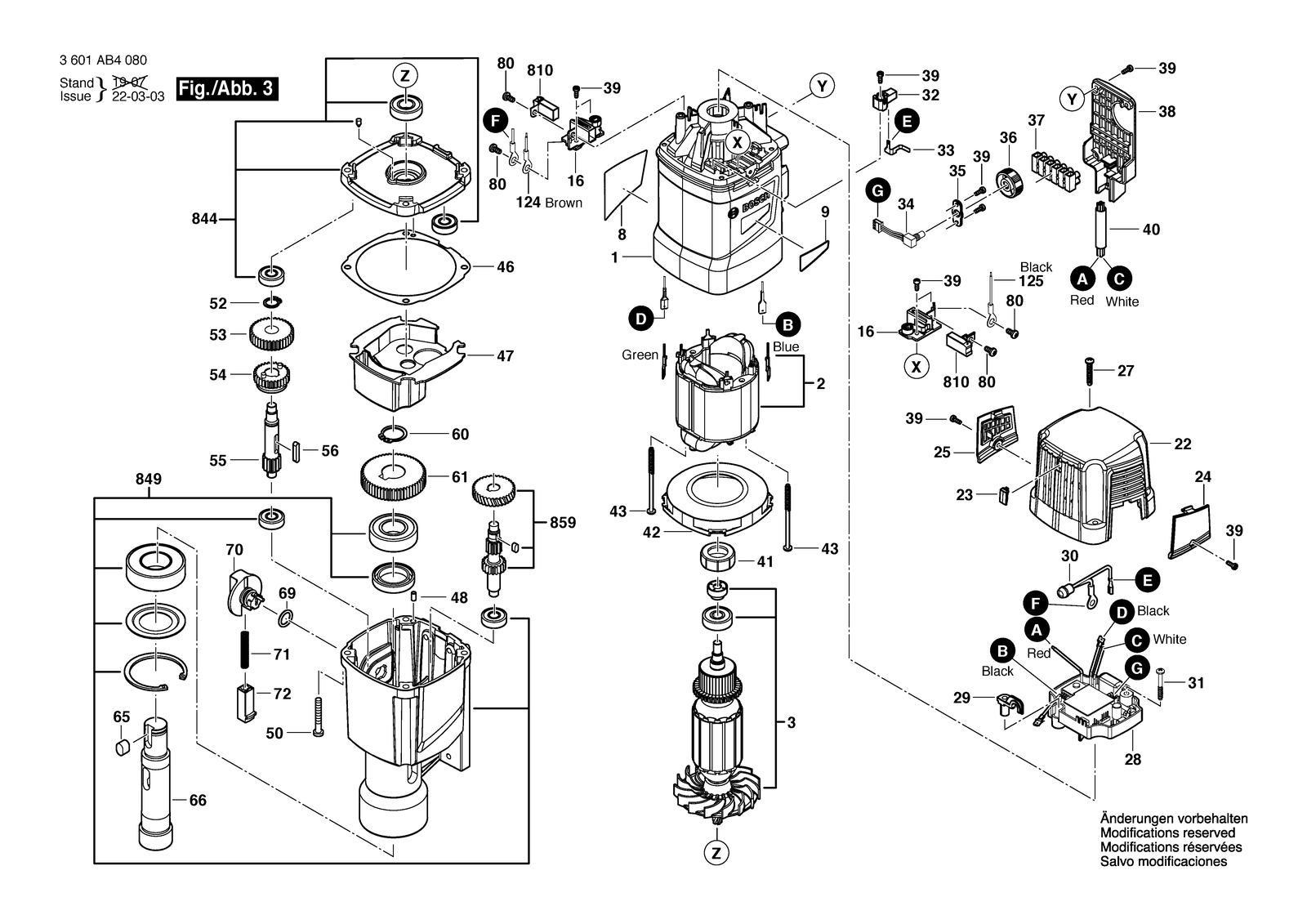

All parts of Bosch GBM 50-2: 142 positions on 3 sheets
Bosch GBM 50-2 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB3681 | Motor Housing |
| 100 | 1619PB3758 | Light Unit |
| 101 | 1619PB3759 | Screw |
| 102 | 1619PB3755 | On-Off Switch |
| 103 | 1619PB4104 | Warning Label |
| 104 | 1619PB3715 | Guide Bar |
| 105 | 1619PB3720 | Headless Screw |
| 106 | 1619PB3725 | Stop Plate |
| 107 | 1619PB3724 | Protection Sleeve |
| 108 | 1619PB4087 | Protection Sleeve |
| 109 | 1619PB3738 | Magnetic Base |
| 109 | 1619PB5136 | Magnetic Base |
| 110 | 1619PB3739 | Spring Washer |
| 111 | 1619PB3740 | Screw |
| 112/1 | 1619PB4118 | Control Unit |
| 112/1 | 1619PB5132 | Control Unit |
| 112/2 | 1619PB4119 | Switch Unit |
| 112/2/3 | 1619PB4116 | Cover |
| 112/2/4 | 1619PB4117 | Indicator Lamp |
| 112/2/5 | 1619PB3823 | Reversing Switch |
| 112/2/6 | 1619PB3824 | On-Off Switch |
| 112/2/7 | 1619PB3825 | Motor Protection Switch |
| 113 | 1619PB4086 | Laser unit |
| 113/2 | 1619PB3729 | Laser |
| 114 | 1619PB4102 | Hex Nut |
| 115 | 1619PB4103 | Washer |
| 116 | 1619PB3749 | Tag |
| 117 | 1619PB3750 | Toothed lock washer |
| 118 | 1619PB3751 | Screw |
| 119 | 1619PB3734 | Screw |
| 120 | 1619PB4099 | Cable Clip |
| 120 | 1619PB4781 | Cable Clip |
| 121 | 1619PB4100 | Cable Holder |
| 122 | 1619PB4101 | Grommet |
| 123 | 1619PB4098 | Tapping Screw |
| 124 | 1619PB3676 | Round copper wire Brown |
| 125 | 1619PB4647 | Round copper wire Black |
| 126 | 1619PB4333 | O-Ring |
| 127 | 1619PB7205 | Cover Plate |
| 16 | 1619PB3680 | Brush Holder |
| 2 | 1619PB4201 | Field assembly 220V |
| 2 | 1619PB5124 | Field assembly 127 V |
| 22 | 1619PB3702 | Housing Cover |
| 23 | 1619PB3703 | Protective Cover |
| 24 | 1619PB3701 | Cap |
| 25 | 1619PB3704 | Cap |
| 27 | 1619PB3705 | Tapping Screw |
| 28 | 1619PB4074 | Printed Circuit Board |
| 28 | 1619PB4748 | Printed Circuit Board |
| 29 | 1619PB4083 | Fastening Clamp |
| 3 | 1619PB3666 | Armature assembly 220V |
| 3 | 1619PB5126 | Armature assembly 127 V |
| 30 | 1619PB3700 | Indicator Light |
| 30 | 1619PB5137 | Indicator Light |
| 31 | 1619PB3699 | Tapping Screw |
| 32 | 1619PB3682 | Stop Block |
| 33 | 1619PB3684 | Shaped Spring |
| 34 | 1619PB3686 | Potentiometer |
| 35 | 1619PB3687 | Clamping bracket |
| 36 | 1619PB3688 | Handwheel |
| 37 | 1619PB3689 | Connector |
| 38 | 1619PB3691 | Rear Plate |
| 39 | 1619PB3678 | Tapping Screw |
| 40 | 1619PB4148 | Connector Cable |
| 41 | 1619PB3667 | Rubber Ring |
| 42 | 1619PB3671 | Air-Deflector Ring |
| 43 | 1619PB3672 | Tapping Screw |
| 46 | 1619PB4076 | Flat Seal Ring |
| 47 | 1619PB3662 | Oil Separator |
| 48 | 1619PB3658 | Straight Pin |
| 5 | 1619PB4089 | Power supply cord EU |
| 5 | 1619PB4109 | Power supply cord Cn |
| 5 | 1619PB4110 | Power supply cord Mal |
| 5 | 1619PB4111 | Power supply cord Ar |
| 5 | 1619PB4112 | Power supply cord Rch |
| 5 | 1619PB4113 | Power supply cord Br |
| 5 | 1619PB4767 | Power supply cord In |
| 5 | 1619PB5128 | Power supply cord Mex |
| 50 | 1619PB3642 | Tapping Screw |
| 52 | 1619PB3653 | Retaining ring |
| 53 | 1619PB3652 | Toothed Gear |
| 54 | 1619PB3651 | Toothed Gear |
| 55 | 1619PB3650 | Toothed rack |
| 56 | 1619PB3649 | Parallel Key |
| 60 | 1619PB3654 | Retaining ring |
| 61 | 1619PB3655 | Toothed Gear |
| 65 | 1619PB3640 | Parallel Key |
| 651 | 1619PB3771 | Milling machine arbor |
| 655 | 1619PB3776 | Drift |
| 656 | 1619PB3777 | Reduction Sleeve |
| 657 | 1619PB3778 | Positioning Pin |
| 66 | 1619PB3639 | Drilling Spindle |
| 669 | 1619PB3779 | Safety rope |
| 670 | 1619PB3763 | Coolant Tank |
| 670/2 | 1619PB3767 | Tank Cover |
| 670/3 | 1619PB3768 | End Plug |
| 671 | 1619PB4127 | Mounting Bracket |
| 69 | 1619PB3643 | O-Ring |
| 70 | 1619PB3644 | Shift-Lever Knob |
| 71 | 1619PB3645 | Spring |
| 72 | 1619PB3646 | Block |
| 73 | 1619PB3709 | Guide Block |
| 74 | 1619PB3711 | Toothed rack |
| 75 | 1619PB3706 | Screw |
| 76 | 1619PB3707 | Washer |
| 77 | 1619PB3708 | Screw |
| 78 | 1619PB3710 | Countersunk-Head Screw |
| 79 | 1619PB3712 | Holding Plate |
| 8 | 1619PB4079 | Nameplate |
| 8 | 1619PB4141 | Nameplate |
| 8 | 1619PB4142 | Nameplate |
| 8 | 1619PB4143 | Nameplate |
| 8 | 1619PB4144 | Nameplate |
| 8 | 1619PB4145 | Nameplate |
| 8 | 1619PB4146 | Nameplate |
| 8 | 1619PB4147 | Nameplate |
| 8 | 1619PB5129 | Nameplate |
| 80 | 1619PB3713 | Screw |
| 81 | 1619PB3714 | Spring Sleeve |
| 810 | 1619PB4295 | Carbon-Brush Set |
| 810 | 1619PB5133 | Carbon-Brush Set |
| 82 | 1619PB3745 | Frame |
| 83 | 1619PB3718 | Carrying Handle |
| 84 | 1619PB3719 | Carrying Handle |
| 844 | 1619PB4392 | Intermediate Flange |
| 849 | 1619PB4393 | Gear Housing |
| 85 | 1619PB3717 | Tapping Screw |
| 859 | 1619PB4394 | Toothed rack |
| 86 | 1619PB3761 | Lifting Bracket |
| 88 | 1619PB3726 | Countersunk-Head Screw |
| 89 | 1619PB3721 | Flange Bushing |
| 9 | 1619PB4081 | Manufacturer's nameplate GBM 50-2 |
| 90 | 1619PB3746 | Shaft Coupling |
| 91 | 1619PB4088 | Scale Ring |
| 92 | 1619PB3747 | Handle |
| 93 | 1619PB3722 | Cover Disc |
| 94 | 1619PB3716 | Screw |
| 95 | 1619PB7206 | Cover Plate |
| 96 | 1619PB3723 | Cover Plate |
| 97 | 1619PB4334 | Cover Plate |
| 98 | 1619PB3756 | Rear Panel |
| 99 | 1619PB3757 | Protective Cover |
