Bosch GBM 450

Bosch GBM 450 drill: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 450: 46 positions on 1 sheet

Bosch GBM 450 parts list (1 sheet)

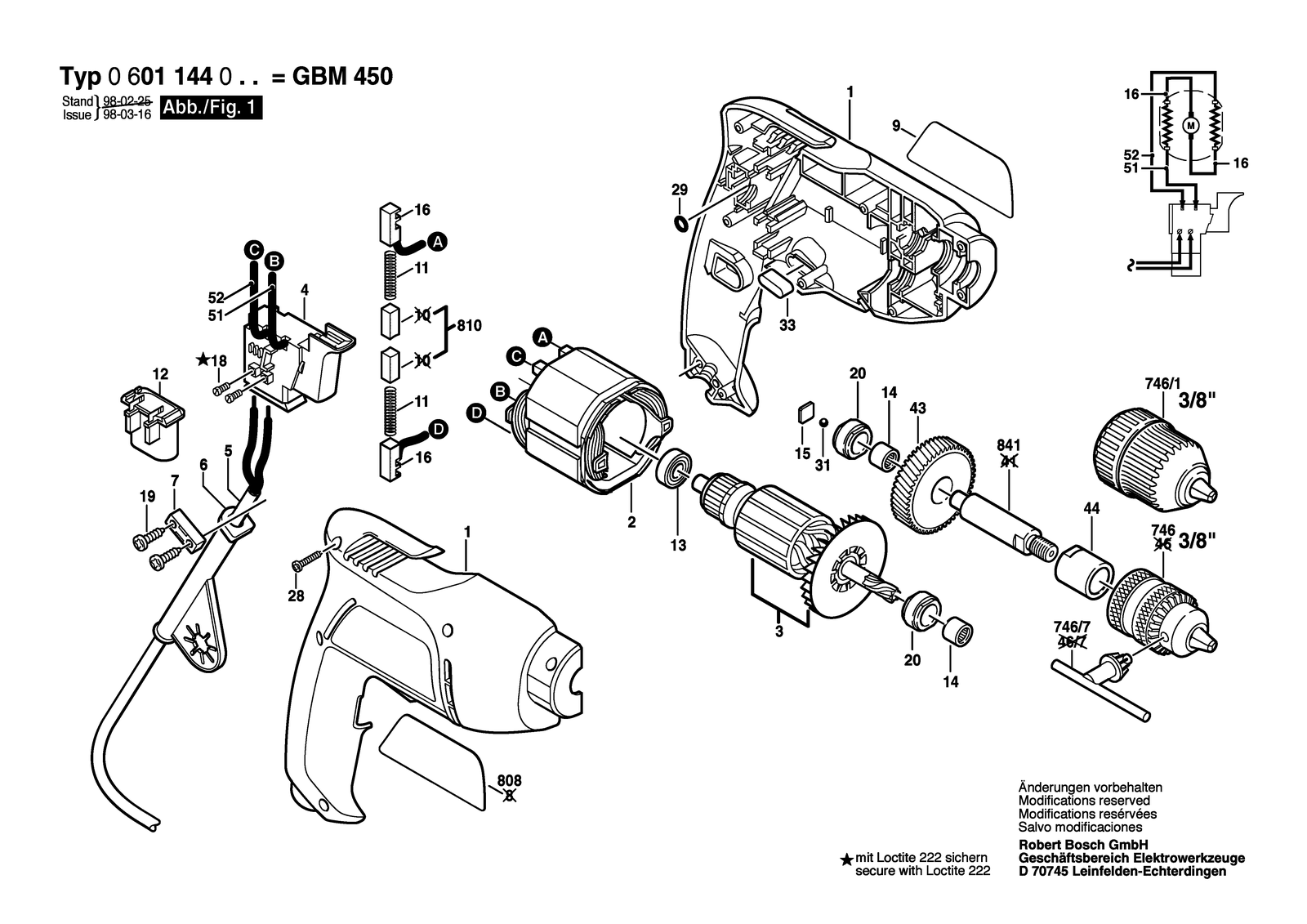

Bosch GBM 450 parts diagram, sheet 1
No.Part numberPart name
12605104590Housing Section Blue
122607329138Suppression Capacitor
132600905046Groove ball bearing 8X19X6
141600200029Plain bearing
142600917003Needle-Roller Bearing Ø8X8 MM
152609110019Pressure Plate
161604449002Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220625Field 220-240V
22604220626Field 110-115V
22604220627Field 100V
202609110018Bearing Piece
282603435065Tapping Screw
291900210000O-Ring 5,0X1,5 MM
32604011200Armature With Fan 230-240V
32604011201Armature 110-120V
32604011202Armature 100V
311903230009Ball DIN 5401-5 G28
332609100005Protection cover
42607200397Switch
432609110021Cylindrical Gear Z=45
442600301013Sintered-Metal Bushing
51604460431Power supply cord
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
52604420033Cable Set
52604460122Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2
52604460135Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460140Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460145Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460282Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F
512604448045Cable Black L=98 MM
522604448018Connecting Cable White L=124 MM
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707061Grommet Ø8,8 MM
71611035005Cable Clip
72601035001Cable Clip
7461608571047Key Chuck Ø 1-10 Mm, 3/8"
746/12608572200Keyless Chuck
746/72607950007Chuck Wrench SG2
808160111A3H3Nameplate
8102604321904Carbon-Brush Set
8412609110023Drilling Spindle 3/8"
92609130052Manufacturer's nameplate
92609130832Manufacturer's nameplate
