Bosch GBM 350 RE drill: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 350 RE: 54 positions on 1 sheet

Bosch GBM 350 RE parts list (1 sheet)

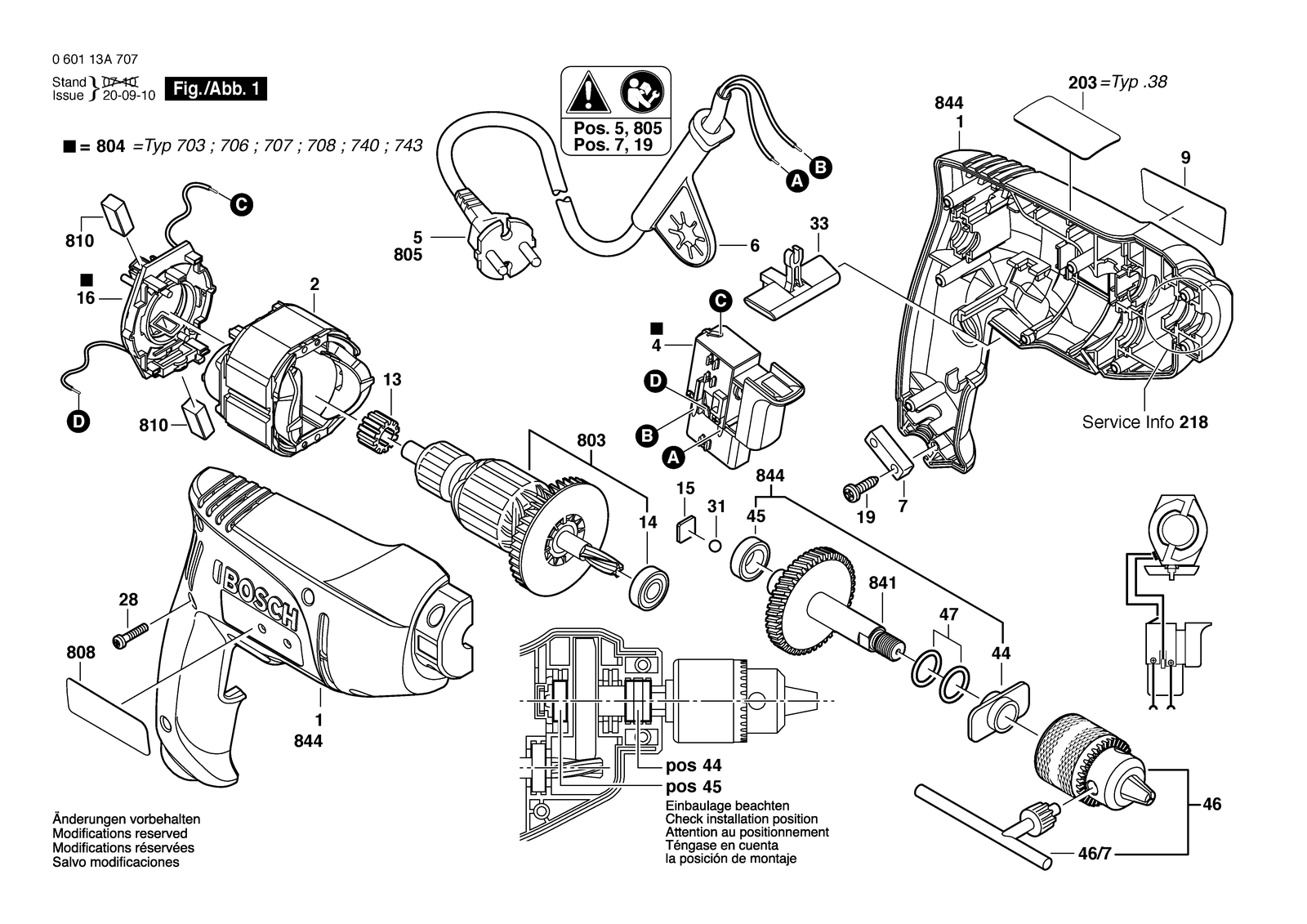

Bosch GBM 350 RE parts diagram, sheet 1
No.Part numberPart name
12609100181Housing Section
132600301068Sintered-Metal Bushing
141619P06024Ball Bearing
152609110019Pressure Plate
161619P00331Brush Holder
161619P20806Brush Holder
191619P00228Screw
21604220397Field 100V
21619P00224Field 220-240V
21619P20880Field
2033601119137Warning Plate Caution
281619P00219Tapping Screw
311903230009Ball DIN 5401-5 G28
331619P20250Adjusting Slide
42607200567Switch Red
42607200568Switch Red
42607200623Switch
441619P00478Bushing
451619X07256Ball Bearing
453600905084Groove ball bearing
461608571079Chuck Ø1,0-10 Mm, 3/8"
46/72607950007Chuck Wrench SG2
471619P00229Plain Washer
51604460265Power supply cord CEE 2,15M 2 X 1,0MM H05VV-F
51604460268Power supply cord GB 2,15M 2 X 1,0MM H05VV-F
51604460272Power supply cord J 2,15M 2 X 1,0MM H05VV-F
51604460274Power supply cord CN 220V 2,15M 2 X 1,0MM H05VV-F
51604460314Power supply cord J 2,50M 2 X 0,75MM Vct F
61619P14639Grommet Ø 7MM
62600707059Grommet Ø6,9 MM
62600707061Grommet Ø8,8 MM
71611035005Cable Clip
72601035001Cable Clip
8031619P00065Armature set 220-240V
8031619P00378Armature set 100-115V
8031619P20807Armature set
8041619P02319Switch Set
8041619P20808Switch Set
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8081619P00575Nameplate
8081619P00576Nameplate
8081619P00577Nameplate
8081619P00593Nameplate
8081619P00648Nameplate
8081619P00698Nameplate
8081619P00703Nameplate
8081619P06064Nameplate
8081619P20805Nameplate
8101619P00465Carbon-Brush Set
8101619P20809Carbon-Brush Set
8411619P00079Drilling Spindle
8441619P00467Housing Set
91619P00232Manufacturer's nameplate GBM 350 RE/N2
92609130468Manufacturer's nameplate
