Bosch GBM 350 RE

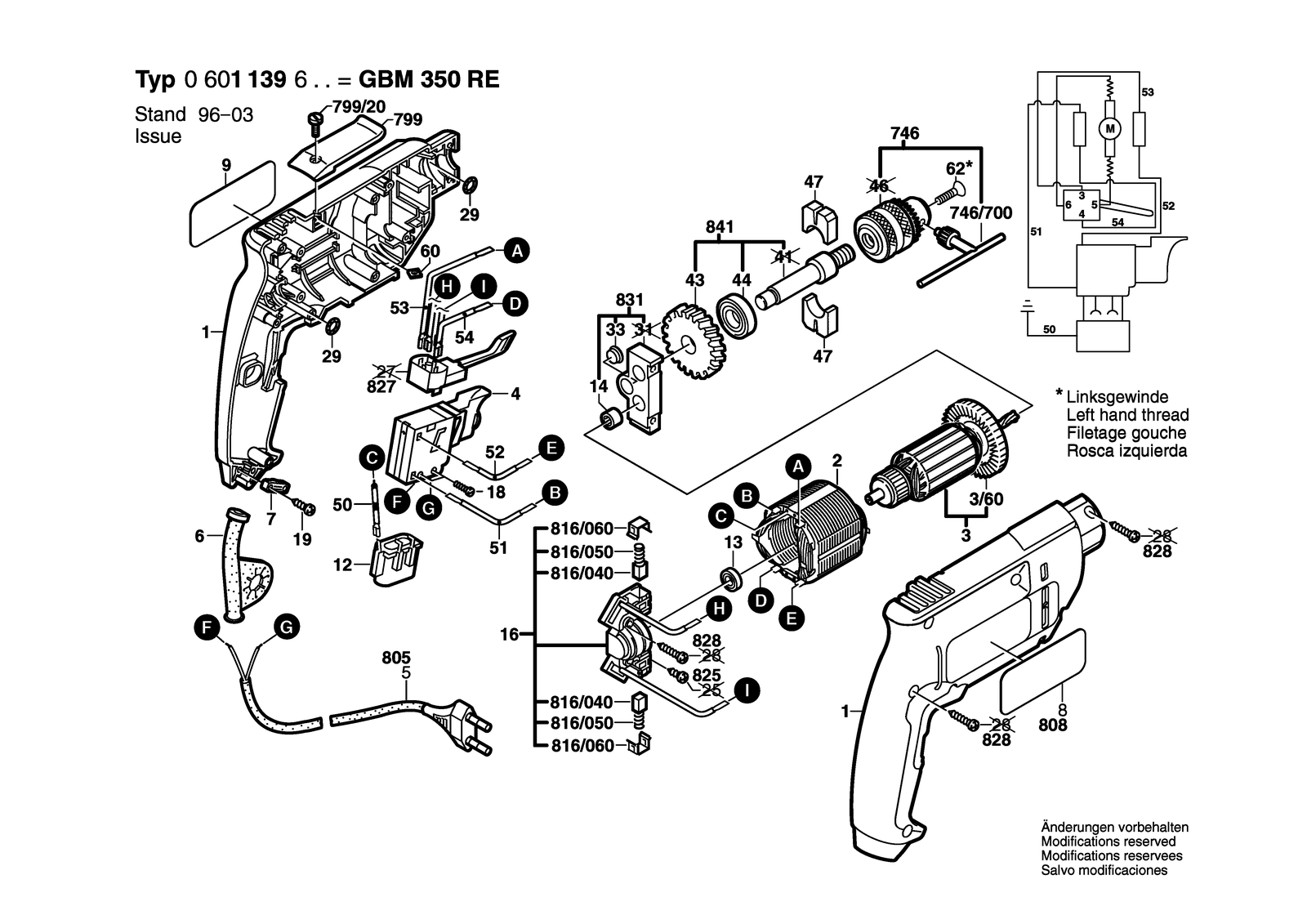

Bosch GBM 350 RE drill: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 350 RE: 63 positions on 1 sheet
Bosch GBM 350 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104316 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 2600905046 | Groove ball bearing 8X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2605807060 | Brush Plate |
| 16 | 2605807061 | Brush Plate |
| 16 | 2605807062 | Brush Plate |
| 16 | 2605807063 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220522 | Field 230-240V |
| 2 | 2604220543 | Field 100-115V |
| 29 | 2600210036 | O-Ring 5,0X1,75 MM |
| 3 | 2604011047 | Armature 110-115V |
| 3 | 2604011141 | Armature 100V |
| 3 | 2604011143 | Armature 220-240V |
| 3/60 | 1619P11262 | Fan |
| 33 | 2605500111 | Sealing cap |
| 4 | 2607200187 | Switch |
| 4 | 2607200357 | Switch |
| 43 | 2606320059 | Cylindrical Gear Z=45 |
| 44 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 47 | 2600005005 | Felt Sheet |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604420032 | Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460121 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2604448170 | Earth Conductor |
| 51 | 2604448060 | Cable White L=173 MM |
| 52 | 2604448045 | Cable Black L=98 MM |
| 53 | 2604448132 | Connecting Cable Blue L=103 MM |
| 54 | 2604448034 | Connecting Cable White L=88 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 2915121004 | Square Nut DIN 562-M4-04 |
| 62 | 2603421211 | Countersunk-Head Screw Lefthand Threads M6X20 MM |
| 7 | 2601035001 | Cable Clip |
| 746 | 1608571061 | Key Chuck 1/2"-20 Unf |
| 746 | 2608572030 | Keyless Chuck Ø 1-10 Mm, 1/2" |
| 746 | 2608572196 | Keyless Chuck |
| 746/700 | 2607950007 | Chuck Wrench SG2 |
| 799 | 2608040050 | Channel End-Plate Black |
| 799/20 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 816/040 | 2604321914 | Carbon-Brush Set |
| 816/040 | 2604321915 | Carbon-Brush Set |
| 816/060 | 2601322013 | Ratchet Cap |
| 816/060 | 2601329051 | Ratchet Cap |
| 825 | 2910611007 | Tapping Screw DIN 7981-B2,9X16-C-H |
| 827 | 2607200231 | Change-Over Switch |
| 828 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 831 | 2605807927 | Bearing Bracket |
| 841 | 2609110017 | Drilling Spindle 1/2" |
| 9 | 2601118408 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118767 | Manufacturer's nameplate Sunny Side |
