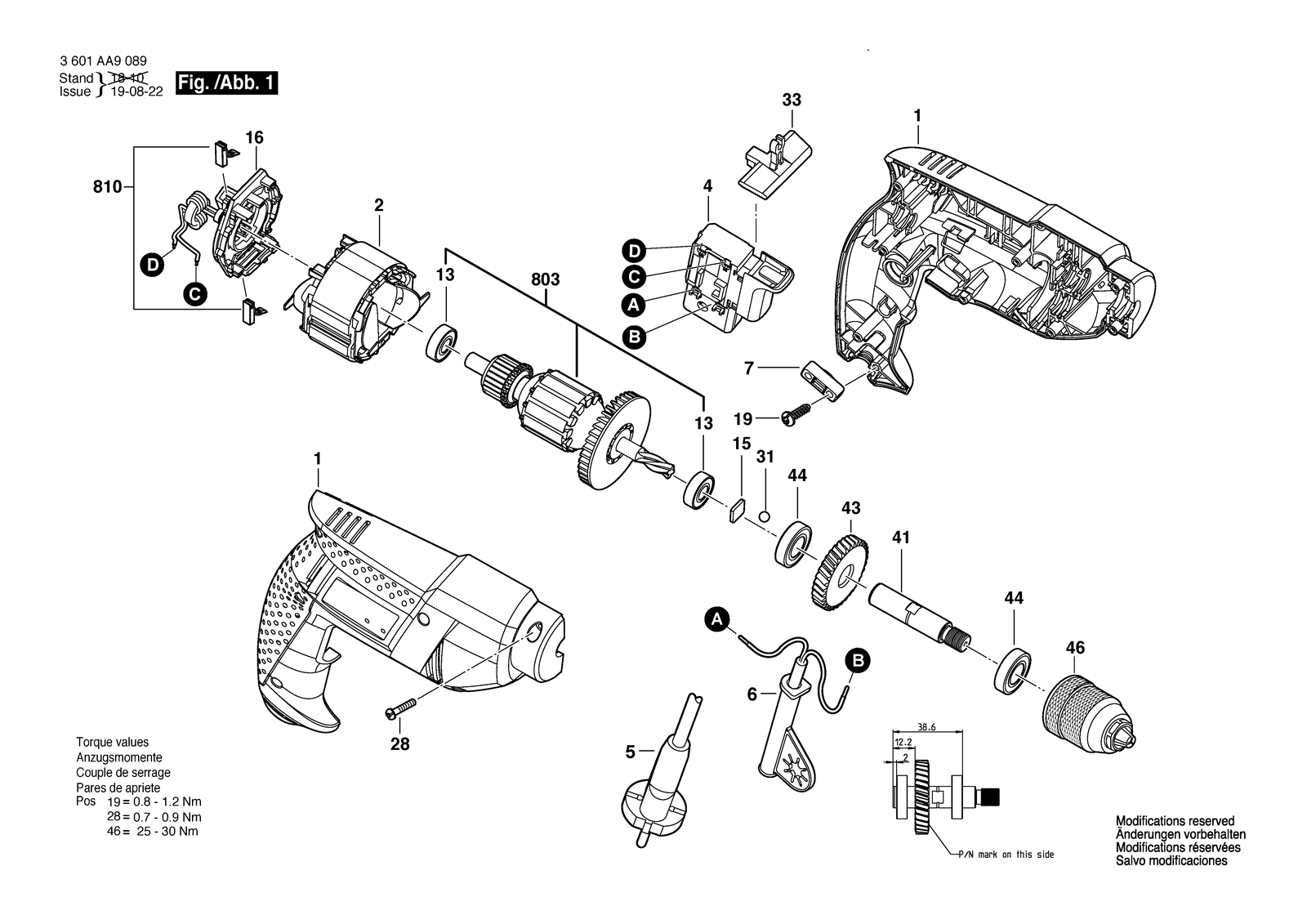

Bosch GBM 340 drill: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 340: 22 positions on 1 sheet
Bosch GBM 340 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P20251 | Housing Section |
| 13 | 1619P06024 | Ball Bearing |
| 15 | 2609110019 | Pressure Plate |
| 16 | 1619P20066 | Brush Holder |
| 16 | 1619P20560 | Brush Holder |
| 19 | 1619P00228 | Screw |
| 2 | 1619P20885 | Field |
| 28 | 1619P00219 | Tapping Screw |
| 31 | 1903230009 | Ball DIN 5401-5 G28 |
| 33 | 1619P20250 | Adjusting Slide |
| 4 | 160720034A | Switch |
| 4 | 2607200623 | Switch |
| 41 | 1619P10887 | Drilling Spindle |
| 43 | 1619P10888 | Cylindrical Gear |
| 44 | 1619X07256 | Ball Bearing |
| 46 | 1608571079 | Chuck Ø1,0-10 Mm, 3/8" |
| 46 | 2609110495 | Keyless Chuck Ø1,0-10 Mm, 3/8 |
| 5 | 1604460274 | Power supply cord CN 220V 2,15M 2 X 1,0MM H05VV-F |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 7 | 2601035001 | Cable Clip |
| 803 | 1619P20267 | Armature set |
| 810 | 1619P20086 | Carbon-Brush Set |
