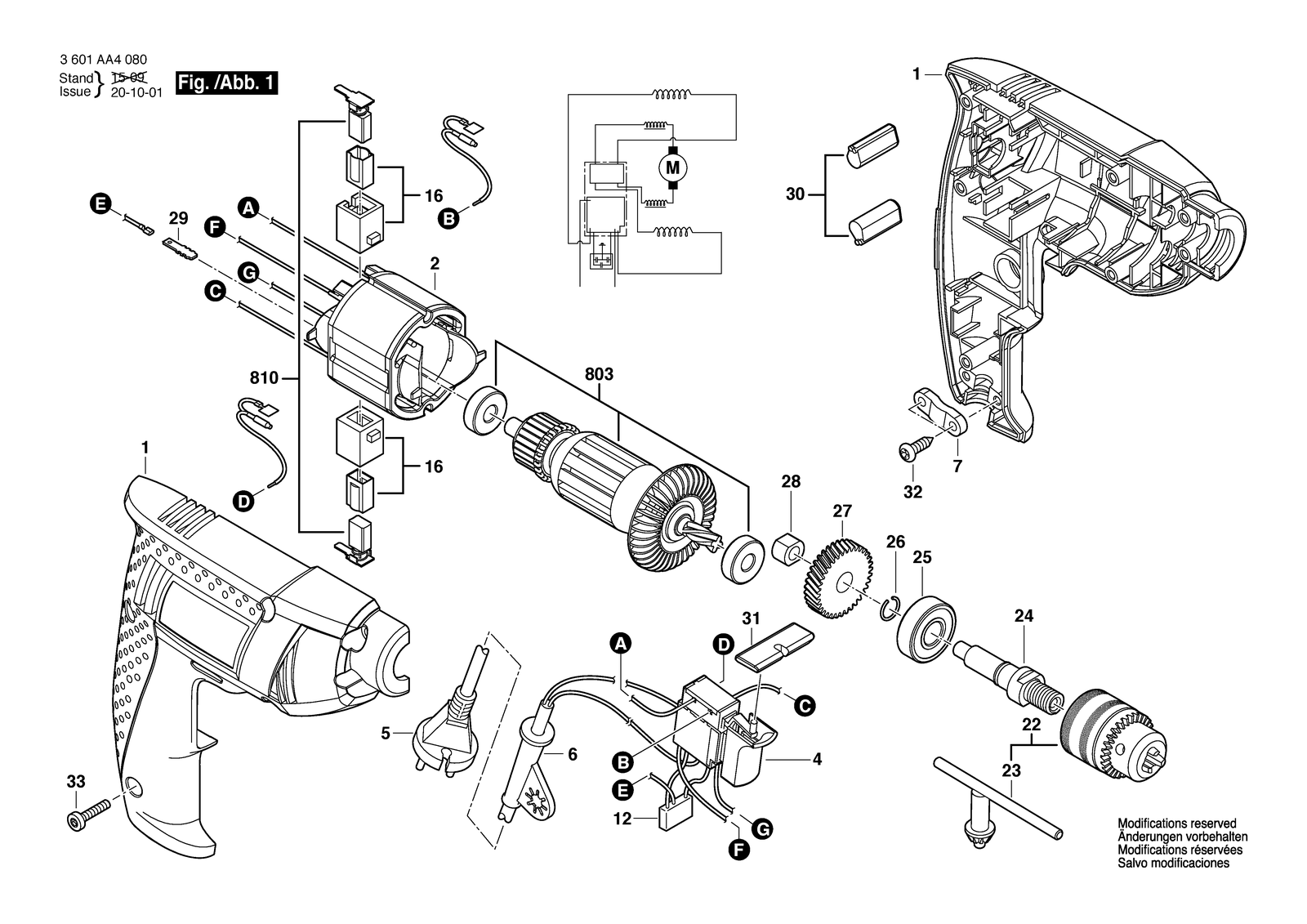

Bosch GBM 320 drill: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 320: 29 positions on 1 sheet
Bosch GBM 320 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA4164 | Housing Section |
| 12 | 1619PA4604 | Suppression Filter |
| 16 | 1619PA4606 | Brush Holder |
| 2 | 1619PA4180 | Field 220-240V |
| 2 | 1619PA5958 | Field 115V |
| 22 | 1619PA4607 | Chuck |
| 23 | 1619PA4608 | Chuck Wrench |
| 24 | 1619PA4609 | Drilling Spindle |
| 25 | 1619PA4610 | Ball Bearing |
| 26 | 1619PA4611 | Spacer Ring |
| 27 | 1619PA4612 | Cylindrical Gear |
| 28 | 1619PA4613 | Bearing Bracket |
| 29 | 1619PA4614 | Pin |
| 30 | 1619PA4615 | Inductor |
| 31 | 1619PA4616 | Lever |
| 32 | 1619PA4617 | Tapping Screw |
| 33 | 1619PA4618 | Tapping Screw |
| 4 | 1619PA4597 | Switch |
| 4 | 1619PA5960 | Switch |
| 5 | 1619PA0877 | Power supply cord |
| 5 | 1619PA4598 | Power supply cord |
| 5 | 1619PA5033 | Power supply cord |
| 5 | 1619PA5961 | Power supply cord |
| 6 | 1619PA4599 | Grommet |
| 7 | 1619PA4600 | Cable Clip |
| 803 | 1619PA5010 | Armature set 220-240V |
| 803 | 1619PA5965 | Armature set 115V |
| 810 | 1619PA4619 | Carbon-Brush Set |
| 810 | 1619PA5964 | Carbon-Brush Set |
