Bosch GBM 32-4
Bosch GBM 32-4 drill: exploded parts diagram, 2 sheets, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 32-4: 73 positions on 2 sheets

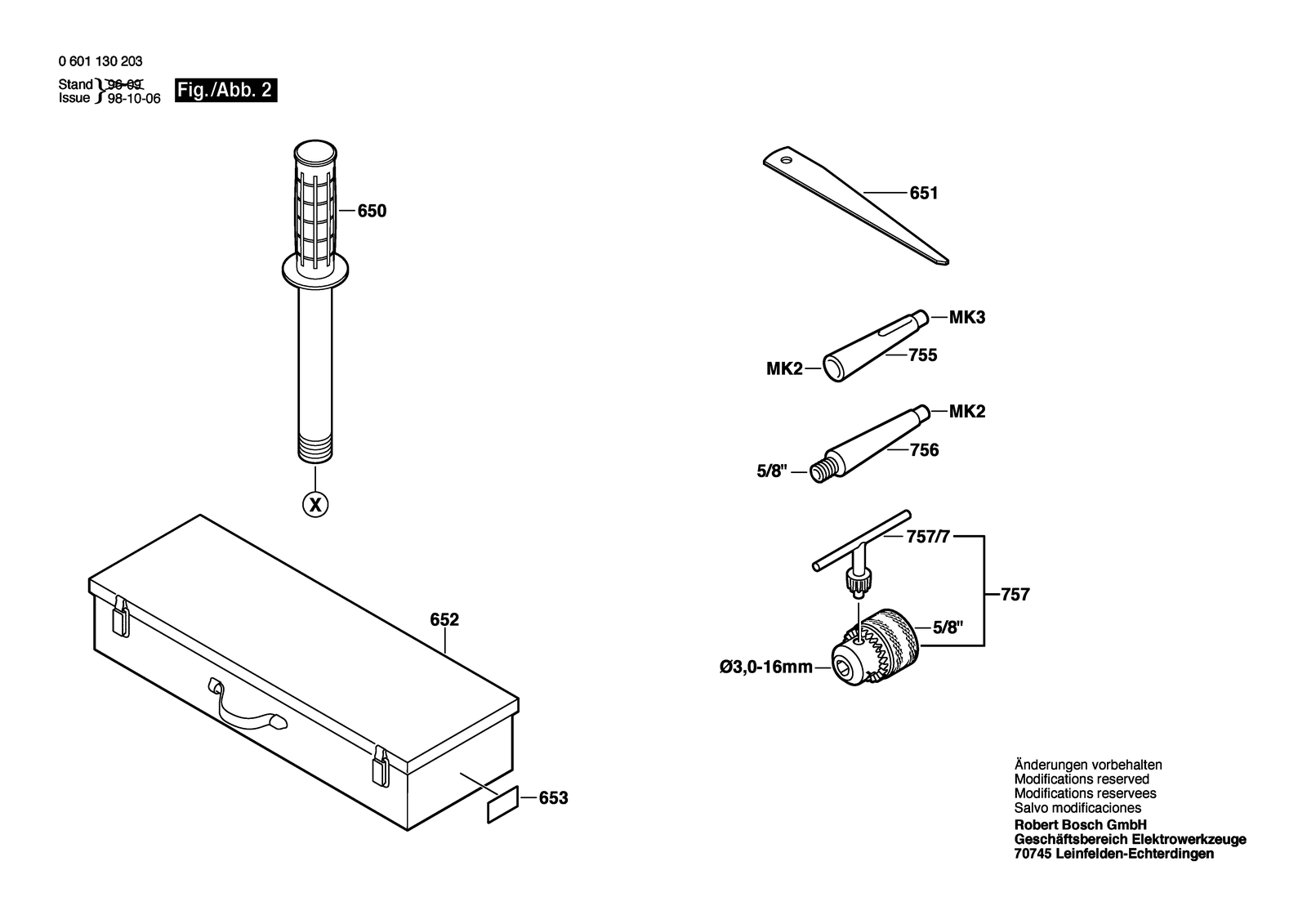

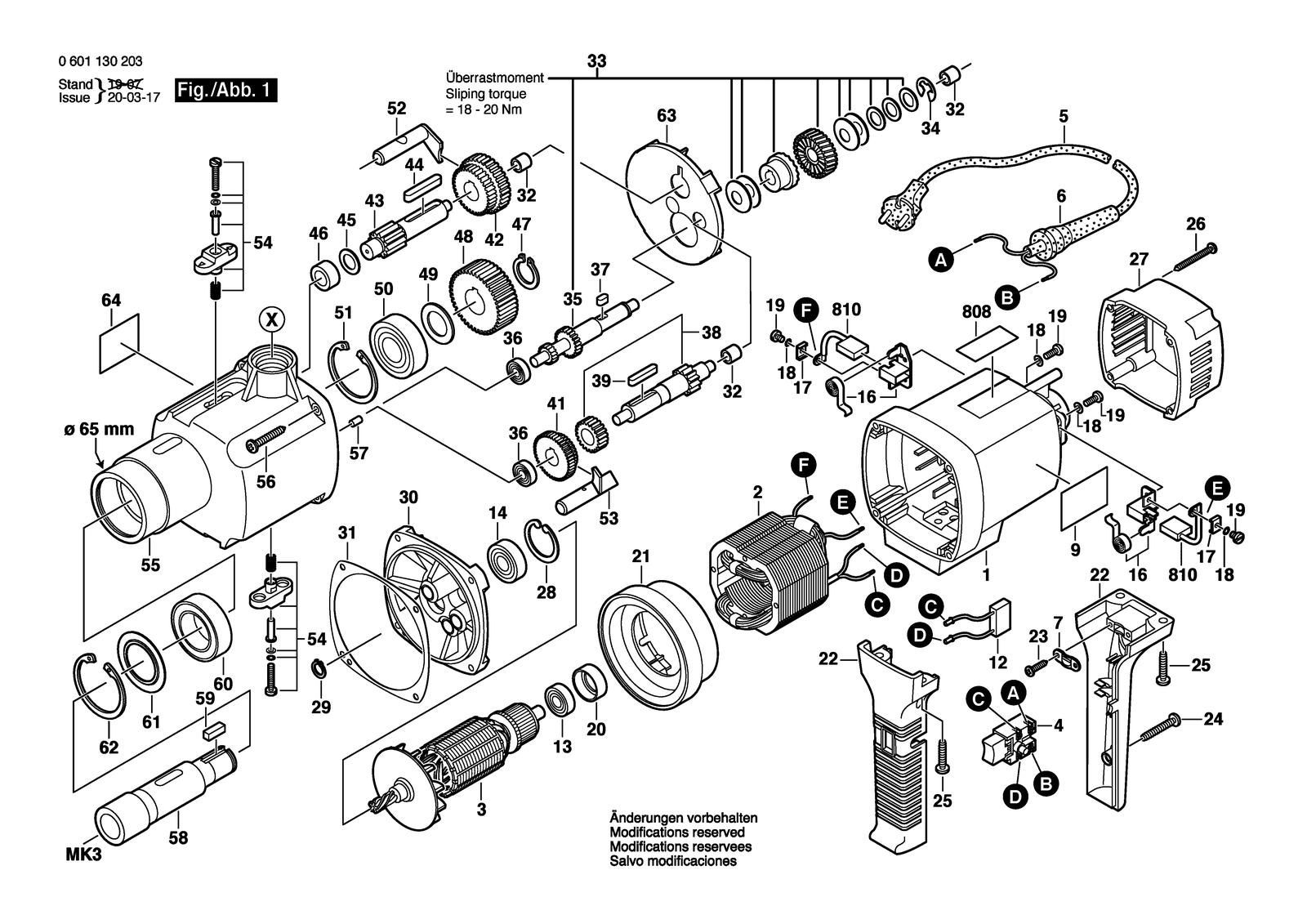

Bosch GBM 32-4 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108188 | Motor Housing Blue |
| 12 | 3607328015 | Suppression Filter |
| 13 | 3600905127 | Groove ball bearing |
| 14 | 3600905128 | Groove ball bearing |
| 16 | 3601321009 | Brush Holder |
| 17 | 3601016004 | Contact Disc |
| 18 | 3600150024 | Spring Washer |
| 19 | 3603435019 | Thread-forming tap. Screw DIN 7500C-ZM4X12 MM |
| 2 | 3604220106 | Field 230V |
| 2 | 3604220107 | Field 110V |
| 20 | 3600150025 | Rubber Ring |
| 21 | 3600150026 | Air-Deflector Ring |
| 22 | 3605133021 | Handle |
| 23 | 3603435014 | Tapping Screw 4,2X16 MM |
| 24 | 3603435015 | Tapping Screw 5,5X32 MM |
| 25 | 3603435016 | Tapping Screw 5,5X25 MM |
| 26 | 3603435017 | Tapping Screw 4,8X45 MM |
| 27 | 3605102089 | Housing Cover Blue |
| 28 | 3600119038 | Spring retaining ring |
| 29 | 3600119039 | Spring retaining ring |
| 3 | 3604010091 | Armature 230V |
| 3 | 3604010092 | Armature 110V |
| 30 | 3605820075 | Intermediate Flange |
| 31 | 3601015022 | Flat Seal Ring |
| 32 | 3600910015 | Needle-Roller Bearing |
| 33 | 3606445039 | Clutch Set |
| 34 | 3600190026 | Locking washer |
| 35 | 3606309055 | Toothed rack Z=22/13 |
| 36 | 3600905129 | Groove ball bearing |
| 37 | 3604611024 | Parallel Key DIN 6885-5X5X10MM |
| 38 | 3606309056 | Toothed rack Z=12 |
| 39 | 3604611025 | Parallel Key DIN 6885-A5X5X28 |
| 4 | 3607200080 | Switch |
| 41 | 3606320017 | Toothed Gear Z=30/39 |
| 42 | 3606320018 | Toothed Gear Z=31/33 |
| 43 | 3606309057 | Toothed rack Z=12 |
| 44 | 3604611026 | Parallel Key DIN 6885-A6X6X40MM |
| 45 | 3600100089 | Friction Washer |
| 46 | 3600910016 | Needle-Roller Bearing |
| 47 | 3600119037 | Spring retaining ring DIN 471-24/1,2 |
| 48 | 3606320019 | Toothed Gear Z=39 |
| 49 | 3604611027 | Shim ring 25/35X0,1MM |
| 5 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 5 | 3604460077 | Power supply cord GB 240V 4,15M 2 X 1,0MM H07RN-F |
| 5 | 3604460118 | Power supply cord EU 0,32M 2 X 1MM H07 Rn-F |
| 5 | 3604460134 | Power supply cord |
| 50 | 3600905125 | Groove ball bearing |
| 51 | 3600224061 | Spring retaining ring DIN 472-47/1 |
| 52 | 3606445040 | Clutch Bolt |
| 53 | 3606445041 | Clutch Bolt |
| 54 | 3603231009 | Operation button |
| 55 | 3605106090 | Gear Housing |
| 56 | 3603435018 | Tapping Screw 5,5X38 MM |
| 57 | 2917690120 | Half-Length Grooved Pin DIN 1474-5X16 |
| 58 | 3606135007 | Drilling Spindle MK 3 |
| 59 | 3604611028 | Parallel Key DIN 6885-B6X6X20 |
| 6 | 3605703084 | Grommet |
| 60 | 3600905126 | Groove ball bearing DIN 625-55/2 |
| 61 | 3600100088 | Friction Washer |
| 62 | 3600119036 | Spring retaining ring |
| 63 | 3604651015 | Partition |
| 64 | 3601119168 | Reference Plate |
| 650 | 3602025018 | Auxiliary Handle |
| 651 | 3602317040 | Drift |
| 652 | 3605438032 | Carrying Case |
| 7 | 3604651014 | Fastening Clamp |
| 755 | 3600320014 | Reduction Sleeve MK3-MK2 |
| 756 | 1603115004 | Taper mandrel MK 2- 5/8" |
| 757 | 1608571056 | Key Chuck Ø3-16 Mm, 5/8" |
| 757/7 | 1607950041 | Chuck Wrench S3, SW4 |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3604321034 | Carbon-Brush Set |
| 9 | 3601119167 | Manufacturer's nameplate |
