Bosch GBM 23-2 E

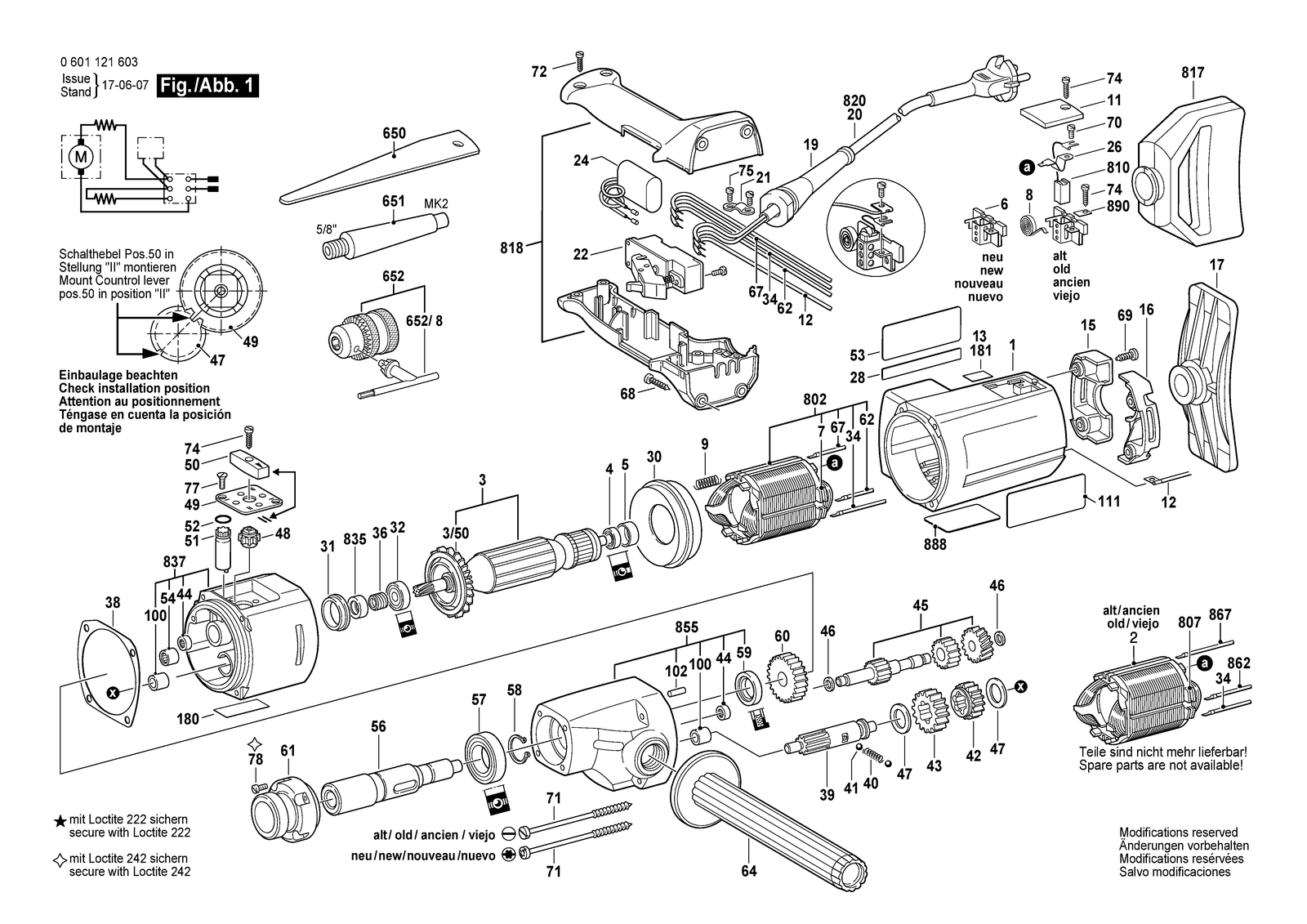

Bosch GBM 23-2 E drill: exploded parts diagram, 1 sheet, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 23-2 E: 102 positions on 1 sheet
Bosch GBM 23-2 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108091 | Motor Housing Blue |
| 100 | 3600328033 | Bushing |
| 102 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 11 | 3605500063 | Sealing cap Blue |
| 111 | 3601110383 | Sticker |
| 111 | 3601110591 | Manufacturer's nameplate |
| 12 | 1604445006 | Connecting Cable Gray L=290 MM |
| 13 | 1601110058 | Reference Plate Double Insulation |
| 15 | 3605500058 | Sealing cap Blue |
| 16 | 3605500059 | Sealing cap Blue |
| 17 | 3601012003 | Pressure Plate |
| 180 | 3601119137 | Warning Plate Caution |
| 180 | 3601119155 | Reference Plate |
| 181 | 1611110880 | Warning Plate |
| 19 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 20 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 20 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 20 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 20 | 1604460257 | Power supply cord CN 2,65M 2 X 1,0MM H07 Rn-F |
| 20 | 1604460285 | Elec. Cable W/Connection BR 4,15M 2 X 1,0MM H07RN-F |
| 20 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 20 | 1614460023 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 20 | 3604460073 | Power supply cord GB 2,65M 2 X 1,00MM H07 Rn-F |
| 21 | 1601302013 | Fastening Clamp |
| 21 | 1601302014 | Fastening Clamp |
| 22 | 1607200075 | Switch |
| 22 | 1607200076 | Switch |
| 24 | 1607328028 | Suppression Filter |
| 26 | 1604477001 | Blade terminal |
| 28 | 3601110151 | Sticker |
| 3 | 1604010335 | Armature 100V |
| 3 | 1619P13608 | Armature |
| 3 | 1619P13611 | Armature |
| 3 | 1619P13763 | Armature |
| 3/50 | 1606610122 | Fan |
| 30 | 1600502019 | Air-Deflector Ring |
| 31 | 1600221003 | Intermediate Ring |
| 32 | 3600905131 | Groove ball bearing 9X26X8 |
| 34 | 1604438012 | Connecting Cable White L=330 MM |
| 36 | 1600300090 | Intermediate Ring |
| 38 | 1601015013 | Sealing Plate |
| 39 | 1606309066 | Toothed Shaft Z=9 |
| 4 | 2600905032 | Ball Bearing 7X19X6 |
| 40 | 1604611022 | Compression Spring |
| 41 | 1903230009 | Ball DIN 5401-5 G28 |
| 42 | 1606317074 | Cylindrical Gear Z=32 |
| 43 | 1606317082 | Cylindrical Gear Z=43 |
| 44 | 1600910013 | Needle bearing |
| 45 | 1606309065 | Pinion Shaft Z=14/24/33 |
| 46 | 1600100631 | Shim Thick 0,5 MM |
| 47 | 1600101647 | Shim Thick 0,6 MM |
| 48 | 1606325025 | Control Shaft Z=20 |
| 49 | 1601038025 | Notched Plate |
| 5 | 1600502011 | Intermediate Ring |
| 50 | 1602026044 | Control Lever |
| 51 | 1606325027 | Control Shaft Z=10 |
| 52 | 1900210105 | O-Ring 8X2,5 MM |
| 53 | 3601110366 | Sticker |
| 54 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 56 | 3606135009 | Drilling Spindle |
| 57 | 1900905126 | Groove ball bearing 25X47X12 |
| 58 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 59 | 3600290035 | Seal Ring 20X31X7 MM |
| 6 | 3604336012 | Brush Holder |
| 60 | 3606316108 | Cylindrical Gear |
| 61 | 1605703075 | Fastening Flange |
| 62 | 3604438027 | Connecting Cable L=375 MM |
| 64 | 1600763010 | Handle Black 400 MM |
| 650 | 3601030002 | Drift |
| 651 | 1603115004 | Taper mandrel MK 2- 5/8" |
| 652 | 1608571083 | Key Chuck Ø3-16MM,5/8" |
| 652/8 | 1607950041 | Chuck Wrench S3, SW4 |
| 652/8 | 2607950011 | Chuck Wrench SG2 |
| 67 | 3604438025 | Connecting Cable White L=470 MM |
| 68 | 3603435027 | Tapping Screw 5X30 |
| 69 | 2914201529 | Torx Oval-Head Screw |
| 7 | 3601025003 | Wire Guide |
| 70 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 71 | 3603435042 | Lens Head Screw |
| 72 | 2914201508 | Torx Oval-Head Screw |
| 74 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 75 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 77 | 2910501120 | Countersunk-Head Screw DIN 63-AM4X10-5.8 |
| 78 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 8 | 1604652006 | Spiral Spring |
| 802 | 3604220111 | Field 230V |
| 802 | 3604220112 | Field 110-115V |
| 802 | 3604220113 | Field 240V |
| 807 | 3601025003 | Wire Guide |
| 810 | 3607014012 | Carbon-Brush Set |
| 817 | 3605133010 | Handle Dark Blue |
| 818 | 3605132031 | Handle |
| 818 | 3605132055 | Handle Black |
| 820 | 3607030489 | Power supply cord |
| 835 | 3600290070 | Rotary shaft lip seal |
| 837 | 3607030436 | Intermediate Bearing |
| 855 | 1605806382 | Spindle Bearing |
| 862 | 1604438013 | Connecting Cable Gray L=345 MM |
| 867 | 3604460009 | Connecting Cable White L=450 MM |
| 888 | 160111A3H3 | Nameplate |
| 890 | 1601030022 | Tab Washer |
| 9 | 1604613006 | Compression Spring |
