Bosch GBM 1600 RE

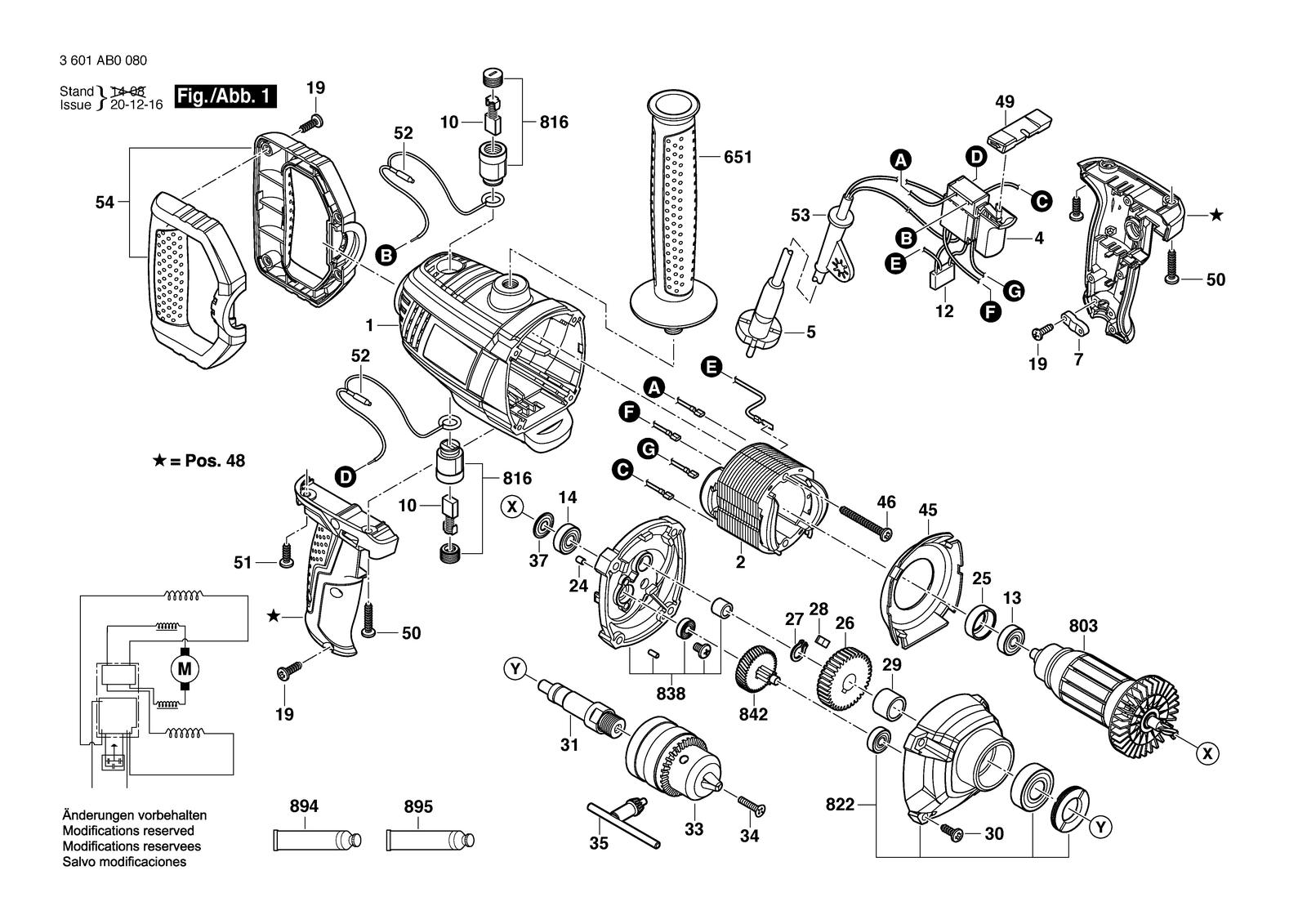

Bosch GBM 1600 RE drill: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 1600 RE: 44 positions on 1 sheet
Bosch GBM 1600 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA7814 | Motor Housing |
| 10 | 1619PA7827 | Carbon-Brush Set |
| 12 | 1619PA7828 | Suppression Capacitor |
| 13 | 1619PA7829 | Ball Bearing 627ZZ |
| 14 | 1619PA7830 | Ball Bearing 608RS |
| 19 | 1619PA7831 | Tapping Screw |
| 2 | 1619PA7815 | Field 220-240V |
| 24 | 1619PA7832 | Rubber Strip |
| 25 | 1619PA7833 | Bearing Sleeve |
| 26 | 1619PA7834 | Cylindrical Gear |
| 27 | 1619PA7835 | Retaining ring |
| 28 | 1619PA7836 | Flat Key |
| 29 | 1619PA7837 | Spacer bushing |
| 30 | 1619PA7838 | Screw |
| 31 | 1619PA7839 | Drilling Spindle |
| 33 | 1619PA3304 | Chuck |
| 34 | 1619PA3305 | Countersunk-Head Screw |
| 35 | 1619PA8054 | Chuck Wrench |
| 37 | 1619PA7840 | Seal Ring |
| 4 | 1619PA7816 | On-Off Switch |
| 45 | 1619PA7841 | Air-Deflector Ring |
| 46 | 1619PA7842 | Screw |
| 48 | 1619PA7843 | Handle |
| 49 | 1619PA7844 | Lever |
| 5 | 1619PA7817 | Power supply cord |
| 5 | 1619PA7818 | Power supply cord |
| 5 | 1619PA7819 | Power supply cord |
| 5 | 1619PA7820 | Power supply cord |
| 5 | 1619PA9920 | Power supply cord |
| 5 | 1619PB5639 | Power supply cord |
| 50 | 1619PA7845 | Tapping Screw |
| 51 | 1619PA7846 | Tapping Screw |
| 52 | 1619PA7847 | Suppressor Box |
| 53 | 1619PA7848 | Grommet |
| 54 | 1619PA7849 | Rotary Handle |
| 651 | 1619PA7850 | Auxiliary Handle |
| 7 | 1619PA7821 | Fastening Clamp |
| 803 | 1619PA7851 | Armature 220-240V |
| 816 | 1619PA7852 | Brush Holder |
| 822 | 1619PA7853 | Gear Housing |
| 838 | 1619PA7855 | Bearing Flange |
| 842 | 1619PA7856 | Pinion Shaft |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
