Bosch GBM 16-2 RE drill: exploded parts diagram, 2 sheets, 100 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 16-2 RE: 100 positions on 2 sheets

Bosch GBM 16-2 RE parts list (2 sheets)

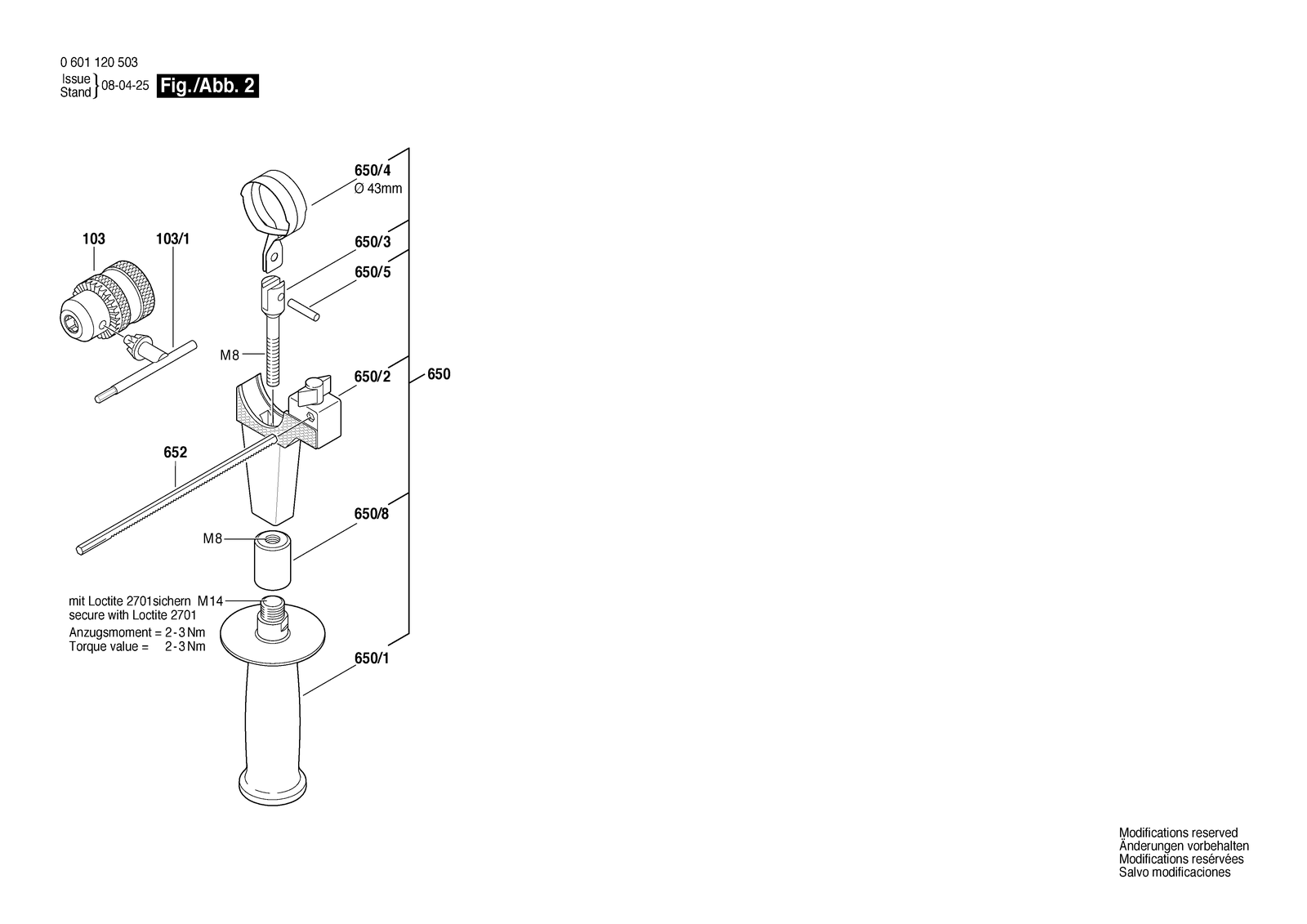

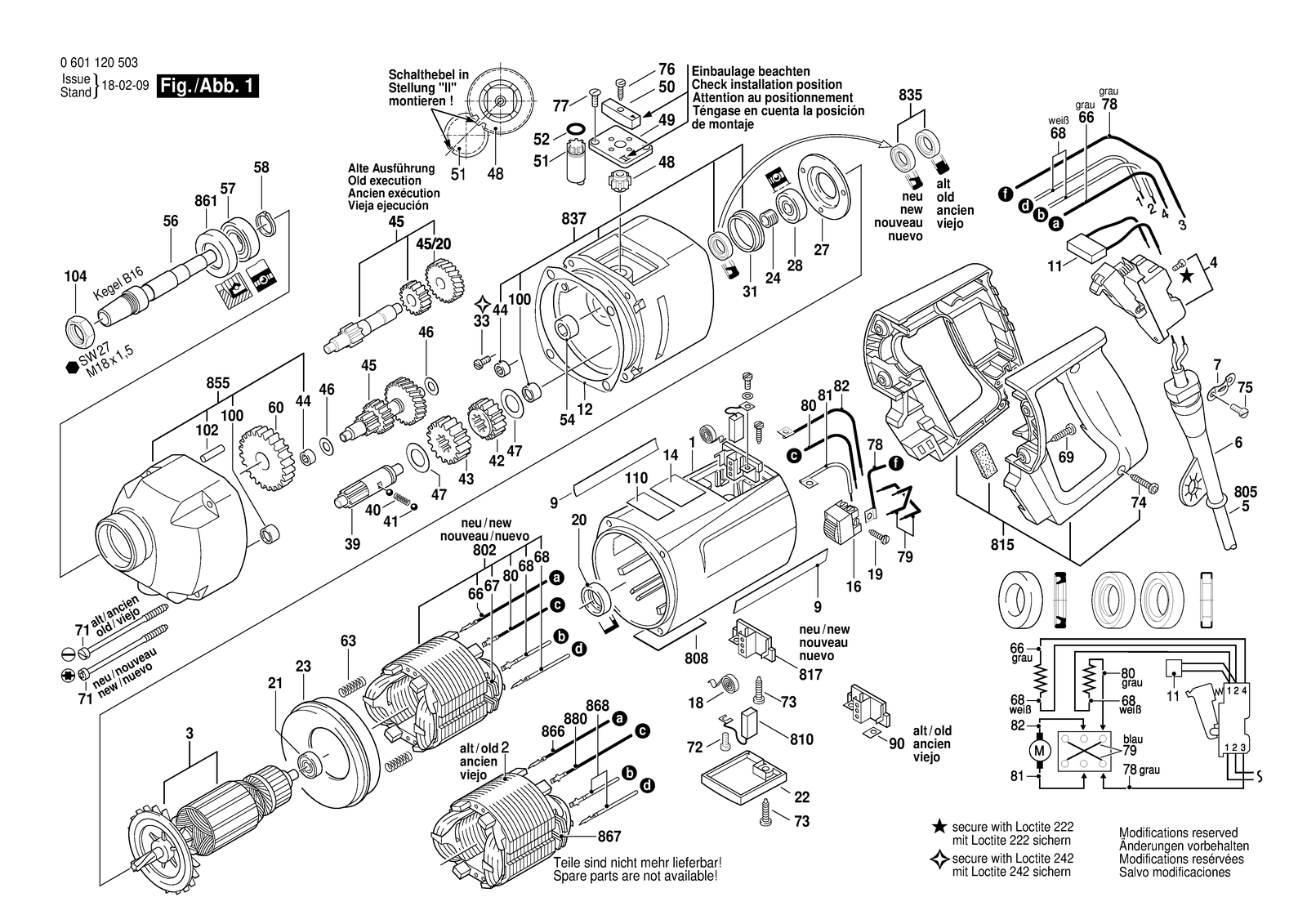

Bosch GBM 16-2 RE parts diagram, sheet 1Bosch GBM 16-2 RE parts diagram, sheet 2
No.Part numberPart name
13605108092Motor Housing Blue
1003600328033Bushing
1022917500121Straight Pin 5 H 8X18 DIN 7
1033608571003Chuck
103/13607950018Chuck Wrench
1042915031057Hex Nut M 18X1,5 Mm, SW27
111607328028Suppression Filter
1101601110449Nameplate Caution
121601015013Sealing Plate
141601110058Reference Plate Double Insulation
163607200000Switch
163607200025Switch
181604652006Spiral Spring
192910211006Tapping Screw DIN 7971-BZ2,9X13
201600502011Intermediate Ring
212600905032Ball Bearing 7X19X6
223605500063Sealing cap Blue
231600502019Air-Deflector Ring
241600300090Intermediate Ring
273605500034Bearing cover
283600905131Groove ball bearing 9X26X8
31619P13609Armature
31619P13764Armature
31619P13765Armature
33604010051Armature 240V
311600221003Intermediate Ring
332910021118Socket head cap screw DIN 84-AM4X8-8.8
391606309063Toothed Shaft Z=17
41607200075Switch
41607200076Switch
401604611022Compression Spring
411903230009Ball DIN 5401-5 G28
421606317074Cylindrical Gear Z=32
431606317082Cylindrical Gear Z=43
441600910013Needle bearing
451606309065Pinion Shaft Z=14/24/33
461600100631Shim Thick 0,5 MM
471600101647Shim Thick 0,6 MM
481606325025Control Shaft Z=20
491601038025Notched Plate
51604460144Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F
51604460201Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F
51604460440Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51614460016Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
53604460040Power supply cord AUS 4,15M 2 X 1,0MM Pvc
501602026044Control Lever
511606325027Control Shaft Z=10
521900210105O-Ring 8X2,5 MM
542600910001Needle-Roller Bearing Ø14 MM
563603523016Drilling Spindle B16
571900905162Groove ball bearing 15X32X9
582916650006Retaining clip DIN 471-15X1-FST
61600703022Grommet Ø7,9-Ø12,0X120 MM
601606317080Cylindrical Gear Z=41
631604613006Compression Spring
6503602025021Auxiliary Handle Ø43 MM
650/11612025022Auxiliary Handle Ø 66 MM
650/21618040077Support clamp
650/31613521001Stud bolt M8
650/43601038048Clamping Band Ø43 MM
650/51613100012Straight Pin
650/83602025022Handle Bar
6521613001008Depth-Gauge SW 6X330 MM
663604438027Connecting Cable L=375 MM
673601025003Wire Guide
683604460027Connecting Cable White L=360 MM
692914201527Torx Oval-Head Screw
71601302014Fastening Clamp
713603435042Lens Head Screw
722910021118Socket head cap screw DIN 84-AM4X8-8.8
732910211019Tapping Screw DIN 7971-ST3,9X16-F
742914201507Torx Oval-Head Screw
752910211018Tapping Screw DIN 7971-ST3,9X13-F
762910211019Tapping Screw DIN 7971-ST3,9X16-F
772910501120Countersunk-Head Screw DIN 63-AM4X10-5.8
781604412053Connecting Cable White L=330 MM
793604412002Connecting Cable Blue L=60 MM
803604438022Connecting Cable Gray L=230 MM
8023604220117Field 240V
8023604220118Field 230V
8023604220119Field 110-115V
8051607000391Power supply cord
808160111A3H3Nameplate
813604445005Connecting Cable White L=150 MM
813604503008Suppression Filter White L=100MM
8103607014012Carbon-Brush Set
8153605133015Handle
8173604336012Brush Holder
823604460012Connecting Cable Blue L=200 MM
823604503007Suppression Filter Blue L=160MM
8353600290070Rotary shaft lip seal
8373607030437Intermediate Bearing
8551605806368Spindle Bearing M14
8613607030355Retaining snap ring
8661604438013Connecting Cable Gray L=345 MM
8673601025003Wire Guide
8681604438012Connecting Cable White L=330 MM
8803604460010Connecting Cable Gray L=200 MM
93601110514Manufacturer's nameplate
901601030022Tab Washer
