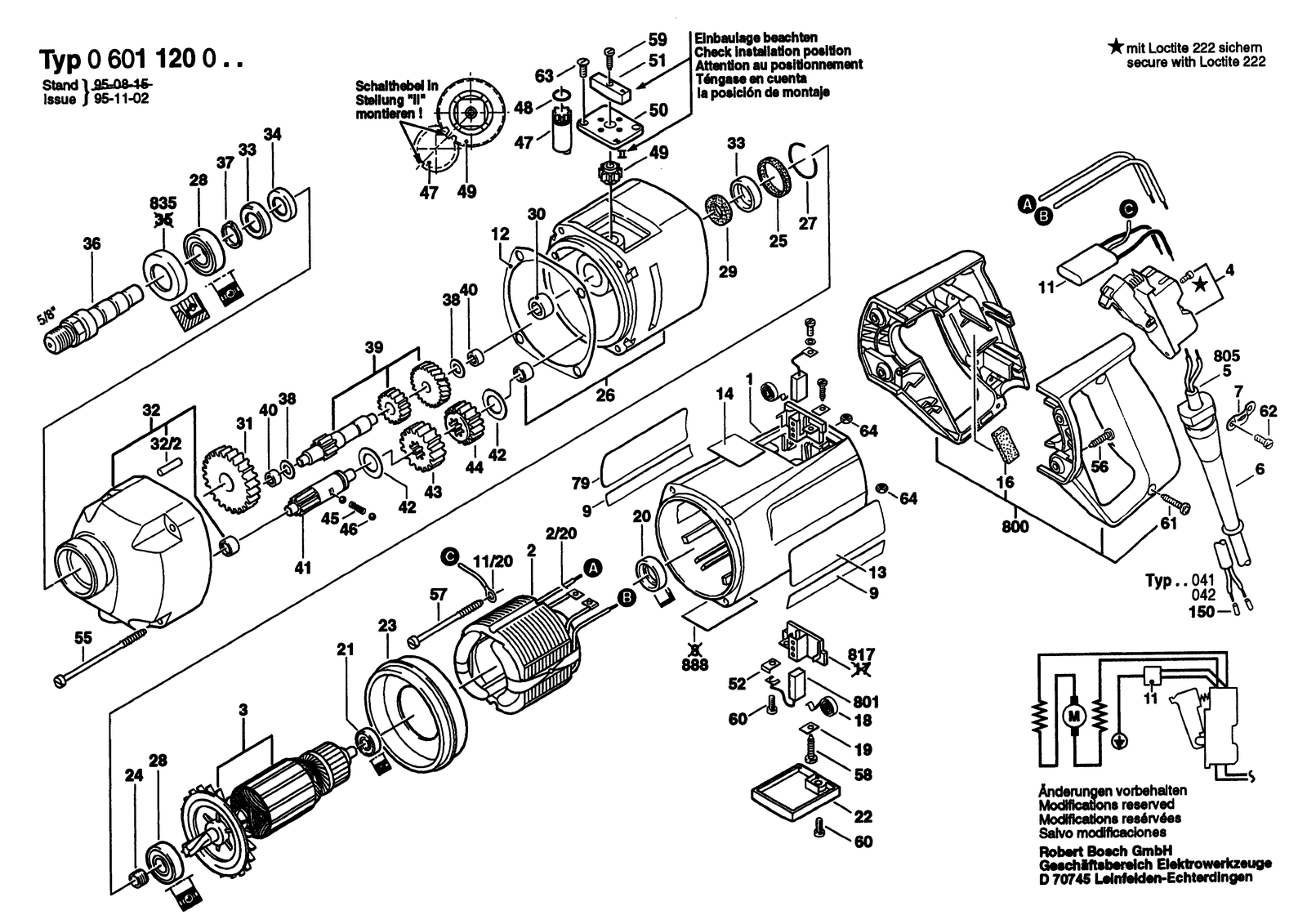

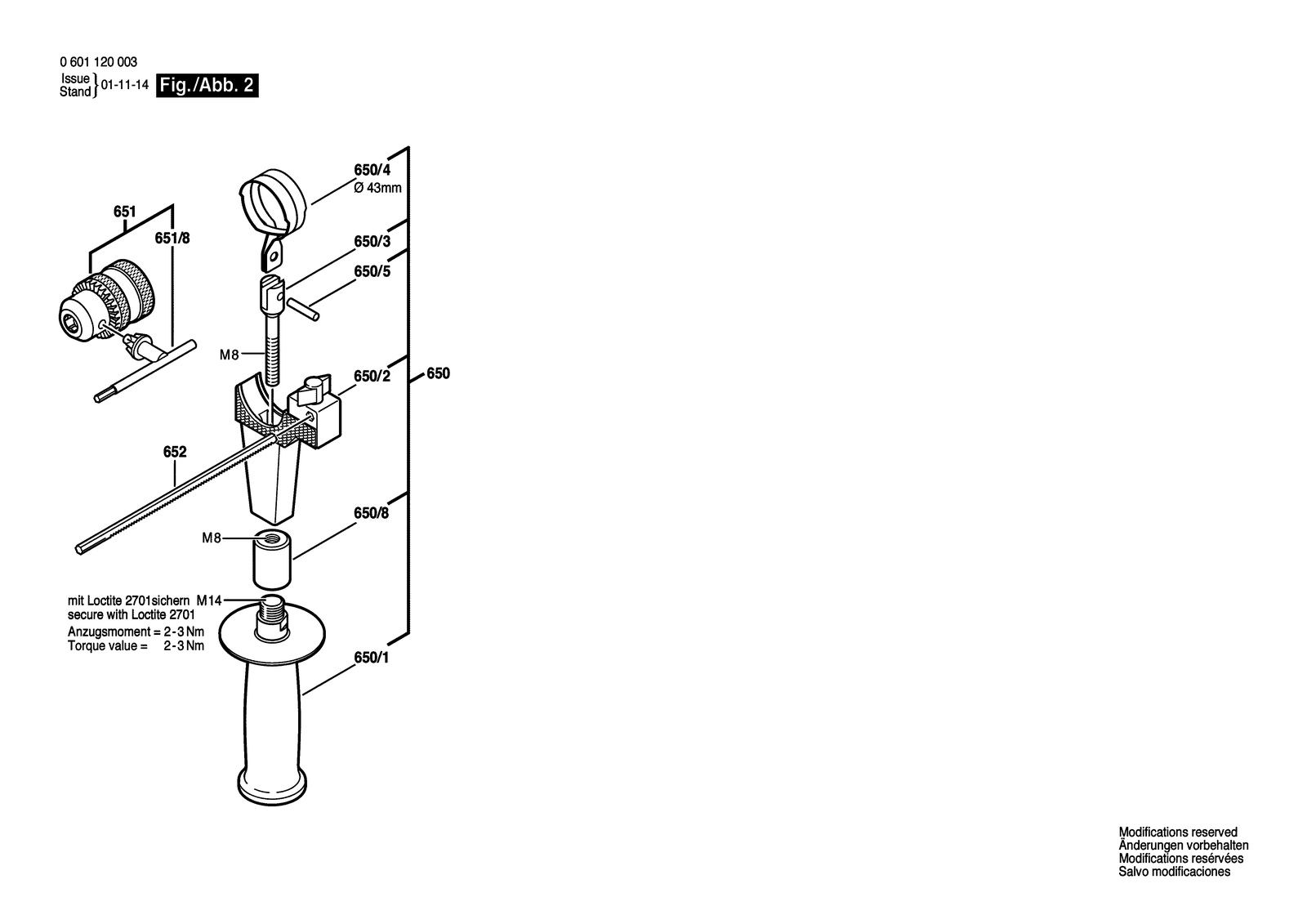

All parts of Bosch GBM 16: 93 positions on 2 sheets
Bosch GBM 16 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 11 | 1607328012 | Suppression Filter |
| 11 | 1607328022 | Suppression Capacitor |
| 11/20 | 1601353003 | Terminal lug |
| 12 | 1601015013 | Sealing Plate |
| 13 | 1601110070 | Sticker |
| 14 | 1601110058 | Reference Plate Double Insulation |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 16 | 1602381001 | Insulating Strip 33X10X6 MM |
| 18 | 1604652006 | Spiral Spring |
| 19 | 1601030022 | Tab Washer |
| 2 | 1604220128 | Field 220V |
| 2 | 1604220130 | Field 100-110V |
| 2 | 1604220131 | Field 110-115V |
| 2 | 1604220132 | Field 240V |
| 2 | 1604220145 | Field 220V |
| 2/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1600502020 | Rubber Bushing |
| 21 | 2600905032 | Ball Bearing 7X19X6 |
| 22 | 3605500060 | Sealing cap Blue |
| 23 | 1600502015 | Air-Deflector Ring |
| 24 | 1600202034 | Intermediate Ring |
| 25 | 1600206018 | Intermediate Ring |
| 26 | 1605820214 | Intermediate Bearing |
| 27 | 2916600018 | Retaining ring 35 DIN 9045 |
| 28 | 1600905003 | Groove ball bearing |
| 29 | 1600108003 | Felt Disc |
| 3 | 1604010157 | Armature 220V |
| 3 | 1604010159 | Armature 100-110V |
| 3 | 1604010160 | Armature 110-115V |
| 3 | 1604010161 | Armature 240V |
| 30 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 31 | 1606317080 | Cylindrical Gear Z=41 |
| 32 | 1605806368 | Spindle Bearing M14 |
| 32/2 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 33 | 1610500004 | Retaining snap ring |
| 34 | 1600108058 | Felt Disc |
| 35 | 3607030355 | Retaining snap ring |
| 36 | 1603523087 | Drilling Spindle 5/8" |
| 37 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 38 | 1600100631 | Shim Thick 0,5 MM |
| 39 | 1606309064 | Spindle With Gear Z=14/24/33 |
| 4 | 1607200037 | Switch |
| 4 | 1607200078 | Switch |
| 40 | 1600910013 | Needle bearing |
| 41 | 1606309063 | Toothed Shaft Z=17 |
| 42 | 1600101647 | Shim Thick 0,6 MM |
| 43 | 1606317082 | Cylindrical Gear Z=43 |
| 44 | 1606317074 | Cylindrical Gear Z=32 |
| 45 | 1604611022 | Compression Spring |
| 46 | 1903230009 | Ball DIN 5401-5 G28 |
| 47 | 1606325027 | Control Shaft Z=10 |
| 48 | 1900210105 | O-Ring 8X2,5 MM |
| 49 | 1606325025 | Control Shaft Z=20 |
| 5 | 1604460015 | Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460023 | Power supply cord |
| 5 | 2604460142 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 50 | 1601038025 | Notched Plate |
| 51 | 1602026044 | Control Lever |
| 52 | 1611331007 | Tab Washer |
| 55 | 1603435015 | Tapping Screw B4,8X115 MM |
| 56 | 2914201527 | Torx Oval-Head Screw |
| 57 | 1603435012 | Tapping Screw B4,8X50 MM |
| 58 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 59 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 61 | 2910021128 | Socket head cap screw DIN 84-AM4X18-8.8 |
| 61 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 62 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 63 | 2910511120 | Dummy AM 4X10 DIN 63-8.8 |
| 64 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 650 | 3602025021 | Auxiliary Handle Ø43 MM |
| 650/1 | 160202509Z | Auxiliary Handle |
| 650/1 | 16020250A1 | Auxiliary Handle |
| 650/2 | 1618040077 | Support clamp |
| 650/3 | 1613521001 | Stud bolt M8 |
| 650/4 | 3601038048 | Clamping Band Ø43 MM |
| 650/5 | 1613100012 | Straight Pin |
| 650/8 | 3602025022 | Handle Bar |
| 651 | 1608571056 | Key Chuck Ø3-16 Mm, 5/8" |
| 651/8 | 2607950011 | Chuck Wrench SG2 |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 7 | 1601302014 | Fastening Clamp |
| 79 | 1601110074 | Sticker Double Insulation |
| 800 | 3605133006 | Handle Black |
| 800 | 3605133019 | Handle Black |
| 801 | 1607014126 | Carbon-Brush Set |
| 805 | 3607030489 | Power supply cord |
| 817 | 1604336017 | Brush Holder |
| 835 | 3607030355 | Retaining snap ring |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110046 | Sticker |
