Bosch GBM 13 RE

Bosch GBM 13 RE drill: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 13 RE: 45 positions on 1 sheet

Bosch GBM 13 RE parts list (1 sheet)

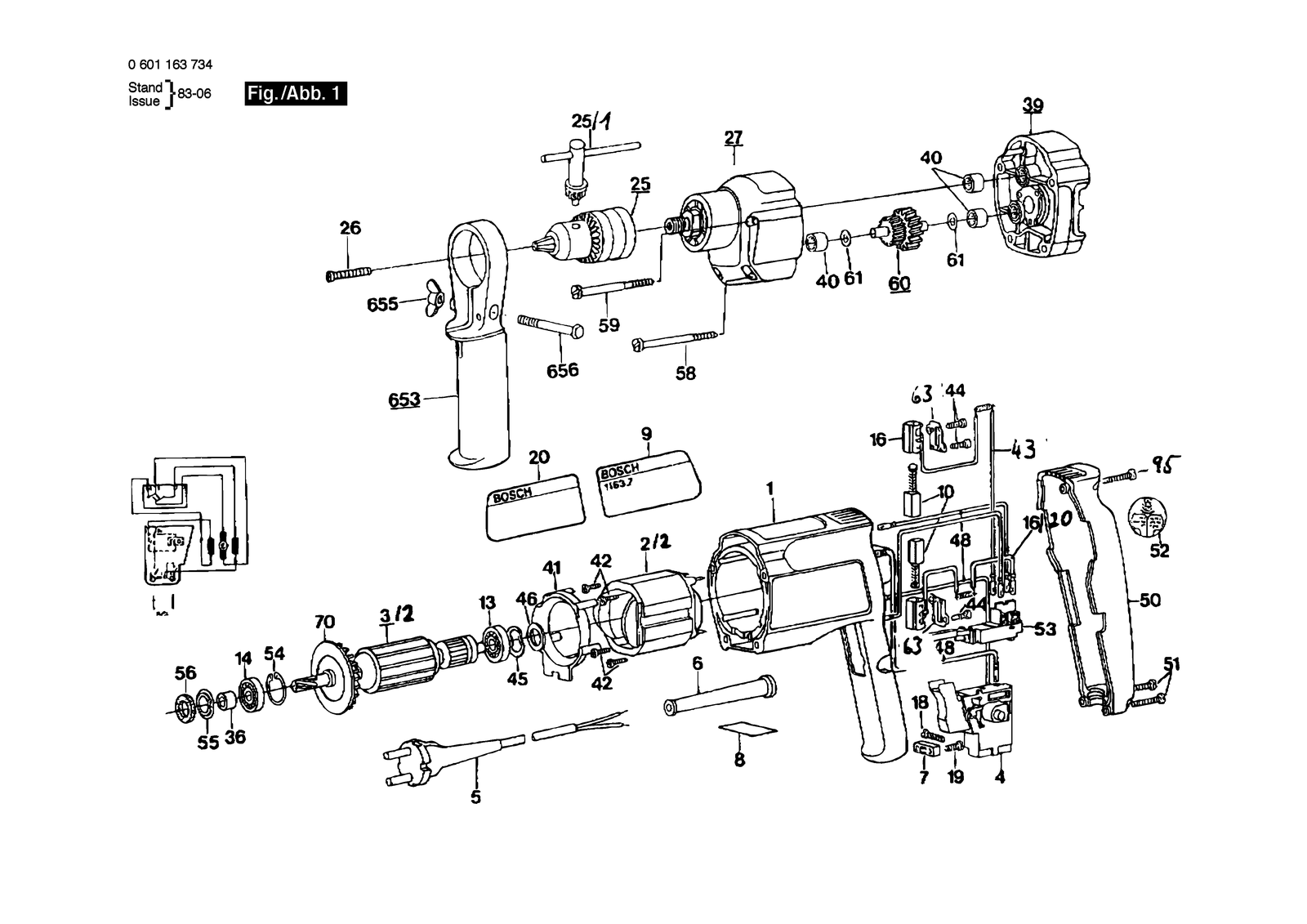

Bosch GBM 13 RE parts diagram, sheet 1
No.Part numberPart name
131900905018Ball Bearing 7X22X7
142600905021Groove ball bearing 9X24X7
162604337003Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
2/22604220443Field 110-120V
202601110203Sticker
251608571069Chuck Ø1,5-13 Mm, 1/2"
25/12607950007Chuck Wrench SG2
262603421226Countersunk-Head Screw Lefthand Threads M6X27
272605806974Gear Housing Z=55
3/22604010633Armature 115V
362600400008Receptacle
392605700935Intermediate Flange
42607200138On-Off Switch
402600914010Needle-Roller Bearing Ø6 MM
412601328033Cover Disc
422603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
432604448034Connecting Cable White L=88 MM
442603490017Torx Oval-Head Screw 3X10
452600150004Shim
462600101020Shim 0,5 MM
462600101022Shim 0,2 MM
462600101023Shim 0,3 MM
482604448005Cable White L=130 MM
52604460109Parts Set
502605132040Housing Cover Blue
512603490023Torx Oval-Head Screw 4X20
522601110230Sticker Yellow
532607200206Change-Over Switch
542916660008Spring retaining ring DIN 472-24X1,2 MM
552600500002Cupped Washer
562600108077Felt Washer
582603435018Headless Screw
592603435017Headless Screw
62600707060Grommet Ø11,6-Ø12,5X84 MM
602606100902Spindle With Gear Z= 10/29
612600100607Shim 0,3 MM
632601015054Brush Plate
6531619PB4323Auxiliary Handle
72601035001Cable Clip
702606610049Fan
8160111A3H3Nameplate
92601110306Sticker
952603490024Torx Oval-Head Screw 4X25
