Bosch GBM 13 HRE

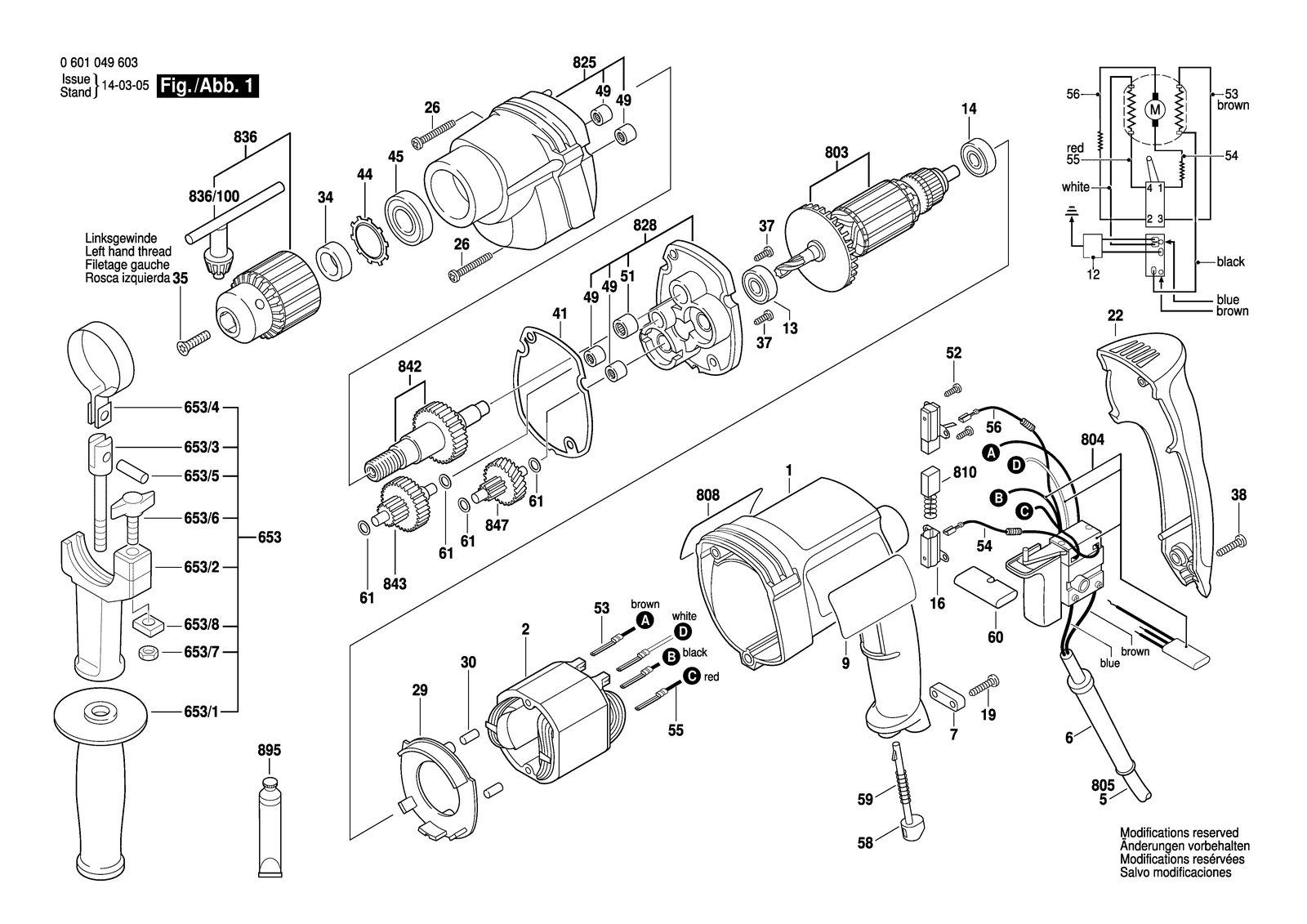

Bosch GBM 13 HRE drill: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 13 HRE: 112 positions on 1 sheet
Bosch GBM 13 HRE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610998101 | Motor Housing Blue |
| 1 | 2605105075 | Motor Housing Orange |
| 13 | 2600905107 | Groove ball bearing 9X22X7 |
| 13 | 2600905107 | Groove ball bearing 9X22X7 |
| 14 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 1900905018 | Ball Bearing 7X22X7 |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220702 | Field 230-240V |
| 2 | 2604220702 | Field 230-240V |
| 22 | 2610998102 | Housing Cover |
| 22 | 2605105076 | Housing Cover |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 2610998115 | Air Guide Plate |
| 29 | 2610998115 | Air Guide Plate |
| 30 | 3602391503 | Rubber Buffer |
| 30 | 2602391004 | Rubber Buffer |
| 34 | 2610998132 | Spacer |
| 34 | 2610998132 | Spacer |
| 35 | 2603421009 | Countersunk-Head Screw 1/4" 28UNF-2A |
| 35 | 2603421009 | Countersunk-Head Screw 1/4" 28UNF-2A |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 41 | 2610998117 | Sealing disk |
| 41 | 2610998117 | Sealing disk |
| 44 | 2610998128 | Spring retaining ring |
| 44 | 2610998128 | Spring retaining ring |
| 45 | 2610968044 | Ball Bearing |
| 45 | 2610968044 | Ball Bearing |
| 49 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 49 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 51 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 51 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 53 | 2604448294 | Connecting Cable |
| 53 | 2604448294 | Connecting Cable |
| 54 | 2604465110 | Suppression Filter |
| 54 | 2604465110 | Suppression Filter |
| 55 | 2604448286 | Connecting Cable |
| 55 | 2604448286 | Connecting Cable |
| 56 | 2604465111 | Suppression Filter |
| 56 | 2604465111 | Suppression Filter |
| 58 | 2610998114 | Locking Lever |
| 58 | 2602099021 | Locking Lever Black |
| 59 | 2610998116 | Compression Spring |
| 59 | 2610998116 | Compression Spring |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 60 | 2610998113 | Reversing Switch |
| 60 | 2602026134 | Reversing Switch Black |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 653 | 1612025020 | Auxiliary Handle Ø43 MM |
| 653 | 1612025020 | Auxiliary Handle Ø43 MM |
| 653/1 | 1612025019 | Auxiliary Handle M8 |
| 653/1 | 1612025019 | Auxiliary Handle M8 |
| 653/2 | 1618040077 | Support clamp |
| 653/2 | 1618040077 | Support clamp |
| 653/3 | 1613521001 | Stud bolt M8 |
| 653/3 | 1613521001 | Stud bolt M8 |
| 653/4 | 1611316003 | Clamping Band Ø43 MM |
| 653/4 | 1611316003 | Clamping Band Ø43 MM |
| 653/5 | 1613100012 | Straight Pin |
| 653/5 | 1613100012 | Straight Pin |
| 653/6 | 2603480006 | Wing Screw |
| 653/6 | 1613480009 | Wing Screw M6X25 MM |
| 653/7 | 1613300006 | Hex Nut M6 |
| 653/7 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 653/8 | 1611030010 | Clamping Plate |
| 653/8 | 1611030010 | Clamping Plate |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2604011900 | Armature |
| 803 | 2604011900 | Armature |
| 804 | 2607200920 | Switch |
| 804 | 2607200920 | Switch |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 2601115046 | Marking Plate |
| 808 | 2601116765 | Marking Plate |
| 808 | 2601116916 | Marking Plate |
| 808 | 2601117741 | Marking Plate |
| 810 | 1607000484 | Carbon-Brush Set 10 X 2 604 321 905 |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321905 | Carbon-Brush Set |
| 825 | 2610916683 | Gear Housing |
| 825 | 2610916683 | Gear Housing |
| 828 | 2610998153 | Pivot Plate |
| 828 | 2610998153 | Pivot Plate |
| 836 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 836 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 836/100 | 2607950007 | Chuck Wrench SG2 |
| 836/100 | 2607950007 | Chuck Wrench SG2 |
| 842 | 2610907370 | Drive Shaft |
| 842 | 2610907370 | Drive Shaft |
| 843 | 2610998150 | Toothed Shaft |
| 843 | 2610998150 | Toothed Shaft |
| 847 | 2610998149 | Toothed Shaft |
| 847 | 2610998149 | Toothed Shaft |
| 895 | 3605430003 | Grease Tube Albida |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 160111C0NX | Manufacturer's nameplate GBM 13 Hre |
| 9 | 2601111831 | Manufacturer's nameplate |
| 9 | 2601117740 | Manufacturer's nameplate |
