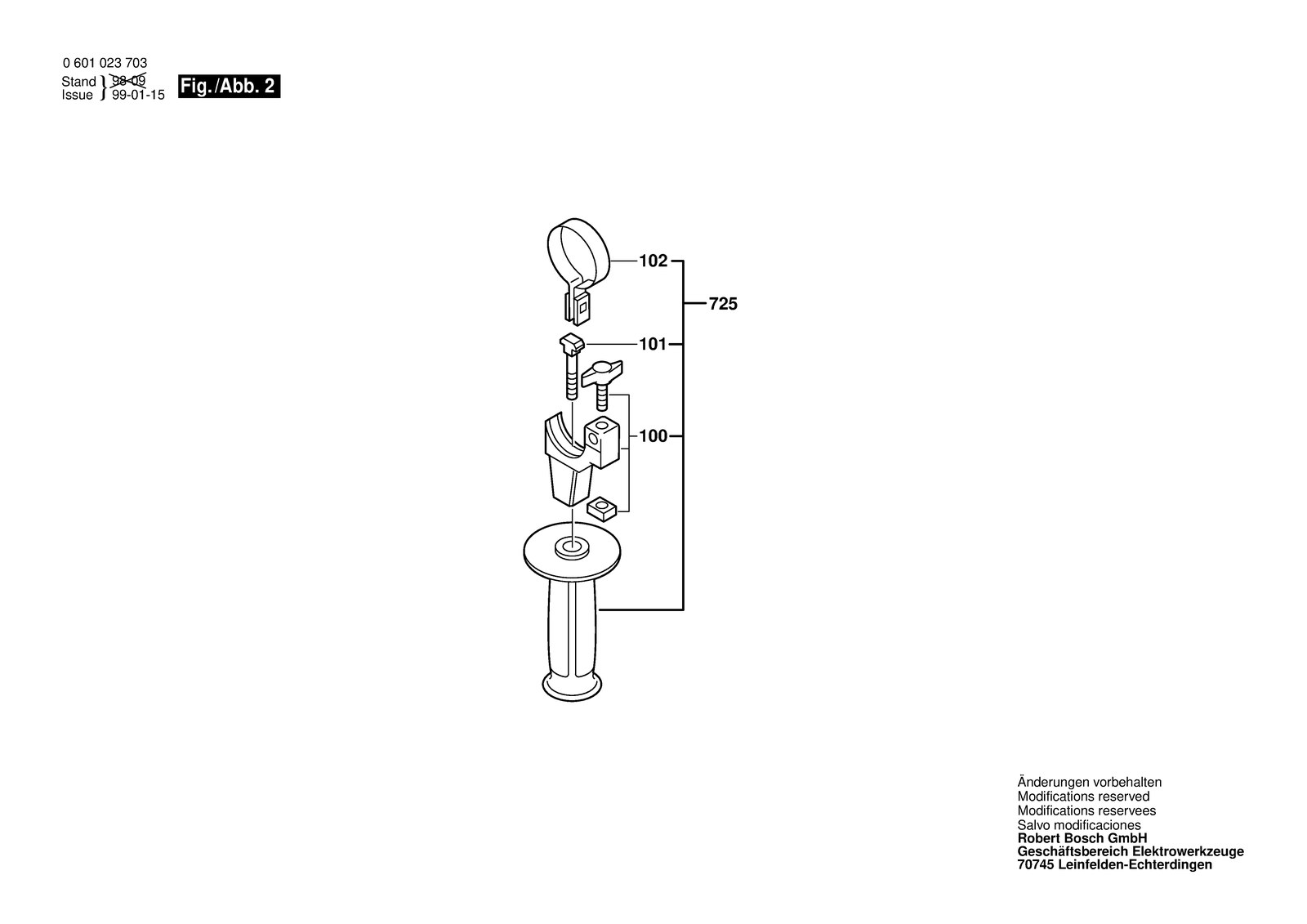

Bosch GBM 13 HRE drill: exploded parts diagram, 2 sheets, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 13 HRE: 50 positions on 2 sheets
Bosch GBM 13 HRE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 3608040505 | Support clamp |
| 101 | 1613490002 | T-Head Bolt M8X40 MM |
| 102 | 1611316006 | Clamping Band Ø43 MM |
| 103 | 1612025019 | Auxiliary Handle M8 |
| 12 | 2607329114 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 20 | 2610993062 | Reference Plate |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 3600590505 | Cover Disc |
| 30 | 3602391503 | Rubber Buffer |
| 35 | 3603430512 | Countersunk-Head Screw |
| 36 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 37 | 2610914380 | Tapping Screw |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 4 | 2607200357 | Switch |
| 40 | 2604448005 | Cable White L=130 MM |
| 41 | 3601016503 | Sealing disk |
| 42 | 3606120546 | Drilling Spindle |
| 44 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 48 | 3616318505 | Cylindrical Gear |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 50 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 51 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 52 | 2610914920 | Tapping Screw |
| 53 | 2604448074 | Connecting Cable Black L=98 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 58 | 2607200231 | Change-Over Switch |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 65 | 2604465086 | Suppression Filter Black L=148 MM |
| 66 | 2607950007 | Chuck Wrench SG2 |
| 69 | 2604448103 | Earth Conductor |
| 7 | 2601035001 | Cable Clip |
| 725 | 3602025504 | Auxiliary Handle M8 |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 802 | 2604220392 | Field 230V |
| 803 | 2604010803 | Armature 230V |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 3601119718 | Nameplate |
| 810 | 2604321905 | Carbon-Brush Set |
| 825 | 3605190525 | Gear Housing |
| 828 | 3605806543 | Intermediate Flange |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 847 | 3606319523 | Gear Shaft |
| 859 | 3606319524 | Conversion Gear |
| 9 | 2610993061 | Manufacturer's nameplate |
