Bosch GBM 13-2 RE

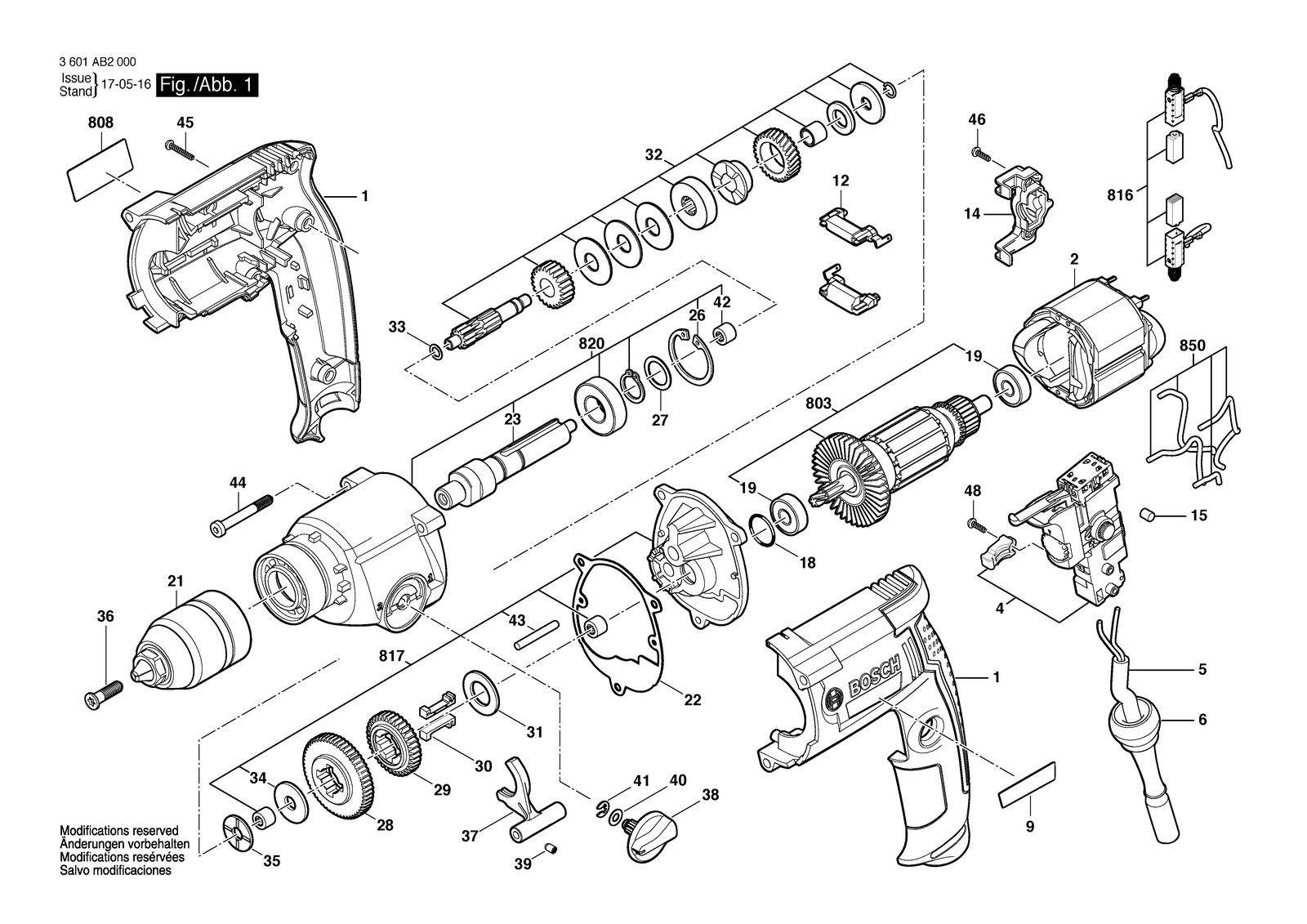

Bosch GBM 13-2 RE drill: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 13-2 RE: 55 positions on 1 sheet
Bosch GBM 13-2 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082FA | Motor Housing |
| 12 | 1617328032 | Suppression Filter |
| 14 | 1618B0080A | Bearing Bracket |
| 15 | 2603100056 | Damping rubber |
| 18 | 160021005W | O-Ring |
| 19 | 1600905032 | Groove ball bearing 8X22X7 |
| 2 | 1604220462 | Field 110-127V |
| 2 | 1614220219 | Field 230-240V |
| 21 | 1600A0033L | Keyless Chuck |
| 21 | 2608572184 | Keyless Chuck |
| 22 | 1600A002NH | Gasket |
| 23 | 1600A002RA | Drilling Spindle |
| 26 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 27 | 2600100695 | Shim 0,5 MM |
| 28 | 1600A003NU | Cylindrical Gear |
| 29 | 1600A002NJ | Cylindrical Gear |
| 30 | 2602300033 | Flat Key |
| 31 | 2600101668 | Shim 1,5 MM |
| 32 | 1600A002NK | Transmission |
| 33 | 2600100607 | Shim 0,3 MM |
| 34 | 1600A002NV | Plain Washer |
| 35 | 1600A002NW | Needle bearing |
| 36 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 37 | 1600A011KX | Adjusting Slide |
| 38 | 1600A00381 | Rotary Knob |
| 39 | 2600590006 | Ratchet Cap |
| 4 | 160720030G | Switch |
| 4 | 160720030H | Switch |
| 40 | 2600100618 | Shim washer |
| 41 | 2916080907 | Locking washer 4 DIN 6799 |
| 42 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 43 | 2917530106 | Straight Pin DIN 6325-4M6X32 |
| 44 | 2603435085 | Headless Screw |
| 45 | 1619P00219 | Tapping Screw |
| 46 | 1613435034 | Lens Head Screw 3X10 St |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 803 | 1600A004MT | Armature 230-240V |
| 803 | 1600A004MU | Armature 110V |
| 808 | 160111A3U0 | Nameplate |
| 808 | 160111A3U2 | Nameplate |
| 808 | 160111A3U3 | Nameplate |
| 808 | 160111A3U4 | Nameplate |
| 808 | 160111A3U5 | Nameplate |
| 808 | 160111A3U7 | Nameplate |
| 816 | 1617014146 | Carbon-Brush Set |
| 817 | 1600A004MW | Intermediate Flange |
| 820 | 160580658L | Gear Housing |
| 850 | 1600A004MX | Connecting Cable |
| 9 | 160111C0VJ | Manufacturer's nameplate |
