Bosch GBM 13-2
Bosch GBM 13-2 drill: exploded parts diagram, 2 sheets, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

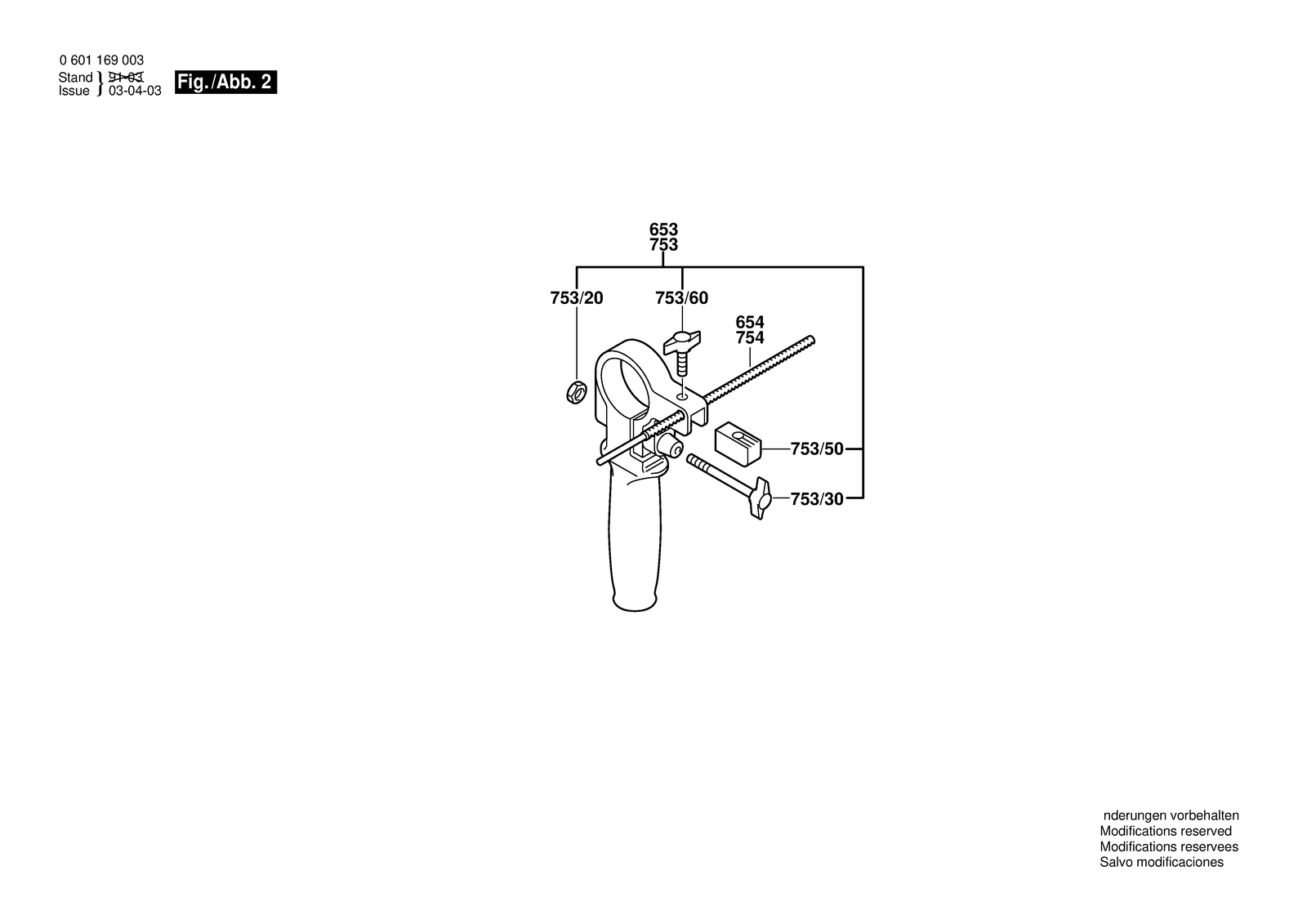

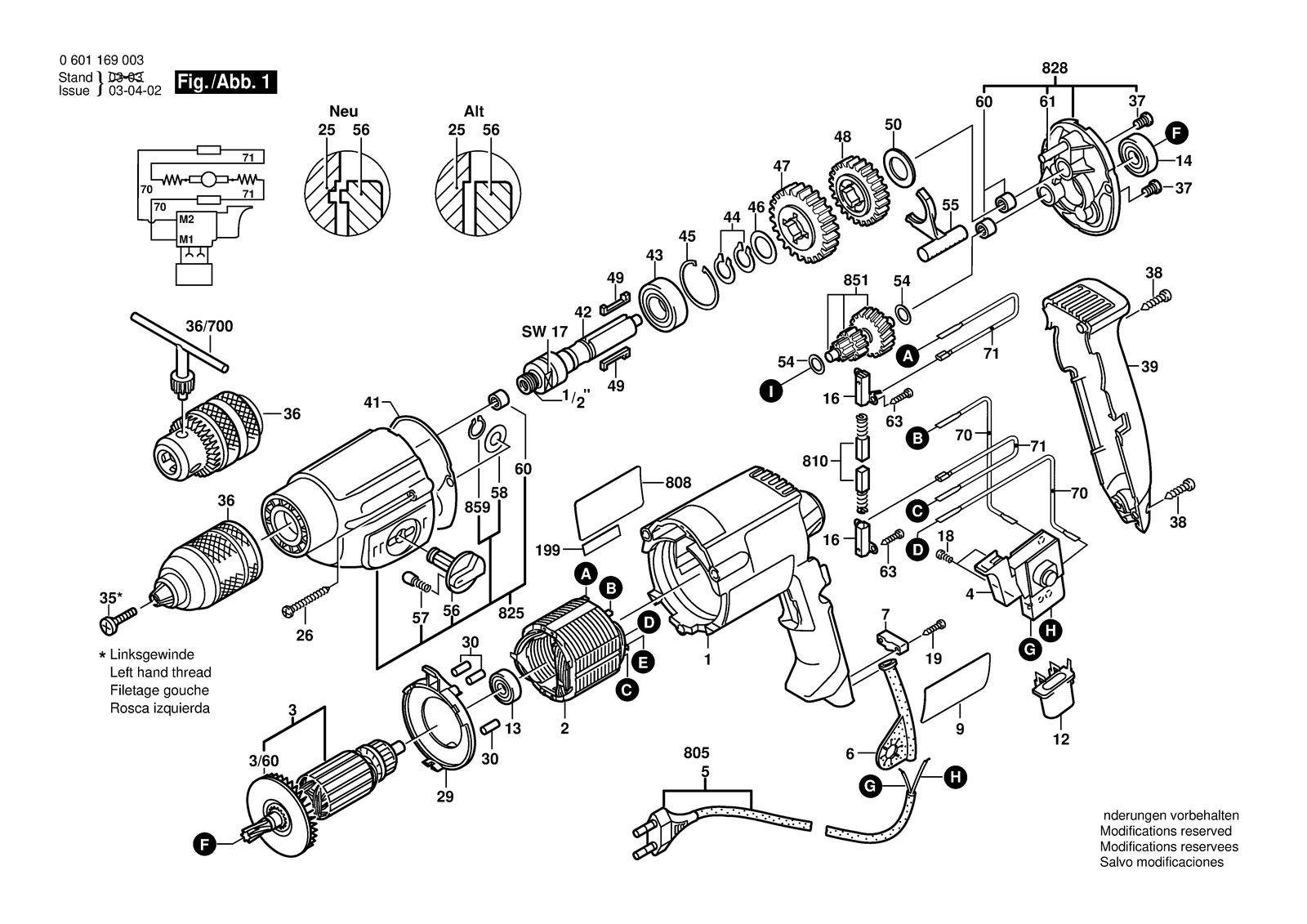

All parts of Bosch GBM 13-2: 80 positions on 2 sheets
Bosch GBM 13-2 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104332 | Motor Housing Blue |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220427 | Field 100V |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220440 | Field 115V |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 2601328046 | Cover Disc |
| 3 | 2604010572 | Armature 100V |
| 3 | 2604010573 | Armature 110-115V |
| 3 | 2604010575 | Armature 220-240V |
| 3 | 2604010632 | Armature 115V |
| 3/60 | 2606610027 | Fan |
| 3/60 | 2606610049 | Fan |
| 30 | 3602391503 | Rubber Buffer |
| 35 | 2603421208 | Countersunk-Head Screw Lefthand Threads M6X38/12(Ø11) |
| 36 | 1608571080 | Key Chuck Ø1,5-13 MM |
| 36 | 1608572009 | Keyless Chuck Ø 1,5-13MM |
| 36 | 2608571076 | Chuck |
| 36/700 | 2607950007 | Chuck Wrench SG2 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 39 | 2605132050 | Housing Cover Blue |
| 4 | 2607200260 | Switch |
| 4 | 2607200365 | On-Off Switch |
| 41 | 2601015012 | Flat Seal Ring |
| 42 | 2606135011 | Drilling Spindle 1/2", SW 17 |
| 43 | 1900905110 | Ball Bearing Ø15 MM |
| 44 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 45 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 46 | 2600100695 | Shim 0,5 MM |
| 47 | 2606316316 | Cylindrical Gear |
| 48 | 2606316317 | Cylindrical Gear |
| 49 | 2602300033 | Flat Key |
| 5 | 1604460431 | Power supply cord |
| 5 | 160446072V | Power supply cord IND 230V 2,15 M 2 X 0,75 MM H05VV-F |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460140 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460208 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460282 | Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2600101668 | Shim 1,5 MM |
| 54 | 2600100607 | Shim 0,3 MM |
| 55 | 2602033007 | Adjusting Slide Black |
| 56 | 2602026006 | Rotary Knob |
| 57 | 2600590006 | Ratchet Cap |
| 58 | 2600100618 | Shim washer |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 60 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 61 | 2603105043 | Holding Pin |
| 63 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 63 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2604448005 | Cable White L=130 MM |
| 71 | 2604448100 | Connecting Cable White L=68 MM |
| 71 | 2604448133 | Connecting Cable White L=96MM |
| 753 | 1619PB4323 | Auxiliary Handle |
| 753/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 753/30 | 1613480007 | Wing Screw M6X(15)55 |
| 753/50 | 2608040014 | Clamping Plate M6 |
| 753/60 | 1613480008 | Wing Screw M6X20 MM |
| 754 | 2603001019 | Depth-Gauge |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 9920490116 | Reference Plate Shadow Side |
| 810 | 1607000484 | Carbon-Brush Set 10 X 2 604 321 905 |
| 810 | 2604321905 | Carbon-Brush Set |
| 825 | 2605806997 | Gear Housing Black |
| 828 | 2605700940 | Intermediate Flange |
| 851 | 2606308915 | Toothed Shaft Z=29/18/11 |
| 859 | 2916080007 | Locking washer DIN 6799-4-FST |
| 9 | 2601116663 | Manufacturer's nameplate |
