Bosch GBM 12 VES-2

Bosch GBM 12 VES-2 cordless drill battery without charger: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 12 VES-2: 35 positions on 1 sheet

Bosch GBM 12 VES-2 parts list (1 sheet)

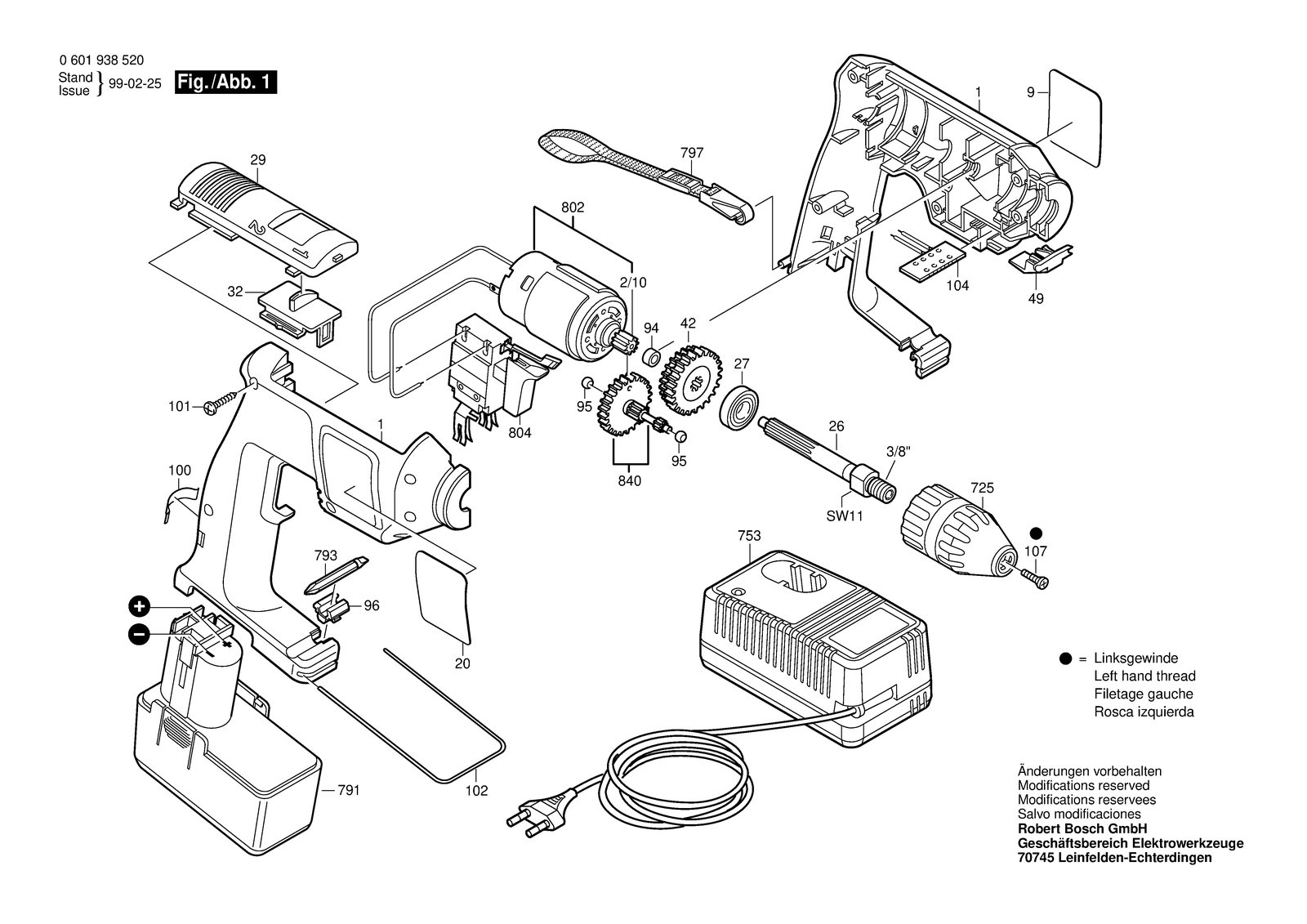

Bosch GBM 12 VES-2 parts diagram, sheet 1
No.Part numberPart name
12605104514Housing Section Blue
1002601322016Clamp Spring
1012603490022Screw 4X16
1022601329041Retaining Bracket
1042608018004Contact retainer
1072609110721Countersunk-Head Screw M5X20
2/102606316112Pinion Z=11
202601118778Reference Plate
262606309050Drilling Spindle 3/8"
271900905120Groove ball bearing 10X26X8
292605510136Insert Piece Black
322601099056Adjusting Slide Black
421609340007Cylindrical Gear Z=58/67
492605510117Insert Piece Black
7252608572093Keyless Chuck Ø 2-13 MM,3/8"
7532607224425Fast Charger EU 230/7,2-24V, 1H
7532607224427Fast Charger GB 230/7,2-24V, 1H
7532607224431Fast Charger USA 120/7,2-24V, 1H
7532607224443Fast Charger AUS 240/7,2-14,4V, 1H
7532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
7532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
7532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
7532607224708Fast Charger USA 120/7,2-14,4V, 30 Min.
7912607335039Slide-In Accu Package 12V, 1,7AH, Nicd
7912607335148Slide-In Accu Package 12V,2,0AH,NICD
7932608521018Screwdriver Blade
7972601398009Carrying Loop
8022607022928DC motor 9,6-12V
8042607200329On-Off Switch
8042607200393On-Off Switch
8401609340005Toothed Shaft Z=10/19/81
92601118777Manufacturer's nameplate
942600301011Sintered-Metal Bushing
952600302013Sintered-Metal Bushing
962608040131Support
