Bosch GBM 12 VE cordless drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 12 VE: 38 positions on 1 sheet

Bosch GBM 12 VE parts list (1 sheet)

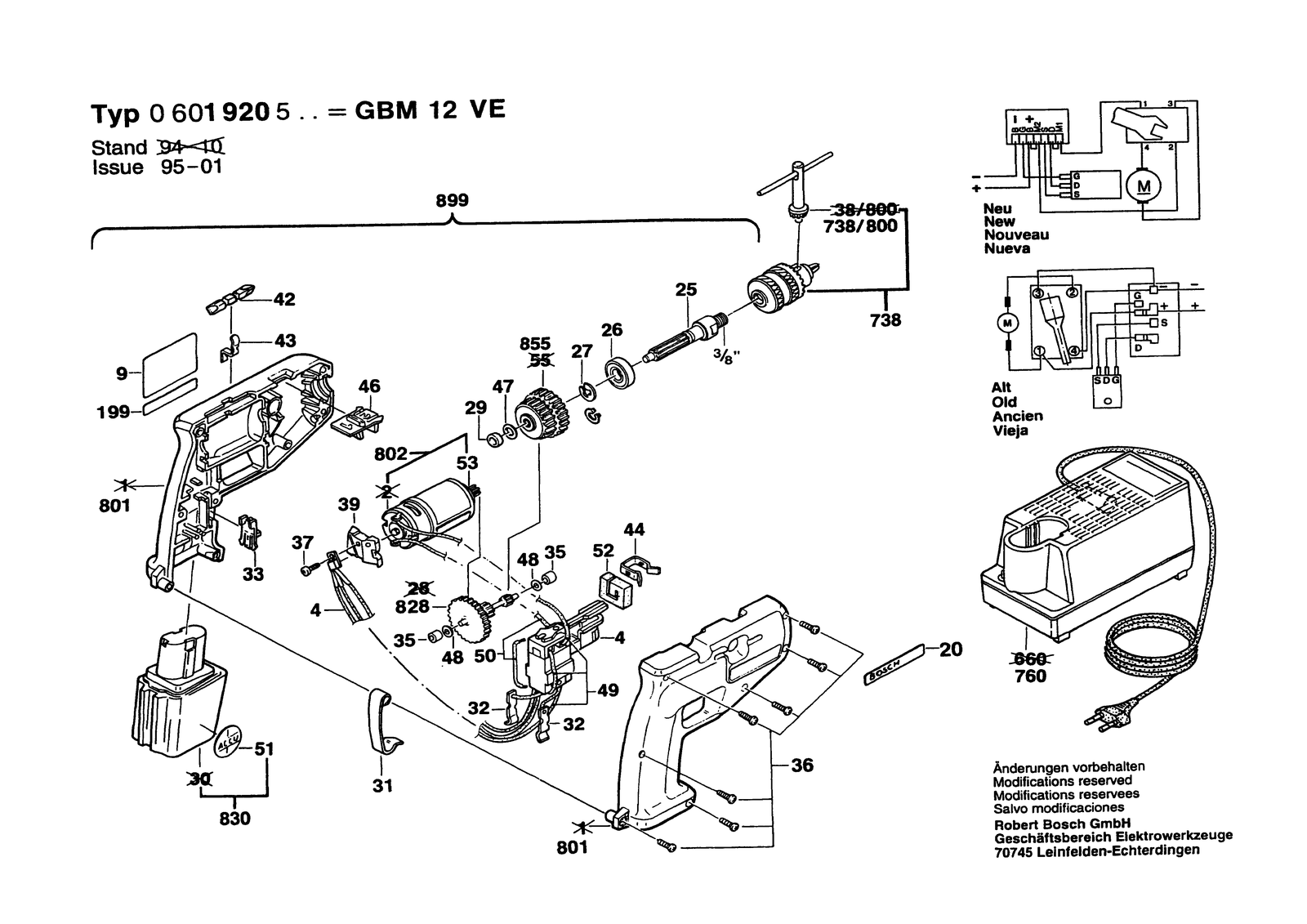

Bosch GBM 12 VE parts diagram, sheet 1
No.Part numberPart name
1991601110265Reference Plate
202601110606Sticker Shadow Side
252606135018Drilling Spindle 3/8"
261900905120Groove ball bearing 10X26X8
272916650001Spring retaining ring DIN 471-10X1MM-FST
292600301011Sintered-Metal Bushing
312601251003Holding Spring Ø8,7 MM
322601324012Contact Spring
332601099026Locking Lever 36,5 MM
352600302002Sintered-Metal Bushing
362603490022Screw 4X16
372910641050Oval-Head Screw DIN 7985-M3X8-4.8
392605715000Heat Sink
42607200302On-Off Switch
421609200147Screwdriver Blade 6 MM
432601250002Holding Spring
442601250003Clamp Spring
462601099027Adjusting Slide Black
482600100607Shim 0,3 MM
482600100636Shim Thick 0,3 MM
492604413005Connecting Cable White L=52 MM
502604413004Connecting Cable White L=79 MM
522601010038Dust Protection
532606316112Pinion Z=11
7381608571066Key Chuck Ø1-10 Mm, 3/8"
738/8001607950042Chuck Wrench SG 1, Ø4X60 MM
7602607224425Fast Charger EU 230/7,2-24V, 1H
7602607224427Fast Charger GB 230/7,2-24V, 1H
7602607224431Fast Charger USA 120/7,2-24V, 1H
7602607224435Fast Charger J 100/7,2-24V, 1H
7602607224443Fast Charger AUS 240/7,2-14,4V, 1H
8012605104873Housing Section Blue
8022607022910DC motor 12V
8281609340005Toothed Shaft Z=10/19/81
8302607335021Slide-In Accu Package 12V, 1,4AH, Nicd
8551609340007Cylindrical Gear Z=58/67
8990601920520Cordless Drill
92601118083Sticker Sunny Side
