Bosch GBM 10 RE

Bosch GBM 10 RE drill: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10 RE: 22 positions on 1 sheet

Bosch GBM 10 RE parts list (1 sheet)

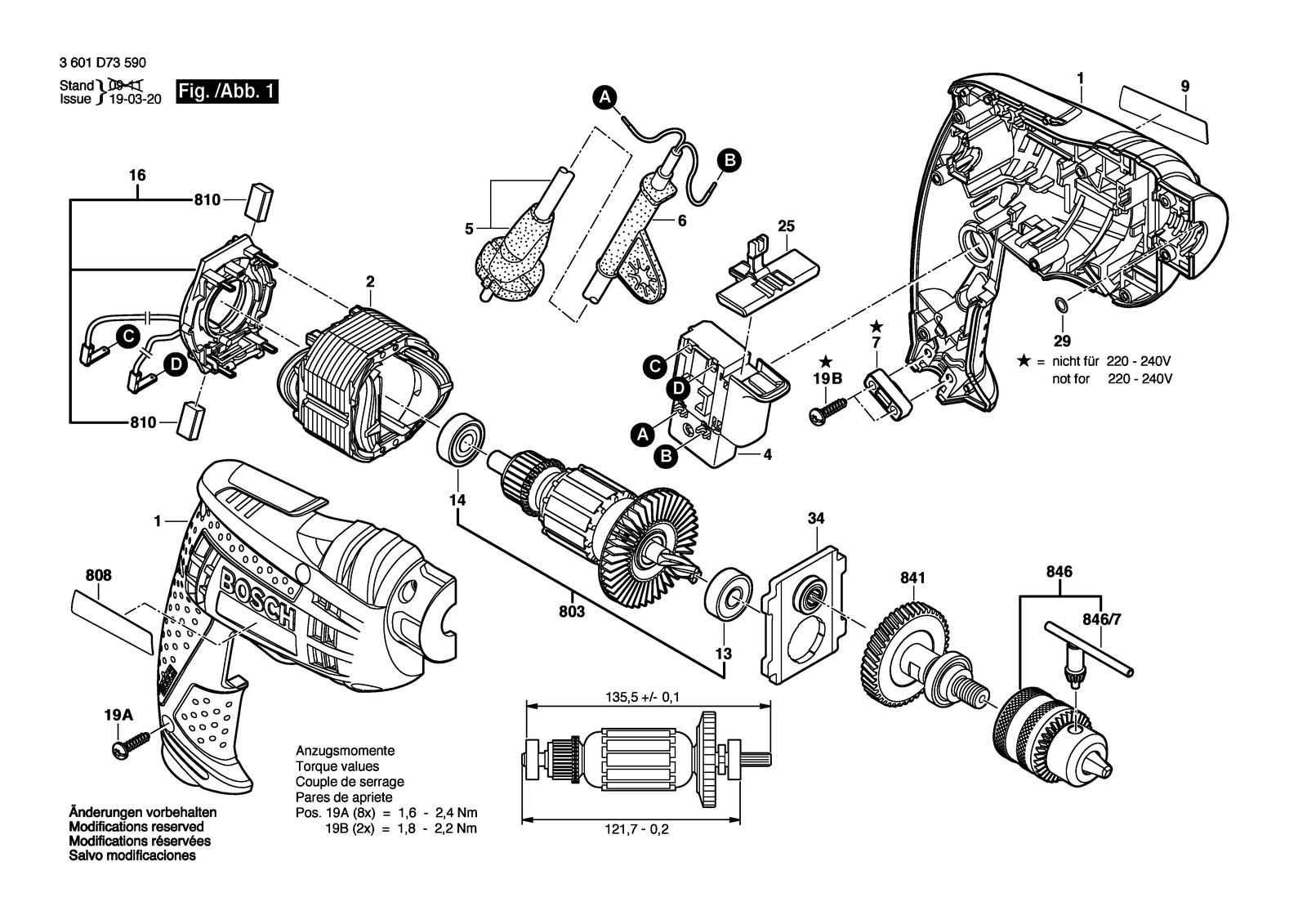

Bosch GBM 10 RE parts diagram, sheet 1
No.Part numberPart name
12609100574Motor Housing Blue
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162609120356Brush Plate
22604220718Field 230V
252609100618Reversing Switch
291900210000O-Ring 5,0X1,5 MM
342609199158Bearing Bracket
42607200623Switch
51604460287Power supply cord I/br 4,15M 2 X 1,0MM H05VV-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
62600707059Grommet Ø6,9 MM
72601035001Cable Clip
8031619PS1135Armature set
8082609135682Nameplate
8082609135685Nameplate
8101607000491Carbon-Brush Set 10 X 2 610 391 290
8102610391290Carbon-Brush Set
8412609120408Spindle Assembly
8461608571079Chuck Ø1,0-10 Mm, 3/8"
846/72607950007Chuck Wrench SG2
92609131665Manufacturer's nameplate GBM 10 Re
